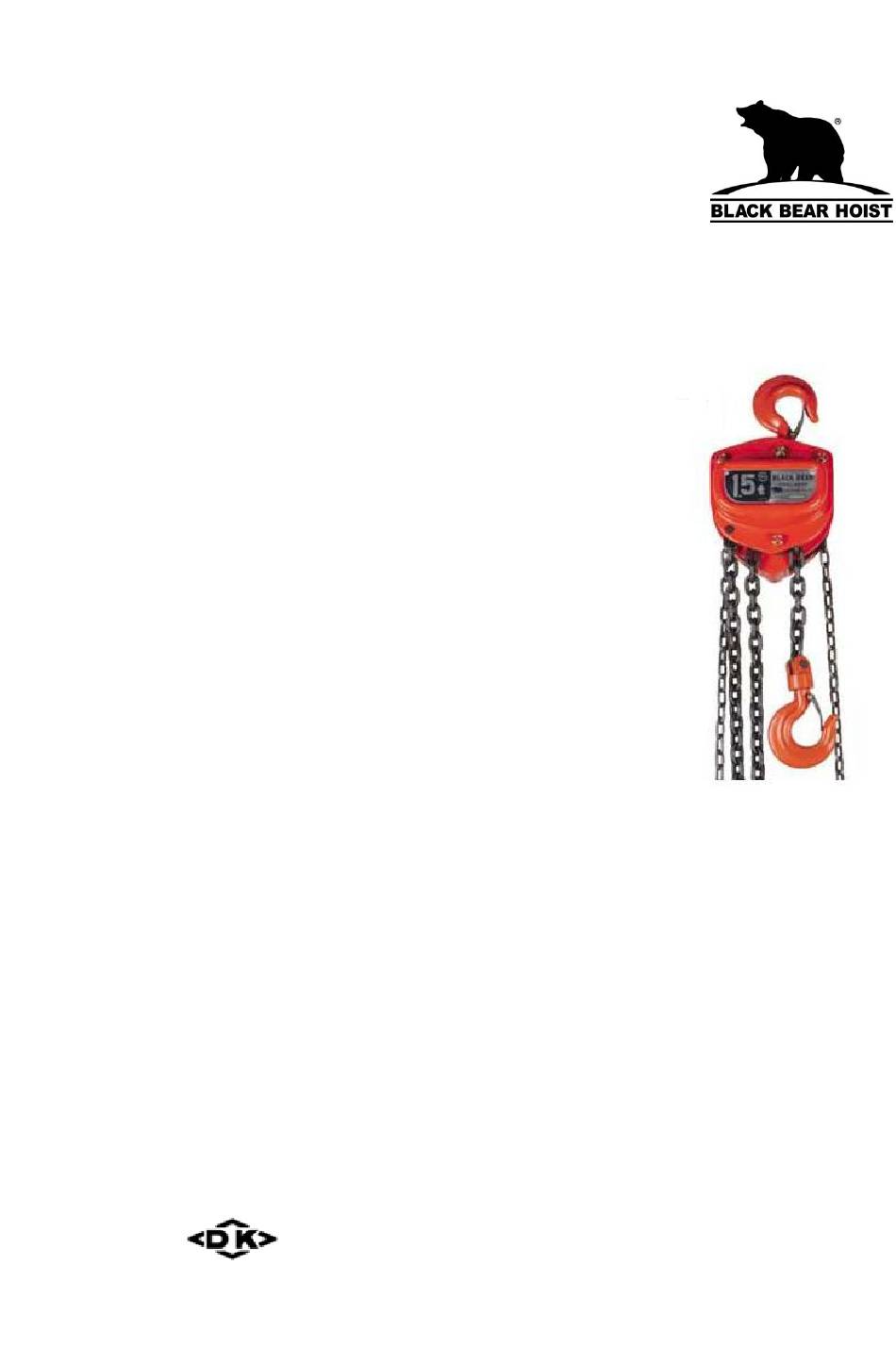

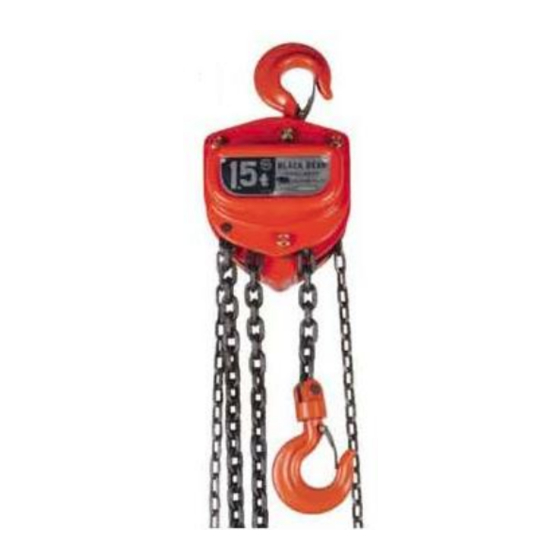

- Page 1 BLACK BEAR HOIST CHAIN BLOCK USER MANUAL DAEKYUNG CO., LTD. Black Bear is a registered trademark of Daekyung Co., Ltd. 1521-6 Dadae-dong, Saha-gu, Busan, Korea Tel: +82)51-264-6611 Fax: +82)51-264-6615...
-
Page 2: Table Of Contents
7.2 Periodic Inspection and Adjustment 7.3 Check List 7.4 Lubrication 7.5 Limitation of Hook and Load Chain Use 8. Warranty -------------------------------------------- 18 Black Bear is a registered trademark of Daekyung Co., Ltd. 1521-6 Dadae-dong, Saha-gu, Busan, Korea Tel: +82)51-264-6611 Fax: +82)51-264-6615... -
Page 3: Safety
3. When a "DO NOT OPERATE" sign is placed (on any part of the hoist), do not operate the hoist until the sign has been removed by a designated personnel. - 3 - Black Bear is a registered trademark of Daekyung Co., Ltd. 1521-6 Dadae-dong, Saha-gu, Busan, Korea Tel: +82)51-264-6611 Fax: +82)51-264-6615... -
Page 4: General Terms & Specification
⑥ Bottom Hook ⑦ Chain Pin ⑧ Safety Latch ⑤ ④ ⑧ ⑦ [ Pic 2.1 ] ⑥ - 4 - Black Bear is a registered trademark of Daekyung Co., Ltd. 1521-6 Dadae-dong, Saha-gu, Busan, Korea Tel: +82)51-264-6611 Fax: +82)51-264-6615... - Page 5 Load Chain Anchoring Pin Top Hook with Holder Cotter Pin for No. 31 Stripper Bottom Hook with Holder - 5 - Black Bear is a registered trademark of Daekyung Co., Ltd. 1521-6 Dadae-dong, Saha-gu, Busan, Korea Tel: +82)51-264-6611 Fax: +82)51-264-6615...
-
Page 6: Specification
Ф11.1 x P33.3 1950 930.0 3. Transportation and Storage Daekyung Co., Ltd. is not responsible for any damage resulting from improper transport or storage. 3.1 Transportation - Black Bear hoists are thoroughly checked and packed before delivery. - Do not throw or drop the hoist. -
Page 7: Preliminary Cautions Before Installation
All personnel operating the hoist/trolley should use and wear proper safety measures (gloves, safety shoes, safety helmet) to avoid possible danger. - 7 - Black Bear is a registered trademark of Daekyung Co., Ltd. 1521-6 Dadae-dong, Saha-gu, Busan, Korea Tel: +82)51-264-6611 Fax: +82)51-264-6615... -
Page 8: Installation
Check the surroundings of the work area before installing and using the hoist. Check the fixed structures of the work area. - 8 - Black Bear is a registered trademark of Daekyung Co., Ltd. 1521-6 Dadae-dong, Saha-gu, Busan, Korea Tel: +82)51-264-6611 Fax: +82)51-264-6615... -
Page 9: Initial Test
Check if the hook goes up when hand chain is pulled down to “B” direction. * Example : [DH-020] Chain Block 2.0 Ton “A” “B” “UP” [ Pic 5.2 ] “DOWN” - 9 - Black Bear is a registered trademark of Daekyung Co., Ltd. 1521-6 Dadae-dong, Saha-gu, Busan, Korea Tel: +82)51-264-6611 Fax: +82)51-264-6615... -
Page 10: Cautions
1) Voluntary remodeling of the hoist by the user is strictly prohibited. 2) Use of this hoist as elevator (for both passenger and freight) is strictly prohibited. - 10 - Black Bear is a registered trademark of Daekyung Co., Ltd. 1521-6 Dadae-dong, Saha-gu, Busan, Korea Tel: +82)51-264-6611 Fax: +82)51-264-6615... -
Page 11: Lifting
12) Never wind up the Load Chain around the load. It is dangerous because Load Chain has weak horizontal pulling strength. - 12 - Black Bear is a registered trademark of Daekyung Co., Ltd. 1521-6 Dadae-dong, Saha-gu, Busan, Korea Tel: +82)51-264-6611 Fax: +82)51-264-6615... -
Page 12: Cautions During Lifting/Hoist Operation
13) Stop the hoist immediately if chains are making unusual or excessive noise, blocking over the load, or binding occurs. - 12 - Black Bear is a registered trademark of Daekyung Co., Ltd. 1521-6 Dadae-dong, Saha-gu, Busan, Korea Tel: +82)51-264-6611 Fax: +82)51-264-6615... -
Page 13: Maintenance
- Is the Safety Latch of the bottom hook (of hoist) properly installed? - Is the Load Chain lubricated with oil? - 13 - Black Bear is a registered trademark of Daekyung Co., Ltd. 1521-6 Dadae-dong, Saha-gu, Busan, Korea Tel: +82)51-264-6611 Fax: +82)51-264-6615... - Page 14 Measure the hook opening length. Replace the hook if the length go over the llowable limit. [ Refer to 7.5.2 ] - 14 - Black Bear is a registered trademark of Daekyung Co., Ltd. 1521-6 Dadae-dong, Saha-gu, Busan, Korea Tel: +82)51-264-6611 Fax: +82)51-264-6615...
-
Page 15: Check List
Safety Latch must be in place and it should move freely. Other Hand Chain Hand chain must operate smoothly. - 15 - Black Bear is a registered trademark of Daekyung Co., Ltd. 1521-6 Dadae-dong, Saha-gu, Busan, Korea Tel: +82)51-264-6611 Fax: +82)51-264-6615... -
Page 16: Lubrication
34.3 11.1 10.6 30.0 33.3 34.3 11.1 10.6 40.0 33.3 34.3 11.1 10.6 50.0 33.3 34.3 11.1 10.6 - 16 - Black Bear is a registered trademark of Daekyung Co., Ltd. 1521-6 Dadae-dong, Saha-gu, Busan, Korea Tel: +82)51-264-6611 Fax: +82)51-264-6615... - Page 17 Replace the load chain and hook if the dimensions go over the allowable limit (refer to Table 7.5.1 and 7.5.2) - 17 - Black Bear is a registered trademark of Daekyung Co., Ltd. 1521-6 Dadae-dong, Saha-gu, Busan, Korea Tel: +82)51-264-6611 Fax: +82)51-264-6615...
-
Page 18: Warranty
- Problems due to voluntary repair/remodeling of the hoist by the user or anybody else other than Daekyung Co., Ltd. or service points appointed by Daekyung Co. ltd. - Problems due to use of the hoist in other special/particular environments or working areas (Please consult with Daekyung Co., Ltd.
