COLPOSCOPE

MODEL 985 LED

OWNER'S MANUAL

PRECISION MICROSCOPES

Table of Contents

Need help?

Do you have a question about the Coolscope 985 LED and is the answer not in the manual?

Questions and answers

Summary of Contents for Seiler Coolscope 985 LED

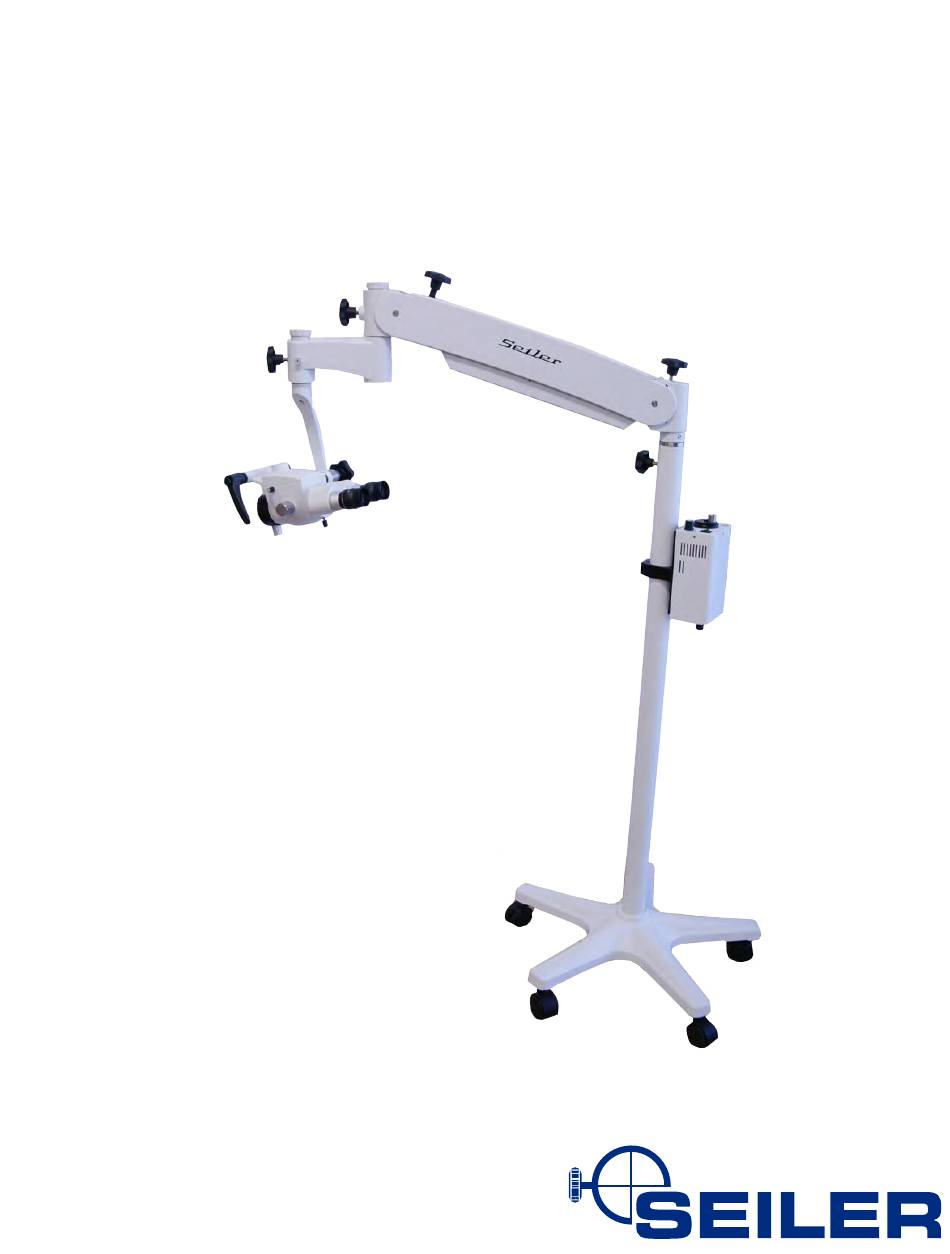

Page 1 COLPOSCOPE MODEL 985 LED OWNER’S MANUAL PRECISION MICROSCOPES...
Page 2 PRECISION MICROSCOPES We are here to serve you! If you have any questions regarding Seiler’s products or services, please feel free to contact us. Toll-Free: 800.489.2282 Local: 314.968.2282 Fax: 314.968.3601 E-mail: micro@seilerinst.com www.seilerinst.com • Microscope Division Manager Dane Carlson ext. 365 • dcarlson@seilerinst.com •...
Page 3: Table Of Contents
TABLE OF CONTENTS INDICATIONS FOR USE TECHNICAL DATA BINOCULARS OBJECTIVE COLPOSCOPE ASSEMBLY COLPOSCOPE HANDLING HOW TO FOCUS THE COLPOSCOPE OPTICAL AND FIELD MAGNIFCATION TABLE CLEANING TROUBLESHOOTING TIPS LED LIGHTSOURCE OWNER’S RECORD NOTES...
Page 4: Indications For Use
INDICATIONS FOR USE The Seiler Colposcope is intended to provide magnified visualization of the tissues of the vulva, vagina, cervix, and ano- genital area. It is used to evaluate these tissues, select areas for biopsy, as necessary, and to facilitate related proce- dures, e.g., LEEP, conization, etc.
Page 5: Binoculars
BINOCULARS 1. Binoculars body 2. Eyepieces with diopter adjustment 3. Eye Protectors OBJECTIVE The Colposcopes are factory shipped with the following objective: F = 300 mm The following optional objectives are available: F = 175 mm F = 200 mm F = 250 mm F = 400 mm...
Page 6: Colposcope Assembly
COLPOSCOPE ASSEMBLY Step 1 Place post into base with pin in base, lined up with notch in post. Step 2 Install bolt and tighten securely with Allen wrench (provided). Step 3 Place arm into pole. Step 4 Install extension arm by pulling plunger and inserting into Pantographic arm.
Page 7: Colposcope Handling
COLPOSCOPE HANDLING a- MAGNIFICATION SELECTOR The magnification selector has 6 positions, engraved from 1 to 5. Note that the position 3 repeats. The position being used is the one aligned to the black dot, engraved on the body. The magnification factors are found in the table appended.
Page 8: Optical And Field Magnifcation Table
OPTICAL AND FIELD MAGNIFCATION TABLE The optical magnifications achieved with the Colposcope are determined by 3 variables: the objective focal distance, the position of the Magnification Selector and the by eyepiece used. The table shows the optical magnification and the observed field diameters, in millimeters, depending on those variables.
Page 9: Led Lightsource
LED LIGHTSOURCE 1. INTRODUCTION Congratulations on the purchase of your new SSL-2000 Light Source! This user-friendly LED light source is a high efficiency light source utilizing state of-the-art superior illumination technology. It offers a variety of features such as: • 6500º K daylight brightness for good color definition •...
Page 10 3. SPECIFICATIONS Item Specification Light Source Type LED (Light Emitting Diode) Power 50 Watt Color Temperature 6500º K Led life 50,000 hours (typical) Light guide adapter Brightness control PWM (Pulse-width Modulation) – 0-100% Dimming Input voltage 100-240V AC, 50/60 Hz Rated Power 52 watt Regulatory Approvals...
Page 11 4.2 REAR PANEL Figure 2. LED Light Source Rear Panel Name Function AC main inlet Accepts AC power cord Fuse 2A, 250V (1/4” x 1 ¼”) time delay Grounding Connector For potential equalization Venting grids Allows adequate ventilation and cooling of the light source 4.3 Bottom Panel Figure 3.
Page 12 5. INSTALLATION 5.1 SETTING UP THE LED LIGHT SOURCE Place the LED light source on a stable surface (cart, counter, stand, etc.). NOTE: Avoid places where the light source may be splashed with liquid. Absolutely DO NOT use in any environment with explosive or flammable gases. DO NOT block the venting grids of the LED light source.
Page 13 Seiler Instrument. This warranty gives you specific legal rights and you may also have other rights that vary from state to state.
Page 14 10. END OF PRODUCT LIFE We encourage our customers to recycle this product whenever possible. Disposal of this unit must be performed in ac- cordance with the applicable local environmental regulations. In the United States a list of recyclers in your area can be found at: http:/www.eiae.org/. Please contact customer service to issue a return authorization to return product to manufacturer at the end of product life.
Page 15: Owner's Record
OWNER’S RECORD Model Number Serial Number Date Purchased Location Purchased NOTES...
Page 16 PRECISION MICROSCOPES 3433 Tree Court Industrial Blvd. St. Louis, Missouri 63122 Toll Free: (800) 489-2282 Local: (314) 968-2282 Email: micro@seilerinst.com Web: www.seilerinst.com Version 09/22/14...
