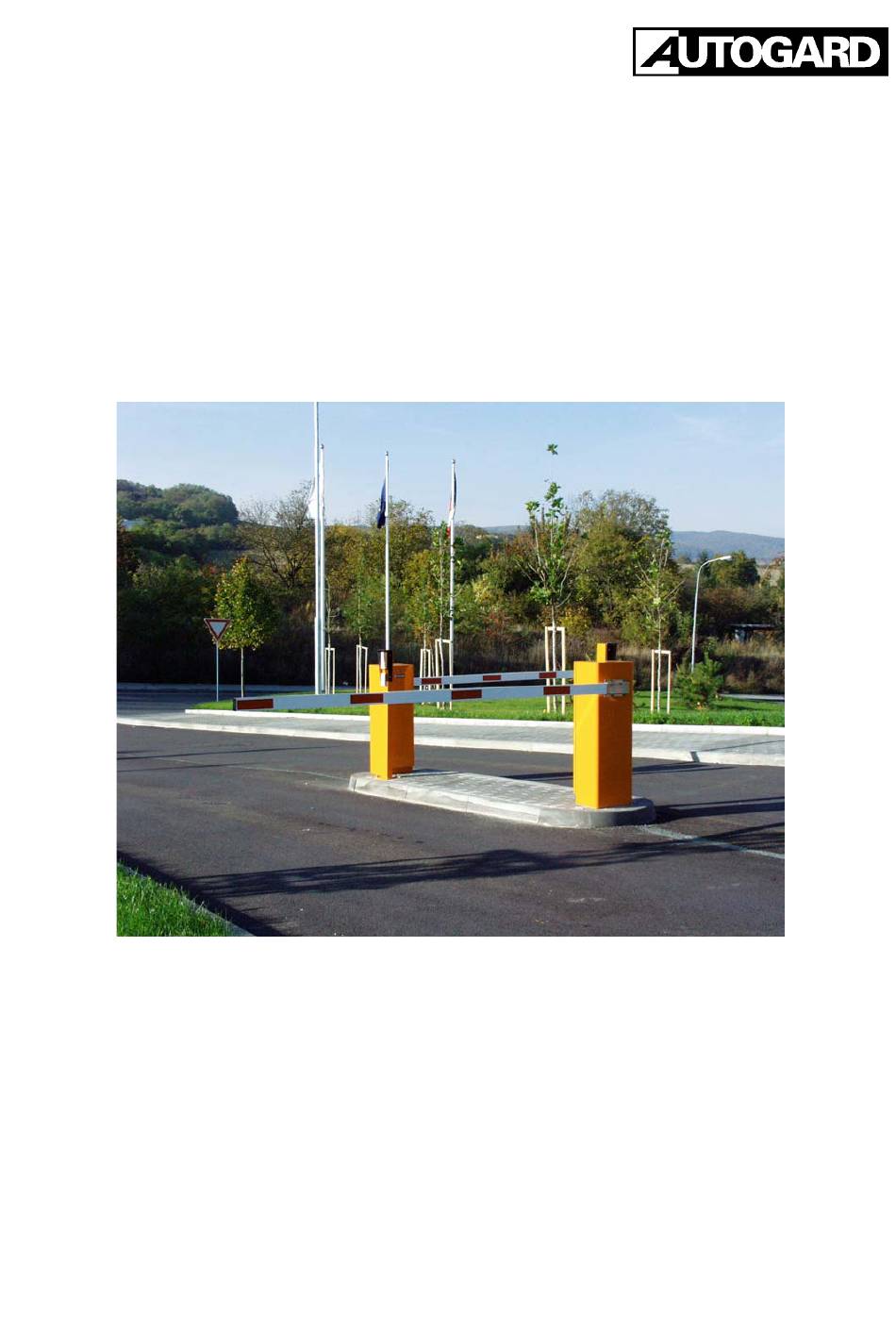

  • Page 1 Automatic road gates AG/500, AG/900, AG/M1 Operating instructions Manufactured by: AUTOGARD spol. s r.o. Dornych 47, 617 00 Brno, CZ tel.: +420 - 5 - 45 53 54 62 - 3, fax.: +420-5-45 53 54 65 e-mail: autogard@autogard.cz http://www.autogard.cz...

  • Page 2: Introduction

    There is installed the control unit with microprocessor (AGN 2.0 / AGN 2.1). The case is made from sheet iron flesh 2,5 mm (type AG/500) or alternatively 3 mm (type AG/900), with zinc and coated by pulverized polyester dye colour.
  • Page 3 Operation instructions for road gates AG/500, AG/900, AG/M1 Outlet journal of AG/500 © Autogard spol. s r.o. 2004...
  • Page 4 Operation instructions for road gates AG/500, AG/900, AG/M1 Outlet journal of AG/900 © Autogard spol. s r.o. 2004...

  • Page 5: Foundation Kit Positioning

    Operation instructions for road gates AG/500, AG/900, AG/M1 Foundation kit positioning The road gate is installed on fast mounted (on the concrete base, welded to iron ground etc.) foundation kit, which include foundation plate and 4 long screws M12 along with females intended for the concreting.

  • Page 6: Setting Of Gate And Fixing Of Rod

    Operation instructions for road gates AG/500, AG/900, AG/M1 Setting of gate and fixing of rod Unpack gate lodge to right clear guy kit with from off-screw nuts and without gate doors, so that we need fully check the setting of the gate on the screws M12 and booting of all cables through the aperture at bottom gate.

  • Page 7: The Rod Balancing With Spring

    Operation instructions for road gates AG/500, AG/900, AG/M1 The rod balancing with spring After assembling of the gate is necessary check the balancing of the rod with the spring / springs choose by previous table. Every piece of make road gate is assembled for specified rod length, rice time, spring balancing.

  • Page 8: Control Unit Agn2.0 / Agn2.1

    Operation instructions for road gates AG/500, AG/900, AG/M1 Control unit AGN2.0 / AGN2.1 Barriers of mod. AG500 a AG900 AGM1 are delivered with control unit AGN2.0 / AGN2.1 on microprocessor basis which enable to adapt plug-in modules of radio receiver and loop detector.
  • Page 9 Operation instructions for road gates AG/500, AG/900, AG/M1 Description of AGN2.0 / AGN2.1 connectors : Part Signal POWER Power supply 230V AC – L wire Power supply 230V AC – A wire Power supply 230V AC – PE wire CASE...
  • Page 10 Operation instructions for road gates AG/500, AG/900, AG/M1 Top side of control unit – left part – Input signal Part Signal MAIN SWITCH POWER Head power switch 230V AC fan 24V DC ( for AG/M1) TAMPER - COM Tamper switch terminal (for checking of door opening)
  • Page 11 Operation instructions for road gates AG/500, AG/900, AG/M1 a) Start of control unit: After connecting of power supply red LED in upper right corner is switched-on and in the line of LED behind the plug-in module relative LED according the activated inputs.
  • Page 12 Operation instructions for road gates AG/500, AG/900, AG/M1 Table of programmable functions: Function – Values Pre- number of Description of function setted item DETECTOR – Choice of PLD1 plug-in loop detector function 00 - 02 Not used (00), Safety ( 01 ), safety+closing ( 02 ) RADIO1 –...

  • Page 13: Loop Detector Pld1 - 1-Channel Plug-In Model

    Operation instructions for road gates AG/500, AG/900, AG/M1 Loop detector PLD1 – 1-channel plug-in model For safety functions and automatic closing the barrier after leaving the loop insert plug-in loop detector module to socket "detector". The safety loop connect to LOOP pins.

  • Page 14: Wiring Diagram

    Operation instructions for road gates AG/500, AG/900, AG/M1 Wiring diagram The road gate we can control with all means. For example we can used double button OPEN/CLOSE which required cabling, like on the next wiring diagram. Another eventual means for driving are here:...

  • Page 15: The Ec - Declaration Of The Conformity

    Operation instructions for road gates AG/500, AG/900, AG/M1 The EC – Declaration of the Conformity AUTOGARD spol. s r.o. Dornych 47 617 00 Brno - CZ Ident. No.: 49446053 declare herewith that the below mentioned product on the basis of its conception and construction as well as the versions launched by us fulfils the relevant basic safety requirements of the European directives.

  • Page 16: Certificate

    Operation instructions for road gates AG/500, AG/900, AG/M1 Certificate © Autogard spol. s r.o. 2004...
  • Page 17 Operation instructions for road gates AG/500, AG/900, AG/M1 © Autogard spol. s r.o. 2004...

  • Page 18: Table Of Contents

    Operation instructions for road gates AG/500, AG/900, AG/M1 Contents Introduction ............................2 General futures ..........................2 Technical parameters ........................2 Foundation kit positioning........................ 5 Setting of gate and fixing of rod....................... 6 Earthing of road gate......................... 6 Length of rods, pulleys, springs ...................... 6 The rod balancing with spring......................
