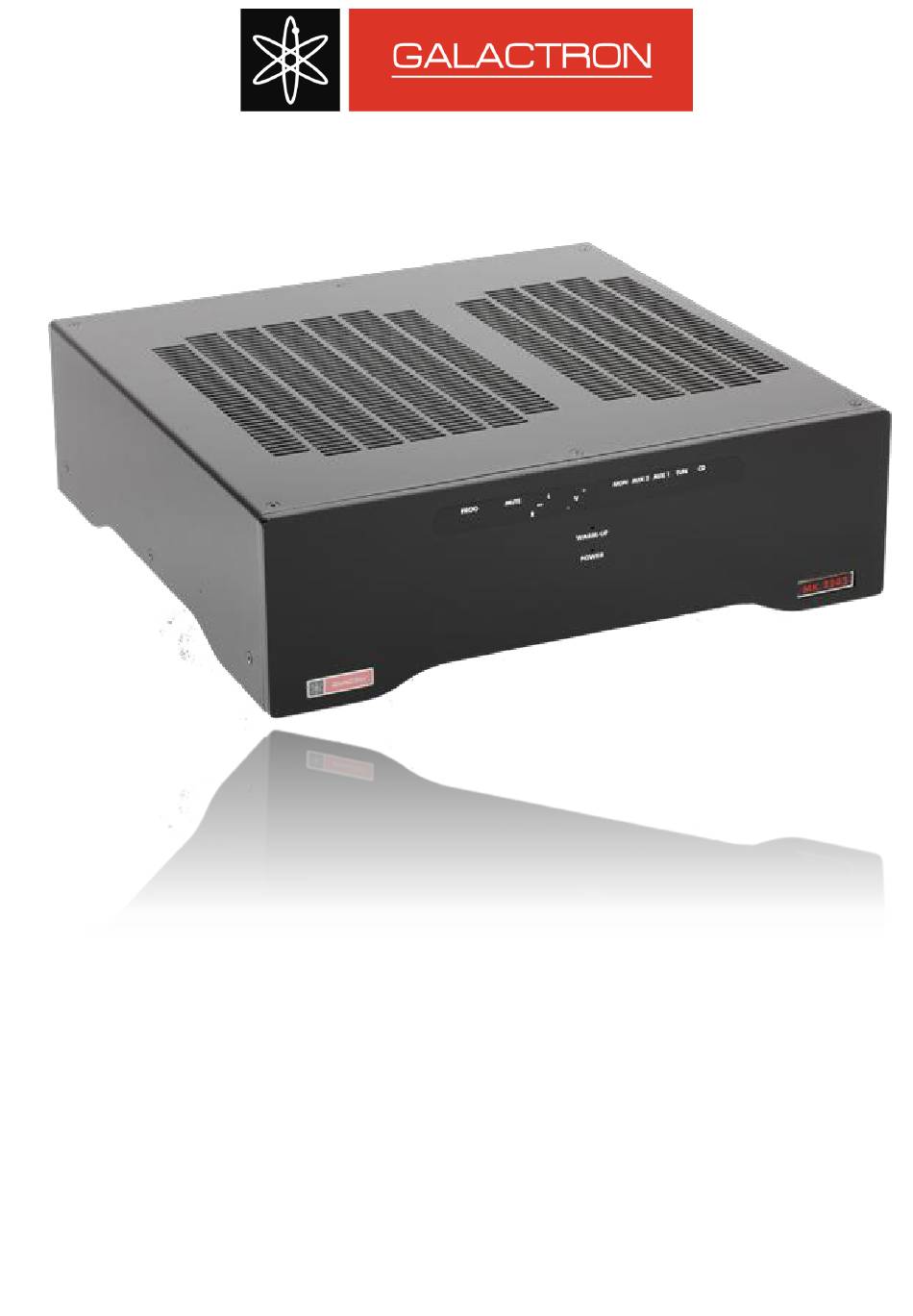

- Page 1 Owner’s Manual MK 2245...
- Page 2 40 years of experience, research and interrupted love for music. The most important content of your new GALACTRON is not its built-in technology but rather the tradition of excellence, appeal and style associated with our name, earned in over the span of our history, a name is now almost a legend.
- Page 3 BEFORE STARTING Your GALACTRON amplifier is ready out of the box to be plugged into the household wall outlet and to other components of your hi-fi system without the need for internal setting. DO NOT OPEN THE AMPLIFIER CASE FOR ANY REASON: ANY REPAIRS OR ADJUSTMENT TO BE MADE INSIDE THE UNIT MUST BE PERFORMED BY A GALACTRON DEALER OR CERTIFIED SERVICE CENTER.
- Page 4 14. REMOTE CONTROL Digital output, to be used only to control an additional add-on GALACTRON. When this output is not in use, the plug inserted at the factory must be left in place; this plug should only be removed to...
- Page 5 FRONT PANEL The front panel does not have any controls, but only illuminated messages indicating the operation of the amplifier. The FRONT PANEL provides the following messages: POWER Three coloured (red, green, yellow) Led. The red illumination goes ON when the main power switch is in the ON position. This indicates that the amplifier is connected to the line supply but is in stand-by.
- Page 6 Press this Key to lower the volume by 20 dB. To restore the volume to its initial level, press the key again. 11. HEADPHONES This function is not implemented in the MK 2240 and MK 2245 amplifier; pressing this Key will not have any effects. 12. PROG.
-
Page 7: Connecting The Speakers
The output stage of GALACTRON amplifiers do not have either voltage or current protection. For this reason, their design parameters have been greatly oversized (the heat dissipation capacity of the final stage MOSFETs is equal to eight times the nominal value at 8 Ohms), in order to be able to handle even a short circuit of the output terminals in the presence of a high input signal. -
Page 8: Troubleshooting
BALANCE Speaker balance is adjusted by differently than in most other amplifier. When the balance is adjusted, one channel remains unchanged whereas the other is attenuate and excluded at the limit condition. When one of the balance keys is pressed, the associated channel is attenuated by 1 dB step and a massage and arrow appears on the front panel indicating the direction the balance is changing. - Page 9 If the battery are charged, The remote control unit has malfunctioned. Try setting the amplifier with another remote control of the same type. If the unit still does not work properly, the infrared detector has failed. The amplifier goes ON normally, but no sound is produced by the speakers. The program source is not connected correctly.
-
Page 10: Technical Specification
TECHNICAL SPECIFICATION MK 2245 Continues Power 2x 60 W/8 Ohm 2x 108 W/4 Ohm 2x 172 W/2 Ohm Inputs 4 RCA Unbalanced Input Impedance 20 KOhm Input sensitivity 400 mV THD (at rated power) < 1% Remote control infrared Weight... - Page 11 Instructions for Recycling The symbol on the side, shown on the packing of the product means that the product, if it is no longer used, cannot be treated as unsorted municipal waste, but must be returned to a collection point for the recycling of electrical and electronic equipment, in accordance with the regulations (WEEE Recycling of Electrical and Electronic equipment).
- Page 12 Conventions and Meaning of the Symbols This document contains instructions on generic safety, installation and use for Filter Power MK-600. It 'important that you read this document before groped to use this amplifier. Pay particular attention to the safety instructions. Appears on the unit to indicate the presence of dangerous voltage not isolated inside the...
