Summary of Contents for Only CENTRALSEC

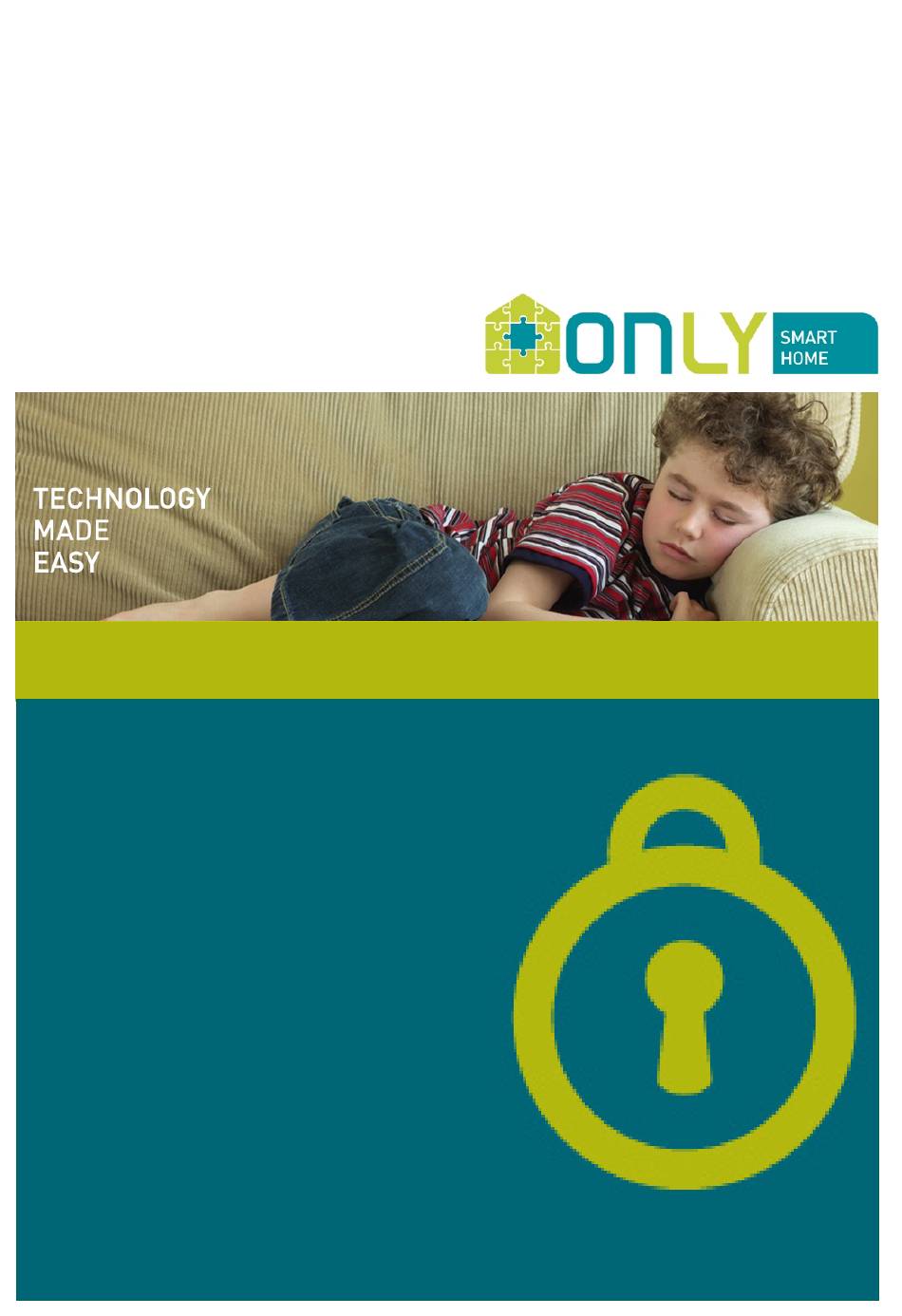

- Page 1 SECURITY SYSTEM User Manual...
- Page 2 SECURITY History Version Date Changes 2017-03-08...
-
Page 3: Table Of Contents
Índice INTRODUCTION ....................5 INTRUSION – interior, peripheral and partial zones ..........5 SECURITY – 24 hour zones ................6 ONLY SECURITY SYSTEM UNITS ................ 7 FEATURES ....................... 8 FUNCTIONALITIES ................... 9 24-hour security ....................9 24-Hour alarm routines ..................9 Intrusion...................... - Page 4 SECURITY Command “Partial” ..................27 Command “Close blinds” .................. 27 Command “Switch off lights” ................27 Programming of actions in case of alarm ............28 Language selection ..................29 Adjusting the OLED display brightness ............... 29 Software versions ................... 29...
-
Page 5: Introduction
INTRODUCTION The ONLY Security system allows you to enjoy your home knowing that you are always protected against leakage of gas or water, smoke or fire and intrusion. It also allows you to control the major systems over the phone from wherever you are. -
Page 6: Security - 24 Hour Zones
SECURITY – 24 hour zones Security is not only intrusion detection; it is also protection of goods and persons against accidental damage. A timely warning of smoke can save lives as well as the closing of a gas valve when leakage is detected. -
Page 7: Only Security System Units
ONLY SECURITY SYSTEM UNITS The ONLY security system is composed by 4 different types of units: CENTRALSEC security central C-4ZON-D-RF 4-zone expansion unit with RF receiver OT-16SD security keyboard with OLED display H-TX3B-RF RF remote-control The CENTRALSEC is an 8-zone security central with telephone dialler (PSTN), relays to drive valves to cut water and gas supply as well as internal and external sirens. -
Page 8: Features
Obviously, only the buttons defined by the user will be stored so that not all the circuits of the house are used. -
Page 9: Functionalities
FUNCTIONALITIES The system was conceived to operate automatically as much as possible. It differentiates between security zones (active 24 hours) and intrusion zones (active when alarm is armed). 24-hour security The security central or the expansion units verify continuously the state of all the security detectors connected and report any change immediately. -
Page 10: Intrusion
SECURITY Intrusion The security central and the expander units check at all times the status of the attached detectors, reporting any changes to the central. In disarmed mode, no intrusion detection causes an alarm. If the system is armed, the central identifies whether an intrusion alarm is confirmed or not by analysing the number of zones detected in a given time. -
Page 11: Controls And Indications
CONTROLS AND INDICATIONS The CENTRALSEC is equipped with a number of keys and LEDs that inform and enable controlling of some of the features of the system. A – Power indication: green=230V, red=battery B – Water indication: blinking red = OFF C –... - Page 12 In the case of an alarm, the CENTRALSEC keeps an indication on the zone that triggered the alarm that will be shown to the user after entering a valid code. The CENTRALSEC has the following indications: -When the alarm was caused on a local zone, the STATUS LED blinks and the respective zone LED is ON.
-
Page 13: Keypad Overview
KEYPAD OVERVIEW Navigation buttons inside menus. Back Down Next/Enter Menu button for language selection, display brightness change and software versions visualization. Buttons to select the Arming mode - Total, Night e Partial - pressed just after typing in the user code. Arming in total mode does not requires to press the respective button after the code. -
Page 14: Configuration
This chapter explains how to set up the user settings using the keyboard. The system can only be operated after a valid code has been entered. The number of digits of this code grants access to normal users or to the system manager. -
Page 15: Adding User Codes
• Alarm confirmed • Phone numbers • Date and time • Master code Adding user codes If no user code is yet defined, the central has the code 2580. When the first user code is defined, the default code 2580 no longer works. -
Page 16: Defining The Duress Code
SECURITY Defining the duress code The duress code should be entered instead of the user code when the user is under threat or when requiring personal assistance. This code disarms the system and makes a personal emergency call to the telephone number saved on memory 6. -
Page 17: Programming Phone Numbers
Programming phone numbers To set or delete a phone number, select "Phone numbers" and press the key In the Phone Numbers submenu, options 1, 2, 3, 4, 5, and EMG are available representing the possible memories for phone numbers. Each memory location, already has a fixed call type as follows: •... -
Page 18: Changing The Master Code
SECURITY Changing the master code To change the master code, select the "Master Code" option, press key and enter the 6-digit code. Repeat the code to confirm it. If correct, a confirmation beep will sound and the message "Code Accepted!" is shown. If the entered code is not the same, you will need to re-enter the code until it is valid. -
Page 19: System Operation
Exit time and entry time are programmable by the OLED keypad or by the PC application. Night mode The night mode allows protection of the house, arming only the peripheral and partial zones, allowing the circulation inside the house. If the function Automatic Night Arm is enabled, you don’t need any action: the alarm will arm during the defined night period or after you go to bed. -
Page 20: Partial Mode
Partial mode The partial mode, as the name suggests, allows partial protection of the house, i.e. only certain areas of the house will be protected when the alarm is activated (e.g. Garage). To arm in partial mode, enter a valid user code, then press within 2 seconds . -
Page 21: Presence Simulator
Presence simulator The ONLY security system is capable of simulating presence of people at home during your absence when combined with the ONLY automation system. For that, the system stores everyday the manoeuvres people make with the buttons you previously assigned to the Simulator, repeating them during your absence. -
Page 22: Confirmed Alarm
SECURITY Confirmed alarm The system can be configured to start the sirens only after 2 intrusion zones trigger instead of just one. This way, false alarms are avoided. Of course, once the first detection appears, the system starts the alarm routine and the phone calls, only the sirens do not sound. -
Page 23: Adding Expansion Units
Adding expansion units The expansion units must be added to the central so that they will be monitored periodically. Up to 8 expansion units can be added. To add and expansion unit, proceed as follows: Press the button + (L) on the security central 2 times: the state LED (E) blinks red and the expansion LED (I) lights up. -
Page 24: Command Through Telephone
SECURITY COMMAND THROUGH TELEPHONE The ONLY security system can be controlled by telephone using the telephone keypad. Call to security central The security central will answer any incoming call after the programmed number of rings, even if not all on the same call, allowing therefore bypassing of answering or fax machines. -
Page 25: Functions With Master Code
Functions with master code The master code can be entered via telephone as follows: Call your house and wait until you do not hear the call • signal anymore. Press # • Type in the master code. Ex: 123456 • Press # again: the identification message starts to be •... -
Page 26: Integration With Automation System
SECURITY INTEGRATION WITH AUTOMATION SYSTEM The security system ONLY permits integration with the ONLY automation system since they share the same communication protocol. For example, when arming the system, you can also close the shutters and switch off all lights or when starting the intrusion alarm routine open all shutters and turn on all the lights. -
Page 27: Scenario "Night
The proposed functions are the most common for these keys given their position in the house. The only differences between these keys and others in the ONLY system is that these keys are independent of the keypad where they are installed and the associated command... -
Page 28: Programming Of Actions In Case Of Alarm
SECURITY Programming of actions in case of alarm In the case of an intrusion alarm, the security central sends a scenario command to the automation system that can be used to open blinds, turn on lights, etc., in other words to select a set of states of the various outputs of the system. -
Page 29: Language Selection
• Repeat the procedure for the night or partial scenario, pressing of course the button Scenario Night/Partial (K) instead of the Scenario total (J) button. Language selection To change the language, enter Menu by pressing key and select the desired language. To save the selected language you must exit the menu by pressing the key Adjusting the OLED display brightness To adjust the brightness level of the OLED, press key...
