Hercules HA71 Owner's Manual & Safety Instructions

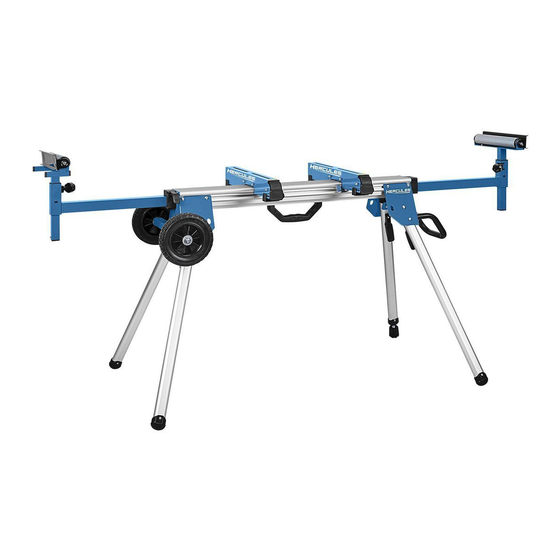

Professional rolling miter saw stand
Hide thumbs

Advertisement

Table of Contents

Owner's Manual &
Safety Instructions
18h
Model
HA71
PROFESSIONAL ROLLING MITER SAW STAND
WARNING: To prevent serious injury, User must read and
understand Owner's Manual. SAVE THIS MANUAL.
When unpacking, make sure that the product is intact and
undamaged. If any parts are missing or broken, please call
1-888-866-5797 as soon as possible. Reference 64751

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HA71 and is the answer not in the manual?

Questions and answers

Related Manuals for Hercules HA71

Summary of Contents for Hercules HA71

  • Page 1 Owner’s Manual & Safety Instructions Model HA71 PROFESSIONAL ROLLING MITER SAW STAND WARNING: To prevent serious injury, User must read and understand Owner’s Manual. SAVE THIS MANUAL. When unpacking, make sure that the product is intact and undamaged. If any parts are missing or broken, please call...

  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION 7. Wear ANSI-approved safety goggles during assembly and use. Read all safety warnings and all instructions. 8. Do not exceed listed weight capacity. Be aware Failure to follow the warnings and instructions may result of dynamic loading! Sudden load movement may in electric shock, fire and/or serious injury.

  • Page 3: Vibration Safety

    2. Do not smoke during use. Nicotine reduces Vibration Safety the blood supply to the hands and fingers, increasing the risk of vibration-related injury. This tool vibrates during use. Repeated or long-term exposure to vibration may cause temporary or permanent 3.

  • Page 4: Setup - Before Use

    Assembly SETUP - BEFORE USE 1. Attach Wheel Base using four Bolts (56), Read the ENTIRE IMPORTANT SAFETY Washers (57) and Nuts (38). INFORMATION section at the beginning of this manual including all text under subheadings therein before set up or use of this (38) product.
  • Page 5 Attaching Mounting Brackets: 10. Mounting saw: CAUTION! Unplug saw before mounting it. a. Push in Lock Button. a. Place saw on Mounting Brackets. b. Lift Lock Handle. b. Secure saw with four Bolts (27), Spring Washers (26) and Washers (25). WARNING! Included Bolts may be too long or short for your miter saw.

  • Page 6: Operation

    Adjusting Workpiece Supports OPERATION 1. Workpiece Height: Read the ENTIRE IMPORTANT a. Loosen Lock Knob. SAFETY INFORMATION section at the beginning of this manual including b. Raise or Lower Workpiece Support. all text under subheadings therein c. Tighten Lock Knob before set up or use of this product.

  • Page 7: Maintenance

    1. BEFORE EACH USE, inspect the general MAINTENANCE condition of the Stand. Check for: • loose hardware Procedures not specifically explained • misalignment or binding of parts in this manual must be performed only by a qualified technician. • cracked or broken parts •...
  • Page 8 Record Product’s Serial Number Here: Note: If product has no serial number, record month and year of purchase instead. Note: Some parts are listed and shown for illustration purposes only, and are not available individually as replacement parts. Parts may not be interchangeable. Specify item number when ordering. Page 8 For technical questions, please call 1-888-866-5797.

  • Page 9: Please Read The Following Carefully

    PLEASE READ THE FOLLOWING CAREFULLY THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT.

  • Page 10: Parts List And Diagram

    PARTS LIST AND DIAGRAM Parts List Part Description Part Description Extension Arm Square Nut M6 Spring Handle Steel Lock Bolt M6*20 Steel Sleeve Carriage Bolt M8*50 Lock Knob Round Washer Ф4 Spring Washer Ф4*8 Rivet Lock Nut M8 Limited Block Base Mounting Bracket Guide Bracket Square Nut M8...

  • Page 11: Assembly Diagram

    Assembly Diagram Item 64751 For technical questions, please call 1-888-866-5797. Page 11...

  • Page 12: Limited 90-Day Warranty

    LIMITED 90 DAY WARRANTY Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date of purchase.
