Once you select the readings file you will see a readings.csv file (Fig. 59), as well as image files for any
photos taken with your Pb200i that were associated with readings. The readings.csv file contains your
readings, while the image files are named to associate them with individual readings. The example shown
in Fig. 59 has a photo associated with reading 3. Copy the file(s) to your desktop (or other location on

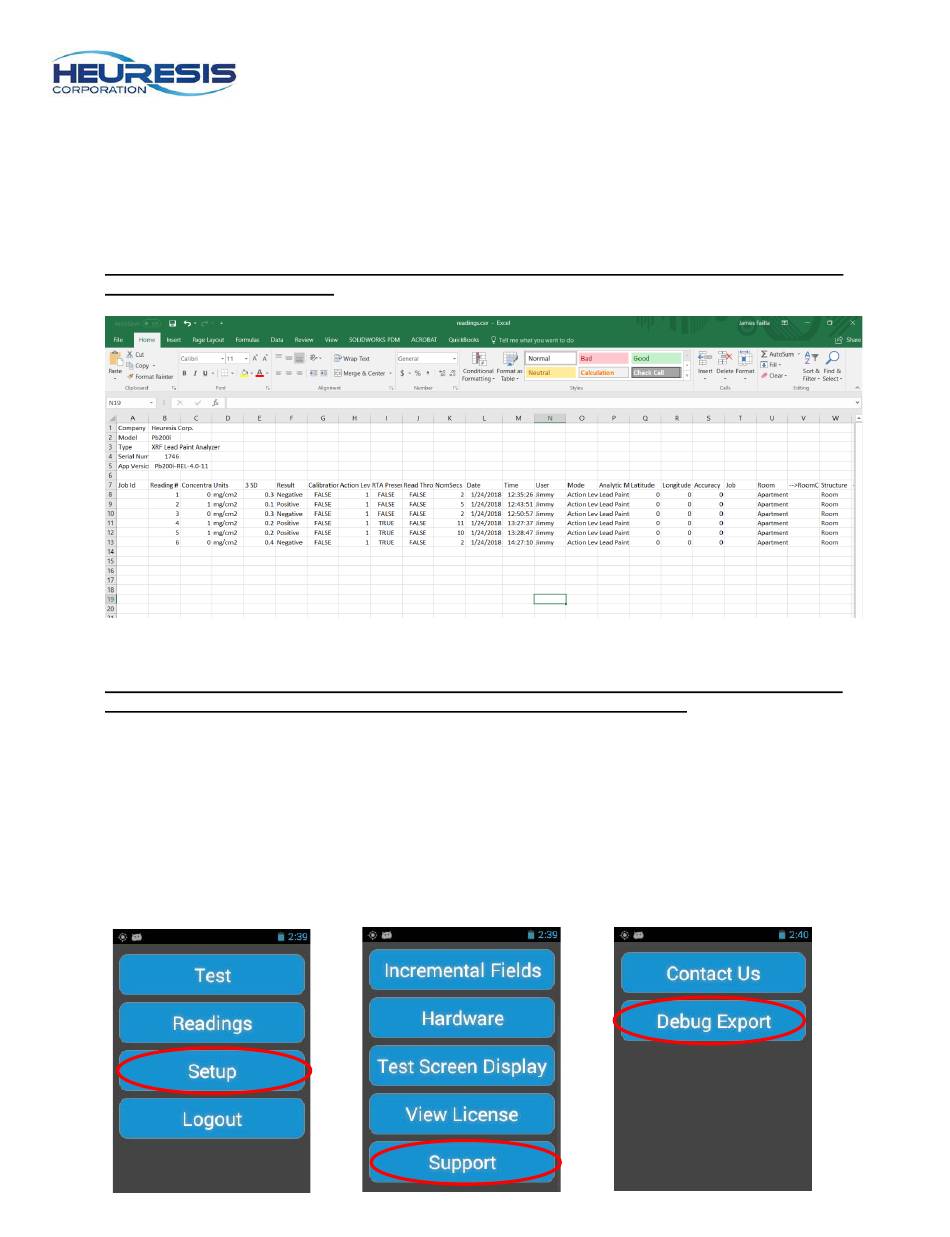

your PC), and select the file(s) to open. Fig. 70 shows a .csv file that has been opened in Microsoft
Excel®.
Caution: Do not attempt to open the .csv or .jpg files on your Pb200i; copy them to your PC before
attempting to open these files.
Figure 60
Caution: Check to make sure that all of the data intended for export is included in the download. If
it is not, unplug the analyzer from the USB cable, and repeat the steps above.
You may also use Heuresis HDMS software to retrieve the readings from your Pb200i in a tamperproof
format; retrieve your previously exported .csv file; customize the order and content of exported .csv files;
and to create reports. Please see the HDMS User Guide for instructions, located on the analyzer in the
"HDMS" folder.

Downloading Debug Data

In certain situations you may be asked by Heuresis Tech Support to download debug readings. This is
generally used for troubleshooting purposes for the Pb200i. Select the following: Setup > Support> Debug
Export. (Fig. 61 through 63).
Page 21
Figure 61 Figure 62 Figure 63
