Feiss OL13307 Installation Instructions

Installation Instructions for
Hodges Outdoor Post
Outdoor
G ENERAL RODUCT NFORMATION P
This product is safety listed for wet locations.
Incandescent lamps may be dimmed with a standard incandescent dimmer.
LED lamps may be dimmed with a
additional information.
This instruction shows a typical installation.
1A
1 Connect the fixture to a suitable ground in accordance to local electrical codes.
2
Connect the white fixture wire to the neutral power line wire with a wire nut.
Connect the black fixture wire to the hot power line wire with a wire nut.
3
4 Secure the fixture to the post with the post screws making sure to neatly tuck in all wiring.
5 Insert the glass panels into the fixture and secure them in place using the clips.
Screw the lamp into the socket. Refer to the label on the socket for Max Wattage Information.
6
Install the cover on top of the fixture and secure it using the cover screws.
7
Install the fixture loop to the top of the cover and secure it in place with the fixture loop screws.
8
I :
LED dimmer. Consult lamp manufacturer for

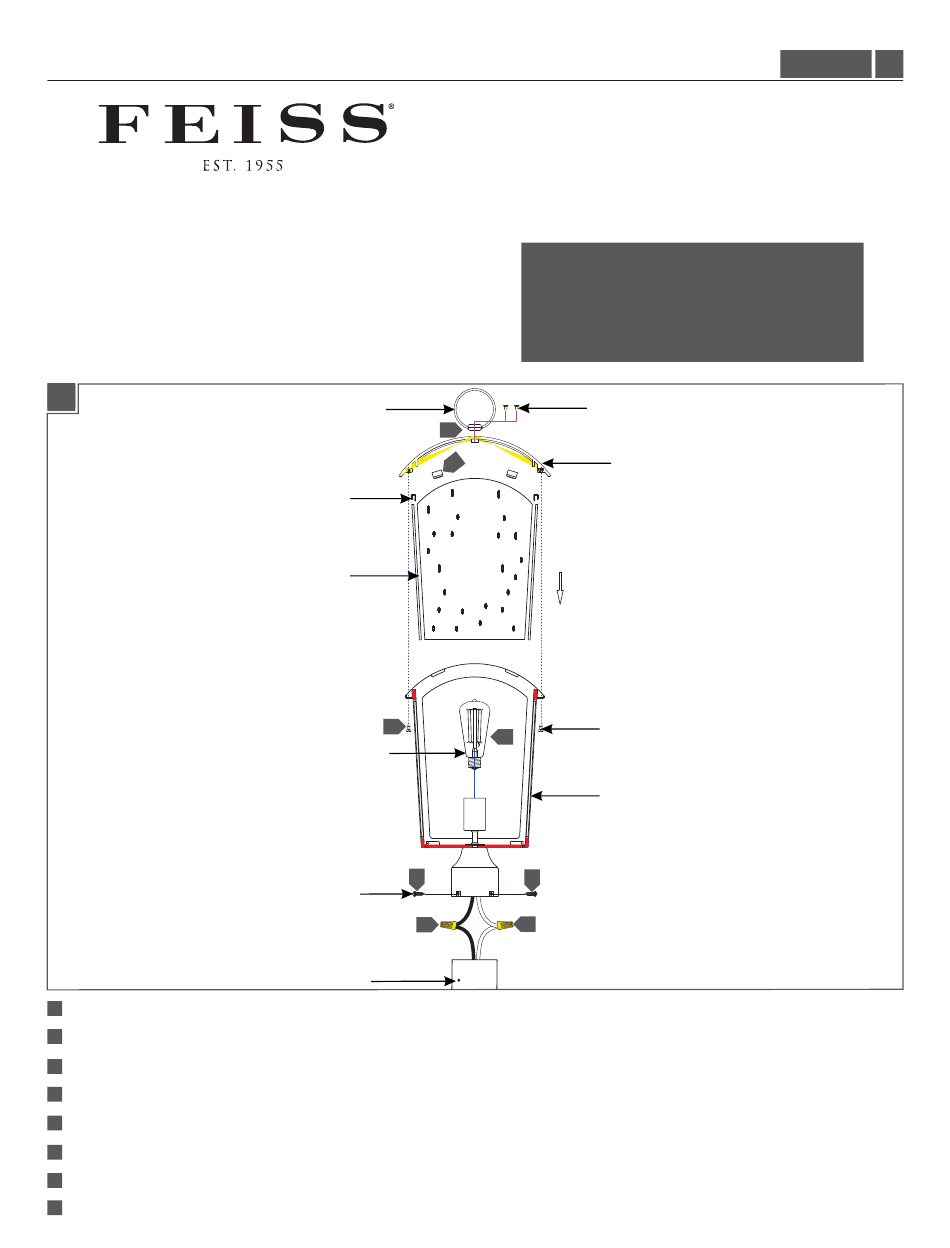

FIXTURE LOOP
CLIP
GLASS PANEL
7
LAMP
POST SCREW
POST
This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.
Use minimum 90°c supply conductors.
FIXTURE LOOP SCREWS
8
5
6
4
4
2
3
1
CAUTION RISK OF FIRE -
COVER
COVER SCREW
FIXTURE
OL13307
OL13307
1.0
