Page 1: Table Of Contents
9 Stopwatch Setup Page 16 10 External Interface Setup Page 17 11 System Setup Page 17 Wharton Electronics Ltd. Tel: +44 (0) 1844 260567 Unit 15, Thame Park Business Centre, Wenman Road Email: sales@wharton.uk Thame, Oxfordshire, England, OX9 3XA Web: www.wharton.co.uk...
Page 2 Product Development In the interests of improving design, operational function, and/or reliability, Wharton Electronics Ltd reserves the right to make changes to the products described in this document without notice.
Page 3: Introduction

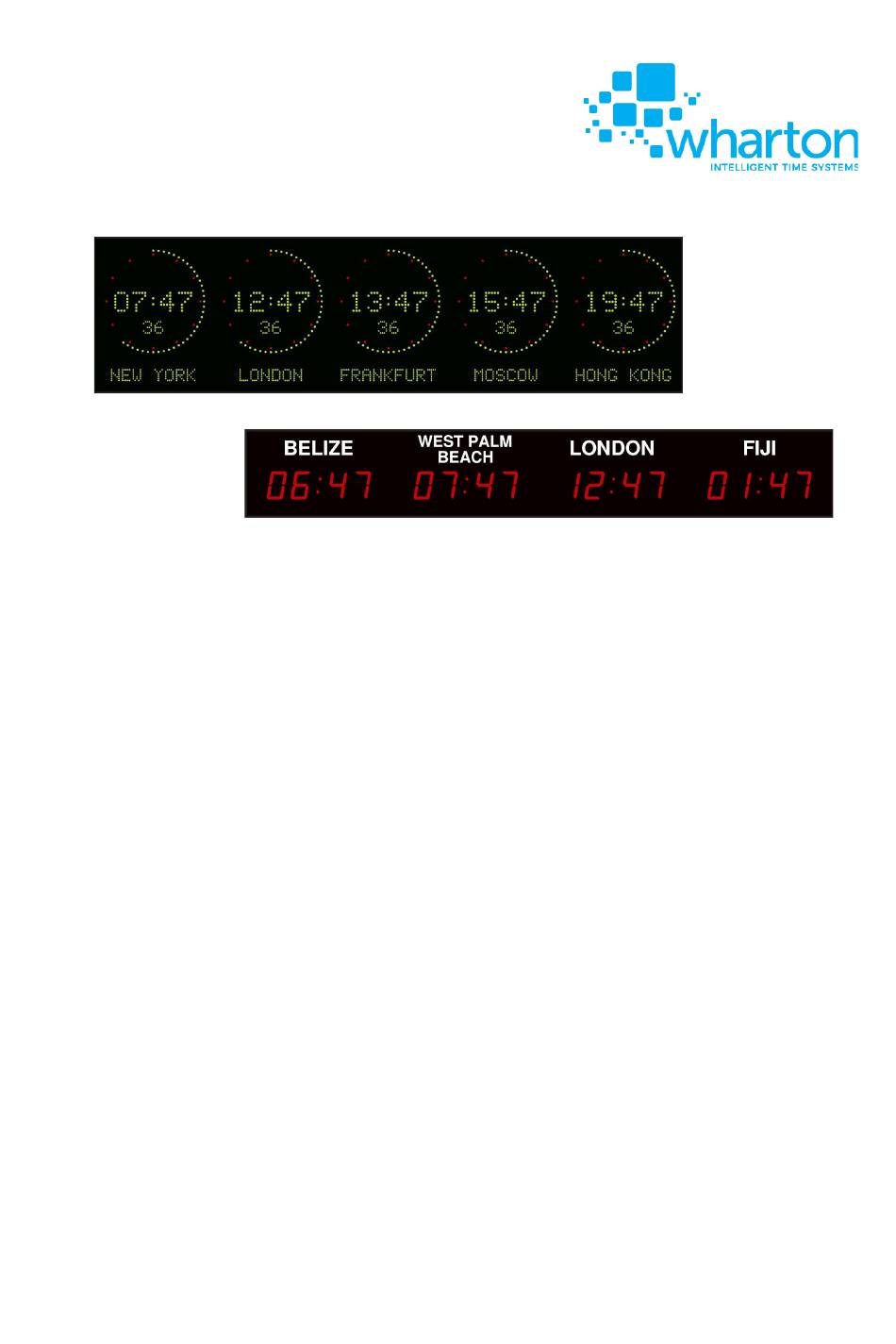

47xxN Series Time Zone Display Operating and Installation Instructions 1 - Introduction The 47xxN series time zone displays provide a precise and elegant display of time using red, green, yellow/amber, blue or white LED display characters with an unrivalled flexibility of operation in the most demanding timekeeping and stopwatch applications.
Page 4: Installation And Operation
47xxN Series Time Zone Display Operating and Installation Instructions Installation and Operation Power Supply Connection The 47xxN series time zone displays are fitted with either universal mains power supplies (enabling operation at voltages from 100 to 240V AC 50/60Hz without adjustment). Units are supplied with a 2m mains cable preterminated with a UK style moulded plug (units for supply to the USA or Canada are supplied with a 2m captive mains cable preterminated with a US style moulded plug).
Page 5: Function Programming
47xxN Series Time Zone Display Operating and Installation Instructions 3 - Function Programming The 47xxN series time zone displays have a user friendly programming interface based around a series of function menus, accessed using the supplied Infrared remote control or four switches located on the right hand rear of the display.
Page 6: Time And Date Setting
47xxN Series Time Zone Display Operating and Installation Instructions 4 - Time and Date Setting The 47xxN series time zone displays can be configured to automatically adjust for daylight savings changes, however if the unit is run in Standalone mode of operation (i.e. unsynchronised), you may occasionally need to manually adjust the time.Please refer to the diagram below for further information.
Page 7: Location Setup
47xxN Series Time Zone Display Operating and Installation Instructions 5 - Location Setup The 47xxN series time zone displays provide advanced time zone functionality where the display may be user programmed to automatically indicate the time in one of 83 preset locations. Incorporating ‘Set Once’...
Page 8 47xxN Series Time Zone Display Operating and Installation Instructions Fu Lo Location settings Function Display Type Description 'Up' button function hh:mm Location L 01 Select zone to configure. Select desired zone Location L 01 Set Location Code for zone. Exit to Location Menu or select Code location legend display mode (47xxIL units only)
Page 9 47xxN Series Time Zone Display Operating and Installation Instructions LINT Line Is.- Kiritimati UTC-13 UTC-12 (YANKEE) UTC-11 (X-RAY) Midway Is. UTC-10 (WHISKEY) HAST Hawaii - Honolulu UTC-9 (VICTOR) AKST/AKDT US - Alaska, Anchorage UTC-8 (UNIFORM) PST US - Pitcairn Is. PST/PDT US - Pacific, L.A.
Page 10: Network Setup
47xxN Series Time Zone Display Operating and Installation Instructions 6 - Network Setup The 47xxN series time zone displays are fitted with a 10/100Base-T Ethernet network interface and designed to synchronise to a remote NTP (Network Time Protocol) time server across a TCP/IP computer network.
Page 11: Synchronisation Setup
47xxN Series Time Zone Display Operating and Installation Instructions 7 - Synchronisation Setup The 47xxN series time zone displays have a standalone accuracy of better than 0.1 sec/day @ 20-25ºC. However, for applications where an increased level of accuracy is required, units may be synchronised to a range of different synchronisation methods.
Page 12 47xxN Series Time Zone Display Operating and Installation Instructions NTP Client 47xxN series time zone displays are primarily intended to be synchronised via NTP/SNTP from a remote time server located on the customers TCP/IP Ethernet network. Up to to 4 remote NTP time servers can be specified either fully automatically using DHCP option 42 configured on your company's DHCP server or manually by the user.
Page 13 47xxN Series Time Zone Display Operating and Installation Instructions 48x0 and w482 Time Code Synchronisation Clock configuration The 47xxN series time zone displays can be Press ‘Menu’ or ‘Up’ button to access clock settings configured to synchronise to 48x0 or w482 time menu.
Page 14: Display Setup (472Xn And 474Xn Series)
47xxN Series Time Zone Display Operating and Installation Instructions 8a - Display Setup The 472xN and 474xN series time zone displays can be configured to display time of day, alternating time & date and continuous date in a number of different display formats as detailed in the table below. Date display only available for righthand location.
Page 15: Calendar Setup (470Xn And 475Xn Series)
47xxN Series Time Zone Display Operating and Installation Instructions 8b - Calendar Setup The 470xN and 475xN series time zone displays with either dot matrix alpha-numeric date displays or seven segment numeric date displays. Each of the two display type allow for different date formats as follows.
Page 16: Stopwatch Setup
47xxN Series Time Zone Display Operating and Installation Instructions 9 - Stopwatch Setup The 47xxN series time zone display can be configured to operate as a multi function stopwatch controlled via the supplied IR remote control. The clock can be switched between clock and stopwatch modes by pressing the ‘Clock’ and ‘S/W’ buttons respectively.
Page 17: External Interface Setup
47xxN Series Time Zone Display Operating and Installation Instructions SC 0 4 Minutes only Countdown duration seconds. Countdown Set seconds, range 0-59. Countdown duration duration minutes. 00 0 1 Set minutes, range 0-59. Countdown duration hours. 00 01 Set hours, range 0-98.
