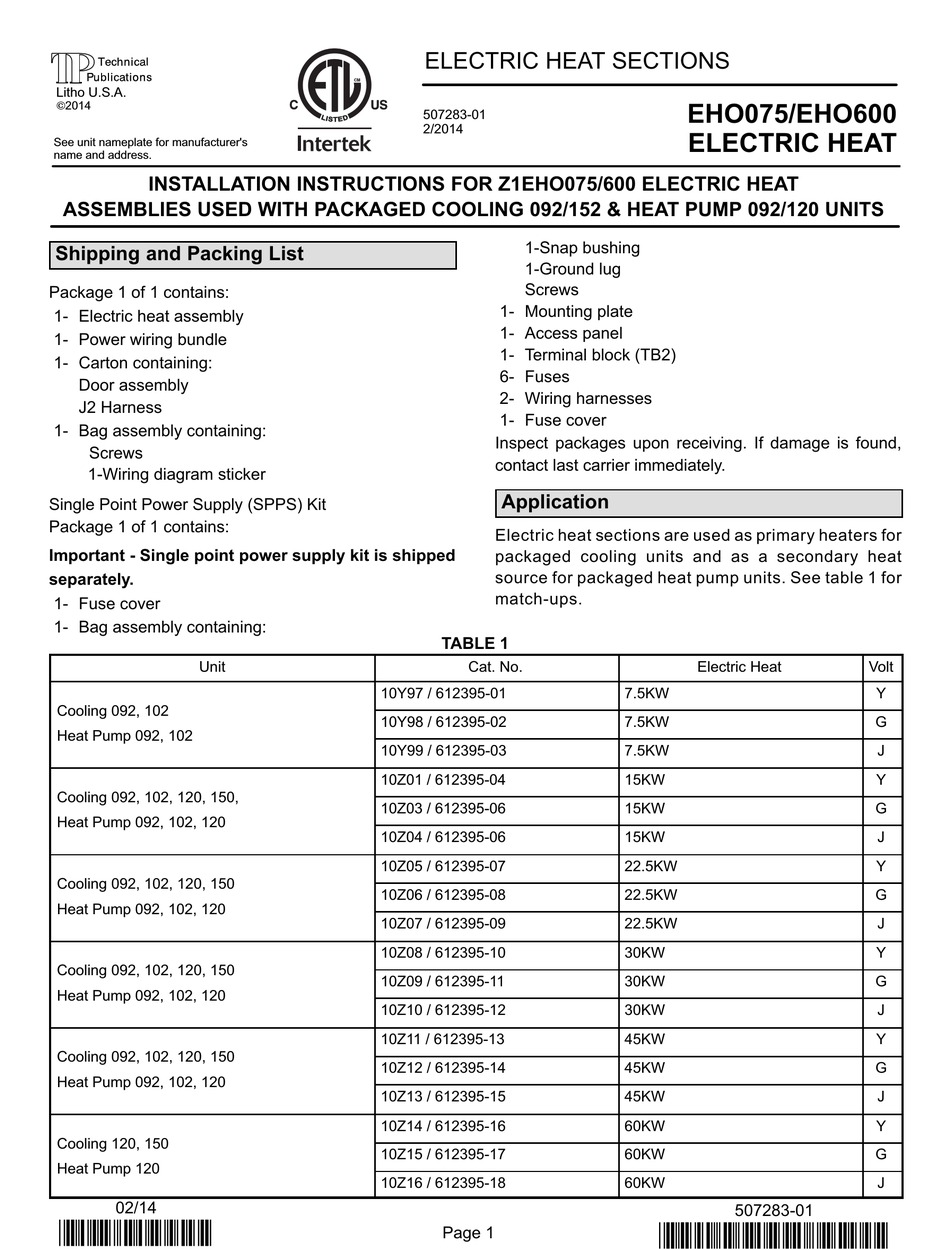

INSTALLATION INSTRUCTIONS FOR Z1EHO075/600 ELECTRIC HEAT
ASSEMBLIES USED WITH PACKAGED COOLING 092/152 & HEAT PUMP 092/120 UNITS

Shipping and Packing List

Package 1 of 1 contains:
1- Electric heat assembly
1- Power wiring bundle
1- Carton containing:
Door assembly
J2 Harness
1- Bag assembly containing:
Screws
1-Wiring diagram sticker
Single Point Power Supply (SPPS) Kit
Package 1 of 1 contains:
Important - Single point power supply kit is shipped
separately.
1- Fuse cover
1- Bag assembly containing:
Unit
Cooling 092, 102
Heat Pump 092, 102
Cooling 092, 102, 120, 150,
Heat Pump 092, 102, 120
Cooling 092, 102, 120, 150
Heat Pump 092, 102, 120
Cooling 092, 102, 120, 150
Heat Pump 092, 102, 120
Cooling 092, 102, 120, 150
Heat Pump 092, 102, 120
Cooling 120, 150
Heat Pump 120
02/14
*2P0214*
ELECTRIC HEAT SECTIONS
507283-01
2/2014
1-Snap bushing
1-Ground lug
Screws
1- Mounting plate
1- Access panel
1- Terminal block (TB2)
6- Fuses
2- Wiring harnesses
1- Fuse cover
Inspect packages upon receiving. If damage is found,
contact last carrier immediately.

Application

Electric heat sections are used as primary heaters for
packaged cooling units and as a secondary heat
source for packaged heat pump units. See table 1 for
match-ups.
TABLE 1
Cat. No.
10Y97 / 612395-01
10Y98 / 612395-02
10Y99 / 612395-03
10Z01 / 612395-04
10Z03 / 612395-06
10Z04 / 612395-06
10Z05 / 612395-07
10Z06 / 612395-08
10Z07 / 612395-09
10Z08 / 612395-10
10Z09 / 612395-11
10Z10 / 612395-12
10Z11 / 612395-13
10Z12 / 612395-14
10Z13 / 612395-15
10Z14 / 612395-16
10Z15 / 612395-17
10Z16 / 612395-18
Page 1
EHO075/EHO600
ELECTRIC HEAT
Electric Heat
7.5KW
7.5KW
7.5KW
15KW
15KW
15KW
22.5KW
22.5KW
22.5KW
30KW
30KW
30KW
45KW
45KW
45KW
60KW
60KW
60KW
507283-01
*P507283-01*
Volt
Y
G
J
Y
G
J
Y
G
J
Y
G
J
Y
G
J
Y
G
J
