SuperLightingLED T1 User Manual

User Guide
Wall Mounted Touch Panel
Single Color / Dual Color / RGB / RGBW LED
Constant Voltage Controller
Wall mounted single color/dual color/RGB/RGBW LED controller T1/T2/T3/T4 is a full touch controller with
4 channel constant voltage output, and offers fast and accurate color adjustment with unique design touch
color wheel.
Feature
● Touch panel single color, dual color, RGB or RGBW PWM constant voltage controller.
● Ultra sensitive high strength glass touch panel with touch color wheel in the middle and backlighting.
● Smooth and accurate color adjustment by touching the color slide.
● Adopt 2.4GHz wireless technology, remote distance up to 30m.
● Touch keys with chord tones and LED indicator.
Technical parameter
Model Input voltage Output signal Output current Output power
12- 24VDC PWM 4CH,3A/CH 144-288 W
T1
12 - 24VDC PWM 4CH,3A/CH 144-288W
T2
12 - 24VDC 3CH,4A/CH
T3 PWM 144-288W
4CH,3A/CH
T4 12 - 24VDC PWM 144-288W
Match guide
Use power-up to match the touch panel dimmer with the RF remote (optional).
1. Match: Switch off the power, then switch on power again,
short press on/off key or zone key 3 times on the RF remote quickly within 5s after power on,
the link is done once the light blinks 3 times.
2. Delete: Switch off the power, then switch on power again,
short press on/off key or zone key 5 times on the RF remote quickly within 5s after power on,
the unlink is done once the light blinks 5 times.
3. Multiple zone remote only use zone key to match each zone receiver.

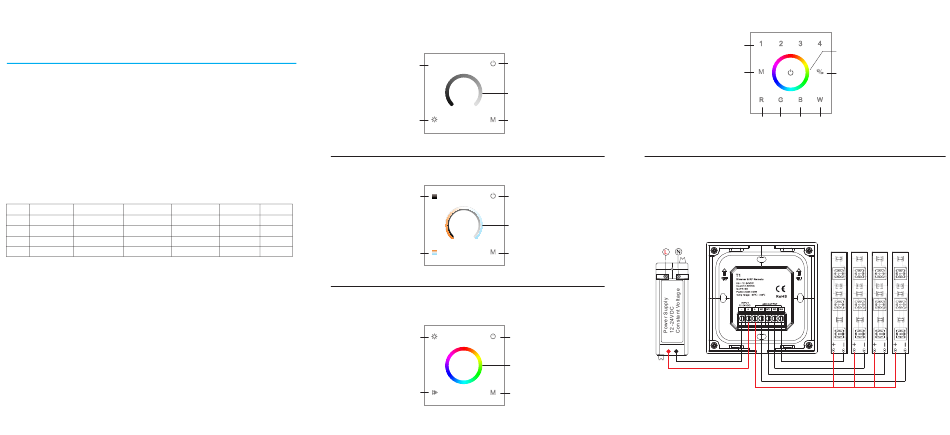

Key function
● Single color panel
Turn off light after 20s.
Brightness,10 levels.
● Dual color panel
Brightness,10 levels.
Light type Size(mm)
Single color 86x86x35
86x86x35
Dual color
RGB 86x86x35
RGBW 86x86x35 Color temperature,10 levels.
● RGB panel
Adjust brightness, 10 levels.
Adjust mode speed,10 levels.
Turn on/off light.
20
S
DELAY OFF POWER
Brightness wheel
Play dynamic mode,6 level speed.
BRIGHT MODE
T1
Turn on/off light.
DIM POWER
Color / Brightness wheel
Play dynamic mode,6 level speed.
CCT MODE
T2
Turn on/off light.
BRIGHT POWER
Color slide
Short press play 10 built-in mode,
long press run mode-cycle.
SPEED MODE
T3
RGBW panel
●
4 Scenes,
short press recall scene.
Long press to save the
SCENE SCENE SCENE SCENE
current color into 1/2/3/4.
Short press play 10 built-in mode,
long press run mode-cycle. MODE BRT/SPEED
RED GREEN BLUE WHITE
Red Green Blue White
T4
Note: After touch power key to turn off light, long press power key for 5 seconds will turn on or turn off tone.
Wiring diagram for PWM output
T1 Single color panel
●
AC110-230V
Color wheel
Adjust dynamic mode speed
or static color brightness,10 levels.
Single color LED strip x 4
