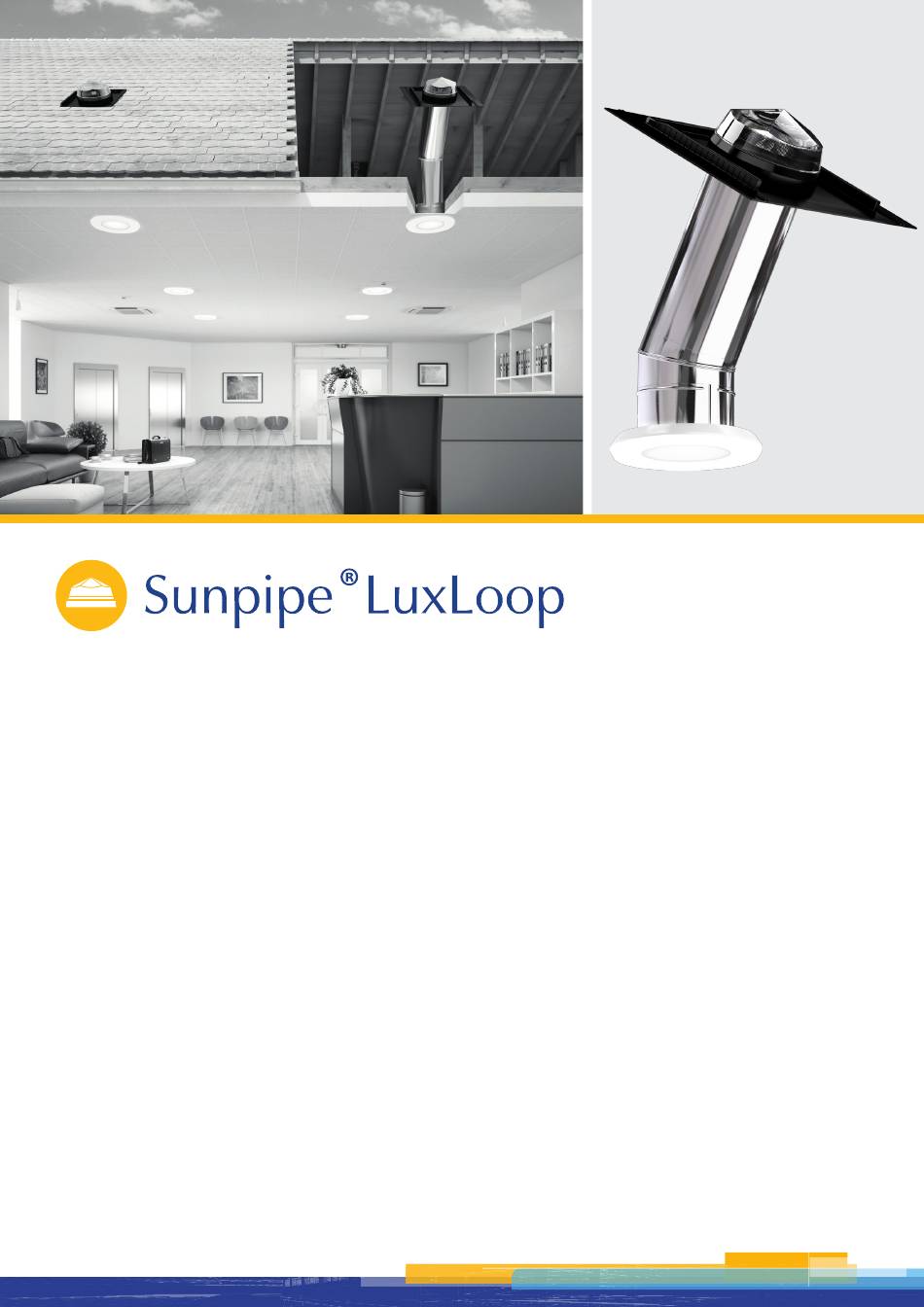

Installation Instructions
PLEASE READ BEFORE INSTALLATION:
To be read in conjunction with SUNPIPE installation instructions.
•
Before commencing installation ensure the relevant
mains supply has been safely isolated.
•
Installation should be carried out in accordance with the
latest relevant wiring regulations for the specific country/
region.
•
Wiring should be carried out by a qualified electrician.
•
Ensure all electrical connections are tight with no loose
strands, including factory made connections.
WARNINGS
•
Use only with the approved driver for this product.
•
This luminaire is for indoor use only.
•
IMPORTANT: The product must not be covered by
ceiling insulation material; this will reduce the unit's
operational lifetime, invalidate the guarantee and
cause a risk of fire.
Advertisement
Related Manuals for Monodraught Sunpipe LuxLoop
Summary of Contents for Monodraught Sunpipe LuxLoop
- Page 1 Installation Instructions PLEASE READ BEFORE INSTALLATION: WARNINGS To be read in conjunction with SUNPIPE installation instructions. • Use only with the approved driver for this product. • Before commencing installation ensure the relevant • This luminaire is for indoor use only. mains supply has been safely isolated.
- Page 2 Run power cables from existing lighting circuit to opening. Position fixing template above ceiling if required. Place black sponge seal around the outside of the offered length of SUNPIPE in the roof void. Remove diffuser from SUNPIPE LuxLoop. info@monodraught.com / +44 (0)1494 897700...
- Page 3 These are found on the label on the driver. (Only for Halcyon drivers) Thread SUNPIPE LuxLoop up through ceiling opening and onto last SUNPIPE length. Feed the spring toggles through the 11 mm holes until they spring back to hold the luminaire in position.
- Page 4 SUNPIPE LuxLoop Panel Model For 15 mm Exposed T Grids Lower tabs should be folded out in each corner, allowing them to rest on the grid. For 24 mm Exposed T Grids All tabs need to be folded out to prevent the panel from shifting but the panel rests on the grid rather than the tabs.
- Page 5 Adhere white seal to outside of pipe around the join Align the diffuser and rotate it clockwise to secure in between pipe and luminaire. position. Once the fitting is secured in the grid, reconnect the mains supply. info@monodraught.com / +44 (0)1494 897700...
-
Page 6: Frequently Asked Questions
Monodraught to not sell light switches – these should be purchased elsewhere and wired by a professional electrician. How much light can the system provide? The SUNPIPE LuxLoop delivers up to 4000 lumens of artificial light and up to 4400 lumens of natural daylight. What is the IP rating of SUNPIPE LuxLoop? The SUNPIPE LuxLoop ceiling diffuser has an IP rating of 20. -
Page 7: Installation Notes
Installation Notes info@monodraught.com / +44 (0)1494 897700... - Page 8 Halifax House, High Wycombe Buckinghamshire, HP12 3SE +44 01494 897700 +44 01494 532465 www.monodraught.com info@monodraught.com Monodraught Ltd @MonodraughtLtd Monodraught Ltd...
