Summary of Contents for SBV M11

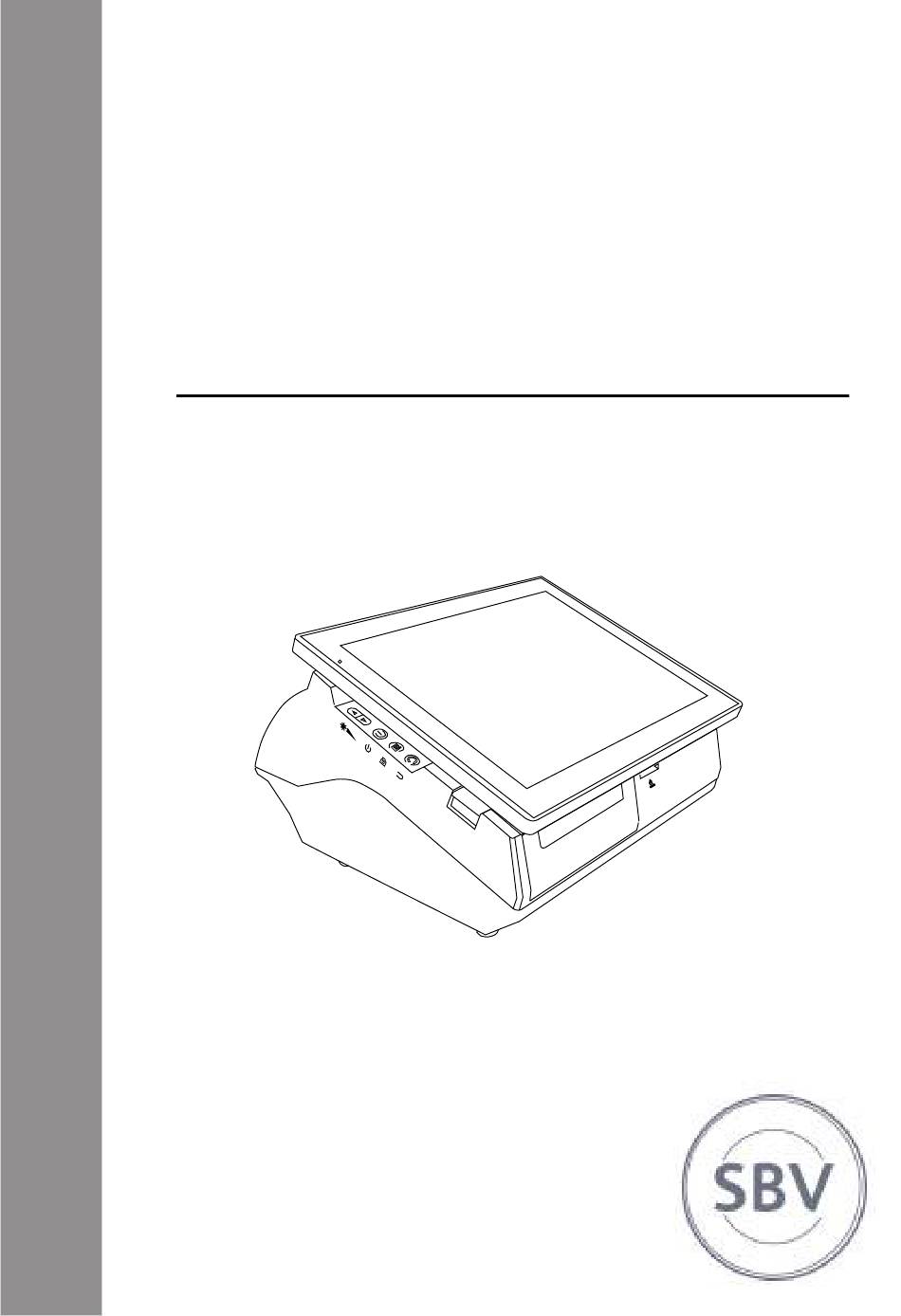

- Page 1 User Guide...
- Page 2 1. Size 2. LED and buttons 2.1 Diagram Power indicator Volume button Power button Menu button Back button 2.2 Description Description LED indicator Shows power status. Blue color when power is on. For adjusting speaker volume Volume button Long press 8 seconds to turn on power, press 3 seconds to Power button force shutdown Menu button...
- Page 3 3. Interface 3.1 Diagram Cash drawer Power input Audio 3.2 Description Description Interface COM1/COM2 RS 232, D-SUB 9 PIN 5V USB port, compatible to USB V2.0/1.1 and UHC1 100M LAN, RJ-45 module connector( with indicator) Cash drawer 24V cash drawer Audio External speaker TF card...
- Page 4 3.3 PIN definitions of cash drawer interface Warnings This interface is only allowed to cash drawer, do not connect with telephone or others, otherwise will damage the telephone and your device. The working voltage of the cash drawers should be 24V. The interface is standard RJ-11, 6 pins socket, output DC 24V/1A.
- Page 5 4.2 Paper loading Warnings Open the screen slowly, do not exceed the maximum opening angle, otherwise it will damage the device. Do not put fingers between device body and screen when pulling down screen. 4.2.1 Press open button, open up screen. Press the open button as per arrow direction 4.2.2 Load paper as following:...
- Page 6 4.3 Install and replace card reader Notice Do not pull cable. Avoid pressing on cable when installing card reader. Follow below steps to install or replace a card reader: Remove side cover; Get the cable inside and plug into card reader; Put cable inside carefully, fix card reader with screws.
-
Page 7: Viewing Angle Adjustment
4.5 Connect power cable Notice Make sure the power cable is not energized before connecting. Follow following diagrams, do not plug by force. Plug in the power cable as per direction in following diagrams. 5. Viewing angle adjustment Use the stand to adjust viewing angle. Optional angles include 19°, 24°, 29°, 33°. 6. -
Page 8: Troubleshooting
7. Troubleshooting Can not start device, power indicator off. Check whether power socket works. Check whether power cable plugs tightly. Printer keeps beeping, fails to print. Check whether the covers close well. Check whether roll paper used up. Receipt is printed unclearly. Turn off power, swab print head and roller with medical alcohol.
