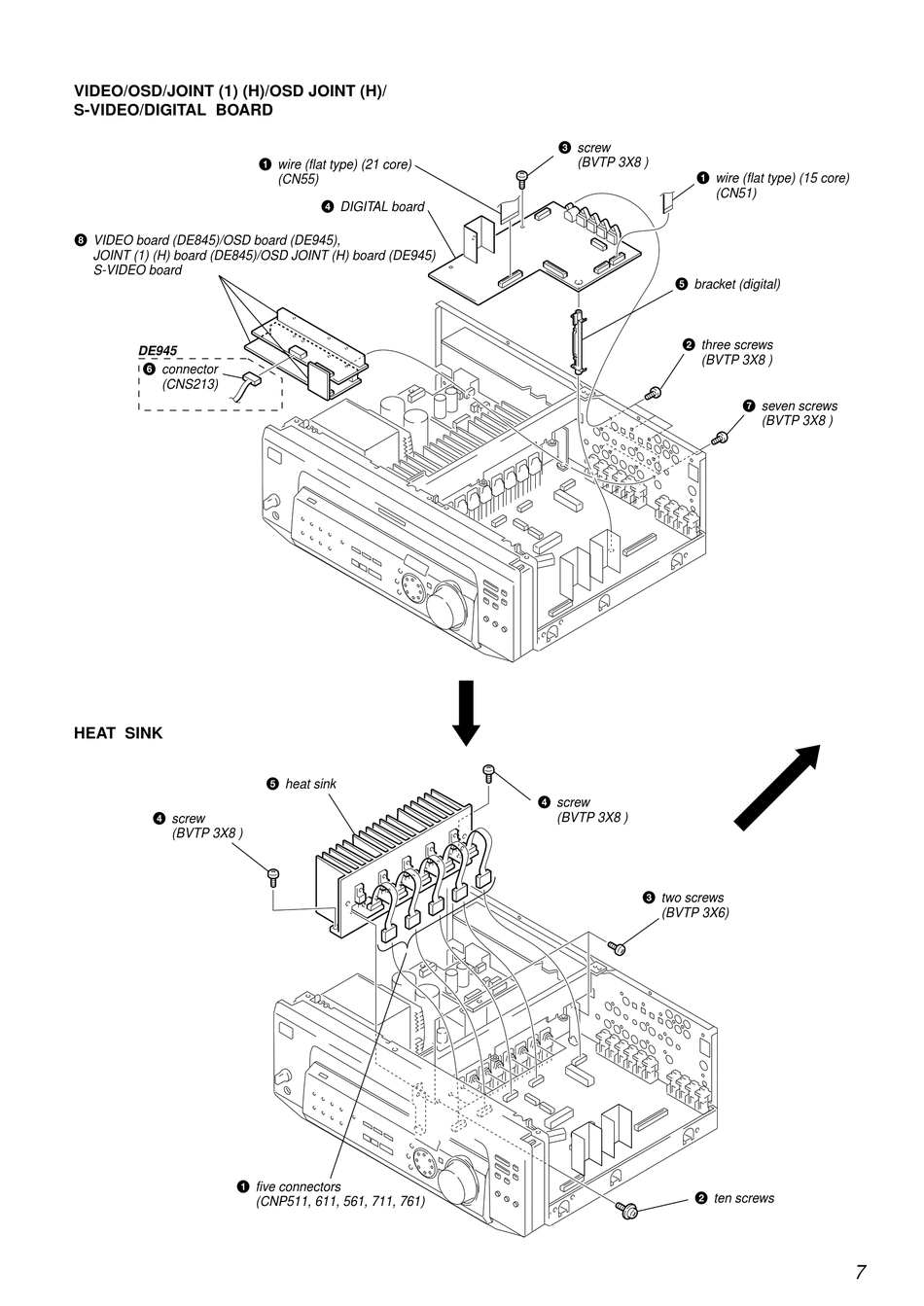

VIDEO/OSD/JOINT (1) (H)/OSD JOINT (H)/
S-VIDEO/DIGITAL BOARD
8 VIDEO board (DE845)/OSD board (DE945),
JOINT (1) (H) board (DE845)/OSD JOINT (H) board (DE945)
S-VIDEO board
DE945
6 connector
(CNS213)
HEAT SINK
4 screw
(BVTP 3X8 )
1 five connectors
1 wire (flat type) (21 core)
(CN55)
4 DIGITAL board
5 heat sink
(CNP511, 611, 561, 711, 761)
3 screw
(BVTP 3X8 )
1 wire (flat type) (15 core)
5 bracket (digital)
2 three screws
(BVTP 3X8 )
4 screw
(BVTP 3X8 )
3 two screws
(BVTP 3X6)
2 ten screws
(CN51)
7 seven screws
(BVTP 3X8 )
7
