- Page 1 Smart WiFi Plug User Guide Allterco Robotics EOOD Sofia, Bulgaria © 2018...

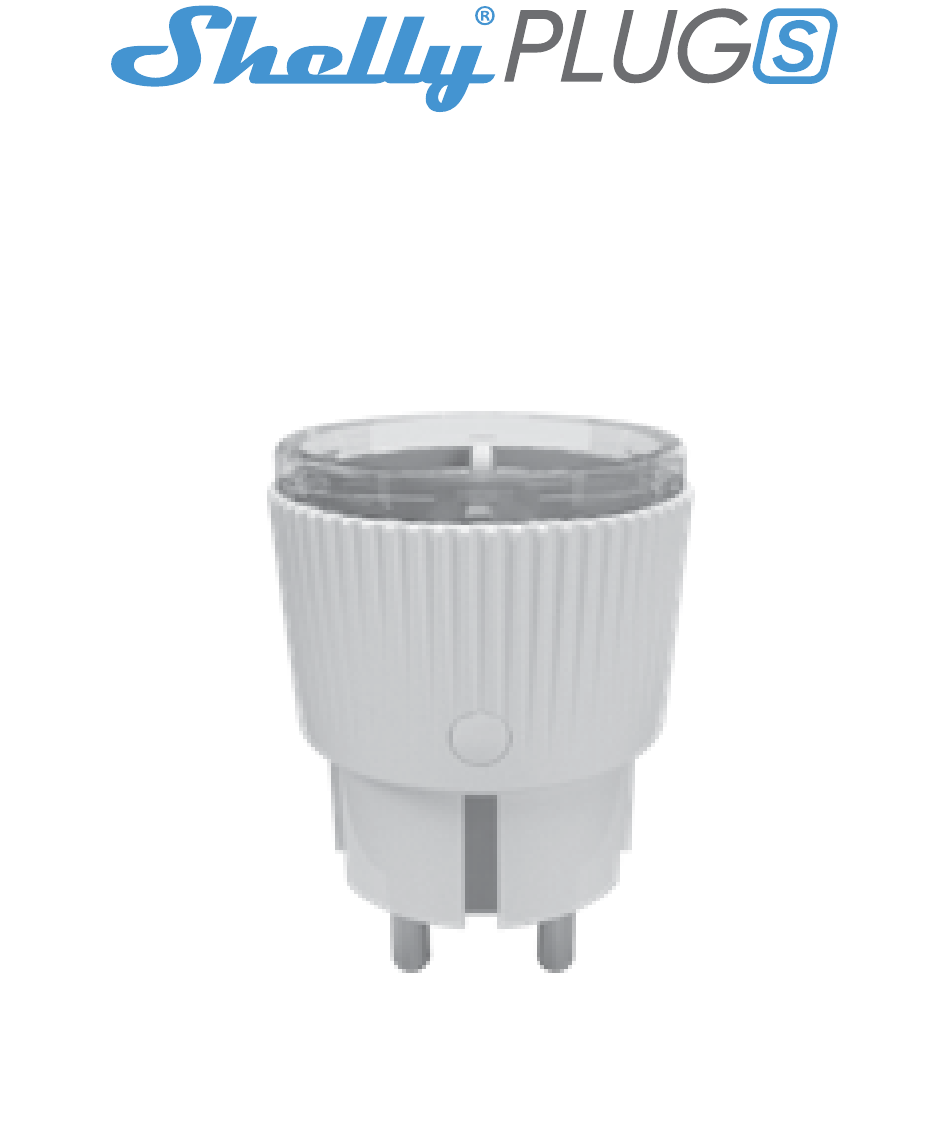

- Page 2 USER GUIDE WiFi Smart Plug Shelly ® Shelly Plug S by Allterco Robotics is intended to be placed ® into a standard Plug Type F (IEC) in order to control the electric power through it. Shelly may work as a standalone device or as an accessory to a home automation controller.
- Page 3 Technical Information • Control via WiFi from a smart phone, PC, automation system or any other device supporting HTTP and/or UDP protocol. • Microprocessor management. CAUTION! Danger of electrocution. Connecting the de- vice to the power grid has to be performed with caution. CAUTION! Do not allow children to play with the device, especially with the Power Button.
- Page 4 Installation Instructions CAUTION! Danger of electrocution. Even when the device is turned off, it is possible to have voltage across its clamps. CAUTION! Do not connect the Device to appliances exceeding the given max load! CAUTION! Before beginning the installation please read the accompanying documentation carefully and completely.
- Page 5 Initial Inclusion Place Shelly into the power socket without any device/load connected to the Shelly. Press the Power Button. The LED should flash red/blue. This means that Shelly is in AP mode. Press the Button again and the LED will turn off. This means that Shelly is turned off. LED States •...
- Page 6 MOBILE APPLICATION FOR SHELLY ® Allterco Robotics EOOD Sofia, Bulgaria © 2018...
- Page 7 The Shelly Cloud mobile application Shelly Cloud gives you opportunity to control and adjust all Shelly® devices from anywhere in the world. The only thing you need is connection to the Internet and our mobile applica- tion, installed on your smartphone or tablet. To install the application please visit Google Play or App Store.
- Page 8 Registration After registering, create your The first time you open the first room (or rooms), where Shelly Cloud mobile app, you you are going to add and use have to create an account your Shelly devices. which can manage all your Shelly Cloud allows easy Shelly®...
- Page 9 Step 1 Step 3 Place your Shelly into the If using iOS: you will see the socket and wait for the WiFi following screen: LED light to flash red/blue. WARNING: If the LED does not flash red/blue, press and hold the Button for at least 10 seconds.
- Page 10 Step 4: Approximately 30 seconds after discovery of any new devices оn the local WiFi network, а list will be displayed by default in the “Discovered Devices” room. Upon successful Device In- clusion to the WiFi network you will see the following pop-up: Step 5: Select Discovered Devices...
- Page 11 Step 6: Step 7: Enter a name for the Device. To enable connection to the Choose a Room, in which Shelly Cloud service for re- the device has to be posi- mote control and monitoring tioned. You can choose an of the Device, press “YES”...
- Page 12 Shelly Devices Settings After your Shelly device is in- cluded in the app, you can con- trol it, change its settings and automate the way it works. Timer To manage the power supply To switch the device on and automatically, you may use: off, use the Power button.
- Page 13 Auto ON: After turning off, Internet/Security the power supply will be WiFi Mode - Client: Allows the automatically turned device to connect to an avail- after a predefined time (in able WiFi network. After typing seconds). A value of 0 will the details in the respective cancel the timer.
- Page 14 Safety Time Zone and Geo-location Max Power Protection: Con- Enable Disable figure Shelly to turn off when automatic detection of Time a defined power consumption Zone and Geo-location. is reached. Range: 1-2500W. Factory Reset After typing the desired power Return Shelly to its factory consumption, press Save.
-
Page 15: Abbreviations Used
The Embedded Web Interface Even without the mobile app Shelly can be set and controlled through a browser and connection of a mobile phone or tablet. ABBREVIATIONS USED: Shelly-ID – consists of 6 or more characters. It may include numbers and letters, for example 35FA58. SSID –... - Page 16 Step 3 Type 192.168.33.1 into the address field of your browser to load the web interface of Shelly. General - Home Page This is the home page of the embedded web interface. Here you will see information about: • Current electrical consumption •...
- Page 17 Weekly Schedule This function requires an Internet connection. To use In- ternet, a Shelly device has to be connected to a local WiFi network with working Internet connection. Shelly may turn on/off automatically at a predefined time. Sunrise/Sunset This function requires an Internet connection. To use In- ternet, a Shelly device has to be connected to a local WiFi network with а...
- Page 18 Internet/Security WiFi Mode - Client: Allows the device to connect to an available WiFi network. After typing the details in the respective fields, press Connect. WiFi Mode - Acess Point: Configure Shelly to create a Wi-Fi Access point. After typing the details in the respective fields, press Create Access Point.
- Page 19 Settings Power On Default Mode This sets the default output state when Shelly is powered. ON: Configure Shelly to turn ON, when it has power. OFF: Configure Shelly to turn OFF, when it has power. Restore Last Mode: Configure Shelly to return to last state it was in, when it has power.
- Page 20 You can find the latest version of this User Guide in .PDF by scanning the QR code...
