Aquatec-Watermaker DD 500 User Manual

Modular 12 or 24 volt dc
Hide thumbs

Advertisement

Quick Links

Download this manual
User Manual
Version 09.2019-17
Aquatec Watermaker DD 500
Modular 12 or 24 Volt DC

Advertisement

loading
Need help?

Need help?

Do you have a question about the DD 500 and is the answer not in the manual?

Questions and answers

Summary of Contents for Aquatec-Watermaker DD 500

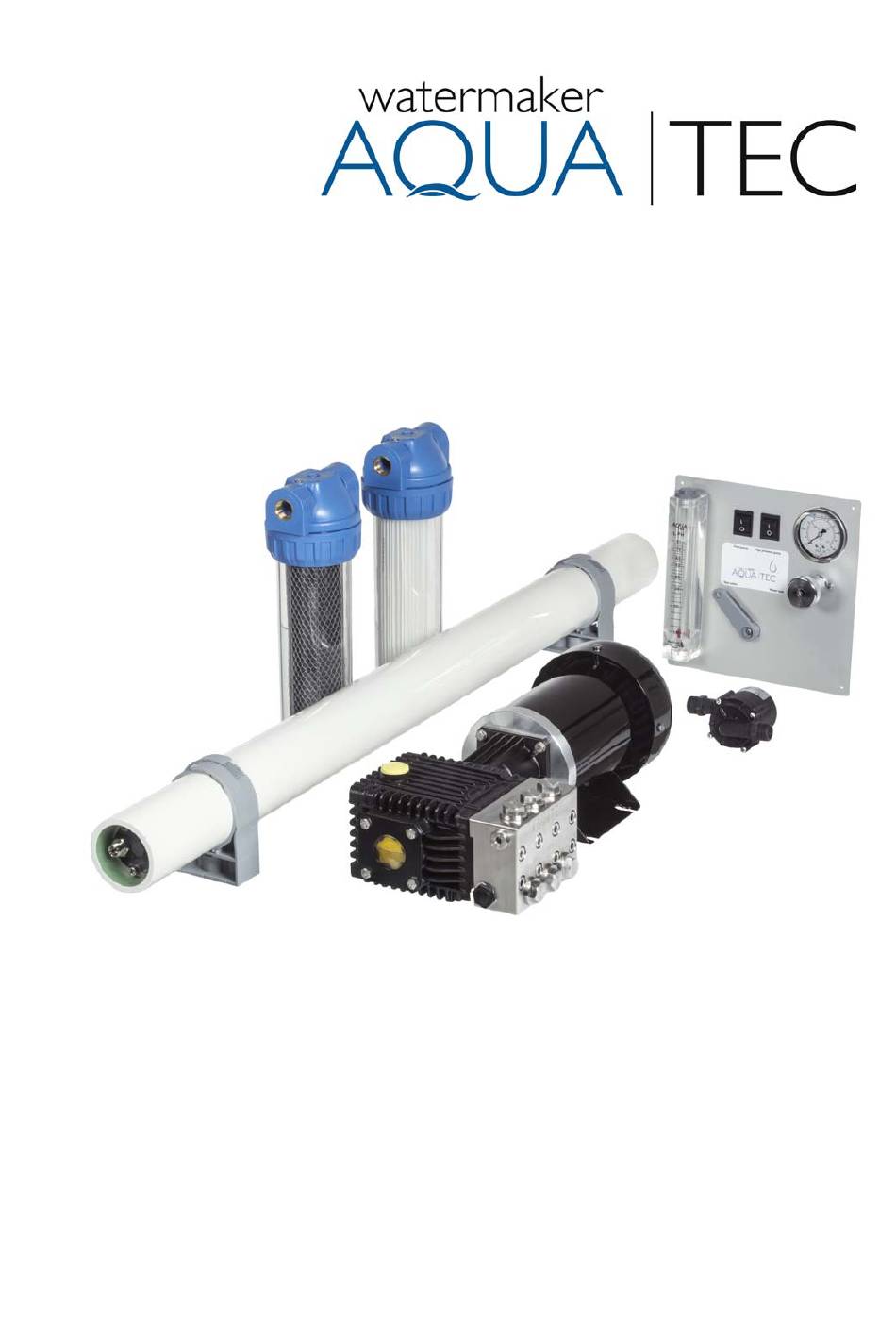

  • Page 1 User Manual Version 09.2019-17 Aquatec Watermaker DD 500 Modular 12 or 24 Volt DC...
  • Page 2 Do not operate your Aquatec watermaker unattended and from trained personnel only. In case of doubt, the German original manual applies. Download the latest manual at: www.aquatec-watermaker.de/downloads_E.html Manufacturing and marketing by AQUATEC-Watermaker, Owner Joachim Matz, Buergerm.-Schinkel-Str. 10a , 25348 Glueckstadt, Germany web: www.aquatec-watermaker.de Copyright Joachim Matz...

  • Page 3: Table Of Contents

    Table of contents Hints Scope of delivery Introduction reverse osmosis 6 - 7 Initial operation Shutdown, fresh water flush. 9 - 10 Long term preservation (mothballing), antifreeze Membrane cleaning Flow diagram 13 - 18 Installation Electrical connection Maintance Change of membranes 22 –...
  • Page 4 Scope of delivery Seawater R.O. AQUATEC :  High-pressure pump with electric motor, pump head in Duplex-stainless steel 1.4462.  Feed pump 12VDC, 24V plants incl. 24/12VDC DC inverter.  GFK membrane housing and membrane-element.  1 filter housing including charcoal filter-cartridge for fresh water flushing. ...
  • Page 5 Introduction The principle of reverse osmosis (RO) In natural sciences and technology, osmosis is perceived as the directed migration of molecules through a semi permeable membrane. The chemical and physical structure of the membrane determines which molecules are able to pass and which are not. For this reason, it is called semi-permeable, which means as much as halfway or partial permeability.
  • Page 6 Operating instructions Attention Do not operate your water maker with unpurified seawater (oil, chlorine or other chemicals). The R.O. membranes are conserved with a dissolution that, when ingested, can cause irritations of the gastrointestinal tract. For that reason, the product water must not be consumed within the first 30 minutes of operating time, beforehand it has to be drained over the test-outlet.
  • Page 7 Flowdiagram fresh water production. (5) Pressure regulation valve (6) Flowmeter product water (7) ships fresh water pump (8) Feed pump (10) Seacock, not scope of delivery. Fresh water flushing. Working pressure 0 bar.

  • Page 8: Hints

    Switch off the system, fresh water flush 1) Open the pressure control valve until the plant runs without pressure. 2) Run the Aquatec several minutes to remove the concentrated salt from the membranes. 3) Turn three-way valve (no. 2) to position test-outlet. 4) Switch off the high-pressure pump first and then the feed pump.
  • Page 9 1,5 litre) together with these 5 litres, the result will now be the maximum permitted concentration of 0.5% by weight. A level teaspoon corresponds to 5 grams Biocide (Natriummetabisulfit). DD 500 Max. 37,5 gr. Biocide Note: For preservation times of approx. 4 months, half of the chemical is sufficient.
  • Page 10 Long term preservation (mothballing) of the plant 2 A standard 1/2” hose can be used for this purpose, which should be fitted onto the HP threaded connector of the high pressure pump to drain the water out into a bucket. Then drain the all the water from the pump, which is important if there is a risk of frost, if possible it is also preferable to blow pressurized air through it in the direction of flow, for this purpose remove both hoses.

  • Page 11: Membrane Cleaning

    Membrane cleaning. Working pressure 0 bar!!! Description: When the fresh water production decreases more than 15 %, the membrane should be cleaned chemically. Caution: Cleaning chemical no. 1 is alkaline and cleaning chemical no. 2 is an acid. Please consider the hazard notes on the canisters.

  • Page 12: Flow Diagram

    Flow diagram DD 500 Hose dimensions (inner diameter) see specification ( page 24) (5) Pressure regulation valve (6) Flowmeter product water (7) ships fresh water pump (8) Feed pump (9) Gauge feed pressure, option (10) Seacock...
  • Page 13 Installation guide page 1 Caution: Hose connections below the water line should secured with 2 hose clamps. All hose clamps must checked time to time and tighten if need. During assembly of the hose nozzles and fittings, few windings of Teflon-tape have to be wrapped around the screw thread against screw direction as tightly as possible.
  • Page 14 Installation guide page 2 Filter housing For a good sealing of the filter housing, please lubricate the O-rings in the filter bowls with the included acid-free silicone grease. Mount the filter housing at an easily accessible place. Connect the filter inlet with the outlet of the feed pump and the filter outlet via PVC hose with the high-pressure pump.
  • Page 15 Installation guide page 3 Fresh water flushing system Mount the filter housing for the charcoal filter at an easily accessible place between the fresh water pressure system and the prefilter housing. Install the hose connections corresponding to the flow diagram. Attention: The maximum pressure in the inlet (seawater, fresh water flushing) must not exceed 2.5 bar.
  • Page 16 Installation guide page 4 High-pressure hose, to be cut into two parts according to your needs. To allow a flexible assembly, the high-pressure hose is provided as one piece of 4 meters (13.1 feet) with a V4A high-pressure fitting at both ends. Please fit the required lengths accurately before cutting the hose.
  • Page 17 Installation guide page 5 Attention: Secure the high-pressure connection fittings in the plastic end caps of the pressure pipe against twisting with a 19 mm open-ended wrench (not necessary on end caps fittings secured with metal strips) and tighten the union nut of the high-pressure hose with a 17 mm open-ended wrench with approx.
  • Page 18 Installation guide page 6 Tank for membrane conservation and cleaning The tank has to be mounted above the system to ensure the flow to the plant. If this is not possible, an additional feed pump has to be installed. The tank can be fastened to any plane surface with the help of the enclosed webbing and the plastic long eyelets.

  • Page 19: Electrical Connection

    Circuit diagram DD 500 Caution: The electrical connection has to be done by a professional installer Note: As the output power of the plant depends on the mm² 12V / 24V tension of the driving motor, in the 10 / 6...
  • Page 20 Maintenance In operation, regularly check all hose connections and hp pump for leaks. Important: Check oil level and condition Dipstick full screwed of the oil of the high-pressure pump into crankcase daily. Öl level If condensation occurs (continuous operation, warm environment) change oil immediate.
  • Page 21 Replacement of membrane Attention !!! The membrane is preserved with a chemical. During unpacking and inserting, please wear protective gloves for your own safety. On contact with the preservative liquid, the affected skin areas have to be rinsed thoroughly with water. Important: To avoid that the new membrane dries out, it may only be removed from the plastic packaging just before commissioning the plant.

  • Page 22: Troubleshooting

    Troubleshooting Noisy operation, vibrations, unsteady pressure. Air in system ** Bleed system ** Intake clogged Clean intake Prefilter dirty Cean or replace filter Feed pump defective Replace feed pump Valve defective or soiled *** Open valve caps and check valves, replace valves *** Pressure regulation valve dirty Clean valve Production falls...
  • Page 23 5) In addition, collect the amount of product water in the same period of time over the test outlet in a vessel and add it. HP pump performance in liters per minute at 55 bar working pressure: DD 500, 3-3.5 liter / minute...
  • Page 24 Clamping torques and spare part-numbers high-pressure pump Note: When ordering spare parts, please name the serial number of the pump head necessarily. Crankcase 14 15 Secure with Loctite 270 built up to 2018 No.13 right side for belt drive only Attention: To unscrew nut no.
  • Page 25 Spare part-numbers high-pressure pump Note: When ordering spare parts, please name the serial number of the pump head necessarily. Description Description No. Order No. No. Order No. 141565 Drain plug ¼“ x 9 Pump head ss 1.4462 141410 Typ DC320-500-800, DD500, AC65-110 141483 141411 141453...
  • Page 26 Specification Watermaker are designed for use in clear seawater only. Specification – AQUATEC Watermaker DD 500 Hose dimensions (inner diameter) Diameter thru-hull fitting 3/4", 19 mm recommended Thru-hull fitting up to high pressure pump 1/2“ / 13 mm Outlet over board: concentrate (Brine) 1/2“...
  • Page 27 Dimensions Motor pump unit DD 500 direct drive, weight 19,90 kg...
  • Page 28 (which might be in the fresh water tank) in the membranes of the desalination plant. Manufacturing and marketing by AQUATEC-Watermaker, Owner Joachim Matz, Buergerm.-Schinkel-Str. 10a , 25348 Glueckstadt, Germany. Tel: +49(0)151 50933262 Mail: sup@aquatec-watermaker.de web: www.aquatec-watermaker.de...

  • Page 29: Memos

    Memos...
