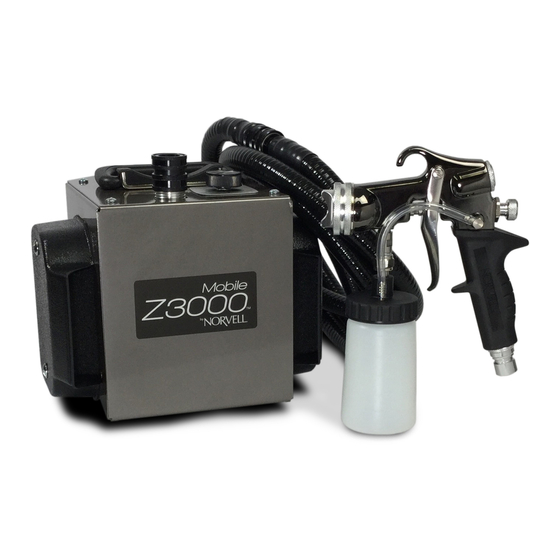

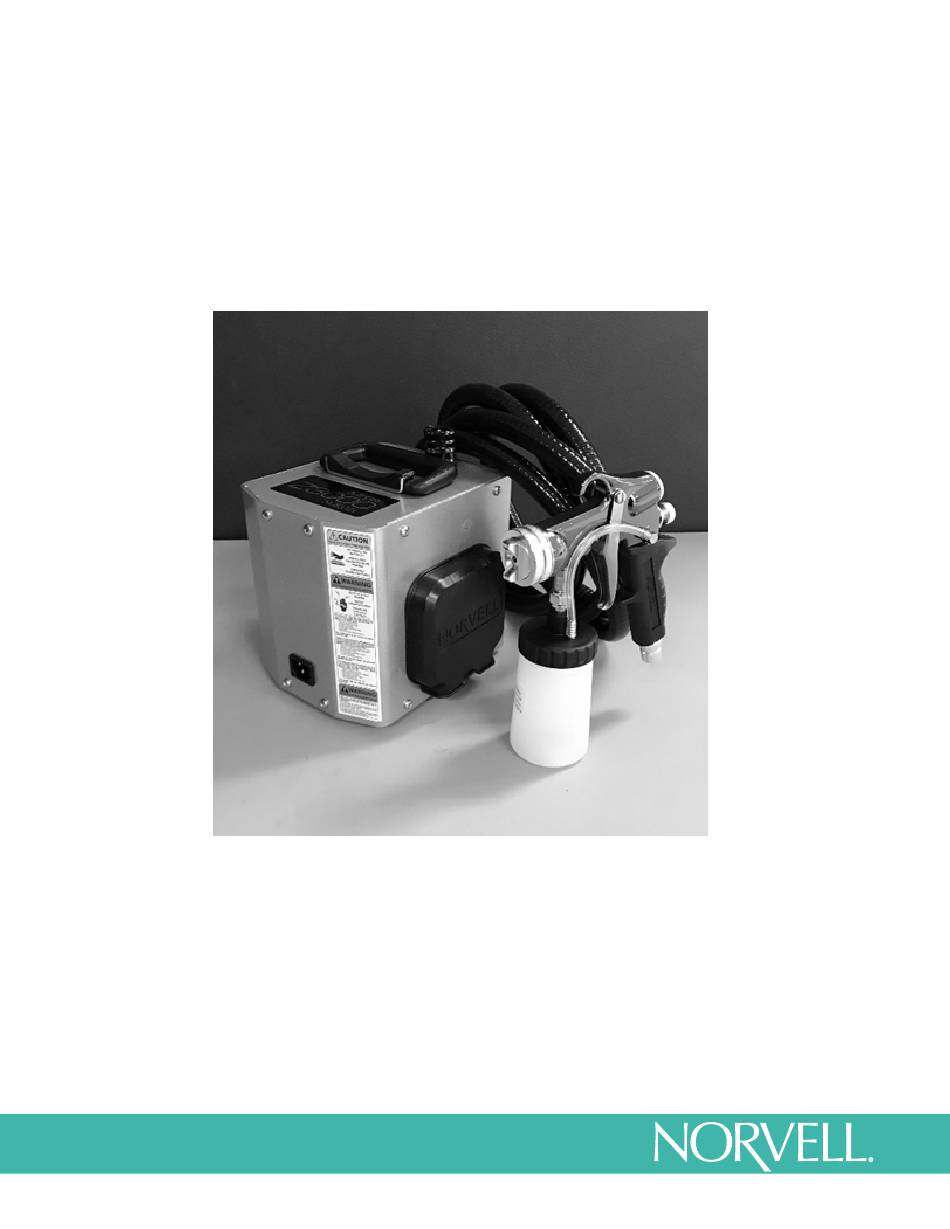

- Page 1 Z3000 ™ Equipment Manual Version 2.0 Instruction Manual and User Guide...
- Page 2 Z3000 ™ Norvell Skin Solutions, the leader in designing, developing, and Manufacturing state of the art spray tanning systems for use within professional Salons, Spas, Health Clubs, Med Spas, and Tanning Salons is proud to introduce the Norvell Z3000 tanning system.
-
Page 3: General Safety Information
Norvell equipment. When using an electrical appliance, basic precautions should always be followed. Norvell Equipment is to be operated only by those who have been professionally trained. Complete interactive training courses are available through Norvell University. - Page 4 • Consult a physician before use if you are pregnant or think you may be pregnant, or if you have a diabetic condition. • Norvell sunless solutions are not a sunscreen or a substitute for proper sun protection. • Indoor Use ONLY. Do not use outdoors or on wet surfaces.
- Page 5 Z3000 ™ Do not pull on Do not submerge in Do not use near cables. water or get wet. open flames. Fig. 1 888.829.2831 • 615.529.1250 - 4 -...
-
Page 6: Package Contents
Inspect All Contents Carefully unpack all packages and inventory contents upon arrival. All missing or damage claims must be made to Norvell Customer Service ASAP by calling 888.829.2831 or 615.529.1250. Norvell must be notified of any damaged or missing items within 7 business days from the date of receipt. - Page 7 This low-pressure atomization principle achieves minimal overspray (wasted spray) to the environment when applied correctly. • The Z3000 Turbine unit has one air hose outlet on the top of the case and is designed to run one only one Spray Gun at a time.
- Page 8 Z3000 ™ Familiarizing Yourself with Your ZGUN ™ Familiarize yourself with the controls on the Spray Gun. There are three principal controls. The Rotating Air Cap, the Solution Flow Control Screw and the Air Cap Locking Ring. Click the Rotating Air Cap into each position. Horizontal, Vertical and 45° diagonal. When the air cap is in the 45°...
-
Page 9: Preparing To Spray
Preparing to Use Your Norvell Z3000™ Spray Tanning System for Mobile Operation 1. Select a safe, well ventilated area where you will spray your client. Locate your Norvell Z3000 turbine unit away from the area where you will be directly spraying so you can keep the filters cleaner. - Page 10 Z3000 ™ Proper Spray Technique norvellsunless.com 888.829.2831 • 615.529.1250 - 9 -...
- Page 11 ™ Using Your ZGUN • The Norvell ZGUN is certified, meaning your Spray Gun only uses approximately 3psi or less. All passages and air ports are much larger than an airbrush system. If one of these air passages becomes blocked, or buildup of solution starts to occur, your spray pattern will become distorted.
- Page 12 Z3000 ™ Pro Series HVLP ZGun Parts List and Diagram Norvell Customer Service 888-829-2831 www.NorvellSunless.com Diagram # Description Air cap ring Air cap Air distributor plate (stainless) Air Distributor spring (stainless) Fluid nozzle/jet (stainless) Fluid nozzle gasket Air feed connector...
- Page 13 Z3000 ™ Daily Spray Gun Maintenance and Cleaning REFER TO PRO SERIES HVLP ZGUN FIG. ON PREVIOUS PAGE TO LOCATE SPECIFIC GUN PARTS 1. It is not necessary to empty and clean your Spray Gun when you pause between applications. However, it is critical to clean your Spray Gun thoroughly at the end of each day.
- Page 14 Normally, this is preset at the factory and should need no adjustment. If it becomes impossible to prevent leaking, contact Norvell Technical Support 888.829.2831 or 615.529.1250 to troubleshoot or schedule maintenance.
- Page 15 ™ Additional Spray Gun Maintenance and Cleaning After 50 hours of use or when necessary Norvell recommends the following maintenance be performed. Check Cup Gasket, Nozzle Gasket, Gland Seal, Air Feed Connectors and Air Tube, Nozzle and Needle Assembly and Solution Feeder Tube for any damage or need for additional cleaning.
-
Page 16: Troubleshooting Guide
Z3000 ™ Troubleshooting Guide Problem Possible Resolution • Is the solution cup securely connected? • Are the Air Feed Connectors and Air Feed Tube securely connected and undamaged? • Is the Cup Gasket in place and undamaged? • Is the Solution Flow Screw dialed within the appropriate range for a spray session? Spray is spitting, weak or ceases to spray. -
Page 17: Warranty And Technical Support
Sunless, Inc./Norvell The Norvell Mobile Z3000 Turbine is WARRANTED by Norvell Spray Systems for a total period of TWO years from the ORIGINAL date of purchase by the ORIGINAL PURCHASER. Proof of purchase should be included and all SHIPPING CHARGES to be pre-paid when sending back to Norvell for repair. - Page 18 Please read these instructions carefully and keep for your reference. 8909 S. Freeway Dr. | Macedina, OH 48056 | 888.829.2831 | 615.529.1250 | norvellsunless.com Norvell® is a registered trademark of Norvell Skin Solutions, LLC. © 1983-2015 Norvell Skin Solutions, LLC. All Rights Reserved. norvellsunless.com...
