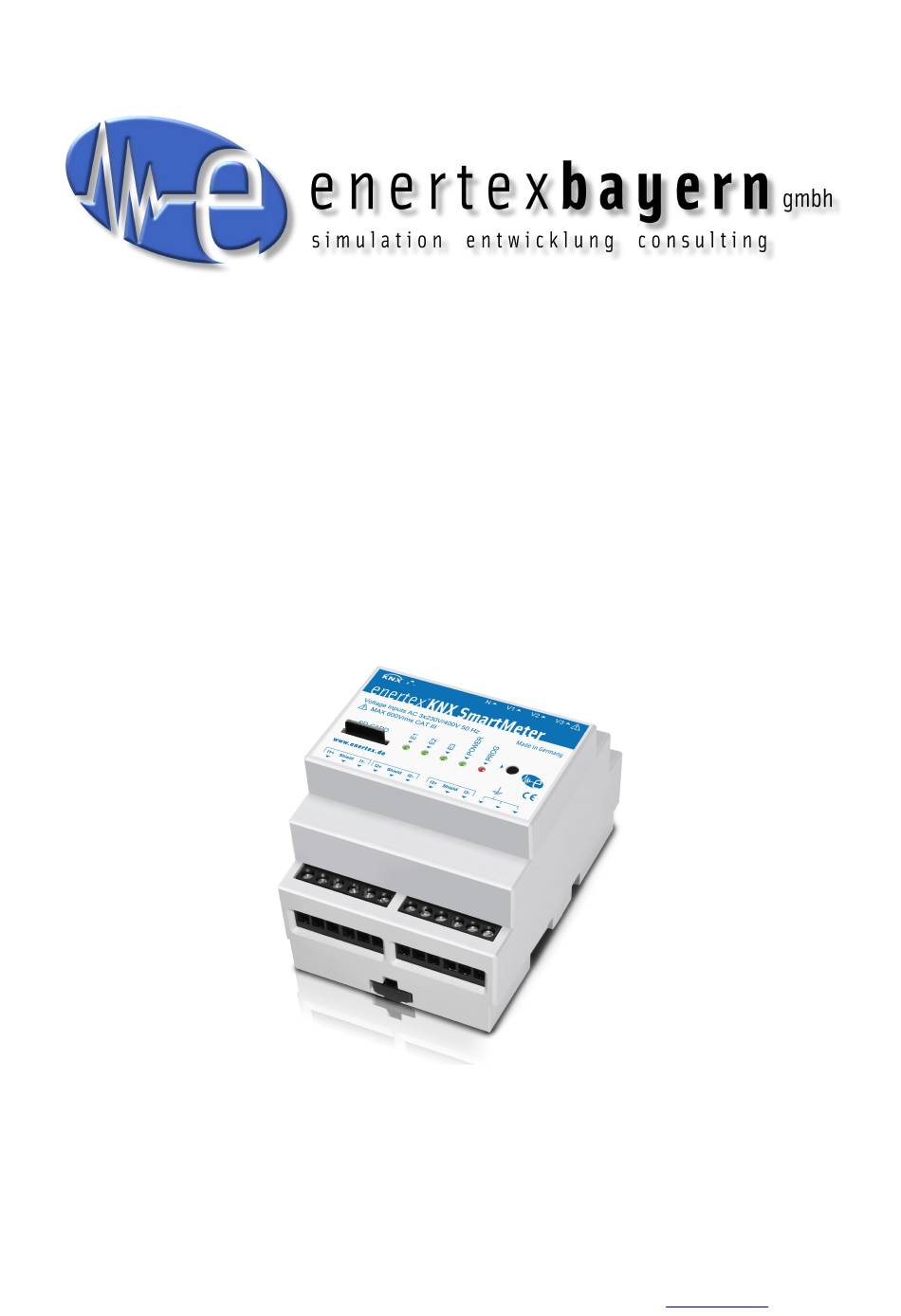

Manual and Configuration
KNX Smartmeter 85A (RT)
Advice
The contents of this document may not be wholly or partially, reproduced, transferred, distributed or stored in any form
without prior written approval by Enertex® Bayern GmbH.
Enertex® is a registered trademark of Enertex® Bayern GmbH. Other product- and company names mentioned herein
can be names of trademark or registered trademarks of their respective owners.
This manual may be changed without notifications or notice and makes no claim to completeness or accuracy.
Enertex
®
Bayern GmbH – Ebermannstädter Straße 8 - 91301 Forchheim - Deutschland -
mail@enertex.de

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Enertex KNX Smartmeter 85A (RT) and is the answer not in the manual?

Questions and answers

Summary of Contents for enertexbayern Enertex KNX Smartmeter 85A (RT)

  • Page 1 Manual and Configuration KNX Smartmeter 85A (RT) Advice The contents of this document may not be wholly or partially, reproduced, transferred, distributed or stored in any form without prior written approval by Enertex® Bayern GmbH. Enertex® is a registered trademark of Enertex® Bayern GmbH. Other product- and company names mentioned herein can be names of trademark or registered trademarks of their respective owners.

  • Page 2: Table Of Contents

    Handbuch-KnxSmartmeter-85A-en-3.odt, 2018-10-04 Seite 2 von 69 Contents Notes................................3 Function................................ 4 Technical specifications..........................4 Assembly............................... 7 Connection diagram..........................7 Assembly of the current sensors......................8 Commissioning............................9 ETS-Application............................10 Specification............................10 Data base file............................10 Examples of settings..........................10 Example 1: Visualization of energy consumption...............................10 Example 2: Bidirectional Counter for Photovoltaics........................16...

  • Page 3: Notes

    Handbuch-KnxSmartmeter-85A-en-3.odt, 2018-10-04 Seite 3 von 69 Notes Installation and assembly of electrical equipment must be carried out by qualified • electricians. When connecting KNX/EIB interfaces specialist skills are required. • Ignoring the instructions can damage the device, as well a fire or other hazards can •...

  • Page 4: Function

    Handbuch-KnxSmartmeter-85A-en-3.odt, 2018-10-04 Seite 4 von 69 Function The KNX Smartmeter is a bidirectional counter for measuring the active and reactive power or energy, as well for power quality monitoring. The measurement will be done in three-phase system or in three separate single-phase systems with the accuracy of class 1 (1%) In the accuracy class 1 according to EN 62053-31 only accuracy requirements for the measurement range between 2% and 100% of rated current are determined.
  • Page 5 Handbuch-KnxSmartmeter-85A-en-3.odt, 2018-10-04 Seite 5 von 69 Connections Voltage measurement input: 4 pol. screw terminal Cross section: 0,33 ... 4 mm² / AWG 22 ... 12 Input voltage: max. 460Vrms Power frequency: 50Hz Current sensor input: 3 x 3 pol. screw terminal Cross section: 0.2 ...
  • Page 6 Handbuch-KnxSmartmeter-85A-en-3.odt, 2018-10-04 Seite 6 von 69 Measurement- Active power: accuracy Measurement ranges Typical measurement deviations per channel 0,5W ... 2W: < 10% or 0.1W ... 20W: < 5% 20W ... 20kW: < 1% Current: Measurement ranges Typical measurement deviations ... 10mA: <...

  • Page 7: Assembly

    Handbuch-KnxSmartmeter-85A-en-3.odt, 2018-10-04 Seite 7 von 69 Assembly Connection diagram Voltage Inputs Current Inputs Figure 1: Terminal connection diagram ATTENTION DANGER! Electrical shock on contact with live parts. Electrical shock can result in death. Disconnect the mains before working on device and cover up live parts in the vicinity! The neutral conductor and the measurement inputs for the 3 voltage measurement channels V1, V2 and V3 are connected to the overlying screw terminal.

  • Page 8: Assembly Of The Current Sensors

    Handbuch-KnxSmartmeter-85A-en-3.odt, 2018-10-04 Seite 8 von 69 The current sensors have to be connected to the lower terminals of the Smartmeter with the following assignment: I+ : brown • I- : white • Shield : black (drain wire) • Assembly of the current sensors The current-carrying conductor, to be measured, must be passed through the current sensor.

  • Page 9: Commissioning

    Handbuch-KnxSmartmeter-85A-en-3.odt, 2018-10-04 Seite 9 von 69 The line should be laid at a distance of at least 10cm to high-frequency sources of • interference. These include for example: Inverter, converter ◦ WLAN Router ◦ Counter with GSM interface ◦ Equipment of a radio - bus, as Enocean, KNX-RF ... ◦...

  • Page 10: Ets-Application

    Handbuch-KnxSmartmeter-85A-en-3.odt, 2018-10-04 Seite 10 von 69 ETS-Application Specification ETS: from Version 3.0d, Patch A Data base file In http://www.enertex.de see the current ETS database file and the current product description. Examples of settings Below examples are presented, which show how the KNX Smartmeter can be used. To this end appropriate adjustments in the ETS will be shown.
  • Page 11 Handbuch-KnxSmartmeter-85A-en-3.odt, 2018-10-04 Seite 11 von 69 Visualization KNX-BUS Current Smartmeter Voltage Current Counter Mains Consumer (from Supplier) power supply Figure 4: Connection of Smartmeter to record the total energy consumption of a residential building When connecting make sure that the current sensors are oriented such, that the applied power arrows show from the public supply network in direction of consumers within the home.
  • Page 12 Handbuch-KnxSmartmeter-85A-en-3.odt, 2018-10-04 Seite 12 von 69 Figure 5: Settings „General“ Example 1 The settings in the tab “Measurement” can be seen in Figure 6. It is advisable that in the parameter “Reference current for limit values (x5A)” the security value is entered with which the lines at the measurement point of the Smartmeter are protected.
  • Page 13 Handbuch-KnxSmartmeter-85A-en-3.odt, 2018-10-04 Seite 13 von 69 Figure 7: Settings „Measurement three-phase“ Example 1 If, as in this example, the three-phase power shall be displayed on the bus seamlessly, the panel “Transmit power and current measurements at change” has to be enabled. Then further buttons are opened, with which this function can be specified.
  • Page 14 Handbuch-KnxSmartmeter-85A-en-3.odt, 2018-10-04 Seite 14 von 69 Figure 8: Settings „Energy counter/Tariff costs counter“ Example 1 In the following two tabs “Energy counter - three-phase” and “Tariff costs counter - three-phase” no adjustments have to be done. Here the default values are taken. Now the energy counter in the tab “Intermediate counter 1”...
  • Page 15 Handbuch-KnxSmartmeter-85A-en-3.odt, 2018-10-04 Seite 15 von 69 the energy consumption of intermediate counter 1 is transmitted by the group object “Energy counter-previous value” on the bus. The energy consumption is transmitted in the unit Wh. Similarly, the intermediate counter 2 is configured to transmit each daily energy costs at the end of a day on the bus.

  • Page 16: Bidirectional Counter For Photovoltaics

    Handbuch-KnxSmartmeter-85A-en-3.odt, 2018-10-04 Seite 16 von 69 a time-diagram. Figure 3 shows one possible visualization of energy consumption in a chart on the web server of Enertex EibPC. Finally it should be explained on the basis of this example, as the already existing current counter of Figure 4 can be synchronized with the Smartmeter.
  • Page 17 Handbuch-KnxSmartmeter-85A-en-3.odt, 2018-10-04 Seite 17 von 69 Figure 13: Settings „General“ Example 2 The settings in the tab “Measurement” can be seen in Figure 14. It is advisable that in the parameter “Reference current for limit values (x5A) the security value is entered with which the lines are protected at the measurement point of the Smartmeter.
  • Page 18 Handbuch-KnxSmartmeter-85A-en-3.odt, 2018-10-04 Seite 18 von 69 This is realized by the hysteresis function. With the following parametrization this concept can be implemented. The limit value for the three-phase active power is set to “-20” (=-2%). This corresponds to the following power: 35A⋅−2 %⋅3⋅230V =−483W 3⋅230V The value 35A corresponds to the parametrized reference current.
  • Page 19 Handbuch-KnxSmartmeter-85A-en-3.odt, 2018-10-04 Seite 19 von 69 released. Since in this example only the three-phase consumption and its costs are to be visualized, only the energy counter “Energy counter - three-phase”, the cost counter “tariff costs counter 1” and “Tariff costs counter 2” are released. Furthermore 3 intermediate counter are required to represent the energy consumption, the energy supply and the balancing energy over the course of one day on the bus.
  • Page 20 Handbuch-KnxSmartmeter-85A-en-3.odt, 2018-10-04 Seite 20 von 69 again summarizing the delivery of energy. Thereby the time intervals are synchronized with the day time, so that the counting intervals only start and end at times XX:00 (=every hour), XX:15 and XX:45. Finally the 3-phase energy delivery of the last 15 minutes is transmitted cyclically after each quarter of an hour by this parametrization.
  • Page 21 Handbuch-KnxSmartmeter-85A-en-3.odt, 2018-10-04 Seite 21 von 69 Figure 20: Settings „Intermediate counter 4“ Example 2 The counting interval is configured to 24 hours. Thus, the energy delivery costs are summed up each over a day and transmitted to the bus via the group object “Cost counter-previous value” of intermediate counter 4 at the end of the day.
  • Page 22 Handbuch-KnxSmartmeter-85A-en-3.odt, 2018-10-04 Seite 22 von 69 Figure 22: Settings „Tariff 1“ Example 2 Similarly, the feed-in tariff is specified in the panel rate of “tariff 2”. To count positive income a negative rate may be indicated here. In this case the active energy counter (generation) - three- phase, which always contains, by definition, a negative value, is multiplied by a negative rate.

  • Page 23: Measurement Quantities

    Handbuch-KnxSmartmeter-85A-en-3.odt, 2018-10-04 Seite 23 von 69 If these group objects are linked with group addresses, then they can be easily visualized in a time-diagram. Measurement quantities In this section an overview of the measurement quantities is given, which are measured by the Smartmeter.
  • Page 24 Handbuch-KnxSmartmeter-85A-en-3.odt, 2018-10-04 Seite 24 von 69 THD-U 8.010 DPT_ Instantaneous total harmonic distortion of the voltage. Percent_V16 in 0.01 % Percentage represents the ratio of the effective value of in 0.01 % harmonics to the effective value of the fundamental It is always positive.

  • Page 25: General Function Concepts

    Handbuch-KnxSmartmeter-85A-en-3.odt, 2018-10-04 Seite 25 von 69 positive reactive power generated, inductive consumed, inductive negative active power positive active power negative cos φ positive cos φ positive active power = negative active power = consumption with respect generation with respect to the power count arrow to the power count arrow φ...

  • Page 26: Bidirectional Counter

    Handbuch-KnxSmartmeter-85A-en-3.odt, 2018-10-04 Seite 26 von 69 Bidirectional Counter The device can be used as a bidirectional counter and as a balancing counter at the same time. Bidirectional counter are always required when at the measurement point of the counter an energy flow occurs in both directions and in addition the energy flow in one direction is different billed as the energy flow in the opposite direction.

  • Page 27: Intermediate Counter

    Handbuch-KnxSmartmeter-85A-en-3.odt, 2018-10-04 Seite 27 von 69 2 can be ignored in this case. Intermediate Counter Intermediate counter are used to display energy consumptions and energy costs on the bus or in a diagram. An intermediate counter accumulates (sums) in each case a selectable count value over a configurable time interval.

  • Page 28: Preset Of A Counter

    Handbuch-KnxSmartmeter-85A-en-3.odt, 2018-10-04 Seite 28 von 69 system. Attention: If a tariff time switch is parametrized for a tariff and the time has not been transmitted to the Smartmeter then the time frames for the tariffs can not be detected. In this case the tariff is never active.

  • Page 29: Recording On The Sd Card

    Handbuch-KnxSmartmeter-85A-en-3.odt, 2018-10-04 Seite 29 von 69 secures at the measurement point of the Smartmeter. That means during the installation of the Smartmeter for a 35A main fuse the reference value would be parametrized to 35A. The reference value for the power limit is also determined by this parameter. The reference value for a single-phase power limit is determined by the formula “Reference current x 230”, the reference value for a three-phase power limit is determined by the formula “Reference current x 230 x 3”.
  • Page 30 Handbuch-KnxSmartmeter-85A-en-3.odt, 2018-10-04 Seite 30 von 69 generated from the recording mode and the recording day. A new recording file on the SD-card is created for each day. In the first two lines of the log file it is a legend with name and unit for the respective measured value of the corresponding column.

  • Page 31: Adjusting The Real-Time Clock Without Bus Access

    Handbuch-KnxSmartmeter-85A-en-3.odt, 2018-10-04 Seite 31 von 69 a restart of the application the function "Request time and date after bus voltage recovery" can be used. If a time and a date has been transmitted to the Smartmeter then the recording is made each synced with the time of the day, that means at a recording interval of 15 minutes the recording is carried out in each case to the minute XX:00 (= every hour), to the minute XX:15, to the minute XX:30 and to the minute XX:45.
  • Page 32 Handbuch-KnxSmartmeter-85A-en-3.odt, 2018-10-04 Seite 32 von 69 Figure 25: General settings Description of the parameters Name Options Description Transmission delay after bus voltage [2-255] All messages that are transmitted after a bus voltage recovery (s) recovery are delayed for this time. The device can thus be configured so that transmission of objects after the bus voltage recovery do not overload the bus.

  • Page 33: Measurement

    Handbuch-KnxSmartmeter-85A-en-3.odt, 2018-10-04 Seite 33 von 69 Measurement Under the tab “Measurement the following settings can be made: Figure 26: Parameter Measurement Description of the parameters: Name Options Description Reference current for limit values (x5A) [1,2 ... 134] All current limits assigning in percentage are based on the values set here.
  • Page 34 Handbuch-KnxSmartmeter-85A-en-3.odt, 2018-10-04 Seite 34 von 69 Name Options Description Release group object “Request measured [Yes / No] The group object “Request measured values” is values” released. Request measured values [0 / 1 / 0 or 1] The transmission of the measured values are requested with a group object which has the value parametrized here.
  • Page 35 Handbuch-KnxSmartmeter-85A-en-3.odt, 2018-10-04 Seite 35 von 69 Settings under the tab „Measurement channel 1,2 or 3 (Part 1)“: Figure 27: Parameter measurement channel 1 (Part 1) Description of the parameters: Name Options Description Transmit power and voltage measurements [Yes/ No] The parameters for cyclical transmission are cyclically hereby released.
  • Page 36 Handbuch-KnxSmartmeter-85A-en-3.odt, 2018-10-04 Seite 36 von 69 Name Options Description Transmit voltage cyclically [Yes/ No] It is set whether the measured value for the above-mentioned cycle time is transmitted. Transmit power, voltage and current [Yes/ No] The parameters for transmission at change are measurements at change.
  • Page 37 Handbuch-KnxSmartmeter-85A-en-3.odt, 2018-10-04 Seite 37 von 69 Settings under the tab „Measurement channel 1,2 or 3 (Part 2)“: Figure 28: Parameter Measurement channel 1 (Part 2) Description of the parameters Name Options Description Message at voltage failure (voltage) [Yes / No] At voltage outage (applies when Vac <...
  • Page 38 Handbuch-KnxSmartmeter-85A-en-3.odt, 2018-10-04 Seite 38 von 69 Name Options Description Transmit measurements cyclically (x10s) [0,1,2...17280] The group objects with the below-mentioned measured values of channel 1, 2 or 3 are transmitted cyclically in temporal distance of the parametrized values Transmit current cyclically [Yes / No] It is set whether the measured value is transmitted at the above-mentioned cycle time.
  • Page 39 Handbuch-KnxSmartmeter-85A-en-3.odt, 2018-10-04 Seite 39 von 69 Settings under the tab “Measurement three-phase values “ (Part 1): Figure 29: Parameter Measurement three-phase values (Part 1) Description of parameters: Name Options Description Transmit three-phase values cyclically [Yes / No] The parameters for cyclically transmission are hereby released.
  • Page 40 Handbuch-KnxSmartmeter-85A-en-3.odt, 2018-10-04 Seite 40 von 69 Settings under the tab “Measurement three-phase values “ (Part 2): Figure 30: Parameter Measurement three-phase values (Part 2) Description of parameters: Name Options Description Message at limit value (three-phase active [Yes / No] When exceeding or falling below a threshold value power) of the three phase active power a group object is transmitted.

  • Page 41: Energy Counter / Tariff Cost Counter

    Handbuch-KnxSmartmeter-85A-en-3.odt, 2018-10-04 Seite 41 von 69 Name Options Description Limit value (x0.1%) [-1000 ... -1, 0, Limit of the three-phase reactive power. The limit +1 ... +1000] here is specified as a percentage of the three phase reference power (= 3 x 230 x reference current). In case of negative limits it should be noted that the value 1 is transmitted when the measured value exceeds the limit as an absolute value.
  • Page 42 Handbuch-KnxSmartmeter-85A-en-3.odt, 2018-10-04 Seite 42 von 69 Figure 31: Parameter Energy counter Description of the parameters: Name Options Description Release energy counter - channel 1 [Yes / No] The release of the parameters and group objects for the energy counter of channel 1. For the operation of energy counters see also section Bidirectional Counter.
  • Page 43 Handbuch-KnxSmartmeter-85A-en-3.odt, 2018-10-04 Seite 43 von 69 Settings under the tab “Energy counter channel 1, 2 or 3”: Figure 32: Parameter Energy counter channel 1 Description of the parameters: Name Options Description Transmit counter values cyclically [Yes / No] The parameters for cyclically transmission are hereby released.
  • Page 44 Handbuch-KnxSmartmeter-85A-en-3.odt, 2018-10-04 Seite 44 von 69 Settings under the tab “Energy counter three-phase values”: Figure 33: Parameter Energy counter three-phase values Description of the parameters: Name Options Description Transmit counter values cyclically [Yes / No] The parameters for cyclical transmission are hereby released.
  • Page 45 Handbuch-KnxSmartmeter-85A-en-3.odt, 2018-10-04 Seite 45 von 69 Name Options Description Transmit reactive energy counter at change [Yes / No] It is set whether the counter value is transmitted at change of the above-mentioned percentage value. Counter after ETS download [no reaction / It is set whether the counter values of the three- reset] phase register are reset after an ETS download.
  • Page 46 Handbuch-KnxSmartmeter-85A-en-3.odt, 2018-10-04 Seite 46 von 69 Name Options Description Transmit cyclically tariff cost counter 2 [Yes / No] It is set whether the measured value for the (generation) above-mentioned cycle time is transmitted. Transmit cyclically tariff cost counter 3 [Yes / No] It is set whether the measured value for the (balance) above-mentioned cycle time is transmitted.
  • Page 47 Handbuch-KnxSmartmeter-85A-en-3.odt, 2018-10-04 Seite 47 von 69 Settings under the tab “Intermediate counter 1-6”: Figure 35: Parameter Intermediate counter 1 Description of the parameters: Name Options Description Input counter value of [Active energy counter (balance) - channel Here the counted value can be selected which is intermediate counter 1 / Active energy counter (consumption) - counted in the intermediate counter.

  • Page 48: Tariff

    Handbuch-KnxSmartmeter-85A-en-3.odt, 2018-10-04 Seite 48 von 69 Name Options Description Count interval [1min, 5min, 10min, 15min, 1h, 12h, 24h, The count interval can be selected here. After the 1 week, via trigger object] selected time the intermediate counter is reset. Before resetting the current intermediate counter reading is copied to the group object of the previous value.
  • Page 49 Handbuch-KnxSmartmeter-85A-en-3.odt, 2018-10-04 Seite 49 von 69 Description of the parameters: Name Options Description Release tariff 1 [Yes / No] The release of the parameters and group objects for the tariff 1 can be parametrized. Release tariff 2 [Yes / No] The release of the parameters and group objects for the tariff 2 can be parametrized.
  • Page 50 Handbuch-KnxSmartmeter-85A-en-3.odt, 2018-10-04 Seite 50 von 69 Settings under the tab “Tariff 1, 2 or 3”: Figure 37: Parameter Tariff 1 Description of the parameters: Name Options Description Rate (0.01ct/kWh) [-10000,-9999... +10000] The kWh rate of tariff 1, 2 or 3 has to be specified.

  • Page 51: Group Objects

    Handbuch-KnxSmartmeter-85A-en-3.odt, 2018-10-04 Seite 51 von 69 Group Objects Notes: Depending on the configuration, some objects may not be available. Group objects, which include measured variables, are described in detail in section Measurement quantities. Name Object function Length Type Flags General Power saving mode 1 bit [1.003]...
  • Page 52 Handbuch-KnxSmartmeter-85A-en-3.odt, 2018-10-04 Seite 52 von 69 Name Object function Length Type Flags Measurement Current (rms) 2 Byte [9.021] CR-T- DPT_Value_Curr Group object with the most recently determined RMS current of channel 1 Name Object function Length Type Flags Measurement Active power 4 Byte [14.056] CR-T-...
  • Page 53 Handbuch-KnxSmartmeter-85A-en-3.odt, 2018-10-04 Seite 53 von 69 Name Object function Length Type Flags Measurement THD-I limit message 1 Bit [1.002] C--T- DPT_Bool Group object, that is transmitted with the value 1 or 0, if the limit of the THD-I of channel 1 has been exceeded or fallen below.
  • Page 54 Handbuch-KnxSmartmeter-85A-en-3.odt, 2018-10-04 Seite 54 von 69 Name Object function Length Type Flags Measurement Active power 4 Byte [14.056] CR-T- DPT_Value_Power Group object with the most recently determined active power of the channel 2. Name Object function Length Type Flags Measurement External active power limit 2 Byte [8.010]...
  • Page 55 Handbuch-KnxSmartmeter-85A-en-3.odt, 2018-10-04 Seite 55 von 69 Group object with the most recently determined apparent power of the channel 2. Name Object function Length Type Flags Measurement Reactive power 4 Byte [14.056] CR-T- DPT_Value_Power Group object with the most recently determined reactive power of the channel 2. Name Object function Length...
  • Page 56 Handbuch-KnxSmartmeter-85A-en-3.odt, 2018-10-04 Seite 56 von 69 Name Object function Length Type Flags Measurement Active power limit message 1 Bit [1.002] C--T- DPT_Bool Group object, that is transmitted with the value 1 or 0, if the limit of the active power of channel 3 has been exceeded or fallen below.
  • Page 57 Handbuch-KnxSmartmeter-85A-en-3.odt, 2018-10-04 Seite 57 von 69 Name Object function Length Type Flags Measurement Power factor 4 Byte [14.057] CR-T- DPT_Value_Power _Factor Group object with the most recently determined power factor of the channel 3. Name Object function Length Type Flags Measurement THD-U 2 Byte...
  • Page 58 Handbuch-KnxSmartmeter-85A-en-3.odt, 2018-10-04 Seite 58 von 69 Name Object function Length Type Flags Measurement Reactive power limit message 1 Bit [1.002] CR-T- three-phase DPT_Bool Group object that is transmitted with the value 1 or 0, if the limit of the three-phase reactive power has been exceeded or fallen below.
  • Page 59 Handbuch-KnxSmartmeter-85A-en-3.odt, 2018-10-04 Seite 59 von 69 Counter value of the balancing active energy counter of channel 2. The counter can be positive or negative. If the value is negative, then the generated power was greater than the consumed energy. Name Object function Length Type...
  • Page 60 Handbuch-KnxSmartmeter-85A-en-3.odt, 2018-10-04 Seite 60 von 69 Name Object function Length Type Flags Energy counter Reactive energy counter 4 Byte [13.010] CR-T- three-phase DPT_ActiveEnergy Counter value of the reactive energy counter of he three-phase value. The counter value is always positive since only the absolute value of the reactive energy is counted.
  • Page 61 Handbuch-KnxSmartmeter-85A-en-3.odt, 2018-10-04 Seite 61 von 69 Name Object function Length Type Flags Tariff counter 2- Tariff cost counter (gen.) 4 Byte [13.001] CR-T- three-phase DPT_Value_4_Cou values The object contains the accumulated costs (in Cent) for the tariff 2. They are calculated from the three-phase active energy (generation) counted in tariff 2 and from the rate of tariff 2.
  • Page 62 Handbuch-KnxSmartmeter-85A-en-3.odt, 2018-10-04 Seite 62 von 69 Name Object function Length Type Flags 106 Intermediate Cost counter-current value 4 Byte [13.001] CR-T- counter 1 DPT_Value_4_Cou This object contains the current cost counter value of the intermediate counter in ct. The counter value may be positive or negative.
  • Page 63 Handbuch-KnxSmartmeter-85A-en-3.odt, 2018-10-04 Seite 63 von 69 Name Object function Length Type Flags 114 Intermediate Cost counter-current value 4 Byte [13.001] CR-T- counter 2 DPT_Value_4_Cou This object contains the current cost counter value of the intermediate counter in ct. The counter value may be positive or negative.
  • Page 64 Handbuch-KnxSmartmeter-85A-en-3.odt, 2018-10-04 Seite 64 von 69 Name Object function Length Type Flags 122 Intermediate Cost counter-current value 4 Byte [13.001] CR-T- counter 3 DPT_Value_4_Cou This object contains the current cost counter value of the intermediate counter in ct. The counter value may be positive or negative.
  • Page 65 Handbuch-KnxSmartmeter-85A-en-3.odt, 2018-10-04 Seite 65 von 69 Name Object function Length Type Flags 130 Intermediate Cost counter-current value 4 Byte [13.001] CR-T- counter 4 DPT_Value_4_Cou This object contains the current cost counter value of the intermediate counter in ct. The counter value may be positive or negative.
  • Page 66 Handbuch-KnxSmartmeter-85A-en-3.odt, 2018-10-04 Seite 66 von 69 Name Object function Length Type Flags 138 Intermediate Cost counter-current value 4 Byte [13.001] CR-T- counter 5 DPT_Value_4_Cou This object contains the current cost counter value of the intermediate counter in ct. The counter value may be positive or negative.
  • Page 67 Handbuch-KnxSmartmeter-85A-en-3.odt, 2018-10-04 Seite 67 von 69 Name Object function Length Type Flags 146 Intermediate Cost counter-current value 4 Byte [13.001] CR-T- counter 6 DPT_Value_4_Cou This object contains the current cost counter value of the intermediate counter in ct. The counter value may be positive or negative.
  • Page 68 Handbuch-KnxSmartmeter-85A-en-3.odt, 2018-10-04 Seite 68 von 69 Name Object function Length Type Flags 155 Tariff 1 Rate (0.01ct/kWh) 2 Byte [8.001] CRWT- DPT_Value_2_ Count When writing to this object, the rate of tariff 1 in 0.01ct is adopted from the bus. If the parameter “Adopt rate from the bus”...

  • Page 69: Firmware Update

    Handbuch-KnxSmartmeter-85A-en-3.odt, 2018-10-04 Seite 69 von 69 Firmware update By using the SD card a new DSP firmware can be loaded onto the device. This must be • proceeded as follows: Download of the packed update-file (1149-firmware-update.zip) from www.enertex.de • Directly unzipping the file on a SD card without sub directory. Then the SD card contains •...
