Summary of Contents for heddier electronic HD-LSS25

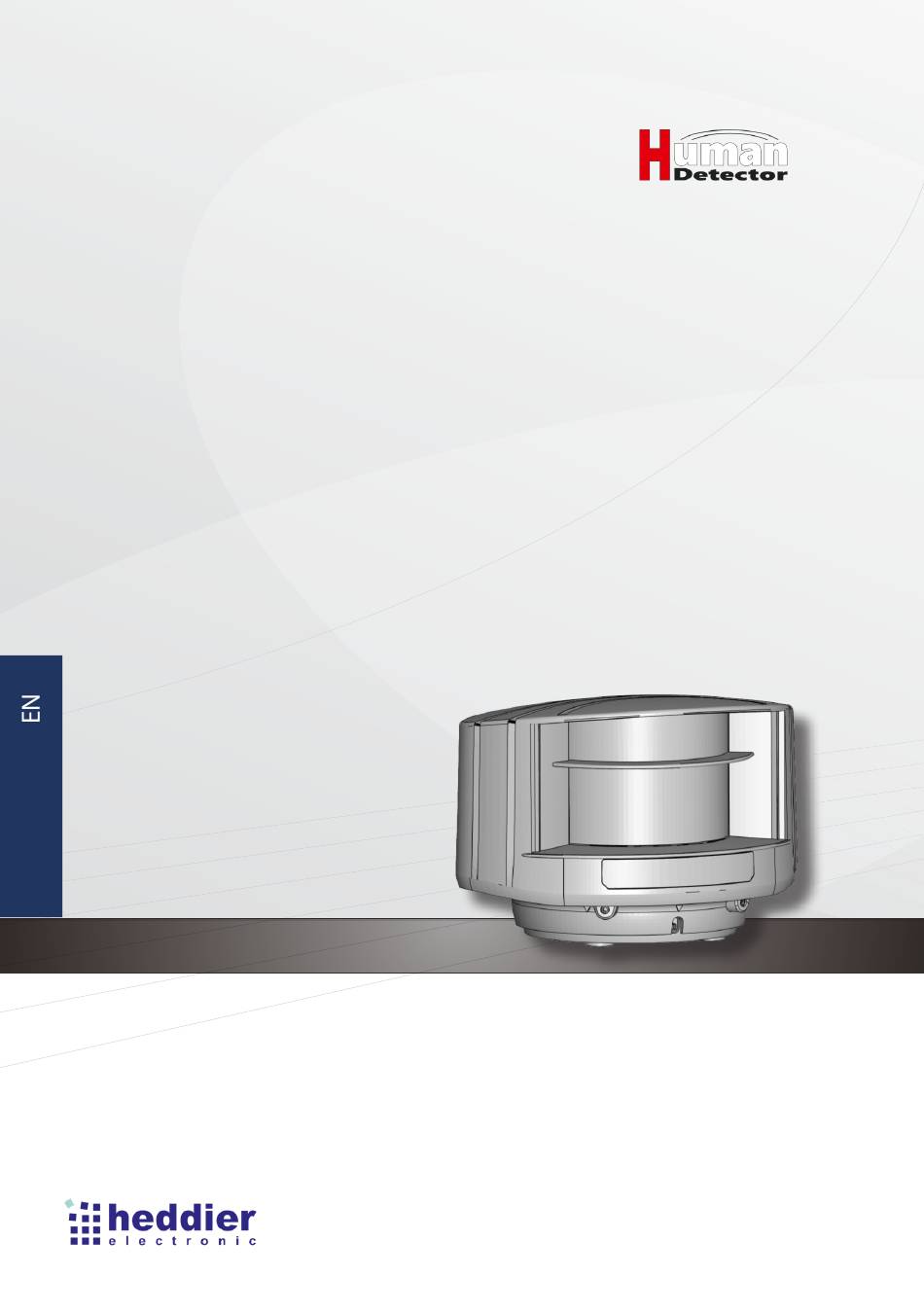

- Page 1 HD-LSS25 LASER SCANNER FOR EXHIBIT SECURITY AND BUILDING AUTOMATION User’s Guide...
- Page 2 BUILDING AUTOMATION AND SECURITY Other use of the device is outside the permitted purpose and can not be guaranteed by the manufacturer. The manufacturer cannot be held responsible for incorrect installations or inappropriate adjustments of the sensor. DESCRIPTION laser sweep emission protection cover laser sweep reception visible laser beam (3)
-
Page 3: Installation And Maintenance
SAFETY The device contains IR and visible laser diodes. IR laser: wavelength 905nm; max. output pulse power 75W (Class 1 according to IEC 60825-1) Visible laser: wavelength 650nm; max. output CW power 3mW (Class 3R according to IEC 60825-1) The visible laser beams are inactive during normal functioning. The installer can activate the visible lasers if needed. -
Page 4: Possible Applications
POSSIBLE APPLICATIONS PROTECTION OF WORKS OF ART: WARNING & ALARM Field 1 (4 active curtains) triggers relay 1: Field 2 (only curtain C1 active) triggers relay 2: warning alarm Adapt the field widths (6 m for example): Reduce field 2 to 1 curtain (C1): DAY AND NIGHT FEATURE During day time, only field 1 is active and During night time field 2 is active too and... -
Page 5: Installation Steps
RELAY 2 - FIELD 2 VIOLET TEST + No monitoring*: connect red and blue wires to power supply (no polarity) TEST - BLUE WHITE/RED TEACH-IN No teach-in via input*: WHITE/BLUE connect white/red and white/blue wires to ground *for more info, please contact heddier electronic... - Page 6 POSITIONING Unlock the sensor and activate the visible laser beams. The visible laser beams indicate approximately the postion of curtain C1 and limit the angle of the detection field. The visible laser beams stay activated for 15 minutes or can be turned off the same way they were activated.
- Page 7 Objects in the detection field will be cut out. Stay outside of the detection field to avoid disturbances. To launch a teach-in via input, please contact heddier electronic for more information. To launch a teach-in via remote control, use the following sequence: max.
- Page 8 REMOTE CONTROL ADJUSTMENTS (OPTIONAL) DETECTION CURTAINS C1 + C2 active on field 1 only C1 C2 C3 C4 CURTAIN C3 + C4 active on field 2 only deactivate curtain on both fields C1 active on both fields activate curtain only on field 1 C2+C3 active on field 2 only C4 deactivated activate curtain only on field 2...
-
Page 9: How To Use The Remote Control
HOW TO USE THE REMOTE CONTROL After unlocking, the red If the red LED flashes quickly after unlocking, you To end an adjustment session, LED flashes and the sensor need to enter an access code from 1 to 4 digits. always lock the sensor. -
Page 10: Troubleshooting
A reflective object is in close Avoid highly reflective material in proximity to proximity to the sensor. the sensor. The sensor does You have to enter a code or Please contact heddier electronic. not unlock. the wrong code was entered. -
Page 11: Technical Specifications
T +49 (0) 25 46 911-0 | F +49 (0) +25 46 911-29 | info@human-detector.com | www.human-detector.com heddier electronic hereby declares that the HD-LSS25 is in conformity with the basic requirements and the other relevant provisions of the directives 2014/30/EU, 2014/35/EU and 2011/65/EU.
