Summary of Contents for Corsynth C110 2044 VCF
- Page 1 C110 2044 VCF USER MANUAL...
- Page 2 C110 2044 VCF C110 2044 VCF The C110 2044 VCF is a four pole low pass lter based in the classical lter SSM2044. This lter chip is responsible for the sound of some well known polysynths from the 80s like the Korg Mono / Poly , Korg Polysix , Korg Trident, PPG Wave 2.2...
-
Page 3: Front Panel Description

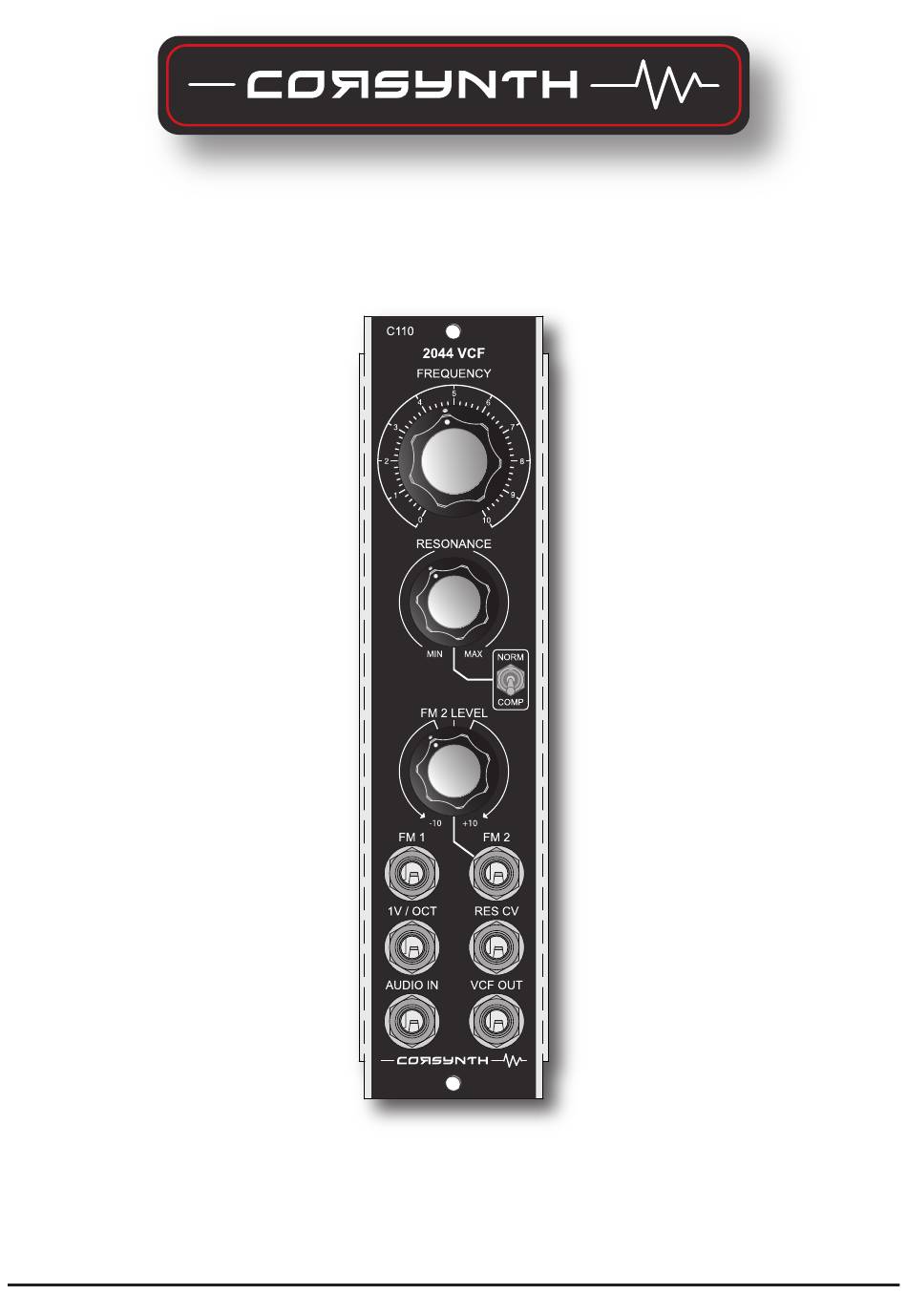

C110 2044 VCF CORSYNTH C110 2044 VCF Front Panel Description Cuto frequency control Resonance control Resonance compensation on / o switch Frequency Modulation 2 level control Cuto Frequency Cuto Frequency Modulation input 1 Modulation input 2 Cuto frequency Resonance 1V /OCT input... -
Page 4: Control Description
C110 2044 VCF CORSYNTH CONTROL DESCRIPTION FREQUENCY This control sets the cuto frequency of the lter. The frequencies above cuto frequency are attenuated at a rate of 24dB per octave. When the control is set to 10 position the lter is totally open so it doesn’t have e ect over the audio frequency. - Page 5 C110 2044 VCF CORSYNTH FM 1 Frequency modulation input. The input allow positive and negati- ve signals which together with the value set by the FREQUENCY control, the and the 1V / OCT inputs sets the nal value of the cuto frequency.
-
Page 6: Technical Data
2044 VCF Trimmers and power connectors IMPORTANT !!!! This module has two power connec- tors (Synthesizers.com and MOTM). Only one is needed to power the module. (Synthesizers.com or MOTM). Never connect both at the same time. Synthesizers.com O set input... - Page 7 C110 2044 VCF CORSYNTH MODULAR LEVEL MODULAR SYNTHS HTTP://WWW.CORSYNTH.COM...
