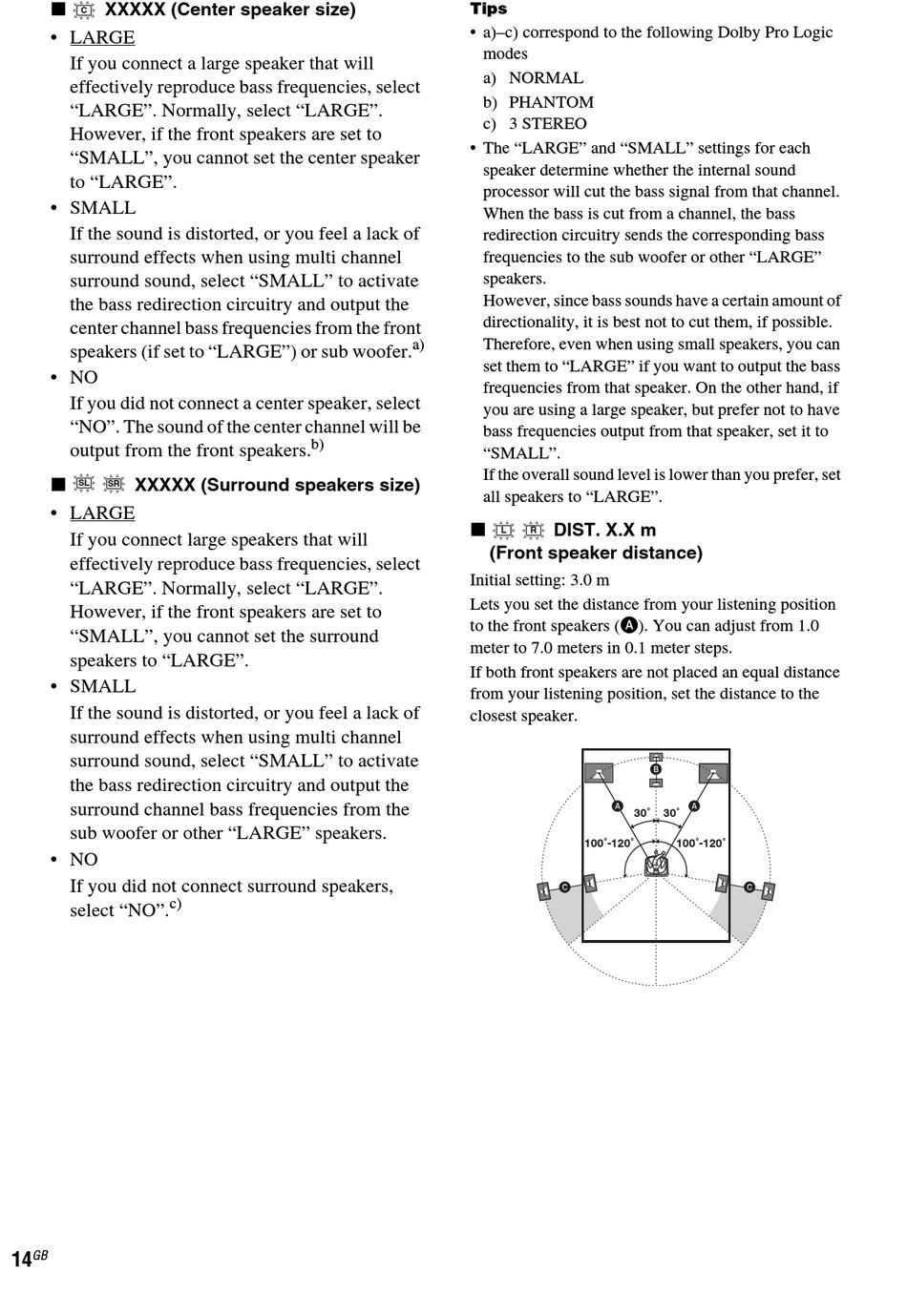

Sony Model STR-DK5 Operating Instructions Manual page 14

x
XXXXX (Center speaker size)
C
• LARGE
If you connect a large speaker that will
effectively reproduce bass frequencies, select
"LARGE". Normally, select "LARGE".
However, if the front speakers are set to
"SMALL", you cannot set the center speaker
to "LARGE".
• SMALL
If the sound is distorted, or you feel a lack of
surround effects when using multi channel
surround sound, select "SMALL" to activate
the bass redirection circuitry and output the
center channel bass frequencies from the front
speakers (if set to "LARGE") or sub woofer.
• NO
If you did not connect a center speaker, select
"NO". The sound of the center channel will be
output from the front speakers.
x XXXXX (Surround speakers size)
SL SR
• LARGE
If you connect large speakers that will
effectively reproduce bass frequencies, select
"LARGE". Normally, select "LARGE".
However, if the front speakers are set to
"SMALL", you cannot set the surround
speakers to "LARGE".
• SMALL
If the sound is distorted, or you feel a lack of
surround effects when using multi channel
surround sound, select "SMALL" to activate
the bass redirection circuitry and output the
surround channel bass frequencies from the
sub woofer or other "LARGE" speakers.
• NO
If you did not connect surround speakers,
c)
select "NO".
GB
14
Tips
• a)–c) correspond to the following Dolby Pro Logic
• The "LARGE" and "SMALL" settings for each
a)
b)
x
Initial setting: 3.0 m
Lets you set the distance from your listening position
to the front speakers (A). You can adjust from 1.0
meter to 7.0 meters in 0.1 meter steps.
If both front speakers are not placed an equal distance
from your listening position, set the distance to the
closest speaker.
modes
a) NORMAL
b) PHANTOM
c) 3 STEREO
speaker determine whether the internal sound
processor will cut the bass signal from that channel.
When the bass is cut from a channel, the bass
redirection circuitry sends the corresponding bass
frequencies to the sub woofer or other "LARGE"
speakers.
However, since bass sounds have a certain amount of
directionality, it is best not to cut them, if possible.
Therefore, even when using small speakers, you can
set them to "LARGE" if you want to output the bass
frequencies from that speaker. On the other hand, if
you are using a large speaker, but prefer not to have
bass frequencies output from that speaker, set it to
"SMALL".
If the overall sound level is lower than you prefer, set
all speakers to "LARGE".
DIST. X.X m
L R
(Front speaker distance)
A
30˚
100˚-120˚
C
B
A
30˚
100˚-120˚
