ARO 651612 Series Operator's Manual

OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTALLATION & MAINTENANCE
INCLUDE MANUALS: 66516-X FOLLOWER PLATE (PN 97999-854) OR 67195-X FOLLOWER PLATE (PN 97999-841)
& S-635 GENERAL INFORMATION (PN 97999-635)
HEAVY DUTY TWO POST LIFT / RAM
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
THIS MANUAL COVERS THE FOLLOWING MODELS (COMPLETE FOLLOWER DATA ON PAGE 3)
MODEL
(See Page 3 for Follower Plate)
651612-1, -2, -3, -7, -8, -9, -59
651612, -4, -5, -6, -10, -11, -12
SERVICE KITS
637343 for repair of elevator elastomeric seals.
104302 for repair of R37121- 100 regulator.
GENERAL DESCRIPTION
The ARO Model 651612-X Two Post Lift / Ram is used to help force high
viscosity materials or greases into the pump material inlet. This unit uses
dual 5-1/2'' air operated cylinders welded to a heavy gauge plate and a
tubular steel cross member to raise and lower a fluid handling pump as-
sembly into and out of a standard 55 - gallon drum.
The cast aluminum follower is fitted with a dual-lipped seal to wipe the
drum clean and seal off the material from the atmosphere. Several fol-
lower plate outer seal material options are available to be compatible
with the material being pumped. In a typical configuration the pump low-
er pump end is securely attached to the follower plate and is further sta-
bilized by a support bracket assembly. Hold down brackets located on
each of the cylinders help to properly position drum with the follower
plate each time the drum is changed.
It is best to permanently fasten the lift / ram to the floor. Once the unit has
been properly anchored in concrete, this unit has the ability to raise a
pump 38-1/4" (to clear a standard 55 - gallon drum.) The operator is then
able to easily remove a pump and follower assembly from a drum in or-
der to exchange drums.
This unit uses a lever type control valve which controls the air necessary
to raise and lower the lift. This type of valve exhausts through a port in the
valve.
The lift also includes an auxiliary manual air valve which is used to sup-
ply a controlled amount of air to the follower plate. A small amount of air
supplied under the follower plate will help to raise the follower plate,
pump and lift by relieving the vacuum.
INGERSOLL RAND COMPANY LTD
209 NORTH MAIN STREET – BRYAN, OHIO 43506
(800) 495-0276 FAX(800) 892-6276
www.ingersollrandproducts.com
For use with 55 Gallon Drums
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
OPERATING OR SERVICING THIS EQUIPMENT.
4-1/4" & 6" Chop-Check & Two-Ball Pumps, 8" 44:1 Chop-Check and 38:1 Two-Ball Pumps.
8", 10" & 12" Chop-Check & Two-Ball Pumps (except 8" 44:1 Chop-Check and 38:1 Two-Ball Pumps).
© 2012 CCN 81377905

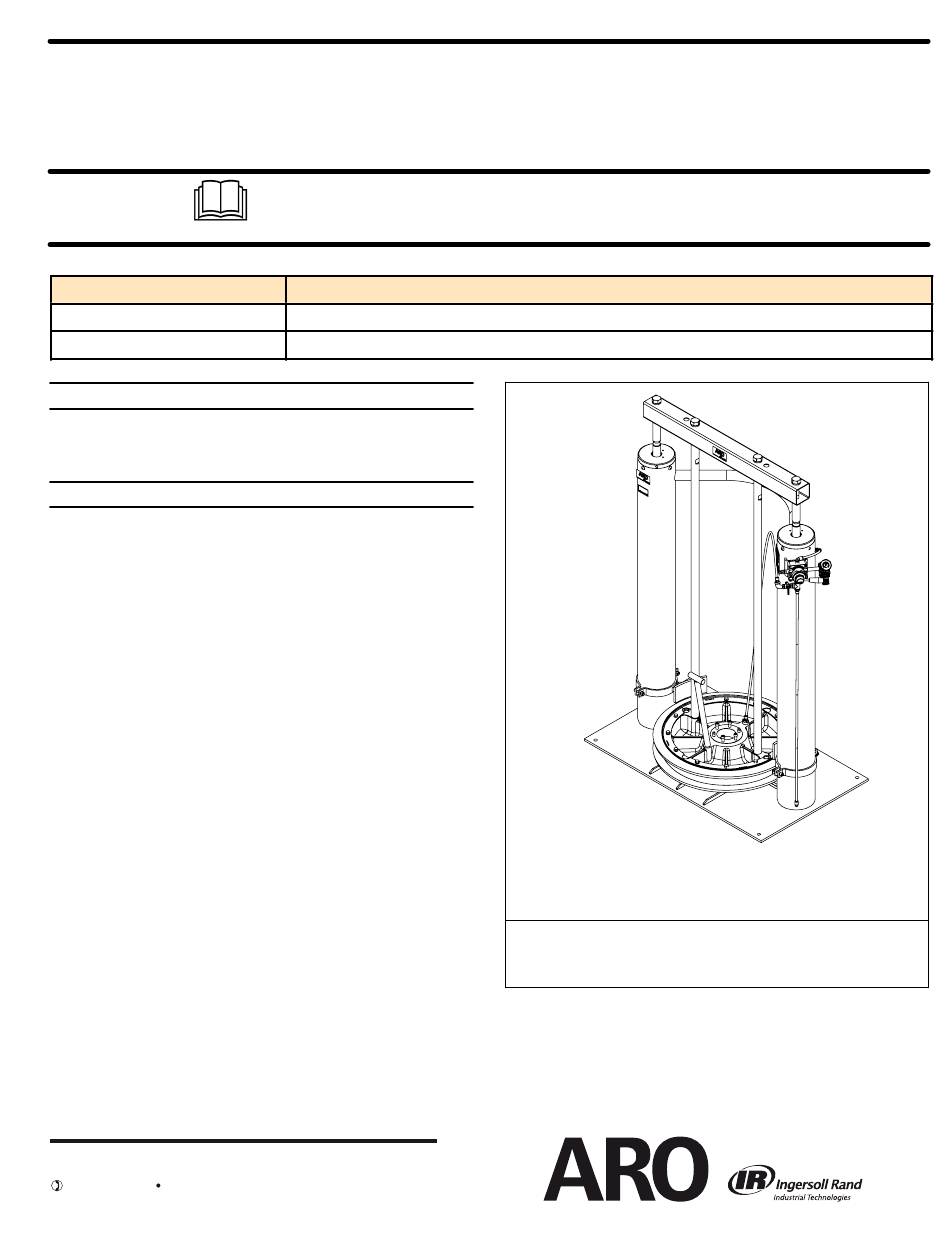

TYPICAL PUMP APPLICATION
FIGURE 1
HEAVY DUTY TWO POST LIFT/RAM
BASE DIMENSIONS: 39-1/2"
HEIGHT: LOWERED 61-3/4"
(156.2 cm)
651612-X
RELEASED:
REVISED:
(REV. M)
651612-X
x 24"
(100.3 cm) (61.0 cm)
, RAISED: 99-13/16"
(253.4 cm)
7-15-90
2-15-12
