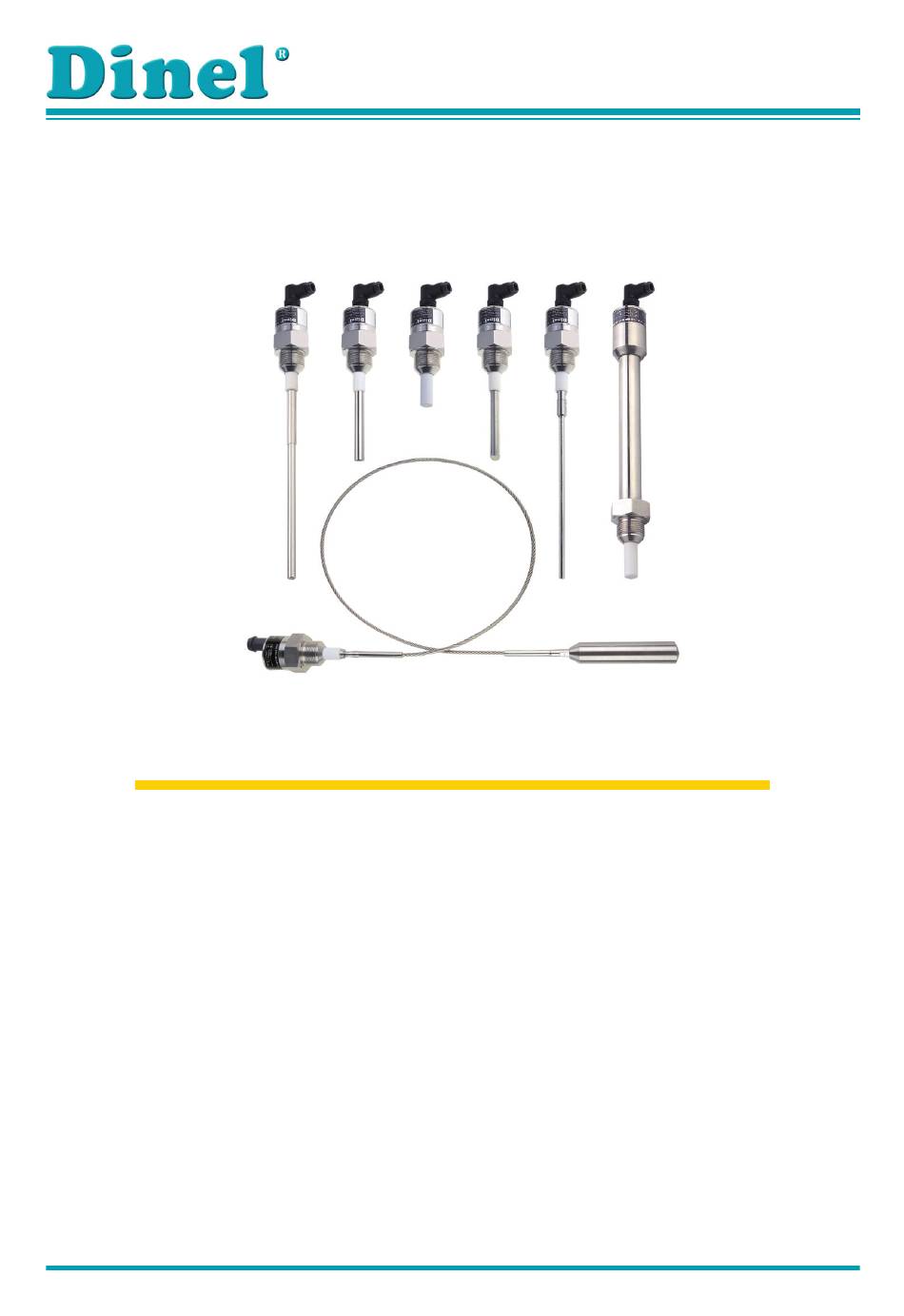

INSTRUCTION MANUAL

průmyslová elektronika

Dls – 27

apaCitive level sensors

Microlectra bv.

Augustapolder 12. 2992 SR Barendrecht. T he Netherlands.

www.microlectra.nl

info@microlectra.nl

Read carefully the instructions published in this manual before the first use of the sensor. Keep the manual

at a safe place. The manufacturer reserves the right to implement changes without prior notice.

Table of Contents

Need help?

Do you have a question about the Dinel DLS-27 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Microlectra Dinel DLS-27 Series

Page 1 Microlectra bv. www.microlectra.nl INSTRUCTION MANUAL průmyslová elektronika Dls – 27 apaCitive level sensors Microlectra bv. Augustapolder 12. 2992 SR Barendrecht. T he Netherlands. www.microlectra.nl info@microlectra.nl Read carefully the instructions published in this manual before the first use of the sensor. Keep the manual...
Page 3: Table Of Contents
Content 1. Brief ............................5 2. Features of variants ........................5 3. Dimensional drawings ........................6 4. Mounting recommendation ......................7 5. Range of application ........................11 6. Electrical connection........................12 7. Sensor setting..........................13 8. Status signalization........................14 9. Accessories ..........................15 10. Order code..........................16 11. Correct specification examples....................16 12. Safety, protections, compatibility and explosion proof..............17 13.
Page 4 Sed SymbolS To ensure maximum safety of control processes, we have defined the following safety instructions and information. Each instruction is labeled with the appropriate pictogram. Alert, warning, danger This symbol informs you about particularly important instructions for installation and op- eration of equipment or dangerous situations that may occur during the installation and operation. Not observing these instructions may cause disturbance, damage or destruction of equipment or may cause injury.
Page 5: Brief
1. b rief Capacitive level sensors (switches) DLS are designed for limit level sensing of liquids, bulky solid ® and powder materials in vessels, containers, silos, tanks, reservoirs, etc. Sensors are made in several modifications of sensing electrodes – short and long rods or rope. The electrodes can be coated what has important sense in case of adhesive, aggressive or electrically conductive media sensing. The process coupling at the housing can be with thread M27x2, M30x1.5, G3/4” or with ...
Page 6: Dimensional Drawings
3. d imenSional drawingS DLS – 27_ – 10 DLS – 27_ – 11 DLS – 27_ – 21, 22 DLS – 27_ – 20 DLS – 27_ – 30 Thead * * Type of threads: G 3/4'' M27x2 M30x1,5 DLS –...
Page 7: Mounting Recommendation
Variants “B” Variants “C” Variants “D” with cable outlets with connector with cable outlets 4. m oUnting recommendation DLS level sensors can be fixed in a vertical, horizontal or bevelled position into the shell of the ves- sel, the storage tank for the fixation console in the pit, by screwing into the welding flange, using a fixing nut or TriClamp® process connection. Basic application recommendations are mentioned below. During assembly into the metal tank or the storage tank, it is not necessary to separately ground the base of the level sensor.
Page 8 In the case of side wall mount- ing it is necessary to avoid long fit- ting tubes, where could the rests of sensed media cumulate – see the right figure. We recommend to mount the sensor so that the whole sensing electrode is inside the con- tainer (vessel). All from side mounted sensor Fig.
Page 9 DLS–27_–10 Fig. 5: Slant wall mounting In the case of the application of the sensor in an electrically non-conductive (e.g. plastic) vessel in the vertical position, then for the correct function, it is recommended to connect the housing of the level sensor with an auxiliary electrode. The auxiliary electrode can consist of a bar which is permanently dipped into the medium (e.g. conductive probe CNP–18), or can be use the auxiliary ...
Page 10 ≥ In the case of vertical mounting in outer are- Mounting in a bypass measuring tube. We ≥ as or in the case of high mechanical exertion recommend to keep the tube diameter. we recommend to install protective hose on For: DLS–27_–20, 21, 22, 30, 31 the cable. ≥ E –...
Page 11: Range Of Application
In the case of vertical mounting it is necessary to avoid long fitting tubes, where could the vapours condense or some rests sediment. right figure – wrong, left figure – appropri- ate. The similar situation is when the sensing electrode goes through the concrete ceiling of the silo. The hole diameter should be at least 50 mm (acc.
Page 12: Electrical Connection
DLS –27_ –30 Is designed for universal use in vertical position for limit level detection of liquids (conductive and non-conductive) and bulk-solid and powder materials. It is not recommended to install the sensor into closed vessels where intensive condensation occurs. Electrically conductive liquids are sensed just by touch of the end of electrode. To react to non-conductive liquid or solid material it is neces- sary 5 ÷...
Page 13: Sensor Setting
Electrical connection must be done in de-energized state! For switching supply sources, it is necessary to check that the input is galvanically separated from the network side and that they are fitted with a filter suppressing the conforming interference (terminals + and –...
Page 14: Status Signalization
Activate the sensor by inundation (immersion) the electrode into the medium. With this activation, the sensor will change its status (LED lights ON or OFF). Lower the sensitivity (by clockwise turning) until the sensors stop to react to this activation (dipping into medium). The LED is in the same status as before the activation. Turn from ½ to 1 rotation left from the threshold point (when the sensor just stops its reaction to immersion). The sensor again changes the status and reacts again to the activation (flooding). Check the setting. If the medium is not available in advance, it is possible to use the basic setting from the producer and after some time of operation (after sedimentation of dirt) to make any correction. However, it is always ...
Page 15: Accessories
Level state Type of output Output state DLS–27N_–_ _– _ –NO–_ DLS–27Xd – _ _–D–NO–_ CLOSED DLS–27N_–_ _– _ –PO–_ DLS–27Xd – _ _–D–PO–_ (Shine) HIGHER DLS–27Xi–_ _– _ –RO–_ CURRENT DLS–27N_–_ _– _ –NO–_ DLS–27Xd – _ _–D–NO–_ OPEN DLS–27N_–_ _– _ –PO–_ DLS–27Xd ...
Page 16: Order Code
10. o rder code – – – – DLS – 27 Cable – Length of cable in m Length of electrode in mm Process connection: – Pipe thread G3/4" M27 – Metric thread M27x2 M30 – Metric thread M30x1,5 – Tri-clamp coupling Output state at non activated electrode: –...
Page 17: Safety, Protections, Compatibility And Explosion Proof
12. S afety ProtectionS comPatibility and exPloSion Proof Level sensor DLS–27 is equipped with protection against electric shock on electrode, reverse polar- ity, output current overload, short circuit and short time over voltages. Electromagnetic compatibility is provided by conformity with standards EN 55022 / B, EN 61326-1, EN 61000-4-2, -3 ,-4, -5 and -6.
Page 18: General Conditions And Warranty
13. U maniPUlation and maintenance The level meter does not require any personnel for its operation. It is forbidden to make any changes or interventions to the DLS–27 sensor without the consent of the producer. Any repairs must only be carried out by the producer or author- ized service organisations. Assembly, installation, commissioning, service and maintenance of the DLS–27 level sensor must be carried out in accordance with this manual and the provisions of valid standards for the installation of electrical equipment must be complied with.
Page 19 II 1 D Ex ia/tb [ia] IIIC 78 °C Da/Db Dinel, s.r.o. IP67 U Tescomy 249 I = 3 / 10 mA U = 7 ... 33 V 760 01 Zlín 200 mA t = -20 ... +70 °C Czech Republic Cert.
Page 20: Specifications
16. S PecificationS echnical data Supply voltage performance DLS-27N 7 ... 36 V DC performance DLS-27Xd 7 ... 27 V DC Current supply (state OFF / ON) 3 / 10 mA * Max. switching current (NPN, PNP output) performance DLS-27N 200 mA performance DLS-27Xd 150 mA Remanent voltage – ON state Max. 1.5 V Output time delay 0.2 s Input resistance / Electric strength 1 MΩ / 1 kV AC...
Page 21 Sed materialS Part of the DLS Type Standard material * Housing All type W.Nr. 1.4301 (AISI 304) Teflon PTFE ® Insulating bushing All type (Polytetrafluoroethylene) W.Nr. 1.4301 (AISI 304) DLS-27_10,11,20,21,22,30,31 Electrode DLS-27_-40 W. Nr. 1.4404 (AISI 316 L ) Teflon PTFE ® Electrode coating DLS – 27_– 11 (Polytetrafluoroethylene) Teflon ® Electrode coating DLS –...
Page 22 emPeratUre and PreSSUre dUrability Max. operating pressure for temperature t Variant / Performance Temp. Temp. Temp. to 30°C to 85°C to 120°C to 150°C to 180°C -40°C ... +100°C -25°C ... +85°C -20°C ... +80°C 3 MPa 2 MPa – –...
Page 23: Faq (Frequently Asked Questions)
17. faQ (f reQUently aSked QUeStionS Question Answer / Solution The sensor does not have sharp switching, Did you use the correct supply? It is necessary to use the source of the connected relay grumbles. DC smoothing voltage (not only rectified pulsing voltage), the best supply unit is Dinel or another suitable stabilized source. The sensor does not have sharp switching, Is the hysteresis set on the sensor correctly? It will be necessary the connected relay during the transfer...
