Back Panel

Back Panel

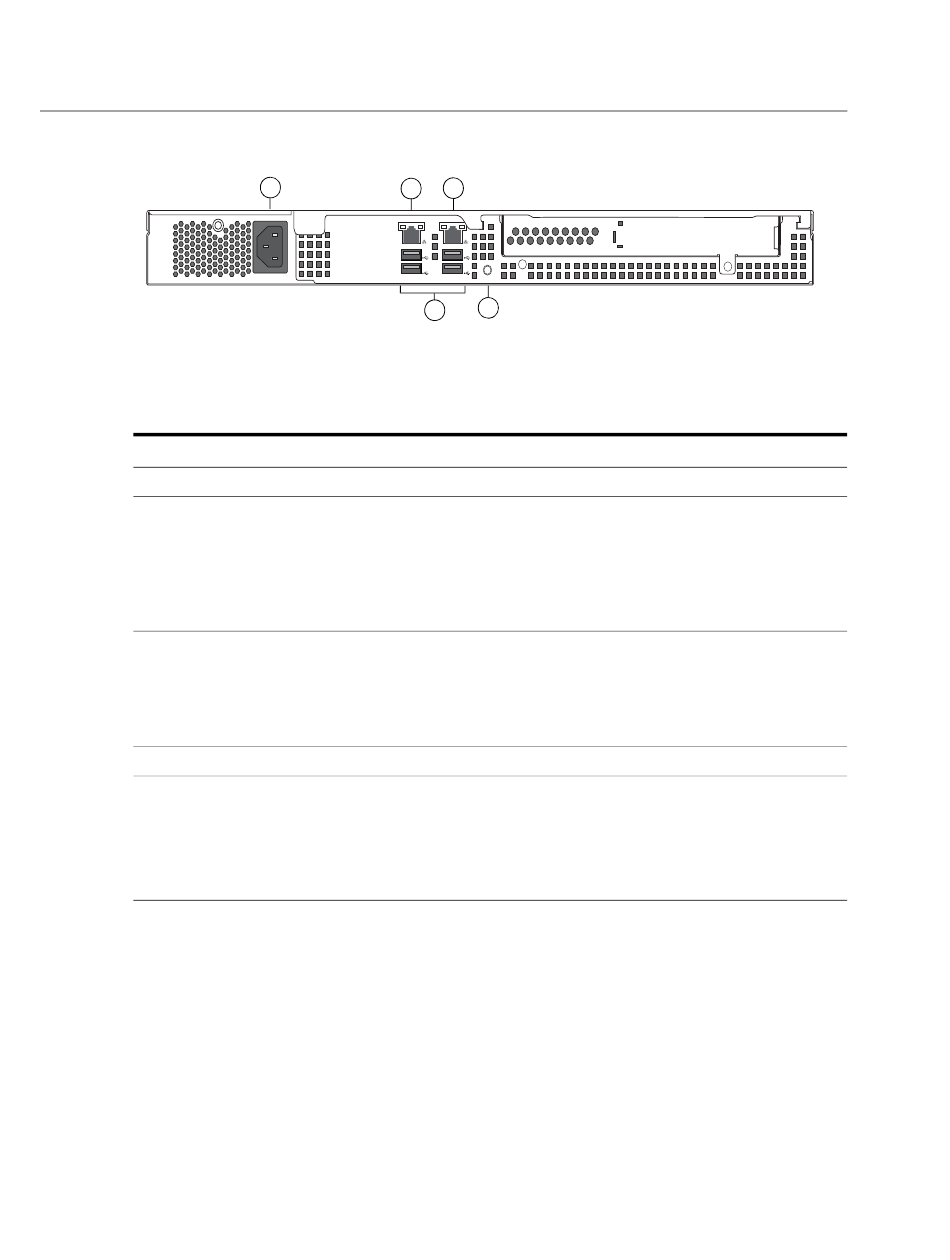

Figure 2 shows the back panel of the M-100 and Table 2 describes the back panel features.
Figure 2. Back Panel
Table 2. Back Panel Features
Item
1) Power Port
2) 2
3) 3
4) USB Ports
5) UID Button
8 • Overview
1 2
4
Description
AC power inlet.
RJ-45 10/100/1000 Ethernet port (ethernet1/2).
This port functionality is available in version 6.1 and later. Prior to
6.1, this port is not functional.
For information on configuring this port, refer to the Panorama
Administrator's Guide on the
release that the appliance is running.
RJ-45 10/100/1000 Ethernet port (ethernet1/3).
For information on configuring this port, refer to the Panorama
Administrator's Guide on the
release that the appliance is running.
Prior to Panorama release version 8.0, this port is not functional.
USB ports for future use.
The Unique Identification feature is a combination LED/button that is used
to assist a technician in determining which device is being worked on when
moving from the front of a rack to the back of a rack. When the button is
pushed (either front or rear), both the front and rear UID LEDs will flash
blue, assisting the technician in identifying the device in a rack. When
either button is pushed again, the flashing LEDs stop flashing.
3
UID
5
