Summary of Contents for Onyx ONXC4100

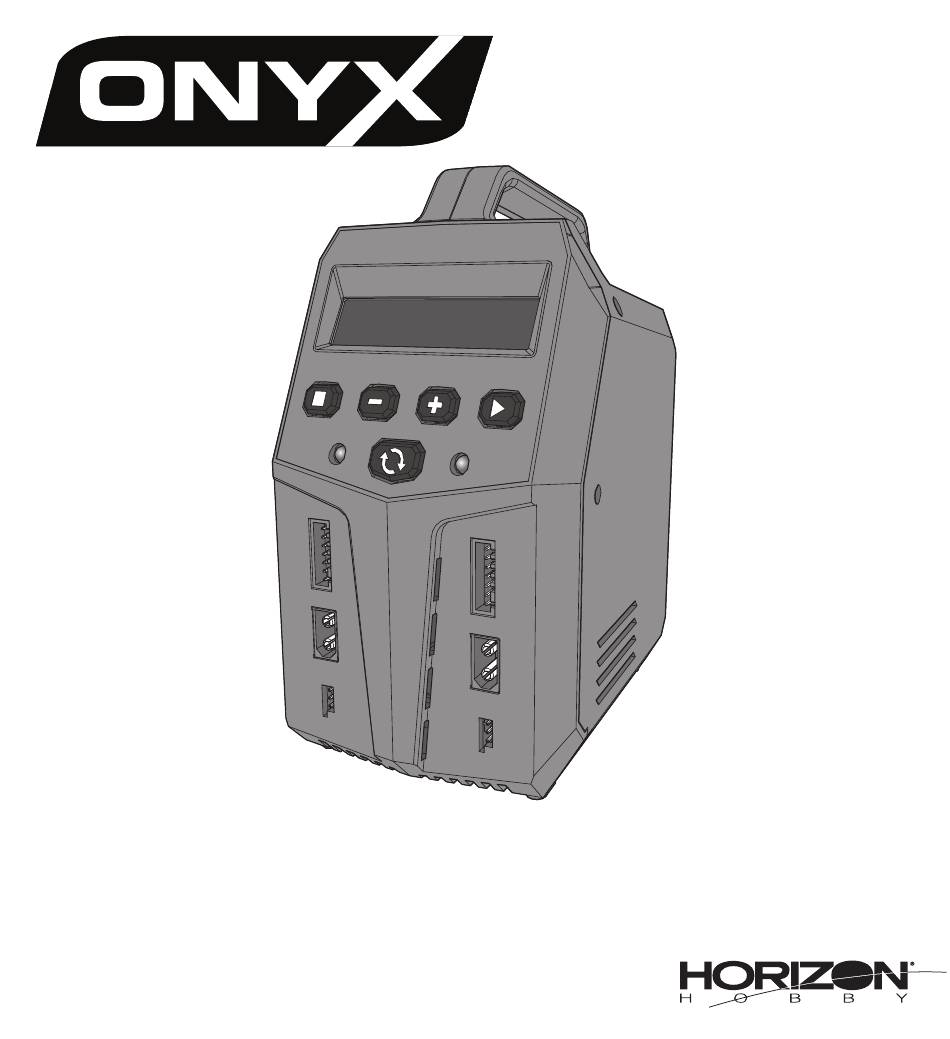

- Page 1 ® 350 AC/DC Balance Charger / Discharger ONXC4100...
-
Page 2: Table Of Contents
NOTICE All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit horizonhobby.com or towerhobbies.com and click on the support or resources tab for this product. Meaning of Special Language The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product: WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and... -
Page 3: Charging Warnings
CHARGING WARNINGS WARNING: Failure to exercise caution while using this • Always keep all the infl ammable volatile materials away product and comply with the following warnings could from operating area. result in product malfunction, electrical issues, excessive heat, • Always keep the charger well away from dust, damp, rain, FIRE, and ultimately injury and property damage. -
Page 4: Box Contents
Box Contents 1. Onyx 350 Charger 2. AC Power Cord 3. IC3 to Deans charge cables (2) Features LED Indicator LCD Display Scroll Through the Main Menu Stop Any Charge Processes Alter Values See The Status Of Individual Cells In Balance Charge Mode... -
Page 5: Specifi Cations
Specifi cations ONXC4100 Net Weight 850g Dimensions (L × W × H) 178 × 135 × 96mm AC Power Input Voltage 100–240V Display Type 2 × 16 LCD, Blue backlight 1 6S Balance Socket-XH, Temperature Probe Socket, External Ports Battery Socket, DC Input... -
Page 6: Special Features
This Balance Voltage Calibration is good for making sure the battery is fully charged. The Onyx 350 allows you to calibrate the balance voltage Cyclic Charging/Discharging with a 6S LiPo battery. (For more information please contact A series of 1 to 5 charge to discharge (>) or discharge to... -
Page 7: Standard Battery Parameters
Standard Battery Parameters LiPo LiIon LiFe LiHV NiCd NiMH Nominal Voltage 3.7V/cell 3.6V/cell 3.3V/cell 3.7V/cell 1.2V/cell 1.2V/cell 2.0V/cell Max Charge Voltage 4.2V/cell 4.1V/cell 3.6V/cell 4.35V/cell 1.5V/cell 1.5V/cell 2.46V/cell Storage Voltage 3.8V/cell 3.7V/cell 3.3V/cell 3.85V/cell Allowable Fast Charge ≤1C ≤1C ≤4C ≤1C 1C-2C 1C-2C... - Page 8 Program Flow Chart Continued from page 7 – BATT/PROGRAM 4.20 4.19 4.19V MAIN 12.58V BATT METER 0.00 0.00 0.00V H4.20V L4.19V ENTER – + – BATT/PROGRAM 3 mΩ TOTAL: 16 mΩ BATT RESISTANCE 0 mΩ ENTER – + – – –...
-
Page 9: Operation
1. Connection STOP START STATUS a. Connecting to power source There are two kinds of power inputs for The Onyx 300, DC 11-18V and AC 100-240V. Choose one or the other and connect as shown. CHANNEL BATT PROG/STOP Button: 12V DC battery or... - Page 10 2. Getting started R shows the number of cells detected by the The fl owcharts show the entire programming menu. It is charger and S is the number of cells set by R: 3SER S: SER highly recommended to have these fl owcharts handy while you at the previous screen.
- Page 11 8. Program Stop During the charging process, press STOP to stop the charging process. 9. Program Complete When the charging process fi nishes, an audible sound will be heard. Charging Program Depends on different battery type, the operation programs are different. Battery Operation Description...
-
Page 12: Battery Memory Set And Call Out
Battery Memory Set and Use The charger can store up to 10 different charge/discharge profi les for your convenience, and the stored profi les can be Indicate the battery type and battery cell of [ BATT MEMORY 1 ] recalled quickly without having to go through the setup process. the saved profi le. -
Page 13: System Setting
System Setting The System Setting Screen displays the following information in sequence. These values may be changed by the user. To change parameter values, press the START/ENTER button to make the value blink, then use the INC or DEC buttons to increase or decrease the values. -
Page 14: Battery Meter
Battery Meter Warning and Error Messages The Battery Meter can check the battery’s total voltage, the Indicates that the balance lead from the battery BALANCE WIRES highest voltage, the lowest voltage and each cell’s voltage. is not connected to the charger or is faulty NOT CONNECTED Connect the balance wire attached to the battery to the balance socket and the... -
Page 15: Limited Warranty
1-Year Limited Warranty What this Warranty Covers - Horizon Hobby, LLC, (Horizon) BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. warrants to the original purchaser that the product purchased Further, in no event shall the liability of Horizon exceed the (the “Product”) will be free from defects in materials and individual price of the Product on which liability is asserted. -
Page 16: Warranty And Contact Information
at http://www.horizonhobby.com/content/service-center_ Non-Warranty Service render-service-center. If you do not have internet access, please Should your service not be covered by warranty, service contact Horizon Product Support to obtain a RMA number along will be completed and payment will be required without with instructions for submitting your product for service. - Page 17 Supplier’s Declaration of Conformity occur in a particular installation. If this equipment does cause 350 AC/DC Balance Charger / Discharger ONXC4100 harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the This device complies with part 15 of the FCC rules.
- Page 20 ® © 2019 Horizon Hobby, LLC. Onyx, IC3, and the Horizon Hobby Logo are registered trademarks of Horizon Hobby, LLC. Created 04/2019 | 60993...
