MachBob2 (MB2)
Owner's manual
Doc E1.6Rev5
(8/17/2017)
for PCB ver 1.3, 1.5 and 2.0
www.CNCRoom.com
Page 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the MB2 and is the answer not in the manual?

Questions and answers

Related Manuals for CNCroom MB2

Summary of Contents for CNCroom MB2

  • Page 1 MachBob2 (MB2) Owner’s manual Doc E1.6Rev5 (8/17/2017) for PCB ver 1.3, 1.5 and 2.0 www.CNCRoom.com Page 1...

  • Page 2: Specification And Features

    While these things will help us achieve a better result, using a control board designed for industrial applications can be more important. MachBob2 (MB2) is designed for industrial application and specifically to work with the Ethernet Smooth Stepper (ESS) which is an excellent motion control board designed to be used with...
  • Page 3 (IC) on the MB2 board. • The MB2 board is Fragile, do not drop, as it could badly damage the electronics. In certain circumstances, it could be possible for the MB2 board to build up excessive •...

  • Page 4: Quick Reference

    Table 1, Ports and Pins Reference Tables Quick Reference is a summary for the experienced user. is a shrinkage view of MB2 board. It shows the connection of inputs & outputs, power supply, Figure 1 analog output for the VFD and axis signals, including differential and single end connections. If...
  • Page 5 MB2 Layout MB2v1.5 MB2v2.0 Figure 2, MB2 version 1.5 VS version 2.0 Board Layout www.CNCRoom.com Page 5...

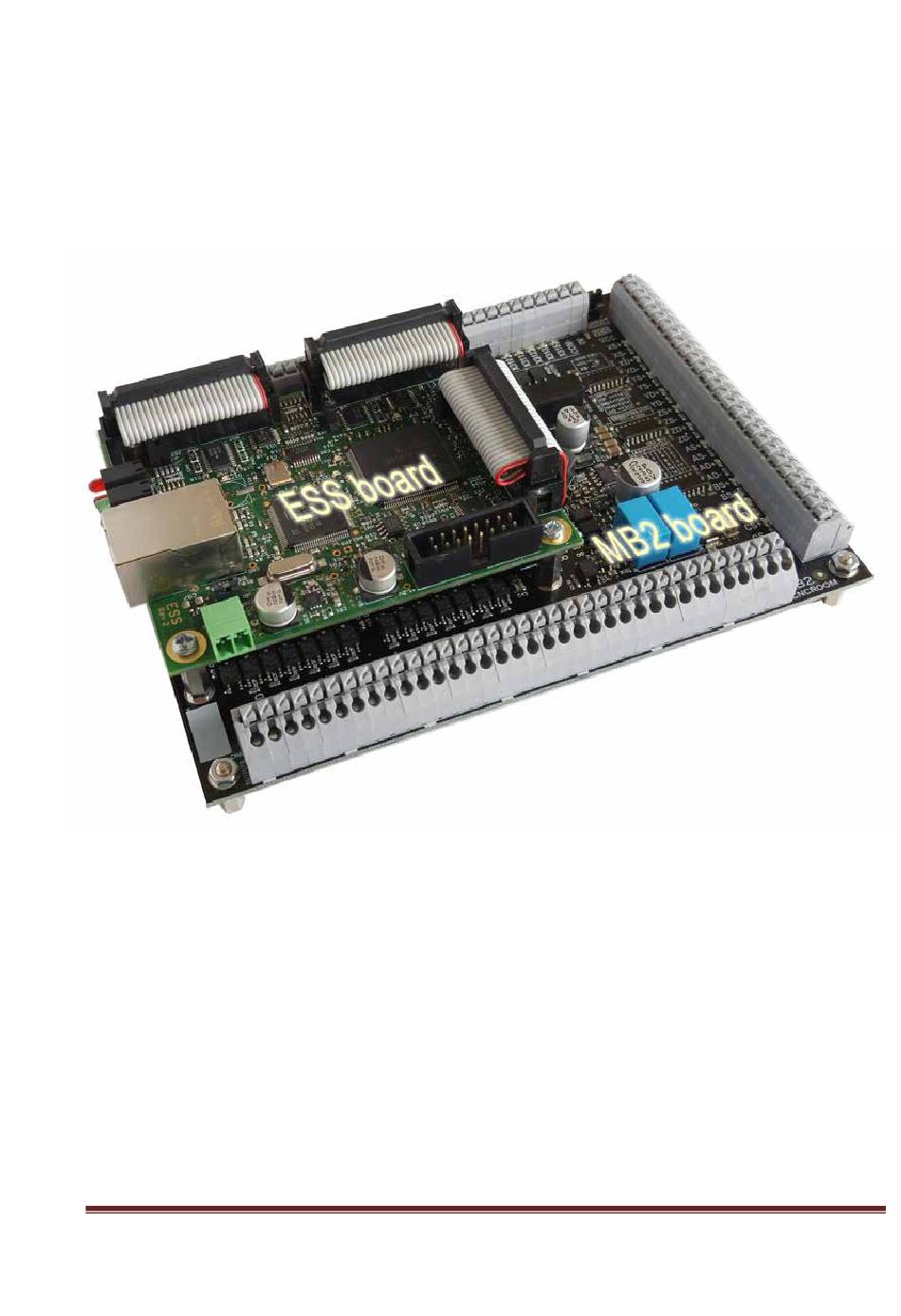

  • Page 6 – Communication connector, part of the ESS board ESS and MB2 piggyback The ESS receives its 5Vdc power from the MB2 when all three jumpers are closed, which is the default setting. This eliminates the need for an external 5Vdc supply, See Figure 3 below. Any...
  • Page 7 Figure 4, Excess cable has been adjusted to give clear sight of the LEDs and terminal labels MB2 Connection Diagram Figure 5, Connection Diagram www.CNCRoom.com Page 7...
  • Page 8 The subnet is the same if the first 3 groups of numbers in the IP addresses are the same. Quite often Internet routers will assign www.CNCRoom.com Page 8...
  • Page 9 ESS, since all of our documentation and videos will use that value. In fact MOST the user keep this value assigned to their ESS. However, if there is a need to change it, you may do so with the Configurator Utility. www.CNCRoom.com Page 9...
  • Page 10 (a) Differential mode has the best noise immunity. It is recommended to use differential Figure 6 mode if possible. (b) Single end mode is used if the drive is not compatible with differential mode. There Figure 6 are two points of VCC to share with all axes. www.CNCRoom.com Page 10...
  • Page 11 By default, all MB2 inputs are 24V tolerance for industrial sensors and switches. However, sometimes we need to interface with 5V devices, such as MPG and low voltage sensors. On the topic “5V inputs for low voltage devices” shows the way to hack the MB2 board and a simple interface circuit. Switches Figure 7, Input terminals shows 22 input terminals.
  • Page 12 , (a) shows a PNP input connected to an external power source. This connection is Figure 9 totally isolated from any part of the MB2 circuit. This external circuit, for instance, could be the fault output of a VFD drive or servo drive.
  • Page 13 , (c) this connection gives an alternative for PNP sensors to connect to NPN inputs. Figure 10 However, the logic is inverse, so you must also change the logic in the corresponding setting within Mach to also be inverse. www.CNCRoom.com Page 13...
  • Page 14 100mA with a total maximum of 500 mA per group of 7 outputs, as shown in on page Figure 1 External power supply Ynnn 5-30Vdc 100 mA (max) * A diode is needed in External circuit parallel with the coil Figure 13, connecting various loads to a “Y” output www.CNCRoom.com Page 14...
  • Page 15 Relays The MB2 comes with two on-board relays, K1 and K2. Both provide NO or NC contacts. MB2 v1.5 or later, also provides an “OFF Delay” feature. To activate this feature the user needs to follow the instructions as set out on on page 17, note *7 under the heading of Modifications.
  • Page 16 X203 - X210 and then sends out an OK signal to the next device. However, if there is an error feeding in, MB2 will send out a “Not OK” signal by de-energizing the OSSD output and the external safety circuit will cut power and stop the hazard.
  • Page 17 Modification Solder Bridges The MB2 has a number of places where the user can conduct modifications. Instead of using pin jumpers, solder bridges have been implemented to save cost and space. The user needs to solder or de-solder these bridges to achieve their purpose.
  • Page 18 *8 K2 Relay pin select– Normally, K2 is associated with output Y214. However, on the board MB2v2.0 you can select K2 as an output relay of CP (charge pump) signal. (see Figure 19, the underneath layout of the MB2 www.CNCRoom.com Page 18...
  • Page 19 5V inputs for low voltage devices In some circumstances, there are 5V devices need to be connected to the board MB2. Figure 20, Replace 3k with 470 ohm resistor for PNP inputs.shows each 3k resistors need to be replaced by a www.CNCRoom.com...
  • Page 20 Figure 21, Interface circuit for NPN inputs. Software The user can obtain up to date software, plugins and tutorials from the following links. http://warp9td.com/index.php/sw http://www.youtube.com/channel/UCpg3EROtW8xA_KzrFHgn4ZQ The user also can obtain the MB2 pre configuration file from the product link below. http://www.cncroom.com/index.php?main_page=product_info&cPath=7&products_id=209 www.CNCRoom.com Page 20...
  • Page 21 After downloading and extracting the pre configuration profile. You will find MB2.xml that needs to be copied and pasted into C:\Mach3 which is shown in picture below. Run Mach3 Loader and choose MB2 profile.
  • Page 22 Figure 23, Mach3’s first screen Menu Config > Ports and Pins Figure 24, Mach3 Ports and Pins dialog www.CNCRoom.com Page 22...
  • Page 23 Figure 25, Motor output tab Specify values as shown in the picture. Figure 26, Mach3 Input tab The user needs to set suitable values by themselves www.CNCRoom.com Page 23...
  • Page 24 Figure 27, Mach3 Output tab (1/4) The user needs to set suitable values by themselves Figure 28, Mach3 Output tab (2/4) Specify the Charge Pump value as shown in the picture. www.CNCRoom.com Page 24...
  • Page 25 Figure 29, Mach3 Output tab (3/4) Specify values as shown in the picture. Figure 30, Mach3 Output tab (4/4) Specify values as shown in the picture. www.CNCRoom.com Page 25...
  • Page 26 Figure 31, Mach3 Spindle tab Menu Config > Motor Tuning Figure 32 Mach3 Motor tuning dialog Motor Tuning and Setup, The user needs to set suitable values by themselves www.CNCRoom.com Page 26...
  • Page 27 After downloading and extracting the pre configuration profile. You will find a folder named MB2, copy and paste this folder into C:\Mach4Hobby\Profiles as shown in picture below. Run the “Mach4 loader”, then choose the MB2 profile.

  • Page 28: Setup Instructions

    "Create Profile". Configure Menu Figure 35 shows the step sequence where we are going to make setting. Before we can see sub menu [2] and [3], we need enable them in next dialog which shown in Figure www.CNCRoom.com Page 28...
  • Page 29 Figure 35, Configure menu and step sequence Figure 36, Plugins Enable ESS configuration www.CNCRoom.com Page 29...
  • Page 30 Figure 37, ESS IP address and buffer size Figure 38, Motor command mode www.CNCRoom.com Page 30...
  • Page 31 Figure 39, Pin Alias Names Figure 40, Pin Alias Names (continue 1) www.CNCRoom.com Page 31...
  • Page 32 Figure 41, Pin Alias Names (continue 2) www.CNCRoom.com Page 32...
  • Page 33 Figure 42, Input Signals Mapping Figure 43, Input Signals Mapping (continue 1) www.CNCRoom.com Page 33...
  • Page 34 Figure 44, Input Signals Mapping (continue 2) Figure 45, Input Signals Mapping (continue 3) www.CNCRoom.com Page 34...
  • Page 35 Figure 46, Input Signals Mapping (continue 4) Figure 47, Output Signals Mapping www.CNCRoom.com Page 35...
  • Page 36 Figure 48, Output Signals Mapping (continue 1) Figure 49, Output Signals Mapping (continue 2) www.CNCRoom.com Page 36...
  • Page 37 Figure 50 Output Signals Mapping (continue 3) Figure 51, Homing, depends on the user’s choice Mach configuration www.CNCRoom.com Page 37...
  • Page 38 Figure 52, Mach4 General Configuration Figure 53, Mach4 Plugins enabled www.CNCRoom.com Page 38...
  • Page 39 Figure 54, Mach4 Motors profiles Figure 55, Mach4 Axis Mapping www.CNCRoom.com Page 39...
  • Page 40 Figure 56, Mach4 Homing and Soft Limits Figure 57, Mach4 Input Signals www.CNCRoom.com Page 40...
  • Page 41 Figure 58, Mach4 Input Signals (continue 1) Figure 59, Mach4 Input Signals (continue 2) www.CNCRoom.com Page 41...
  • Page 42 Figure 60, Mach4 Input Signals (continue 3) Figure 61, Mach4 Output Signals www.CNCRoom.com Page 42...
  • Page 43 Figure 62, Mach4 Output Signals (continue 1) Figure 63, Mach4 MPGs www.CNCRoom.com Page 43...
  • Page 44 Figure 64, Mach4 Spindle Figure 65, Mach4 Tool Path Colors www.CNCRoom.com Page 44...
  • Page 45 Figure 66, Mach4’s first screen Mach Keyboard Figure 67, Mach4 Keyboard Mapping www.CNCRoom.com Page 45...

  • Page 46: Appendix I Mb2 Specifications

    100mA Max (total 7 outputs ≤ 500mA) Output current Relay contact 0.5A 120Vac, 1A 24Vdc Analog output range (0V + 200mV) ~ (Vin – 200mV) Inputs NPN, PNP, 5-24Vdc Ambient operating temperature 0-40°C Appendix II MB2 Board Dimensions www.CNCRoom.com Page 46...

  • Page 47: Appendix Iii Safety Circuit Options

    Please always seek professional advice from a qualified electrician or electrical engineer in your country of residence before implementing any circuit that is presented in this manual. CNCRoom cannot be held responsible for any adverse outcome, which came about as a result of copying anything from this manual.
  • Page 48 Estop button. However, in normal circumstance, the MB2 with an external circuit and connection to a computer should work well together. In some drive connections you may need to implement the use of timer relays to handle an “Under Voltage”...
  • Page 49 Safety Circuit 3 Since the MB2 board supports an “Off-Delay” function for relay K1 and K2, it allows the user to create a timing sequence for devices that need to power up or power down independently at different times. In this circuit an AC line monitor for recognising a “Power-Out” or “Black-Out” condition has also been introduced.
  • Page 50 Page Number Figure 1, MB2 Overview Connection ......................... 4 Figure 2, MB2 version 1.5 VS version 2.0 Board Layout ..................5 Figure 3, Jumpers are closed, No external 5Vdc ....................6 Figure 4, Excess cable has been adjusted to give clear sight of the LEDs and terminal labels ......7 Figure 5, Connection Diagram ...........................
  • Page 51 Figure 43, Input Signals Mapping (continue 1) ....................33 Figure 44, Input Signals Mapping (continue 2) ....................34 Figure 45, Input Signals Mapping (continue 3) ....................34 Figure 46, Input Signals Mapping (continue 4) ....................35 Figure 47, Output Signals Mapping ......................... 35 www.CNCRoom.com Page 51...
  • Page 52 Figure 65, Mach4 Tool Path Colors ........................44 Figure 66, Mach4’s first screen ........................45 Figure 67, Mach4 Keyboard Mapping ......................45 Figure 68, Safety Circuit 1 ..........................47 Figure 69, Safety Circuit 2 ..........................48 Figure 70, Safety Circuit 3 ..........................49 www.CNCRoom.com Page 52...
  • Page 53 Table Table 1, Ports and Pins Reference Tables ......................4 www.CNCRoom.com Page 53...
