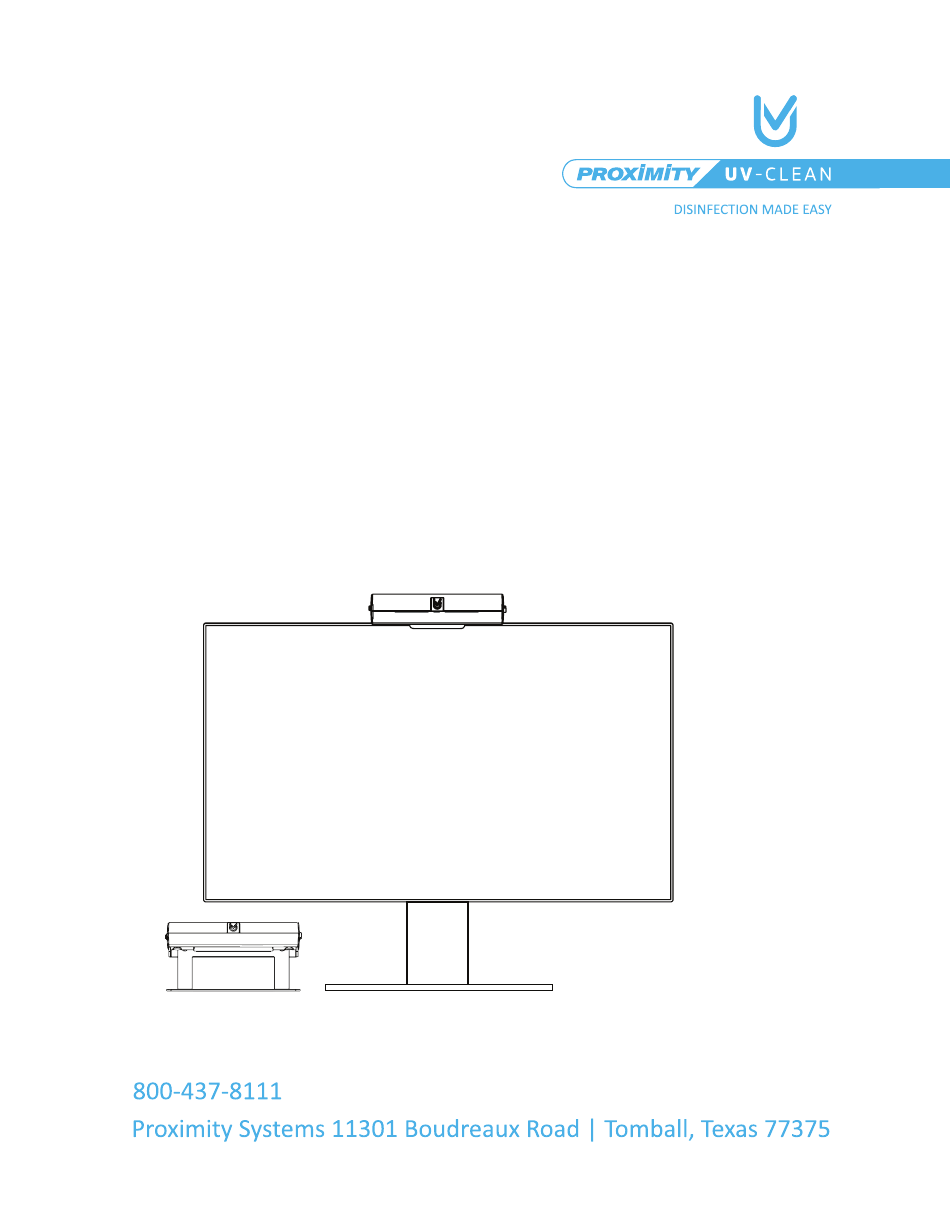

- Page 1 Made in the Proximity UVC-SM PRODUCT GUIDE proximitysystems.com/uvclean REV C /2019...
-
Page 2: Table Of Contents
Proximity UVC-SM CONTENTS 1. Quick Guide 2. Quick Set-up 3-4. Set-Up 5. Disinfec�on 6. Safety & Disposal 7. How it Works: Cleaning Date & Time 8. How It Works: Records 9. Warranty REV C /2019... -
Page 3: Quick Guide
Proximity UVC-SM QUICK GUIDE Front View UVC Unit Rear View Stand Screw 3/32” Allen Key DC 5V Power Supply Bracket Micro-USB Data Cable 5mm , USB-A Power Cable Op�onal Bracket For a�aching to thin monitors 6. Micro-USB 1. Status 3. Push Bu�on 4. -
Page 4: Quick Set-Up
A USB port, 3.0 or newer. Maintenance Do not a�empt to service this product. Contact customer service at Proximity Systems for guidance. Do not subject the bulb to fingerprints, solvents or abrasion. Cleaning the bulb with a damp cloth or lens �ssue is advised when the unit is not plugged in and the device is at room temperature only. -
Page 5: Set-Up
Proximity UVC-SM SET-UP ( A. ) ( B. ) A) Step 1: Place the stand between the UVC device and the main bracket. Not behind bracket. Install 2 supplied screws. Op�onal: Plug in micro USB Step 2: Step 3: Plug In Power data cable and connect to a PC. - Page 6 Proximity UVC-SM SET-UP B) Step 1: Step 2: A�ach the monitor Two sided adhesive is preinstalled. bracket. Between the Remove the adhesive paper. UVC device and the main bracket. Install 2 supplied screws. Op�on for Adhere the op�onal bracket onto the monitor bracket with the included self-adhesive tape.
-
Page 7: Disinfec�On
UV-C produc�on is effec�ve in both sustained and cumula�ve applica�ons upon microorganisms. Different types of microorganism require different lengths of exposure �me. This varies with proximity to the bulb as well. The illustra�ons depict rota�on posi�on of the device and result of UV light loca�on on a flat surface. -
Page 8: Safety & Disposal
Proximity UVC-SM SAFETY & DISPOSAL Appropriate use of this product is expected and is the responsibility of the purchaser of this product. This product uses UV-C light. Eyes and skin should be kept from exposure. Eye inflamma�on and skin irrita�on can occur from prolonged exposure. For sensi�ve skin, burns may occur. -
Page 9: How It Works
Proximity UVC-SM HOW IT WORKS Cleaning When posi�oned and plugged into power, your UV-Clean device will begin working. It has pre-set �me features. Se�ngs can be found in the UV-Clean Audit so�ware, under the Home tab. Cleaning cycles operate autonomously throughout the life of the product. Mo�on-sensor technology pauses cleaning cycles and relays the need to run a cleaning cycle when people come and go. -
Page 10: How It Works
Proximity UVC-SM HOW IT WORKS Records Automa�cally, a record of cleaning events is kept. The Usage area under the Audit Records tab lists the number of records stored. Also, the percentage of the devices memory that the records have filled. When 100% of the memory has been used the device will automa�cally delete the oldest record in order to con�nue to store the latest data. -
Page 11: Warranty
If any Proximity manufactured product is or becomes defec�ve during the warranty period, Proximity will, at its op�on, either repair, exchange or replace defec�ve unit. The purchaser should contact our Service Department for service. Proximity reserves the right to make design changes in manufactured products built and/or sold by them at any �me without incurring any...
