Swegon TBLZ-1-55 Technical Data

Installation TBLZ-1-55 Modular/terminal Adaptor
GOLD/COMPACT

1. General

The adapter contains an 8-pin modular connection, inter-
nally connected to 8 screw connections.

2. Range of application

The adaptor is used for the preheating or Xzone function
together with a standard Swegon electric air heater with
control cable.

3. Function

The modular connection's contact springs are connected
to the relevant connection screw for an external cable.
The adaptor connects a modular connector on a cable to
an electric air heater, with the relevant leads for connec-
tion to the IQnomic Plus module.

4. Installation

Secure the adaptor to an appropriate place. Use the
screws or the plate with double-adhesive tape supplied
with the adaptor.
If a higher tightness class is required, the adaptor must be
placed in the TBLZ-1-61 junction box, see figure. Run the
cables through the cable gland screw caps. Tighten the
screw caps until they are fit tightly around the cables.
N.B.! The junction box must by mounted upright with the
screw caps facing downward!
Registered design. The company reserves the right to make design changes without prior notice.

5. Technical Data

5.1 Adaptor

Enclosure class
Colour
Material
Dimensions:
Meets the provisions of the RoHS Directive.

5.2 TBLZ-1-61 Junction box, if required

Enclosure class
Colour
Material
Dimensions:

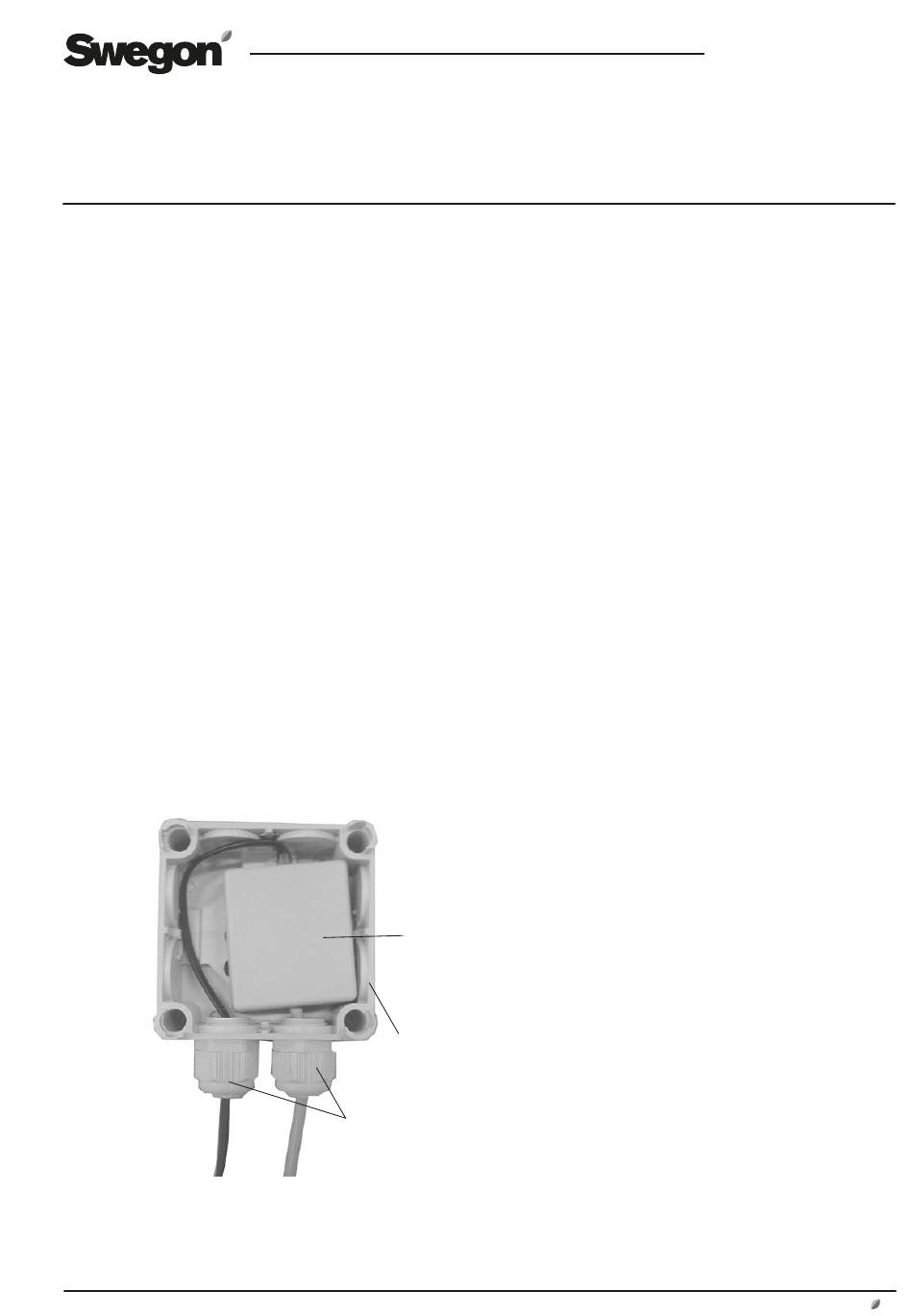

TBLZ-1-55
Adaptor
TBLZ-1-61
junction box
Cable gland screw caps
GB.TBLZ55.090815
IP 20
Beige
Thermoplastic.
52x58x22 mm
IP 66
Grey
Glass fibre reinforced
polypropylene
85x85x51 mm
www.swegon.com 1
