INSTRUCTION MANUAL

ICE MAKER

Model Number: 9760701

BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING

INSTRUCTIONS.

Table of Contents

Need help?

Do you have a question about the Luxury Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Hanover Luxury Series

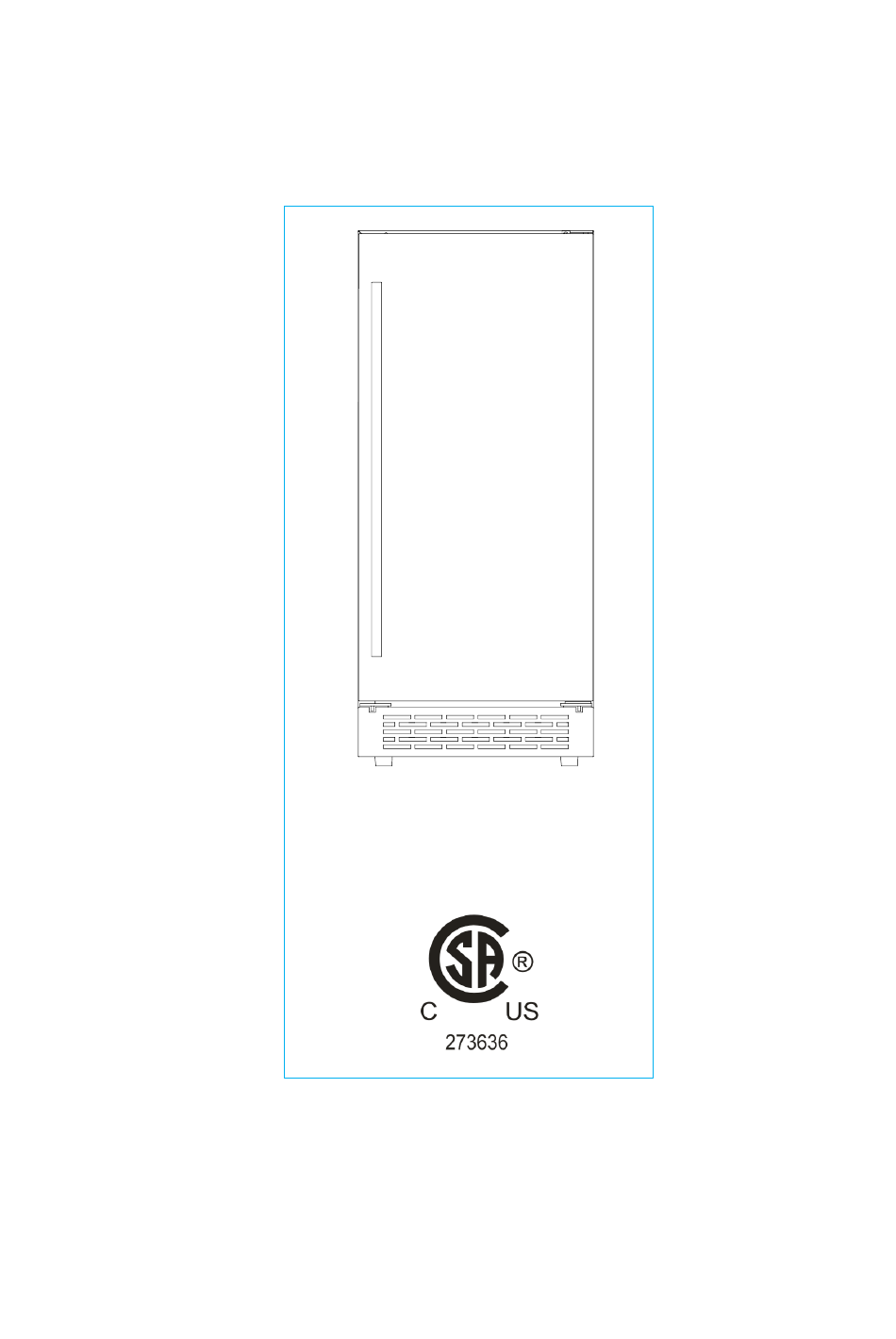

Page 1 INSTRUCTION MANUAL ICE MAKER Model Number: 9760701 BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS.
Page 2 WARNING! The appliance must be positioned so that the plug is accessible. Release the  electric cord, move your wine cooler/beverage cooler to the desired location. Do not move your ice maker when filled, as this might distort the body. ...
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Follow these basic steps to reduce the risk of fire, WARNING electrical shock, or injury.  Save these instructions for future use.  Never allow children to play or crawl inside the appliance.  Make sure the appliance has an open ventilation system and is clear of obstruction. ...
Page 4: Before Using Your Ice Maker
INSTALLATION INSTRUCTIONS Before Using your Ice Maker  Remove the exterior and interior packing.  Before connecting the ice maker to the power source, let it stand upright for approximately 2 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation. ...
Page 5: Built-In Installation Instructions
BUILT-IN INSTALLATION INSTRUCTIONS To build in the ice maker, we suggest keeping the distance of at least 1 inch from every left, right and topside of the wall and at least 4 inches to the back side of the wall in order to properly vent out the hot air.
Page 6: Connecting Ice Maker To Water Supply
Connecting ice maker to water supply WARNING: When connecting water supply line to the ice maker, make sure to disconnect the ice maker from electrical power. This will avoid electric shock, which can cause death or severe personal injury. CAUTION To avoid property damage: -Copper tubing is recommended for the water supply line.
Page 7 CAUTION Do not use any plastic water supply line. Plastic may crack and could cause damage to your home. Do not reuse an old hose set. Use a new hose set. To connect water supply line to ice maker inlet valve: 1.
Page 8 Drain-pipe Connection • Direct drainage or force drainage mode, the external drain connection instructions are below: • Connect one side of the external drain pipe linker to the outlet pipe of ice maker, the other side is put into the drain hole.(see Fig B.) Brass Compression Nut A- Pump assisted drain...
Page 9 OPERATING INSTRUCTIONS WARNING! Please follow the steps below when the ice maker is disconnected from the power and has no water or else it may cause electric shock or wet and damaged flooring. Your ice maker has three different performance modes. Choose the one that meets your requirements. Please see below detailed instructions.
Page 10 WARNING: Please read following installation before using. Choose correct drain mode, and set your icemaker accordingly. Performance Instructions Suitable situation Operation instruction Mode Direct drainage Unnecessary The height of drain hole in the Ref: Fig.A & Fig.B & Fig.C room ≤100 mm mode water will be (Recommended...
Page 11 Please insure the screw nut and switch is in the above condition. Use a certain length drain pipe to connect one side of the force water outlet pipe connector (10) to the other drain hole. Please insure the connection is tight to avoid water leakage.
Page 12 Manual Manually There is no drain hole in Ref: Fig.A & Fig.B & Fig.C drainage drain the water the room system mode from the Screw Nut and Switch Condition icebox. (If your operating lock Screw nut(front) ③+seal washer(front)④ using the “Manual Screw nut(back) ⑦+seal washer(back)⑥...
Page 13 Control Type Condition Function Explanation To control the ice maker turn on/off Button Press ( press and hold this button for approximately 3 seconds) Button Press Small amount of ice Button Press Medium amount of ice Button Press Large amount of ice Indicator light Small amount of ice is selected.
Page 14 Other: ① Water tank is full. A: Please unscrew the drain cap (12) located on the back of the unit and let out the water. (Refer Page 5.Fig.B) B: After draining out all the water from the outside water tank, reconnect unit to power and it will continue to run normally.
Page 15: Setting The Temperature Controls
5. Before reconnecting the water supply line to icemaker, make sure the water is turned off, and then reconnect the water supply line to the ice maker.  Setting the temperature controls 1. Please insure the water supply is well connected. The default setting of the ice maker is set to make medium ice, if you need to revise the ice size;...
Page 16  Door reversal instruction The door can be changed from left to right side and vice versa. To switch the door opening, please refer to the following directions: ① ② ③ Bottom hinge (Right) Screws Door axis ④ ⑤ ⑥ Door Top hinge (Right) Lock screws...
Page 17: Power Failure
CARE AND MAINTENANCE  Cleaning Your Ice Maker  Turn off the power, unplug the appliance, and remove all items.  Wash the inside surfaces with a warm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to a quart of water. ...
Page 18: Energy Saving Tips
 Tape the door shut.  Be sure the appliance stays secure in the upright position during transportation. Also protect outside of appliance with a blanket, or similar item.  Energy Saving Tips  The ice maker should be located in the coolest area of the room, away from heat producing appliances and out of the direct sunlight.
Page 19  Inner water container cleaning WARNING: Please follow the steps below only when the ice maker is disconnected from the power and has no water or it may cause electric shock or wet flooring. Fig.A Fig.B Fig.C Fig.D ① Ice maker machine cover board ②...
Page 20 4. Use a soft brush to clean all the parts, and then use clean water to flush them. 5. After cleaning, fix the parts on opposite sides.  Ice maker water inlet box cleaning Fig. A Fig. B Fig. C ①...
Page 21: Troubleshooting Guide
TROUBLESHOOTING GUIDE ISSUE RESOLUTION The ice maker does not operate -Not plugged in -The appliance is turned off -No power to unit -Not enough water The ice is not big enough or melts too -The ambient temperature is too high quickly -The door is opened too often -The door is ajar...
