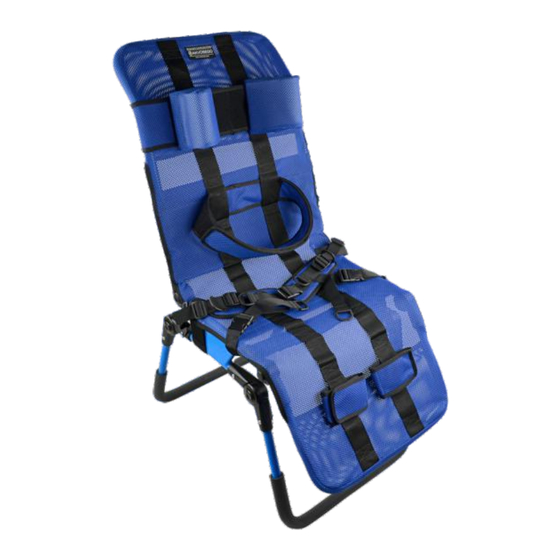

REH4MAT AKVOSEGO User Manual
Bath chair
Hide thumbs
Also See for AKVOSEGO:
- User manual (24 pages) ,
- User manual (24 pages) ,
- User manual (24 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for REH4MAT AKVOSEGO
Summary of Contents for REH4MAT AKVOSEGO

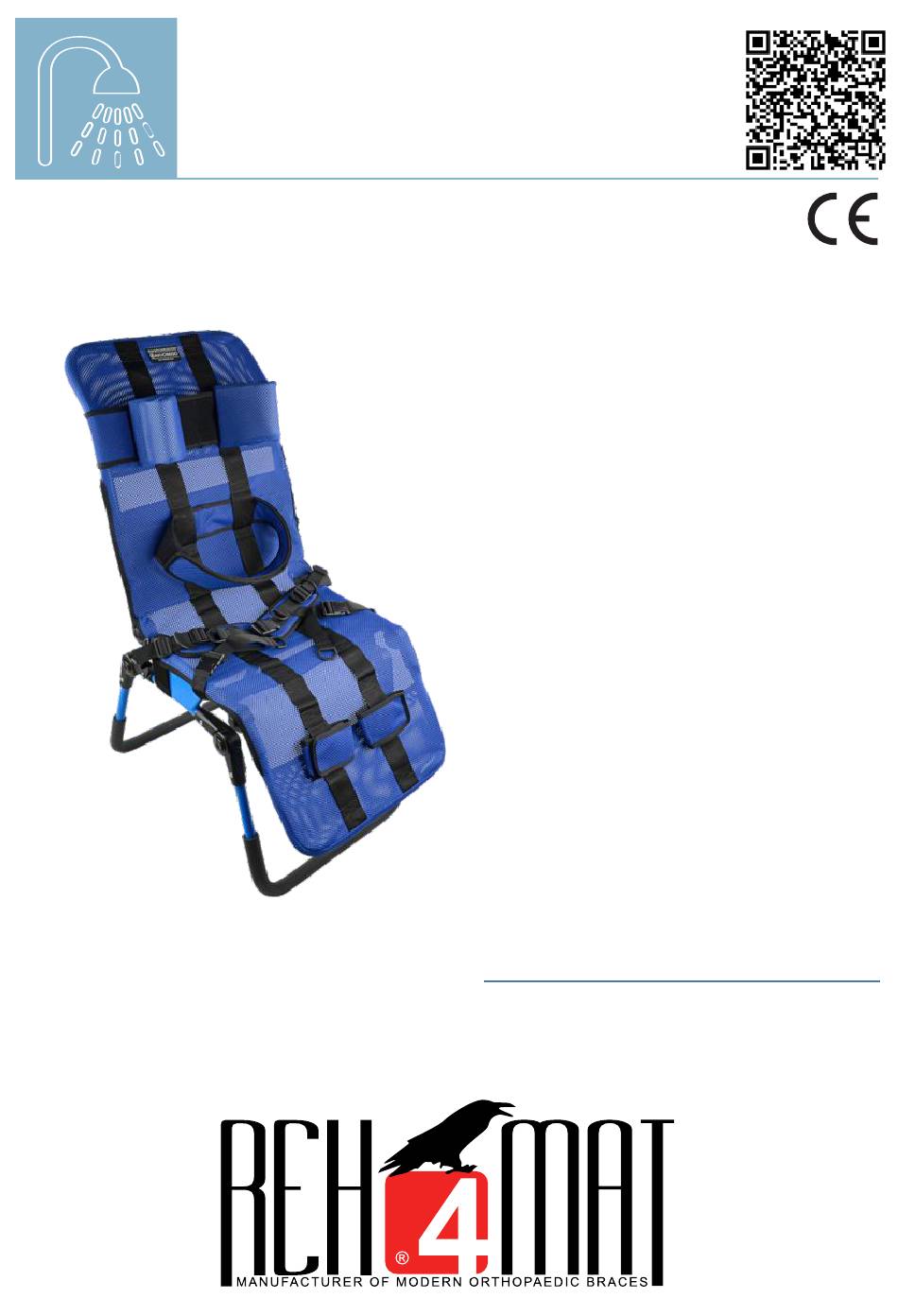

- Page 1 AKVOSEGO ™ BATH CHAIR User manual...
- Page 2 CAUTION! Manufacturer takes responsibility for proper usage of the device only when the product was purchased from qualified specialist at medical store CAUTION! REH4MAT eserve the right to introduce technical and trading changes in the content of the instruction without warning.
-
Page 3: Table Of Contents
AKVOSEGO CONTENTS 1. The purpose of user manual....................5 2. Indications for use........................5 3. General characteristics of bath child seat................6 3.1. Standard equipment..................6 3.2. Additional equipment....................6 4. Size table ..........................7 5. Detailed description of how to apply the lounger upholstery..........8 6. The adjustment of bath child seat..................12 7. - Page 4 AKVOSEGO INTRODUCTION AKVOSEGO™ bath child seat is highly helpful while taking care of disabled children. The use of product makes bath easier do to the fact that child is secured and he/she is not going to sustain any injury. Furthermore, parent can perform all bath activities single-handedly.
-
Page 5: The Purpose Of User Manual
AKVOSEGO THE PURPOSE OF USER MANUAL This manual contains information necessary for correct use of AKVOSEGO™ bath child seat , preparation of the device before the use, maintenance and cleaning as well as the guarantee conditions. Manual should be kept in an easy accessible place. -
Page 6: General Characteristics Of Bath Child Seat
AKVOSEGO GENERAL CHARACTERISTICS OF BATH CHILD SEAT 3.1 Standard equipment Frame 2. Head support 3. Trunk support 4. Pelvic-thigh belt 5. Upholstery not absorbing the water 6. Leg support 3.2. Additional equipment AKVO - Active waterproof Adaptation set used for... -
Page 7: Size Table
AKVOSEGO SIZE TABLE Symbol Measurement Unit Size 1 Size 2 Size 3 Seat width [cm] Seat depth [cm] 32-40 37-50 28-33 Head rest height [cm] Back rest height [cm] Lower leg length [cm] Floor to seat distance [cm] 11-40 13-49... -
Page 8: Detailed Description Of How To Apply The Lounger Upholstery
AKVOSEGO DETAILED DESCRIPTION OF HOW TO APPLY THE LOUNGER UPHOLSTERY 5.1. Components : Frame of bath deckchair x 1 Footrest frame Backrest Frame Joints Pelvic/thighs belt x 1 Head support x 1 DOWN Upholstery x 1... - Page 9 AKVOSEGO To put on the upholstery on the frame first you must : - Press joints (G and F) at the same time adjust the angle between the backrest and the footrest (according to fig. 1), -Insert the upper part of upholstery on the frame of the back support (fig.
- Page 10 AKVOSEGO -lounger with upholstery (fig. 7) set to the usable position (fig.8). fig.7 fig.8 To assembly the thigh-hip belts: - belt A and B interlace(insert) through the indicated mounting (fig. 9). - next- interlace(insert) the belts through the guide as indicated on photos (fig.10 -12).
- Page 11 AKVOSEGO - place belt E under the frame, next connect to belt C and D with a buckle. Repeat on the other side with belt D. To mount the head stabilizer you must: - choose the appropriate height of the stabilizer on the backrest of the lounger, fig.13...
-
Page 12: The Adjustment Of Bath Child Seat
AKVOSEGO THE ADJUSTMENT OF BATH CHILD SEAT It is necessary to use special joints so as to adjust AKVOSEGO™ bath child seat. It is possible to adjust following parts of AKVOSEGO™ bath child seat: BACKREST FOOTREST... - Page 13 AKVOSEGO THE TILT ANGLE OF BATH CHILD SEAT Every standard AKVOSEGO™ bath child seat is equipped with head support, trunk stabilizing belt and feet stabilizing belts. All these parts secure the patient while using the product. Please follow these steps mentioned below to use the product: STEP 1.
- Page 14 AKVOSEGO STEP 2. Fix trunk stabilizing belt. Belt is fastened with the aid of Velcro tapes and it can be fixed at any height. It is necessary to thread belt through grommets which are situated on either backrest or seat. Next, fasten the belt.
- Page 15 AKVOSEGO bottom strap with buckles Afterwards, insert the two side straps into regulators as explained below. Properly attached belt is shown in the last picture. side straps with regulators...
- Page 16 AKVOSEGO 6.2. Seat depth adjustment In order to adjust the depth of seat, there is necessary to press the buttons on both sides at the same time. 6.3. Upholster Tension of upholster can be easily adjusted by straps with Velcros that are...
-
Page 17: How To Fix Bodymap Cushion On Bath Child Seat
HOW TO FIX BODYMAP CUSHION ON BATH CHILD SEAT All BodyMap cushions are waterproof and highly thanks to which it is recommended to use them together with AKVOSEGO™ bath child seat so as to enhance upright standing and secure the patient while performing nursing activities. - Page 18 AKVOSEGO Before fixing the BodyMap cushion on the both seat, it is necessery to assemble special Velcros in lower, medium and upper part of the seat. Self-adhesive surface of BodyMap cushion makes it possible to fix it quickly on bath seat.
- Page 19 AKVOSEGO STEP 4. To fix BodyMap cushion it is necessary to unfasten stabilizing belts. Place cushion on AKVOSEGO™ bath child seat in a way that its self-adhesive surface touches bath seat's upholstery. Next, place the patient on cushion and fasten stabilizing belts.
-
Page 20: Using Of Bath Child Seat
AKVOSEGO THE USE OF PRODUCT CAUTION! The product has to be used with compliance to guidelines included in this user manual and with trained person. Before every using, there is necessery to prepare the patient and the device! Please follow these steps below before the use of product: ·... -
Page 21: Safety Rules
It is highly important to consult either doctor or physiotherapist in order to make right decision concerning the choice of AKVOSEGO™ bath child seat and its size. It is essential to familiarize with the guidelines described in instruction manual before using the device. - Page 22 Additionally, you can familiarize yourself with the table which you can find in this user manual on page 7. CAUTION! AKVOSEGO™ bath child seat should be used in compliance with guidelines described in instruction manual.
-
Page 23: Maintenance And Cleaning
AKVOSEGO MAINTENANCE AND CLEANING AKVOSEGO™ bath child seat should be kept clean and used in compliance with the manufacturer's recommendations. The device should be kept in clean, dry and ventilated room. Maintenance as well as cleaning have to be performed at least once a month. Regular cleaning and maintenance of bath child seat are indispensable to maintain its correct functionality as well as safety. - Page 24 16 621 42 20, 16 621 41 35 fax 16 621 41 13 www.reh4mat.com | www.ortezy.pl e-mail: biuro@reh4mat.com Date of issue : 13.04.2015 The last update : 20.04.2017 REH4MAT reserve the right to introduce technical and trading changes in the content of the instruction without warning.
