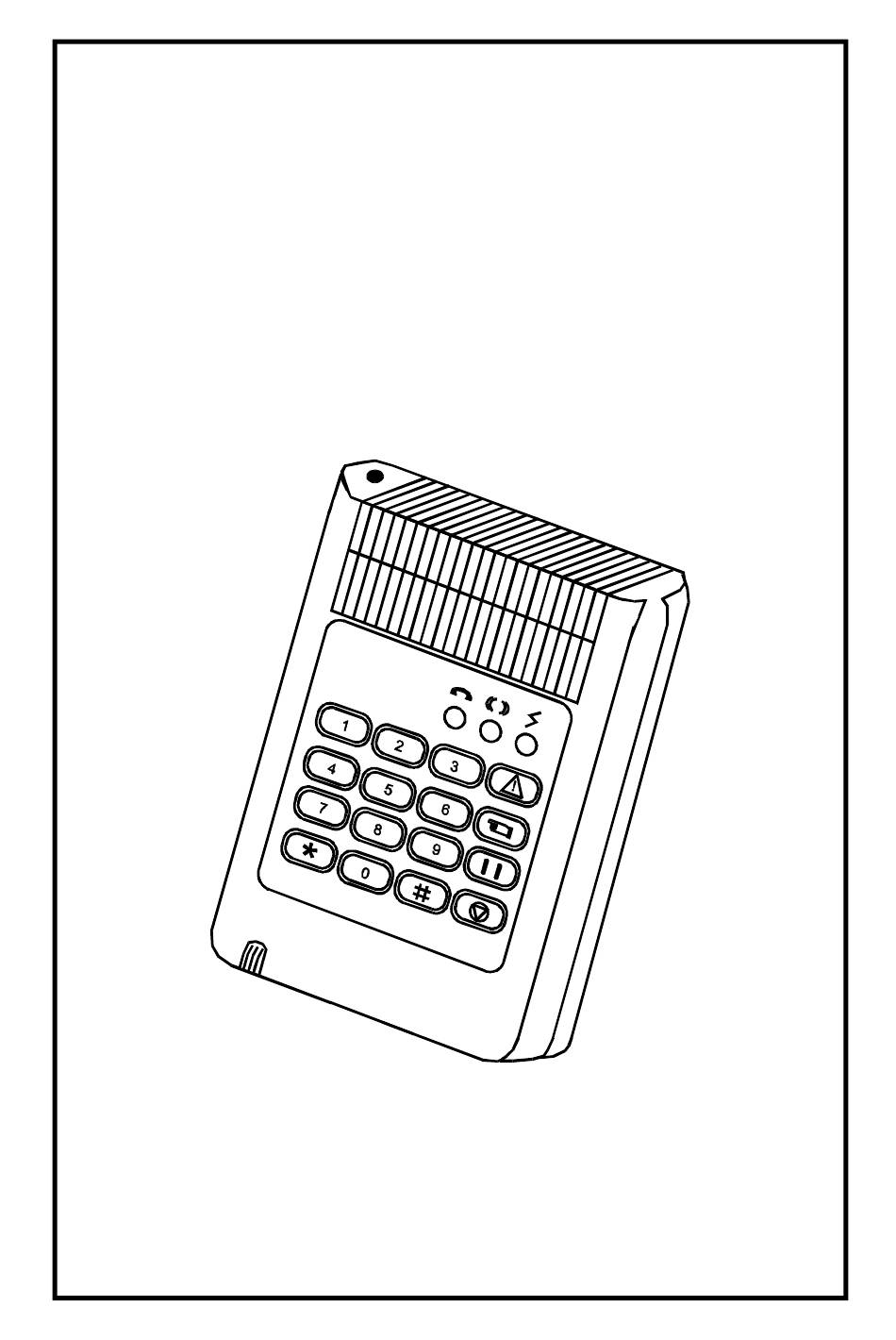

- Page 1 AUTODIALLER / QUICKDIALLER - SA132 INSTRUCTION LEAFLET ENGLISH www.Thermomax-Group.com...
-
Page 2: Table Of Contents
CONTENTS SETUP AT A GLANCE ................FOREWORD …………………………………..……………...……. INSTALLATION ………………………………………..…………..… KEYPAD AND INDICATORS ........……………………..SETTING UP THE UNIT ....……………………………………..TROUBLE SHOOTING GUIDE .............. -
Page 3: Setup At A Glance
SETUP AT A GLANCE How to... Steps Record Emergency (Speak into microphone Messages for 20 seconds max.) Play Back Emergency Messages Record Telephone Sequence of telephone number Numbers (Select only one key) Telephone Number Send a Sequence of telephone number Test Call (Select only one key) Select Auto... -
Page 4: Foreword
FOREWORD The SA132 Autodialer / QuickDialer is an intelligent device designed to connect to any security alarm control panel, and it is compatible with any of the following Thermomax units - SM12, SM UNO, SM DUE, SM QUATTRO, LCT-2, SMX 100, etc.). The Autodialer / QuickDialer enables the dialer to call any phone numbers programmed to it when an emergency occurs. -
Page 5: Installation
INSTALLATION MOUNTING THE UNIT To mount the unit on the wall, drill two holes for the 2 screws provided into the wall, leaving a 5cm space between them, and hang the unit on the screws as shown in Fig. 1. Fig. - Page 6 / QuickDialer input, (as illustrated in the diagram below). Now connect the N.O. trigger input of the Autodialer / QuickDialer to the alarm common (C) input of the Thermomax unit. Connect the Autodialer / Quickdialer N.C. trigger input to the alarm N.C.
-
Page 7: Keypad And Indicators
KEYPAD AND INDICATORS KEYPAD <PANIC> <SET> <PAUSE> <CLEAR> LED INDICATORS STATUS GREEN YELLOW OFF-LINE STANDBY POWER OFF ON-LINE REC / PLAY POWER ON FLASH DIALLING INCOMPLETE SETTING OF ALARM MEMORY RECORDED MESSAGE AND PHONE NUMBER LED INDICATION DURING PROGRAMMING • Each time any button is pressed, the Yellow LED will flash once to confirm the input. -
Page 8: Setting Up The Unit
SETTING UP THE UNIT EMERGENCY MESSAGES Recording Message The Autodialer / QuickDialer has a built-in microphone enabling you to record the message phrases directly into the unit. As an example, the following phrases can be recorded as the emergency message: “This is Mr. - Page 9 • To revise the telephone numbers, repeat the previous procedure. • To clear a recorded telephone number, do as follows: → → → → Sequence of telephone number (select only one key) • Due to the nature of some particular phone systems, busy tone or ring back tone cannot easily be distinguished.
- Page 10 Programming an internal PABX telephone exchange through Direct Inward System Access (DISA) facility → → → Sequence of telephone number (Select only one key) → −−− → -------------------- Telephone Number Waiting for transfer → → → Extension Deferred Number Playing Connected to PABX system or ISDN switcher If the Autodialer / QuickDialer is connected to an internal PABX telephone exchange or ISDN switcher, a prefix digit (e.g.
- Page 11 ALARM SYSTEM TRIGGER SETTINGS Upon receiving an input signal from the connected alarm control panel, the Autodialer / QuickDialer will react accordingly. For the Autodialer / QuickDialer to function correctly, it should memorize each zone’s different alarm system “trigger type” and “trigger duration”. Alarm system Trigger Type: BUTTON NORMAL OPEN (N.O.)
- Page 12 AUTODIALING SET-UP Each telephone number can be dialed for a maximum of 9 times. The factory default is to dial each phone number 3 times. When setting up, by pressing the key for instance, each telephone number will be dialed four times upon activation. To select an Auto Dialing setting different from the factory default, do as follows: Select one key...
-
Page 13: Trouble Shooting Guide
TROUBLE SHOOTING GUIDE PROBLEM POSSIBLE CAUSE REMEDY Red LED does 1. DC circuit power 1. Exchange the DC not “flash” connected in circuit power. reverse order. “Light up” red 1. Has been triggered. 1. Press the key. . LED does “flash” Red LED 1.
