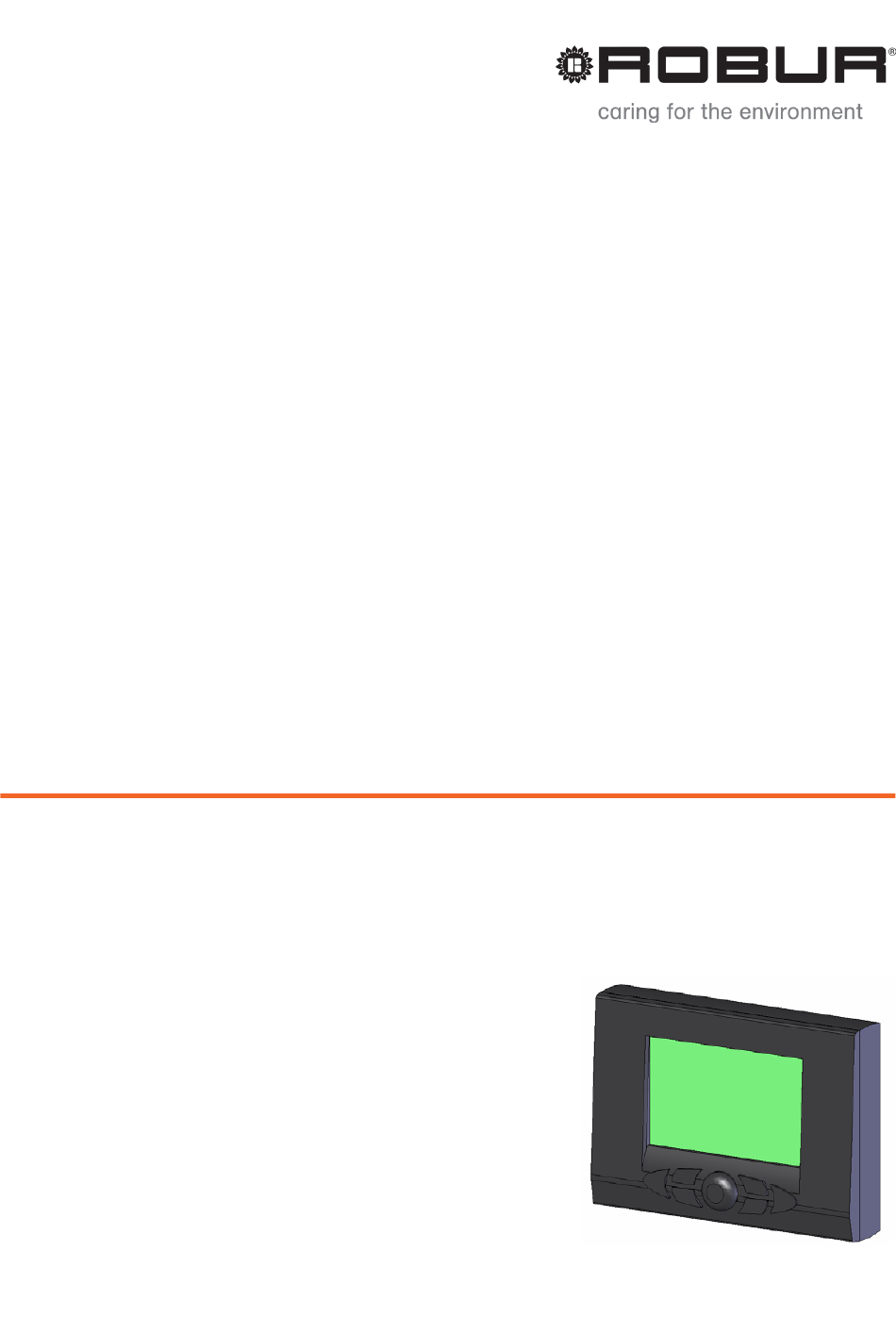

- Page 1 Installation and operation manual Remote control for Caldaria...
- Page 2 The rights of those who have legitimately filed the registered trademarks contained within this publication are not affected. With the aim of continuously improving the quality of its products, Robur S.p.A. reserves the right to modify the data and contents of this Installation and operation manual without prior notice.
-
Page 3: Table Of Contents
INDEX OF CONTENTS 1 How to use this instruction manual 9 Setting manual/automatic operation ....p. 4 .... p. 10 Manual operation ............p. 10 2 Main features ................p. 4 Automatic operation ........... p. 11 3 Installation ................p. 5 10 Weekly heating program ..........p. 11 4 Configuration of the operating 10.1 Heating program display ........... -
Page 4: How To Use This Instruction Manual
HOW TO USE THIS INSTRUCTION MANUAL This manual is intended for: When a numerical value is displayed flashing, you can ▶ Installer: provides information on the correct installation ▶ change it by turning the knob. and configuration of the remote control. User: provides detailed information on the steps to be taken The value modified by the knob must be saved by... -
Page 5: Installation
Table 2.1 LCD symbols Icon Fixed Flashing Current temperature display Fault code display Time/temperature display Current day of the week Change the day of the week DHW enabled/ventilation only DHW request in progress/ventilation only Heating enabled Heating request in progress Manual operation Burner on Heating program display Change heating program... - Page 6 operation of the system. In this way, unwanted starts and 6. Power the boiler. stops of the system will be avoided and optimal comfort 7. The installation is now complete. If the remote control has in the environment will be guaranteed. been correctly installed, it will be powered up and the con- nection message will appear on the LCD display for a few seconds (Figure 3.5 ...
-
Page 7: Configuration Of The Operating Parameters
CONFIGURATION OF THE OPERATING PARAMETERS This Paragraph is reserved exclusively for the author- Figure 4.2 Changing the selected value (flashing) ised Robur Technical Assistance Centre. Incorrect configuration of the remote control may cause the system to malfunction. This operation is used to configure the remote control in such a way that it is compatible with the boiler and the relative system to which it is connected. -
Page 8: Disabling Thermoregulation
PARAMETERS - TSP) This Paragraph is reserved exclusively for the author- parameter instead of the temperature. ised Robur Technical Assistance Centre. 5. Turn the knob to select the parameter number to be displayed. The temperature display shows the values asso- The remote control does not know the meaning of the items ciated with the various parameters. -
Page 9: Clock And Temperature Setting
heating only: only operation in heating mode is enabled for Figure 7.1 Operating status OFF ▶ the production of hot water to the internal modules. In this mode the boiler will produce hot water at the set temperature, modulating the heat output as the set- point temperature approaches. -
Page 10: Day Room Temperature Setting
HEATING TEMPERATURE SETTING 6. Turn the knob to set the desired value. 1. Press the key until the icon starts flashing (Figure 7. Press the knob to confirm the value entered. The day 8.6 p. 10 ). stops flashing and the icon disappears. -
Page 11: Automatic Operation
AUTOMATIC OPERATION 4. The set temperature can be changed at any time by turning knob. 1. Press the key until the heating clock face is displayed. 5. You can display the set temperature by pressing the 2. The icon is lit to indicate which temperature lev- key. -
Page 12: Temporary Change Of The Room Setpoint
7. Press the 9. Press the key to change the day/night temperature lev- button to change the level and proceed in el associated with the current time. the same way for the other changes. 10. To change the day, repeat operations from step 3. 8. -
Page 13: Temperature Values Display
Figure 12.2 Non resettable fault TEMPERATURE VALUES DISPLAY Delivery probe temperature display: corresponds to the ▶ By pressing the key several times, the remote control is able temperature read by the delivery water probe in the boiler to display the values of the items shown in Table 13.1 p. 13 . (Figure 13.2 ... -
Page 14: Error Codes
ERROR CODES For information about the error codes that may appear to the Installation, use and maintenance manual of the on the remote control display during operation, refer specific Caldaria appliance used. RESTORE DEFAULT VALUES You can reset the settings of the remote control to their factory Night temperature: 16 °C ▶... -
Page 15: Technical Specifications
Table 19.1 Commission delegated regulation (EU) n. 811/2013 - Temperature controls Contribution of the temperature control to seasonal space heating energy efficiency in %, Supplier Model Class of the temperature control rounded to one decimal place Robur OCDS006 0,03 Installation and operation manual – remote control... - Page 16 Robur mission Robur is dedicated to dynamic progression in research, development and promotion of safe, environmentally-friendly, energy-efficiency products, through the commitment and caring of its employees and partners. Robur S.p.A. advanced technologies for climate conditioning via Parigi 4/6 24040 Verdellino/Zingonia (BG) Italy +39 035 888111 - F +39 035 884165 www.robur.it robur@robur.it...
