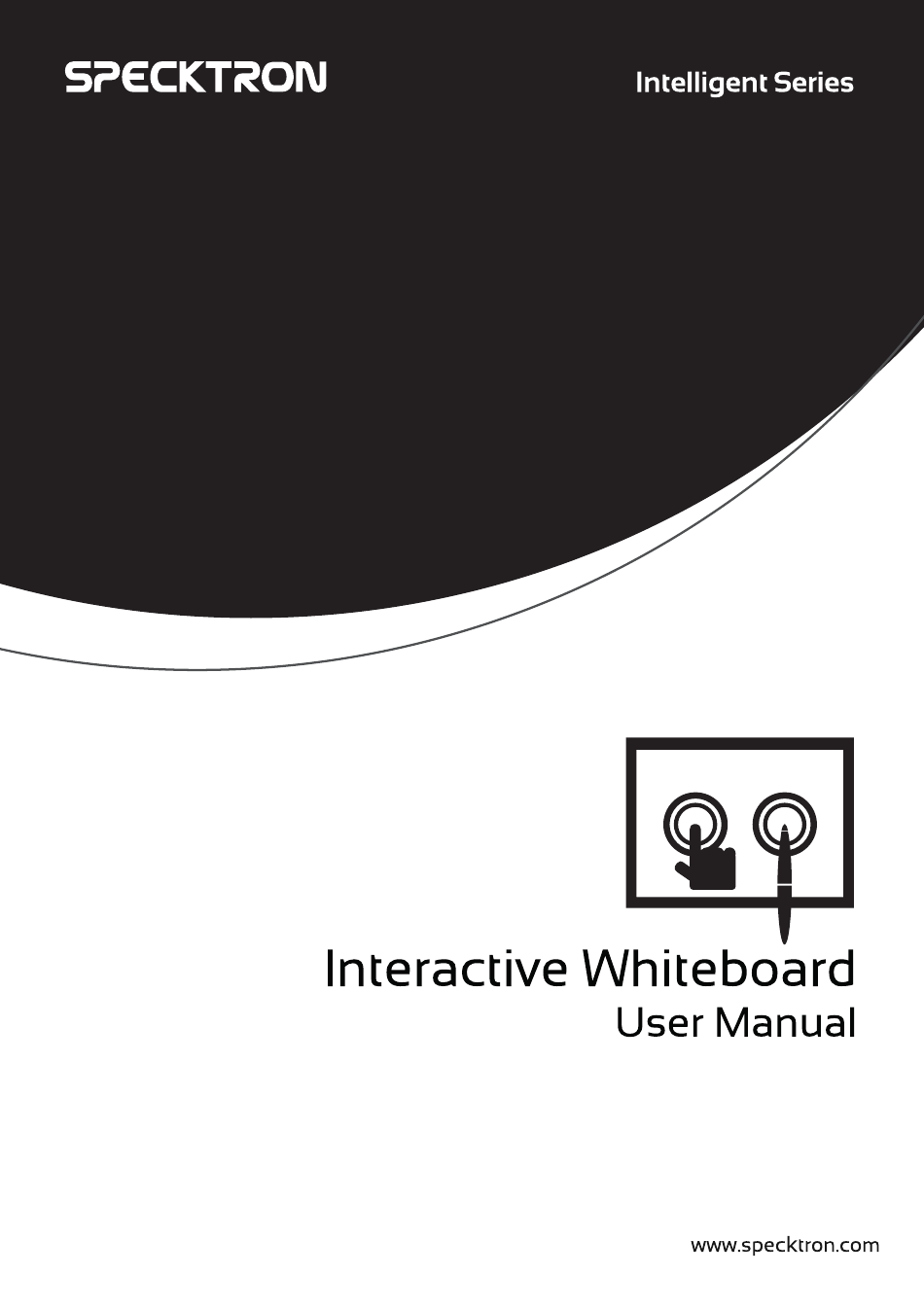

Specktron Intelligent Series User Manual

Hide thumbs

Advertisement

Table of Contents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Intelligent Series and is the answer not in the manual?

Questions and answers

ANIL
May 24, 2025

HOW TO UNLOCK SPECTRON SMART BOARD

0

Subscribe to Our Youtube Channel

Summary of Contents for Specktron Intelligent Series

  • Page 2 Interactive Whiteboard User Manual of IRB2 Series & EMB2 Series Please retain this manual properly for future reference. This is the general manual for Interactive Whiteboard and there might be slight differences between the actual product and the descriptions.

  • Page 3: Table Of Contents

    Table of Contents ATTENTION ....................... 2 SYSTEM REQUIREMENTS OF IRB2 SERIES ..........4 INTRODUCTION OF IRB2 SERIES ..............5 HOW TO INSTALL OF IRB2 SERIES ............. 7 CALIBRATION OF IRB2 SERIES ..............11 TROUBLE SHOOTING OF IR SERIES ............17 CONVENTIONAL SIGNS INSTRUCTION OF EMB2 SERIES ....

  • Page 4: Attention

    Attention  Do not expose this whiteboard to rain or moisture so as to reduce the risk of fire or electric shock.  Do not expose this whiteboard to fire, electric shock and long time direct sunlight.  This device is heavy with N.W. over 15 Kg. Use expansion bolts to fix the device to the wall.
  • Page 5 might damage the device.  For the instructions of writing software, please refer to its user manual and there will be no more instructions in this user manual.

  • Page 6: System Requirements Of Irb2 Series

    System Requirements of IRB2 Series Lowest Environmental Requirements：  CPU: 1.0GHz×86  Memory: 256M Byte  Display Card: Support 256 or above  Hard Disk:1GByte  Screen Display Resolution：800×600、1024×768、1280×1024  USB1.1 Port ： Recommended  CPU: 2.0GHz×86  Memory: 1GB or above ...

  • Page 7: Introduction Of Irb2 Series

    Introduction of IRB2 Series This interactive whiteboard uses IR scan and sensor technology. Working seamlessly with a projector and computer, the Interactive whiteboard can become a large touch display. Any projected image in the whiteboard can be operated by pens or fingers directly. Thus, it provides an interactive presentation platform for the lecturers.
  • Page 8 these lines for better writing effects.

  • Page 9: How To Install Of Irb2 Series

    How to Install of IRB2 Series The following instructions have stated the installation for all series products from our company. The user can refer to corespondent instructions according to the products purchased. Please contact the local distributor for mor details. How to Install Hardware ...
  • Page 10 Interactive Blackboard Blackboard Whiteboard Sliding Interactive Blackboard Blackboard Blackboard Whiteboard Embedded Installation Diagram  Whiteboard installation for D series 1．There are 4 pieces of whiteboard wall-mount brackets in the accessory box as follow. Place them on the wall according to the position of the hooks on the back of whiteboard and fix them with expansion bolts.
  • Page 11  Whiteboard installation for E series 1．There are 4 pieces of whiteboard wall-mount brackets in the accessory box as follow. Place them on the wall according to the position of the hooks on the back of whiteboard and fix them with expansion bolts.
  • Page 12 2．Hang the whiteboard onto wall-mount brackets and make sure the hooks on whiteboard catch the brackets. Shown as follow： Interactive System Building Make sure the whiteboard is firmly fixed before building the interactive system. Adjust the positions of the projector and whiteboard to make sure images are projected to writing area of the whiteboard in full screen.

  • Page 13: Calibration Of Irb2 Series

    There is an installation disc in the accessory box. Insert the installation disc and you can see the instructions. You can open the disc by manual if you do not see . Follow the instructions and complete the installation of the whiteboard software.
  • Page 14 The service program icon has two status：Icon turns red when the whiteboard and program are disconnected; icon turns green when whiteboard can work normally. To work normally, the whiteboard and computer should be connected correctly and service program icon is green. Step 3：Adjust the projection angle and make sure the projection area is within the whiteboard display area.
  • Page 15 Step 5：Vertically touch the centre of the flashing "十" with the interactive whiteboard pen tip until the flashing "十" move to the next calibration point and thus one point is calibrated. Follow the instructions in the calibration interface and complete the calibration of other points thus the interactive whiteboard calibration is finished.
  • Page 16 Right Click Touching the whiteboard with a finger or pen for about 2 seconds has the same effect as mouse right click. Double click the writing software icon on desktop to run the software. You can also do the following in the writing software： Write You can write with the pen pressing and sliding on the whiteboard.
  • Page 17  To avoid scratching, do not use other objects instead of the pen. The whiteboard should be carefully kept to avoid cover membrane being scratched.  Refer to the writing software user manual for more functions and detailed instructions. How to Use the Smart Pen Tray (optional accessory) The smart pen tray can contain three whiteboard pens and one eraser.
  • Page 18 the writing page is open, you can use the eraser or any pen from the pen tray to switch other interface to writing software interface. Notes：  The stroke colors are only associated with the pen tray slots and have no relation with pen colors.

  • Page 19: Trouble Shooting Of Ir Series

    Trouble Shooting of IR Series Solutions to Problems Solutions Problems Phenomenon Presumable Causes Start up the service Service program is not No service program program. icon on the right started up. Install the service bottom of the Service program is not computer.
  • Page 20 move under is same with the or background color. desktop operation background color. mode but cannot write under writing mode. Inaccurate The pen is Recalibrate correctly. Part of the working but calibration. whiteboard have there are There is projection large deviations. Adjust the projector.

  • Page 21: Conventional Signs Instruction Of Emb2 Series

    Conventional Signs Instruction of EMB2 Series Note: Attentions during installing and operating. Caution: Damages to people during operating or damages to machine caused by improper operation.  To prevent fire or electric shock, please don’t expose the whiteboard in rain or wet environment. ...
  • Page 22 This manual is only for Interactive Whiteboard on “technical specification list”.  You can write and operate on the whiteboard only with matched whiteboard pen.  This product use electromagnetic calibration technology. There should not be strong electromagnetic field nearby to prevent interference. ...

  • Page 23: System Requirements Of Emb2 Series

    System Requirements of EMB2 Series Lowest Environmental Requirements: · CPU: 1.0GHz×86 · Memory: 256M · Display Card: Support 256 or above · Hard Disk: 1G · Screen Display Resolution: 800×600, 1024×768, 1280×1024 · USB 1.1 port Recommended: · CPU: 2.0GHz×86 ·...

  • Page 24: Instruction Of Emb2 Series

    Instruction of EMB2 series Interactive whiteboard uses scanning induction technology. Working together with projector and computer, Interactive whiteboard can be used as a big writing panel. To any image projected on the whiteboard, you can write on and touch the whiteboard directly with writing pen. Interactive Whiteboard provides more advanced system functions and more effective presentation than before.

  • Page 25: How To Install Of Emb2 Series

    Software Features Whiteboard software has below features:  Designed for teaching and conference systems.  The screen display is high light and low glare.  Saves images in Vector image format. Vector images take up less storage space and makes file transferring easier and faster ...
  • Page 26 to install whiteboard first. There are three installation ways based on different whiteboard model: Install whiteboard on wall Step 1: Set desired height according to user’s preferences, place the stilettos on the wall to make holes for wall mounting parts and hook, then fix wall mounting parts and hook by screws.
  • Page 27 Step 3: Fix the upper hook on the wall to fix whiteboard, if there is position problem during installation, please use EVA cushion(45*20*1mm) to adjust, shown as below: Install whiteboard behind blackboard You can install whiteboard behind blackboard to work with blackboard. Here is installation step: Take off a removable blackboard.
  • Page 28 Install whiteboard pen of EMB2 Series...
  • Page 29 How to use of EMB2 Series Pen The Whiteboard pen can simulate three kinds of mouse modes as follows: 1. Mouse move: Put the pen tip close to the whiteboard and move 2. Mouse left click: Press down the pen tip on the whiteboard and move 3.
  • Page 30 Open the battery cover on pen, put in an AAA alkalescent battery according to the anode and cathode (the spring side is the cathode) to the battery hole, and then fasten the battery cover before use the pen. Install eraser of EMB2 Series Replace battery of eraser Open the battery cover on eraser, put in an AAA alkalescent battery according to the anode and cathode (the spring side is the cathode) to the...
  • Page 31 Tips:  The eraser will enter stand by model to save power when it is not used. So please press active button before use.  The eraser is mainly used to clear electronic pen stroke, in order to prolong its use life, please do not use it to clear stroke of water pen and chalk.
  • Page 32 Click “Cancel”, please install software as below: Insert the installation CD into the computer’s ROM, double click CD, the below dialog window appears: Click "Application Software" and then follow on-screen prompt to finish whiteboard software installation step by step. If you want to install complete function of whiteboard software, please click "Full Installation"...

  • Page 33: Emb2 Series Calibration

    If you want to remove the Whiteboard control software from your computer, please use “Add/Delete Program” in “Control Panel” to uninstall, select “Whiteboard” and click “Remove/Delete” to uninstall the software. EMB2 Series Calibration To make the whiteboard work normally, you must make sure the pen track in the projector accords with the actual pen track accurately.

  • Page 34: Trouble Shouting For Emb2 Series

    corner of the screen, a menu as followed will appear: Click “Calibrate” to enter calibration screen, shown as below: Step 4: Click the center of the flashing “十” with pen to make four “十”s stop flashing. This is a successful calibration. And according to the operation to calibrate the other three “...

  • Page 35: Questions And Answers

    Reason Reason Reason Try the following Server program is not Run server program There is no server icon running at the lower right of the Server program is not screen Install server program installed Connect whiteboard to Whiteboard is not computer by USB connected to computer cable...
  • Page 36 You can use any projector that can project the computer image on the Whiteboard, including LCD project with high resolution and LCD board projector in lower price. Make sure the projector supports the resolution of the computer and 650ANSL is enough. What should I do if I write on the Whiteboard by the water pen or permanent pen that can not be erased? The whiteboard has two kind of surface: erasable surface and...
