Mippaa Stair Trainer Manual

Stair Trainer manual
1. Intended use
The Stair trainer is a temporary handrail. The
Stair trainer is intended to teach young
children to hold on to a staircase and may
only be used under the supervision of an
adult. Any use other than the intended use
described above is regarded as inadvertent
use.
Mippaa cannot be held responsible for any
(consequential) damage caused by
unintended, wrong or unwise use.
1.1 Product parts
Check that all parts
are present and check the product for
damage. If a part is missing or damaged,
contact the supplier.
The Stair trainer has two variants:
1. Set A, for 3.5 meters of handrail
2. Set B, for 1.12 meters of additional
handrail
Below is described which parts are available
per variant.
Set

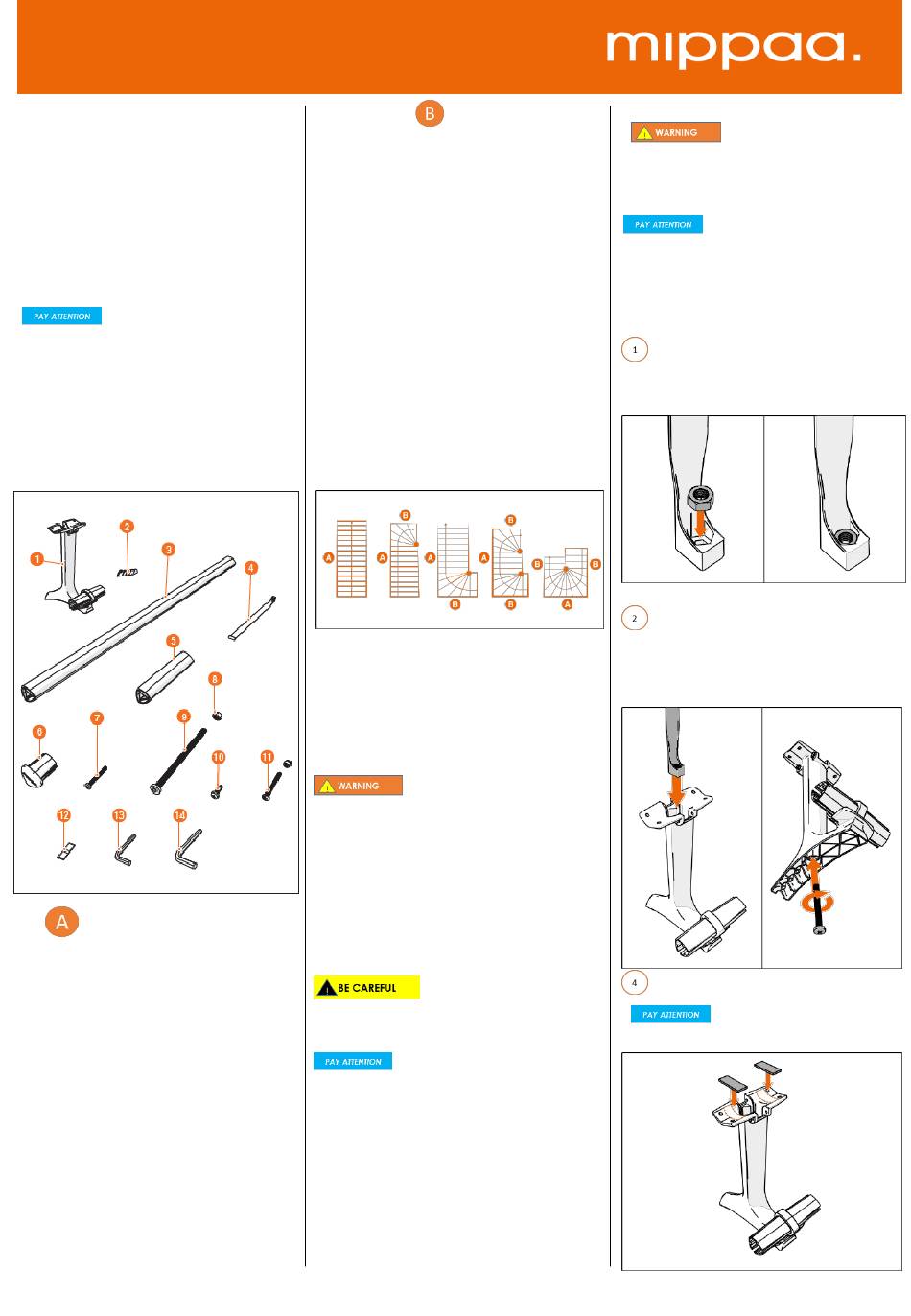

Bill of materials
1. Handrail holder (5 ×)
2. Wall spacer (5 ×)
3. Long tube (4 ×)
4. Strap (5 ×)
5. Short tube (2 ×)
6. End cap (2 ×)
7. Pan Head bolt (cross) 3,5 × 25 mm.
Tube fixation (8 ×)
8. Inlay nut M5 band (5 ×)
9. Long bolt (hexagon socket / hexagon)
M5 × 150 mm with full thread (7 ×)
10. Pan Head bolt (cross) 3,5 × 10 mm for
wall spacer adjuster (5 ×)
11. Allen bolt low round head ISO 7380 M3
×30 and cap nut M3 DIN 1587 (5 ×)
12. Cellular rubber COLOR WHITE 25 × 25 ×
1.1 mm (10 ×)
13. Allen key 2
14. Allen key 4
Bill of materials
1. Handrail holder (2 ×)
2. Wall spacer (2 ×)
3. Long tube (1 ×)
4. Strap (2 ×)
5. Short tube (2 ×)
6. End cap (2 ×)
7. Ball screw (hexagon socket / hexagon)
3,5 × 25 mm. Tube fixation (2 ×)
8. Inlay nut M5 band (2 ×)
9. Long bolt (cross) M5 × 150 mm with full
thread (4 ×)
10. Pan Head bolt (cross) 3,5 × 10 mm for
wall spacer adjuster (2 ×)
11. Allen bolt low round head ISO 7380 M3 ×
30 and cap nut M3 DIN 1587 (2 ×)
12. Cellular rubber COLOR WHITE 25 × 25 ×
1.1 mm (4 ×)
13. Allen key 2
14. Allen key 4
1.2 Trap situations
The most common stair situations are shown in
the figure below. Per stage situation it is
indicated which sets (A and / or B) are
required.
1.3 Required tools
• Phillips screwdriver
• Plastic pipe cutter or hacksaw
• Allen key no
2. Precautions and safety instructions
• Observe local laws and regulations
during assembly and / or use of the product.
• The responsibility for the correct installation
and use of the product lies with the end user.
Improper assembly or incorrect use can lead
to damage to or a defect of the product. The
warranty is void if the product is damaged
due to incorrect assembly or use.
• Keep children and animals away from the
mounting location.
• The product can carry a weight of up to 20
kg.
• Do not use power tools to tighten the
screws.
• Contact the supplier if parts are missing or
damaged. Assembled or partially assembled
products are not accepted by the return
policy.
• Mount the product on a soft flat surface to
prevent scratches.
• Mount Stair trainers for more than 1.2 meters
with two people.
• Mippaa advises to also attach the Stair
trainer to the wall. Fastening materials are not
included.
3. Assembly
• Observe local laws and regulations during
assembly of the product.
• The end user is responsible for correct and
safe assembly.
• Do not tighten the screws too tightly.
• Mount the product on a soft flat surface to
prevent scratches.
3.1 Assembly of the Stair trainer parts
... Place the M5 nut (8) in the recess in the
strap (4).
Insert the M5 × 150 bolt (9) through the
bottom of the handrail holder (1).
Screw the M5 × 150 bolt (9) into the strap
(4) with M5 nut (8).
4 Place the cellular rubber (13) on the top
of the handrail holder (1).
do not remove the protective
film at the top of the cellular
rubber! This only happens in
section 3.2.
