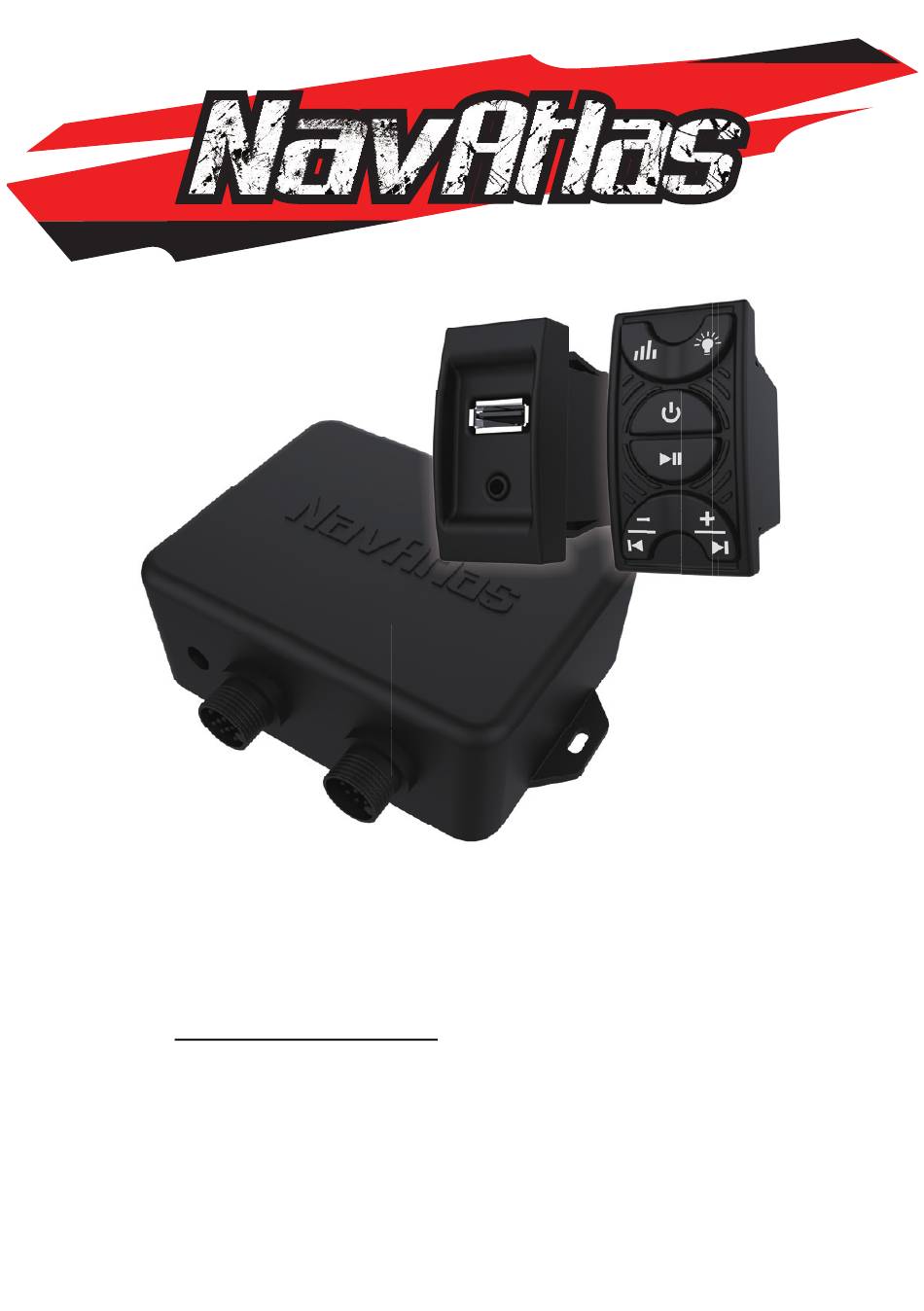

- Page 1 NA2BT INSTALLATION/OWNER'S MANUAL Switch Type Digital Bluetooth Controller...
-
Page 2: Controller Mounting
Mount the controller and AUX/USB in any open switch hole on your dash, be sure to fully insert until they lock into place. Please secure the NA2BT module via screw or ties so that the box does not move around in the dash. -
Page 3: Universal Installation
NA2BT UNIVERSAL INSTALLATION POWER RED - 12V+ACC BLACK - CHASSIS GROUND AFTERMARKET SYSTEM BLUE - OPTIONAL LED CONTROL AUDIO RED RCA - ANALOG RIGHT UNIVERSAL CABLE WHITE RCA - ANALOG LEFT GREY RCA- DIGITAL CO-AXIAL OUTPUT 8 pin waterproof DIN connector... - Page 4 NA2BT EXAMPLE OF DAISY CHAIN DIGITAL CONFIGURATIONS FOR ANY VEHICLE *OPTIONAL ACCESSORIES ARE D2Y AND D2D CABLES (SOLD SEPARATELY) NA1BT/NA2BT/NA30C NA81MDVR NS14A/27A/35A 2 pin waterproof DIN connector 10 Feet (10GA) 8 pin waterproof DIN connector 10 Feet (18GA) for soundbar...
- Page 5 GETTING STARTED NA2BT GETTING STARTED USB 1A CHARGING NOT FOR AUDIO PLAYBACK USB 1A CHARGING NOT FOR AUDIO PLAYBACK OPEN NOTE: TO AVOID WATER DAMAGE, PLEASE KEEP OPEN AUX/USB COVER CLOSED WHEN NOT IN USE. NOTE: TO AVOID WATER DAMAGE, PLEASE KEEP...
-
Page 6: Bluetooth Operation
NA2BT BLUETOOTH OPERATION PAIRING & DISCOVERING A NEW BLUETOOTH CONNECTION 1) Power on the CONTROLLER by short-pressing the Power button NOTE: You have 2 minutes before you must restart this procedure over again. 2) The CONTROLLER is now in pairing mode: ANDROID users: a. - Page 7 NA2BT BLUETOOTH OPERATION RECONNECTION 1) Power on the CONTROLLER and your last paired device Bluetooth. CONTROLLER , the unit will now automatically 2) Ensure you are within range of the reconnect 3) If the device is out of range from the CONTROLLER , it will disconnect automatically: CONTROLLER will reconnect automatically to your device when in a.
-
Page 8: Streaming Music
NA2BT STREAMING MUSIC BLUETOOTH OPERATION BLUETOOTH OPERATION PLAY/PAUSE once to start playing music or press the PLAY PLAY/PAUSE once to start playing music or press the PLAY 1) Press the 1) Press the button from your devices touch screen button from your devices touch screen... - Page 9 NA2BT AUX-INPUT YOU CAN PLAY AUDIO FROM ANY DEVICE THAT HAS A 3.5MM HEADPHONE JACK CONTROLLER AUX-IN OPERATION CONTROLLER by pressing and holding down the POWER 1) Power on the button for 3 seconds 2) Disconnect any paired Bluetooth Bluetooth in your devices Settings Menu 3) Connect your 3.5mm AUX-IN cable located on front side of the CONTROLLER...
- Page 10 NA2BT FCC Compliance This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 11 NA2BT...
- Page 12 Support Line: 1-562-946-7471 9AM-5PM PST Monday-Friday www.navatlas.com All rights reserved. NSA0119-V01 Printed in China...
