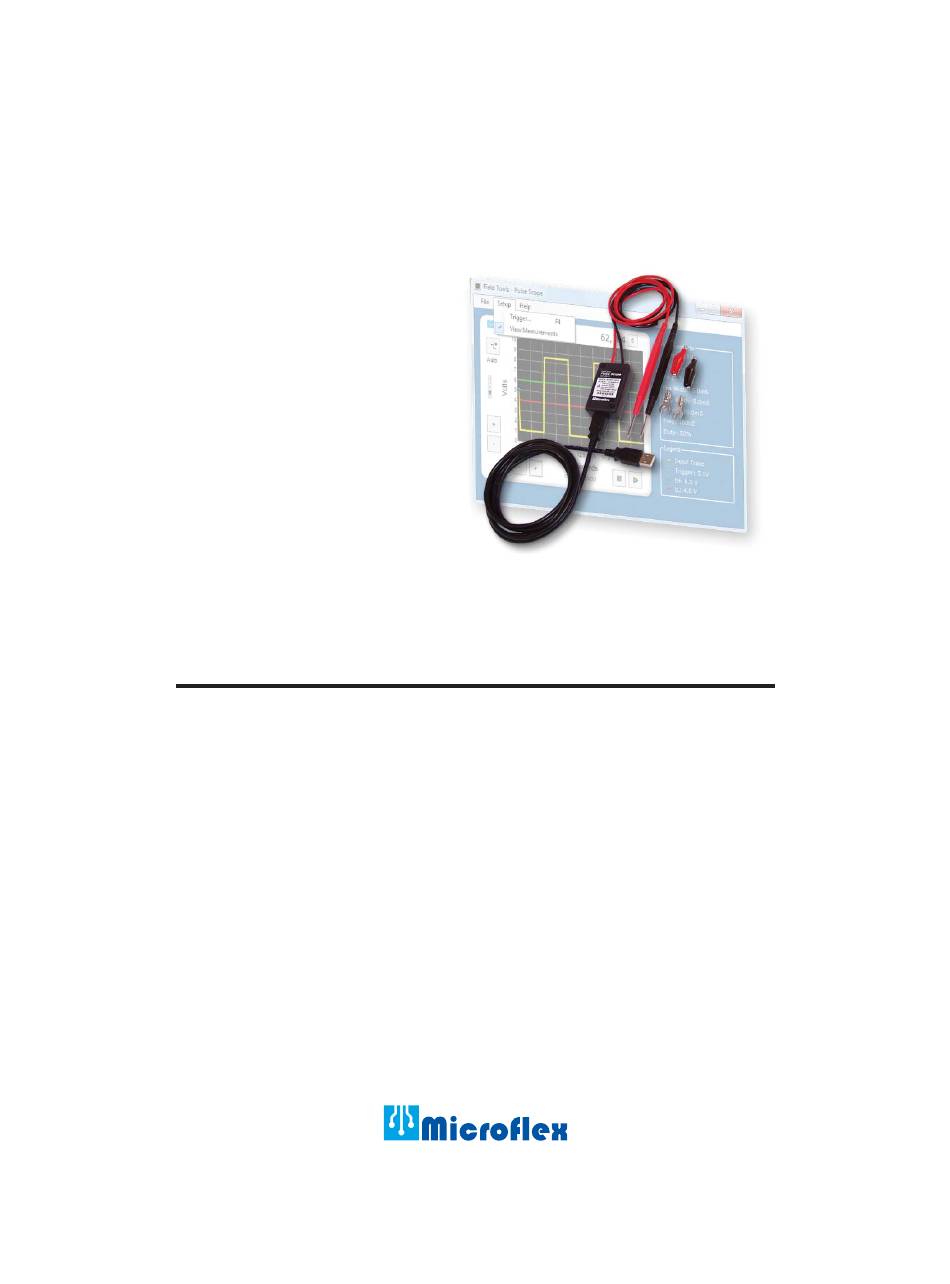

Microflex Pulse Scope Installation, Operation And Specification Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Field Tools
Pulse Scope
Installation
Operation &
Specifications
Manual
General Description
Pulse Scope is a USB oscilloscope designed to aid fi eld service technicians and
engineers with troubleshooting pulse or frequency related equipment. Use Pulse
Scope to test PLC digital inputs and outputs, fl ow meters with pulsed outputs,
speed sensors, and more. Pulse Scope's simplicity and portability allows you
to quickly visualize and measure waveform features. Actually seeing the
waveform can help locate possible voltage level or pulse width issues making
your system more reliable.
•
Can be set to wait and capture a single pulse event with long delays
between events (Single Sweep)
•
Quickly measure max voltage, minimum voltage, peak-peak voltage, positive
width, negative width, period, frequency, and duty cycle
•
Count pulse events over extended time periods with a maximum count of
over 4 billion pulses
•
Trigger on rising or falling pulse edge to increase measurement accuracy
620-0006 R1 © Microfl ex 2009
TM
101-0012

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pulse Scope and is the answer not in the manual?

Questions and answers

Summary of Contents for Microflex Pulse Scope

  • Page 1 Manual General Description Pulse Scope is a USB oscilloscope designed to aid fi eld service technicians and engineers with troubleshooting pulse or frequency related equipment. Use Pulse Scope to test PLC digital inputs and outputs, fl ow meters with pulsed outputs, speed sensors, and more.

  • Page 2: Safety Considerations

    When you connect the Pulse Scope to your comput- ers USB port, your computer will automatically detect it and confi gure the necessary software. Power for Pulse Scope is taken from the USB port and no external power source is necessary.

  • Page 3: Program Features

    The actual value is set using the Setup > Trigger menu or by pressing F4. See the Trigger Settings section in this manual for details. The pulse scope internal trigger voltage level. Input voltages must cross this voltage before the measured pulse edge can be synchronized. Also, the pulse count (item 6) will increment as the pulse edge crosses the trigger voltage.

  • Page 4: Trigger Settings

    Normal Acquire In normal acquire mode Pulse Scope will not start acquiring data until a trigger edge is detected. Normal is best when there is a long delay between pulse edges because the Pulse Scope will wait for the pulse event before acquiring the frame.

  • Page 5: Trigger Edge

    The Pulse Scope Internal Trigger level is automatically selected to be between the High and Low voltage levels. Pulse scope only has a few values it can use for the internal trigger and determined from the High and Low settings.

  • Page 6: Getting Started

    The sample interval depends on the time scale. If the sample interval is too slow, it is possible for the Pulse Scope to provide a waveform that is not representative of the true waveform. Reducing the time scale will decrease the time between samples (sample interval).

  • Page 7: Pulse Counter

    Pulse Count Rate ........... 0 to 100K pulses per second Enclosure Molded ABS Plastic Weight (including USB cable) ............5 ounces Pulse Scope Dimensions ..........1.38” x 2.36” x 0.8” Environmental Operating Temperature ....... -30ºC to 50ºC (-22ºF to 122ºF) Storage Temperature ........-40ºC to 70ºC (-40ºF to 158ºF)

  • Page 8: Limited Warranty

    NO WARRANTIES OR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. CUSTOMER’S RIGHT TO RECOVER DAMAGES CAUSED BY FAULT OR NEGLIGENCE ON THE PART OF MICROFLEX, LLC SHALL BE LIMITED TO THE AMOUNT THERETOFORE PAID BY THE CUSTOMER. MICROFLEX, LLC WILL NOT BE LIABLE FOR DAMAGES RESULTING FROM...
