Dual XHUD1000 Owner's Manual

Head up display (hud)
Hide thumbs Also See for XHUD1000:

Advertisement

Quick Links

Download this manual

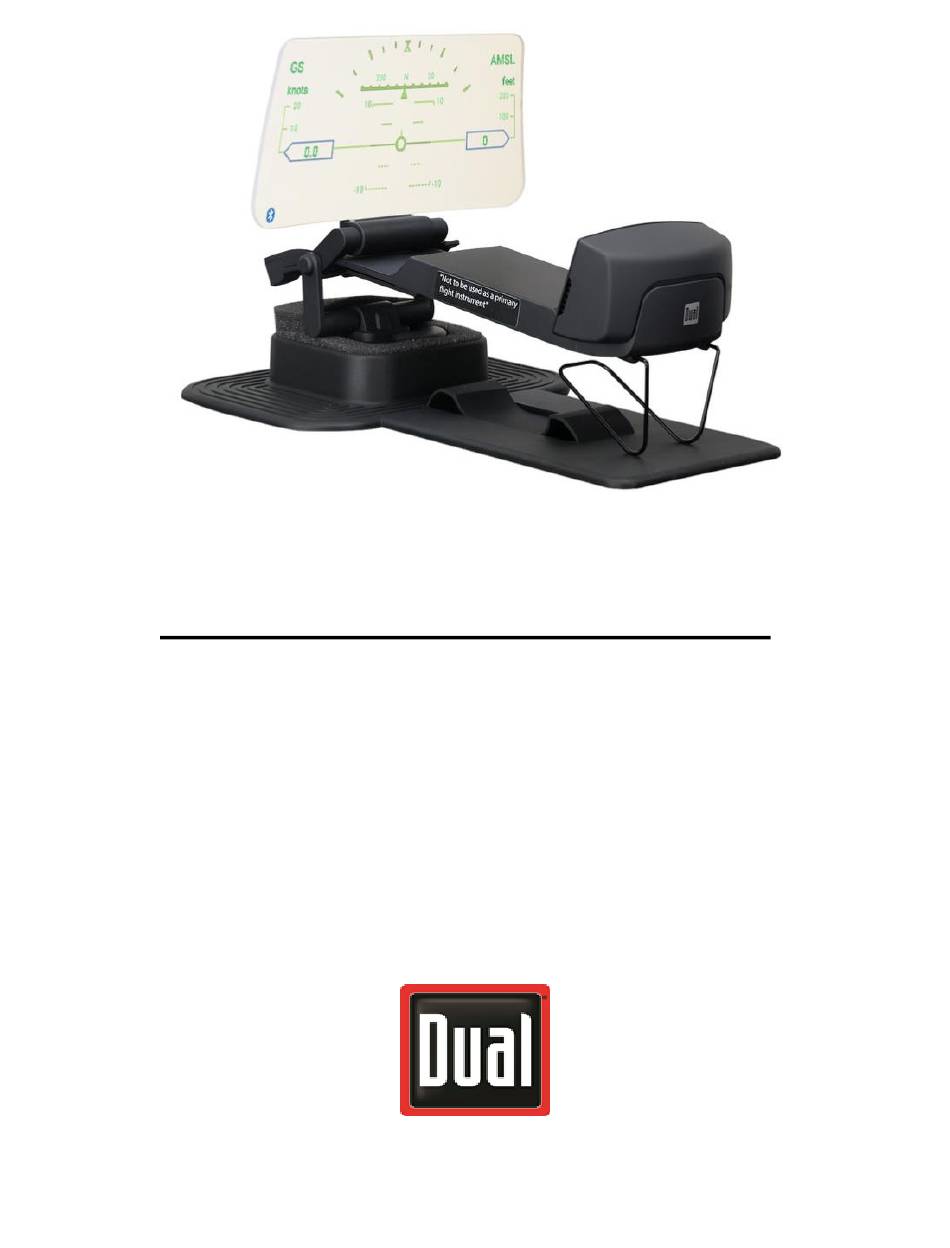

XHUD1000
OWNER'S MANUAL
Head Up Display (HUD)
XHUD1000 IS NOT TO BE USED AS A PRIMARY FLIGHT INSTRUMENT
1

Advertisement

loading

Related Manuals for Dual XHUD1000

Summary of Contents for Dual XHUD1000

  • Page 1 XHUD1000 OWNER’S MANUAL Head Up Display (HUD) XHUD1000 IS NOT TO BE USED AS A PRIMARY FLIGHT INSTRUMENT...
  • Page 2 Introduction The Dual XHUD1000 is a high performance Head Up Display for General Aviation and Light Sport Aircraft. The device allows pilots to continuously monitor critical flight data while keeping their head up and eyes forward. Dual developed the XHUD1000 in collaboration with pilots to ensure it provides the right mix of features for enhanced situational awareness.
  • Page 3 As an alternative, pilots can operate the XHUD1000 in “Tablet Graphics” mode to display external graphics from their tablet or smartphone running EFB apps. This allows the XHUD1000 to display AHRS, synthetic vision, or moving maps for navigation, which are features available on most EFB apps.
  • Page 4 Since cockpit configurations and dimensions can vary considerably among different airplane types, pilots should use their best judgement on how to mount the XHUD1000 in their airplane. The included mounting accessories can be used as needed.

  • Page 5: Installation

    Installation The XHUD1000 has flexible mounting options to accommodate installation in most small aircraft.
  • Page 6 Setup All XHUD1000 / mobile device settings should be made while the aircraft is on the ground, and should be left unchanged during flight.
  • Page 7 2) Bluetooth Connection for XHUD Graphics Modes (AHRS & Traffic) • Prior to this step, it’s important to make sure the XGPS190 (or one of the other Dual ADS-B receivers) and your Apple device are powered on, and the XHUD1000 is still left powered off.
  • Page 9 • Tap the XHUD toggle, and choose the XHUD(****) to connect the XHUD to your Apple device.
  • Page 11 • Tap the Dual ADS-B Receiver box and choose the XGPS190. This builds the Bluetooth connection between the XHUD1000 and the XGPS190 in order for the XHUD to receive data from the XGPS190. Once connection is successfully made, Bluetooth logo on the left...
  • Page 12 Note: Once connection is made between XHUD1000, XGPS190, and iOS device, there are several choices of EFB apps that can run on your IOS device, including Foreflight. See Dual’s web site for a complete list of apps compatible with XGPS190.
  • Page 13 Setup with Dual ADS-B Receivers & Android Mobile Devices 1) XGPS ADS-B Status Tool App for HUD Control • Download the XGPS ADS-B Status Tool app from Play Store. • The HUD Control tab from the XGPS ADS-B Status Tool app enables...
  • Page 14 • Prior to this step, it’s important to make sure the XGPS190 (or one of the other Dual ADS-B receivers) and your Android device are powered on, and the XHUD1000 is still left powered off. • Go to Settings  Connections from your Android device, and turn on Bluetooth.
  • Page 15 • Once the XGPS190 and your Android device are paired, power on the XHUD1000 by plugging in the supplied USB cable. • Open the XGPS ADS-B Status Tool app, and go to the HUD Control tab.
  • Page 16 • Tap the XHUD toggle button and choose the XHUD1000 to pair the XHUD1000 with your Android device.
  • Page 18 • Tap the Dual ADS-B Receiver box and choose the XGPS190. This connects the XHUD1000 to the XGPS190 via Bluetooth in order for the XHUD1000 to receive data from the XGPS190. Once connection is successfully made, Bluetooth logo on the left side corner of the...
  • Page 19 XHUD1000, the XGPS190, and your Android device. Note: Once connection is made between XHUD1000, XGPS190, and Android device, there are several choices of EFB apps that can run on your Android device. See Dual’s web site for a complete list of apps compatible with XGPS190.
  • Page 20 Setup with Stratus 3 & iOS Mobile Devices 1) Connect Stratus 3 to mobile device per Stratus 3 instruction manual, and download the Stratus Horizon Pro app from App Store. 2) In the Stratus Horizon Pro app, go to Stratus Setting, and enable ‘Open ADS-B Mode’...
  • Page 21 • In the Dual ADS-B Status Tool App, HUD Control Tab, Tap the XHUD toggle, and choose the XHUD(****) to connect the XHUD to your Apple device.
  • Page 23 • Tap the Wifi Panel/Portable Receiver box and choose the Stratus. This builds the WiFi connection between the XHUD1000 and the Stratus in order for the XHUD to receive data from the Stratus. Once connection is successfully made, wifi logo on the left side corner of...
  • Page 24 • To confirm connection between the XHUD1000 and Stratus 3, try switching between AHRS and Traffic modes, or try different controls from the HUD Control tab. The XHUD1000 display should respond to the controls of your choice accordingly. • You have now successfully made connection between the XHUD1000, the Stratus 3, and your iOS device.
  • Page 25 • Download the XGPS ADS-B Status Tool app from Play Store. • Open the XGPS ADS-B Status Tool app, and go to the HUD Control tab. • Tap the XHUD toggle button and choose the XHUD1000(****) to pair the XHUD1000 with your Android device.
  • Page 27 • Tap the Wifi Panel/Portable Device box and choose the Stratus. This builds the WiFi connection between the XHUD1000 and the Stratus in order for the XHUD to receive data from the Stratus. Once connection is successfully made, wifi logo on the left side corner of...
  • Page 28 • To confirm connection between the XHUD1000 and the Stratus, try switching between AHRS and Traffic modes, or try different controls from the HUD Control tab. The XHUD1000 display should respond to the controls of your choice accordingly.
  • Page 29 • You have now successfully made connection between the XHUD1000, the Stratus, and your Android device. Note: Once connection is made between XHUD1000, Stratus 3, and Android device, there are several choices of EFB apps that can run on your Android device.
  • Page 30 1) Connect Stratux to mobile device per Stratux instruction manual. Note) Stratux does not require additional app to connect. • In the Dual ADS-B Status Tool App, HUD Control Tab, Tap the XHUD toggle, and choose the XHUD(****) to connect the XHUD to your...
  • Page 32 • Tap the Wifi Panel/Portable Receiver box and choose the Stratux. This builds the WiFi connection between the XHUD1000 and the Stratux in order for the XHUD to receive data from the Stratux. Once connection is successfully made, wifi logo on the left side corner of...
  • Page 33 • To confirm connection between the XHUD1000 and Stratux, try switching between AHRS and Traffic modes, or try different controls from the HUD Control tab. The XHUD1000 display should respond to the controls of your choice accordingly. • You have now successfully made connection between the XHUD1000, the Stratux, and your iOS device.
  • Page 34 • Download the XGPS ADS-B Status Tool app from Play Store. • Open the XGPS ADS-B Status Tool app, and go to the HUD Control tab. • Tap the XHUD toggle button and choose the XHUD1000(****) to pair the XHUD1000 with your Android device.
  • Page 36 • Tap the Wifi Panel/Portable Device box and choose the Stratux. This builds the WiFi connection between the XHUD1000 and the Stratux in order for the XHUD to receive data from the Stratux. Once connection is successfully made, wifi logo on the left side corner of...
  • Page 37 • To confirm connection between the XHUD1000 and the Stratux, try switching between AHRS and Traffic modes, or try different controls from the HUD Control tab. The XHUD1000 display should respond to the controls of your choice accordingly. • You have now successfully made connection between the XHUD1000, the Stratux, and your Android device.
  • Page 38 • The XGPS190 is not required for Wi-Fi Hotspot mode. You could choose to use other portable GPS devices that transmit data on Bluetooth for Wi-Fi Hotspot mode. • Tap the XHUD toggle button, and choose the XHUD1000 to connect the XHUD1000 to your Apple device.
  • Page 39 • Once the XHUD1000 is connected to your Apple device, press Wi-Fi Hotspot under Tablet Graphics.
  • Page 40 • Follow the steps (1-10) from the pop-up screen to successfully enable Wi-Fi Hotspot mode. -------------------------------------------------------------------------------------------------------------------------------------------------------------...
  • Page 41 Ɨ XHUD1000 as Wi-Fi Hotspot ① Go to Settings of your Apple device. ② Connect to XHUD1000 under Wi-Fi.
  • Page 42 ③ Use the password below to connect. Password: 87654321...
  • Page 43 ④ Go to Control Center under Settings. ⑤ Press Customize Controls.
  • Page 44 ⑥ Press Screen Recording to add this feature to your Control Center.
  • Page 45 ⑦ Press the home button to exit. ⑧ On iPad, swipe from upper right corner to lower left corner of screen, and find the Screen Recording button from your Control Center. If using iPhone, swipe from bottom to top of screen to do the same.
  • Page 46 Tablet Graphics. ⑩ Select Tablet Graphics and Press Start Broadcast. -------------------------------------------------------------------------------------------------  Once you have completed these steps, you should be able to confirm that the screen from your Apple device is being mirrored to the XHUD1000.
  • Page 47 Wi-Fi Client Mode • Wi-Fi Client mode allows the XHUD1000 to connect to the Wi-Fi network hosted by your device (e.g. portable GPS receivers or panel avionics that transmit data on Wi-Fi). • Wi-Fi Client mode is not available for use with the XGPS170, XGPS170D, or XGPS190.
  • Page 49 • The pop-up screen will then appear. Read through all of the steps listed in the pop-up screen before you press OK in order to successfully enable Wi-Fi Client mode. -------------------------------------------------------------------------------------------------...
  • Page 50 ① If your device requires a password, enter it, then press Join to allow XHUD1000 to join the Wi-Fi network. If your device is a Stratus 3 or Stratux, no password is required, and you can simply press Join. ② After connecting to the Wi-Fi network, go to Control Center under...
  • Page 52 ③ Press Customize Controls.
  • Page 53 ④ Press Screen Recording to add this feature to your Control Center.
  • Page 54 ⑤ Press the home button to exit. ⑥ On iPad, swipe from upper right corner to lower left corner of screen, and find the Screen Recording button from your Control Center. If using iPhone, swipe from bottom to top of screen to do the same.
  • Page 55 Tablet Graphics. ⑧ Select Tablet Graphics and Press Start Broadcast. -------------------------------------------------------------------------------------------------  Once you have completed these steps, you should be able to confirm that the screen from your Apple device is being mirrored to the XHUD1000.
  • Page 56 • The XGPS190 is not required for Wi-Fi Hotspot mode. You could choose to use other portable GPS devices that transmit data on Bluetooth for Wi-Fi Hotspot mode. • Tap the XHUD toggle button and choose the XHUD1000 to pair the XHUD1000 with your Android device.
  • Page 58 • Once the XHUD1000 is paired with your Android device, press Wi-Fi Hotspot from the HUD Control tab.
  • Page 59 Wi-Fi Hotspot mode.  Once you have completed these steps, you should be able to confirm that the screen from your Android device is being mirrored to the XHUD1000. b) Wi-Fi Client Mode – this feature is not available for Android devices...
  • Page 60 • Traffic Zoom The Traffic Zoom control adjusts range of the radar-style traffic display from the XHUD1000. Note: It is required to use one of the Dual’s ADS-B receivers for the Traffic Zoom control. • Screen On/Off The Screen On/Off control turns on and off the XHUD1000 screen, respectively.

  • Page 61: Firmware Update

    Firmware Update XHUD1000 Firmware Update for iOS Mobile Devices Step 1 : Connect the HUD with iOS device running ADS-B Status Tool. Connection with a portable GPS receiver is not required for firmware update. On ADS-B Status tool, press ‘HUD Control’ tab in lower right.
  • Page 62 Tap the XHUD toggle, and choose the XHUD(****) to connect the XHUD to your Apple device.
  • Page 63 Step 2 : Check the current version by pressing ‘Check Update’...
  • Page 64 Step 3 : When ‘Check Update’ is pressed, the HUD screen changes to Mirroring status. Then, press ‘Download’, if there is new version available.
  • Page 65 Step 4 : Downloading may take a few minutes. When Downloading, HUD panel stays a Mirroring status...
  • Page 66 Step 5 : When Download finishes, press ‘ok’ and go to Settings on iOS device. Then, select XHUD1000(****) from the WiFi list under (CHOOSE A NETWORK). * Password ‘87654321’ to join.
  • Page 67 Let the XHUD reboot with the new firmware. This may take a few minutes. Do not unplug the cable. Firmware Update is Complete.
  • Page 68 XHUD1000 Firmware Update for Android Mobile Devices Step 1 : Connect the HUD with Android device running ADS-B Status Tool. Connection with a portable GPS receiver is not required for firmware update. On ADS-B Status tool, press ‘HUD Control’ tab in lower right.
  • Page 69 Tap the XHUD toggle, and choose the XHUD(****) to connect the XHUD to your Android device.
  • Page 70 Step 2 : Check the current version by pressing ‘Check Update’...
  • Page 71 Step 3 : Then, press ‘Download’, if there is new version available. Downloading may take a few minutes.
  • Page 72 Step 4 : When download finishes, press ‘UPDATE’, and, wait until HUD Reboots and shows updates. It may take a few minutes.
  • Page 73 Firmware Update is Complete.

  • Page 74: Tips For Best Performance

    Tips for Best Performance  The XHUD1000 and its system perform at their best when there are no other Wi-Fi or Bluetooth devices nearby. If you attempt to use the XHUD1000 where there could be signal interference (e.g. house, office, etc.), you may experience connection delay or latency.

  • Page 75: Troubleshooting

    Bluetooth on form your mobile device in order to use the XHUD1000. • The XHUD1000 will automatically connect to any mobile devices that have previously been connected. Therefore, it is important to perform “Forget This Device” for iOS or “Unpair” for Android from any devices that have been used before in order to make connection with a new mobile device.
  • Page 76 OS: Above iOS 11 Wi-Fi: Supports Dual Band • Device o iPhone 5 & Up o iPad 5 Generation & Up o iPad Mini 2 & Up • Input Power o Input: DC 5V (1.5A) • Operating Temperature o 20 ~ 60 °C...

  • Page 77: Warranty

    Warranty This warranty gives you specific legal rights. You may also have other rights, which vary from state to state. Dual Electronics Corp. warrants this product to the original purchaser to be free from defects in material and workmanship for a period of one year from the date of the original purchase.
  • Page 78 • Call us toll-free at 1-855-936-0129 • E-mail us at xhud1000@dualav.com Exclusion of Certain Damages: This warranty is exclusive and in lieu of any and all other warranties, expressed or implied, including without...
  • Page 79 Unghee Na Dual Electronics Corp. Toll Free: 1-855-936-0129 www.dualav.com ©2019 Dual Electronics Corp. All rights reserved.
