Altizen Pro Manual

SAFETY INSTRUCTIONS

When using an electrical furnishing, basic precautions should always be
followed, including the following:
Read all instructions before using (this furnishing).
DANGER
To reduce the risk of electric shock:
1. To reduce the risk of electric shock, always unplug this product
from the electrical outlet before cleaning.
WARNING
to persons:
2. Unplug from outlet before putting on or taking off parts.
3. Close supervision is necessary when this furnishing is used near
children, invalids or disabled persons.
4. Use this furnishing only for its intended use as described in these
instructions. Do not use attachments not recommended by the
manufacturer.
5. Never operate this furnishing if it has a damaged cord or plug, if it is
not working properly, if it has been dropped or damaged, or
dropped into water. Return to a service center for examination
and repair.
6. Keep the cord away from heated surfaces.
7. Never operate the furnishing with the air openings blocked. Keep
the air openings free of lint, hair, and the like.
8. Never drop or insert any objects into any opening.
9. Do not use outdoors.
10. Do not operate where aerosol (spray) products are being used or
where oxygen is being administered.
11. To disconnect, turn all controls to the off position, then remove
plug from outlet.
WARNING
12. WARNING: Risk of injury — Keep children away from the furnishing.
13. For loading, always put heavier items towards the center and not
near the edges to help prevent the possibility of the furnishing
tipping over.
14a. WARNING: Risk of death or serious injury may occur when
children climb on audio and/or video equipment furniture.
A remote control or toys placed on the furnishing may encourage
a child to climb on the furnishing and as a result the furnishing may
top over onto the child.
14b. WARNING: Risk of death or serious injury may occur. Relocating
and/or audio video equipment to furniture not
to support audio and/or video equipment may result in death or
serious injury due to the furnishing collapsing or over turning onto
a child.
SAVE THESE INSTRUCTIONS
SERVICING OF DOUBLE-INSULATED PRODUCTS
In a double-insulated product, two systems of insulation are provided
instead of grounding. No grounding means is provided on a double-
insulated product, nor is a means for grounding to be added to the
product. Servicing a double-insulated product requires extreme care
and knowledge of the system, and is to be done only by
personnel. Replacement parts for a double-insulated product must be
identical to the parts they replace. A double-insulated product
is marked with the words: "DOUBLE INSULATION" or "DOUBLE
INSULATED." The symbol (square within a square) is also able to be
marked on the product".
WARNING
15. Warning: Risk of injury — When moving the furnishing from up
to down or vice versa, do not place any parts of the body under the
furnishing and keep underside of furnishing clear of any items that
may obstruct the path.
WARNING
16. Warning: Never attempt to lift the furnishing alone.
17. This furnishing operates at 24 V DC. The furnishing has a recommended
maximum load capacity of 15kg and is meant to operate under
environmental conditions ranging from 5-90% humidity
(non-condensing) and through an ambient temperature of 10 to 35
degrees Celsius.
18. Exceeding these limits can potentially damage the furnishing and
void the warranty and/or result in injury to yourself or others.

GETTING STARTED

What's Included
Your purchase includes:
• 1 Altizen Workstation
• 1 AC/DC Adaptor & Plug
• And if you have purchased a:
◦ Single Monitor Version: 1 VESA Mount; or
◦ Dual Monitor Version: 1 Dual Bar with 2 VESA Mounts; or
◦ Laptop Version: 1 Laptop Platform

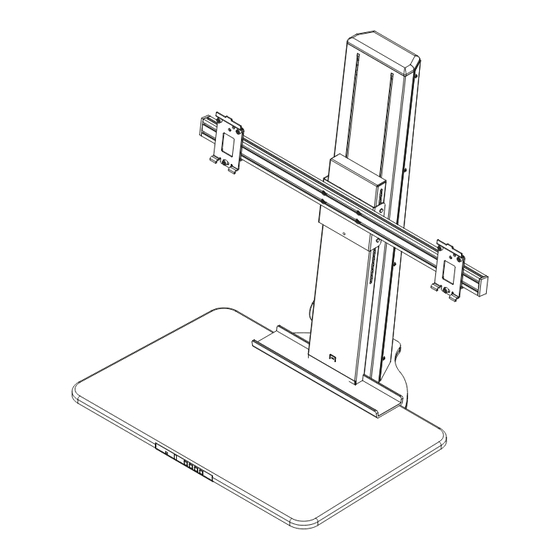

How to Assemble Your Workstation
Refer to drawing at the back
1. Open the box and take out the: (1) Base (2) Worksurface
(3) Pillar (4) Accessories Box. Position the base on the
place the pillar on top and attach the pillar onto the base with
the 3 S6 screws provided.
2. Place the now connected pillar and base on its back. Slide the
worksurface underneath the sliding pillar base and attach
using 4 S5 screws.
3. Connect the cable connector under the worksurface to the cable
receptacle on the pillar and ensure you hear a "click" sound.
4. Cover the cable connector by
bite plate using the 2 S4 screws provided.
5. Attach the laptop platform onto the sliding mount
of the pillar using 4 S2 screws.
Use 3 S3
bracket onto the sliding mount.
Use 4 S1
the sliding mount, use 3 S3 screws to attach the VESA bracket onto
each of the plates on the dual bar.
6. Place the silicon cover over the screws.
Attach the VESA mount onto the back of
your monitor.
Attach both VESA mounts onto the back of
both your monitors.
7. Plug the power adaptor into the DC jack at the back
of the pillar and plug it into your power socket. Turn it on.
Slot your monitor into the VESA
bracket and tighten the 2 screws underneath.
Slot your monitor into the VESA bracket
and tighten the 2 screws underneath.
8. Plug the power adaptor into the DC jack at
the back of the pillar and plug it into your power socket. Turn it on.
If there's a need to adjust the distance between
the VESA mounts, loosen the thumbscrews at the top of the VESA
bracket and slide your monitors to the desired position, before
tightening the screws.
9. Plug the power adaptor into the DC jack at the
back of the pillar and plug it into your power socket. Turn it on.
Setting up Altizen app on your Mobile Device
iPhone & Android Phone Requirements
iOS (version 8 and above) and Android (version 4.4 and above)
Altizen app links your Altizen workstation to select mobile devices that
support Bluetooth LE technology. It is available to download for free
from www.altizen.com or the respective iTunes and Google Play store.
To get started:
1. Download Altizen app from the iTunes Store or Google Play by
searching for "Altizen".
2. Turn on the Bluetooth in the Settings of your phone.
3. Follow the instructions in the app to set up your account.
4. Note that the Altizen Bluetooth reference should follow the format
"AL xxxxx".
Using Your Workstation
1.
designed
You can move your workstation either through the control panel
using the "Up", "Down" or "Pre-Set Height" buttons or through the
remote control function on Altizen app.
Light Pre-set
Height
2. Using the pre-set height
To set the pre-set height for your workstation, simply press the up
and down button together on the control panel.
service
3.
Your workstation can detect your presence and this allows it to know
when you're at your workstation and when you're not. Be careful not to
block the presence sensor opening on the control panel.
4. Sit-stand reminders
Based on your standing goals, your workstation will invite you to shift
positions between sitting and standing. You will only receive reminders
if you've activated the Indicator Light function and you are present at
the workstation. The reminder is indicated by a soft glowing of the
Altizen Logo light. To dismiss the reminder, simply press any buttons on
the control panel and the light will turn off. If you don't respond to the
reminder, the workstation will invite you to move again later.
5. Data tracking
Your workstation tracks and displays your activity over time.
Simply sync your phone with your workstation to see your progress.
Visualizing your activity helps you set appropriate goals and
motivates you towards healthier work habits over time.
Updating Altizen
Altizen may release free updates for your Altizen Workstation.
You can update your Altizen Workstation through the Altizen app.
Help
Troubleshooting and assistance for your Altizen Workstation can be
found at www.altizen.com/help-centre/
Return Policy & Warranty
Warranty information and return policy can be found at www.altizen.com
ALTIZEN GENERAL INFO
& SPECIFICATIONS
Sensors & Motors
Your Altizen Workstation uses integrated sensors that measure your
presence and status in front of the workstation. Altizen also contains a
motor that allows you to move the workstation up and down with one
press of a button.
Size & Weight
Version
Single Monitor
Dual Monitor
Laptop
the small metal plate to the
Adjustable Height
screws to attach the VESA
Materials
screws to attach the dual bar into
Processor
Connectivity
Recommended
Maximum Load
Capacity
Electronics
Down Up
26"
(66cm)
Thank you for purchasing Altizen.
If you have any questions, please contact us directly:
Height Depth Width
75cm 62cm 70cm
75cm 62cm 80cm
75cm 62cm 70cm
500mm, electrically actuated
Structure is made of powder-coated steel
and worksurface is made of medium density
Microchip Microcontroller
Bluetooth Low Energy
15kg
Line Voltage: Class II, 24VDC / 3A
Operating Temperature: 10 degrees Celsius
to 35 degrees Celsius
Relative Humidity: 5% to 90%, non-condensing
Max 39"
(99cm)
Max 19.7"
(50cm)
17.7"
(45cm)
24.4"
(62cm)
29.5"
(75cm)
24.4"
(62cm)
28"
(70cm)
21"
(53cm)
Weight
28kg
29kg
29kg
