Siberian Cyber iCTABLE Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Stage - Frame
iCTABLE
Frame Assembly
Profile Chart
Page 1
Siberian Cyber, Inc.
Frame Box Part 1
iCTABLE Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the iCTABLE and is the answer not in the manual?

Questions and answers

Summary of Contents for Siberian Cyber iCTABLE

  • Page 1 Stage - Frame iCTABLE Frame Assembly Profile Chart Page 1 Siberian Cyber, Inc. Frame Box Part 1 iCTABLE Manual...

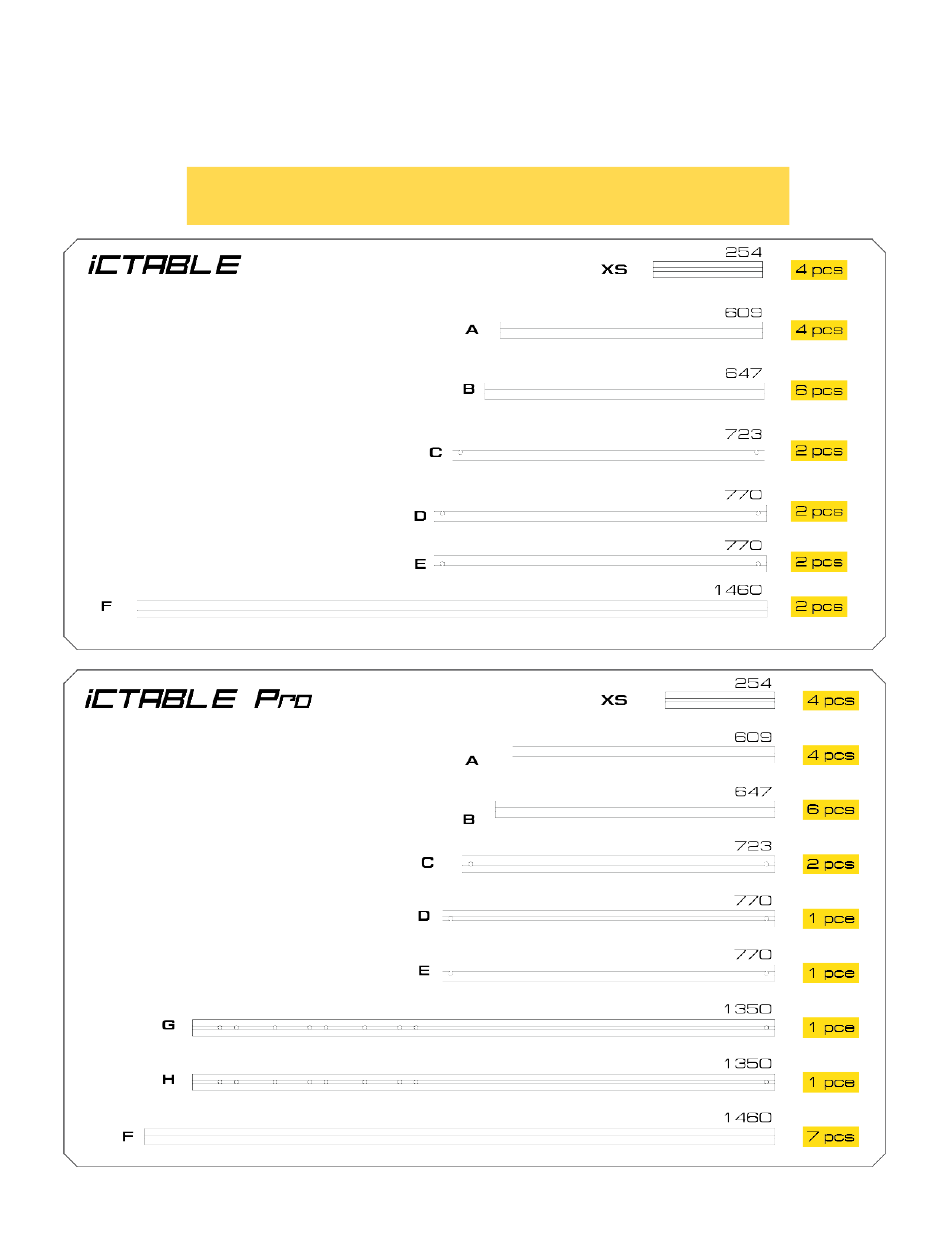

  • Page 2 ACC -Holder E -Profile LEFT O -Bottom Box Panel B -Profile (647) Corner Connector Support Leg A -Profile (609) Corner Leg Inner Leg (Left) XS Profile C Profile (723) Page 2 Siberian Cyber, Inc. Frame Box Part 1 iCTABLE Manual...
  • Page 3 Stage - Frame Overview iCTABLE Legs Position LEFT H -Profile (1350) - PRO Inner Leg (Right) Corner Leg Support Leg Support Leg Support Leg Support Leg Corner Leg Page 3 Siberian Cyber, Inc. Frame Box Part 1 iCTABLE Manual...
  • Page 4 B -Profile (647) D -Profile RIGHT (770) C Profile (723) O -Bottom Box Panel Corner Connector B -Profile (647) Corner Leg XS Profile Inner Leg (Right) Support Leg A -Profile (609) Page 4 Siberian Cyber, Inc. Frame Box Part 1 iCTABLE Manual...
  • Page 5 Stage - Frame Overview iCTABLE Legs Position RIGHT Corner Leg Inner Leg (Right) Support Leg Support Leg Support Leg Corner Leg Support Leg Corner Leg Page 5 Siberian Cyber, Inc. Frame Box Part 1 iCTABLE Manual...
  • Page 6 H -Profile (1350) - PRO A -Profile (609) NO Thread C Profile (723) B -Profile (647) C Profile (723) A -Profile (609) C Profile (723) Thread Same Steps for the Right Box Page 6 Siberian Cyber, Inc. Frame Box Part 1 iCTABLE Manual...

  • Page 7: Frame Assembly

    The Outside Legs, Inside Legs, and the Support Legs create 16 fulcrums that ensure the stability of iCTABLE Important: iCTABLE should be placed on a flat and hard surface to exclude any potential instability and unbalance in its construction. Page 7 Siberian Cyber, Inc.
  • Page 8 For Right Box Components 4 pcs 2 pcs 2 pcs 2 pcs M6 16 Head Bolt Washer Spring Nut 2 pcs L-Corner Connector 1 pce 2 pcs M8 20 Support Leg 4 pcs Page 8 Siberian Cyber, Inc. TKONS iCTABLE Manual...
  • Page 9 Stage - Frame iCTABLE Frame Assembly How It Works Spring Nut Press Adjust Insert Page 9 Siberian Cyber, Inc. Frame Box Part 1 iCTABLE Manual...
  • Page 10 Important: When screwing in M6 screws into the Spring Nut, try not to apply pressure but simply rotating it in. Otherwise, it is possible that the Spring Nut will pop off. Page 10 Siberian Cyber, Inc. Frame Box Part 1 iCTABLE Manual...
  • Page 11 Stage - Frame iCTABLE Frame Assembly Details Corner-To-Corner M8 35 Page 11 Siberian Cyber, Inc. Frame Box Part 1 iCTABLE Manual...
  • Page 12 Stage - Frame iCTABLE Frame Assembly Pictures of components SPRING NUT M6 16 Head Bolt Washer Page 12 Siberian Cyber, Inc. Frame Box Part 1 iCTABLE Manual...
  • Page 13 Frame Assembly Support Leg Assembly Components of SET M6 10 Socket Head Support Leg Spring Nut Cap Screw 2 pcs 2 pcs For iCTABLE/iCTABLE Pro - 10 Sets! Page 13 Siberian Cyber, Inc. Frame Box Part 1 iCTABLE Manual...
  • Page 14 Stage - Frame Left Box Assembly Steps Bottom Level Assembly Bottom Box Panel Time to preparing wire clips Page 14 Siberian Cyber, Inc. Frame Box Part 1 iCTABLE Manual...
  • Page 15 Stage - Frame Left Box Assembly Steps Bottom Level Assembly Page 15 Siberian Cyber, Inc. Frame Box Part 1 iCTABLE Manual...
  • Page 16 Left Box Assembly Steps Box-Bottom Level SUPPOPRT LEG - 2 SETS Top View M6 10 Socket Head Cap Screw+Spring Nuts 6 pcs 6 pcs Page 16 Siberian Cyber, Inc. Frame Box Part 1 iCTABLE Manual...
  • Page 17 In addition, you may use WD-40 or comparable lubricant to ease the installation process.clips Page 17 Siberian Cyber, Inc. Frame Box Part 1 iCTABLE Manual...
  • Page 18 Please remain careful when using any cleaning agent and comply with the safety regulations advised product producer. Page 18 Siberian Cyber, Inc. Frame Box Part 1 iCTABLE Manual...
  • Page 19 Left Box Assembly Steps Vertical Panel M3 Threads M2 Threads Vertical Box Panel M4 Threads Page 19 Siberian Cyber, Inc. Frame Box Part 1 iCTABLE Manual...
  • Page 20 3.30 THRU ALL 160.25 M4 - 6H THRU ALL 3.30 THRU ALL 168.75 -183 M4 - 6H THRU ALL 3.30 THRU ALL 168.75 -107 M4 - 6H THRU ALL Page 20 Siberian Cyber, Inc. Frame Box Part 1 iCTABLE Manual...
  • Page 21 Left Box Assembly Steps Important Things G -Profile (1350) - PRO! Corner Leg M8 20 Socket Head Cap Screw Corner Bracket M8 20 Socket Head Cap Screw Page 21 Siberian Cyber, Inc. Frame Box Part 1 iCTABLE Manual...
  • Page 22 Left Box Assembly Steps Important Things G -Profile (1350) - PRO! Push Spinal Cord Drag Inside Chain Mounting Zone Outside Inside Spinal Cord latches should open up from inside to outside. Page 22 Siberian Cyber, Inc. Frame Box Part 1 iCTABLE Manual...
  • Page 23 Left Box Assembly Steps Almost Done Corner Bracket M8 35 Page 23 Siberian Cyber, Inc. Frame Box Part 1 iCTABLE Manual...
  • Page 24 Left Box Assembly Steps Time To Preparing Decorative Elements Decorative Profiles Identification Chart Bottom Vertical Page 24 Siberian Cyber, Inc. Frame Box Part 1 iCTABLE Manual...
  • Page 25 Left Box Assembly Steps Time To Preparing Decorative Elements Bottom Cover M6 10 Phillips Pan Head Ma- chine Screws Flexible LED Flexible LED Super Glue Light Strip Light Strip Not Including Page 25 Siberian Cyber, Inc. Frame Box Part 1 iCTABLE Manual...

  • Page 26: About Led

    Left Box Assembly Steps Important Things ABOUT LED CONNECTORS DC 12 V Page 26 Siberian Cyber, Inc. Frame Box Part 1 iCTABLE Manual...
  • Page 27 Left Box Assembly Steps Important Things ABOUT LED Mounting The LEDs provided with iCTABLE are intended to allow the user to express their creative freedom. The instructions included are meant to serve as a guideline for the installation process and as inspiration. Sample...
  • Page 28 Left Box Assembly Steps Important Things We recommend not to twist the ends of the LED strips to keep them stiff, to avoids broken connections between the strips. Page 28 Siberian Cyber, Inc. Frame Box Part 1 iCTABLE Manual...
  • Page 29 Left Box Assembly Steps Outside Panels Page 29 Siberian Cyber, Inc. Frame Box Part 1 iCTABLE Manual...
  • Page 30 Side Bottom Cover – J Page 30 Siberian Cyber, Inc. TKONS iCTABLE Manual...
  • Page 31 LED 0.6 m (600 mm) Side Bottom Cover (647) – J LED 0.7 m (700 mm) Vertical Cover – VC Front Top Cover – M LED 1.4 m (1400 mm) Front Bottom Cover – K Page 31 Siberian Cyber, Inc. TKONS iCTABLE Manual...
  • Page 32 Spring Nut M6x10 Phillips Pan Head Screw LED Light Direction M6x10 Socket Cap Head Screw Support Leg Page 32 Siberian Cyber, Inc. Frame Box Part 1 iCTABLE Manual...
  • Page 33 SUFP Universal Front Panel Switch/ Socket SDMD SD Card reader 2HDMI 2 HDMI/DP 3HDMI 3 HDMI /DP Combinations Left Side SUFP Right Side Front 2HDMI 2HDMI 3HDMI 2HDMI 2HDMI Page 33 Siberian Cyber, Inc. Frame Box Part 1 iCTABLE Manual...
  • Page 34 Main Step Before Final Stage Bottom Level Page 34 Siberian Cyber, Inc. Frame iCTABLE Manual...
  • Page 35 Main Step Before Final Stage Cover Panel and Insert Panel with LED Page 35 Siberian Cyber, Inc. Frame iCTABLE Manual...
  • Page 36 Main Step Before Final Stage Side Panel Preparing Stage Page 36 Siberian Cyber, Inc. Frame iCTABLE Manual...
  • Page 37 Fan Holder and Fans Assembly M4x30 Socket Head Cap Screw M6x10Socket Head Cap Screw Y-split PWM Cable Not Included Page 37 Siberian Cyber, Inc. Frame iCTABLE Manual...
  • Page 38 Main Step Before Final Stage Side Panel Page 38 Siberian Cyber, Inc. Frame iCTABLE Manual...
  • Page 39 Pay extra attention to AC/DC power Connect the Pow cords!!!. (PSU) Holder w Correctly tied cables should not board Holder (M obstruct the slide-in, slide-out box movement Bottom Box Panel Page 39 Siberian Cyber, Inc. Frame iCTABLE Manual...

  • Page 40: Universal Box

    UNIVERSAL BOX UNIVERSAL BOX ASSEMBLY STEP BY STEP GUIDE Front Side Back Side Spinal Cord Mounting Zone Page 40 Siberian Cyber, Inc. TKONS iCTABLE Manual...
  • Page 41 UNIVERSAL BOX ASSEMBLY STEP BY STEP GUIDE M4x4 Phillips Pan Head Screw Page 41 Siberian Cyber, Inc. Frame iCTABLE Manual...
  • Page 42 UNIVERSAL BOX ASSEMBLY STEP BY STEP GUIDE ACC Holder We recommend to mount the Sliders onto the Universal Holder along with the M4x10 Socket Head Accessories Holders Cap Screw prior to installing. Page 42 Siberian Cyber, Inc. Frame iCTABLE Manual...
  • Page 43 UNIVERSAL BOX ASSEMBLY STEP BY STEP GUIDE Page 43 Siberian Cyber, Inc. TKONS iCTABLE Manual...
  • Page 44 TKONS ASSEMBLY STEP BY STEP GUIDE Motherboard Holder (MB Holder) Connect the Pow- er Supply (PSU) Hold- er with Motherboard Holder (MB Holder) Power Supply (PSU) Holder M3 8 Socket Head Cap Screw Page 44 Siberian Cyber, Inc. TKONS iCTABLE Manual...
  • Page 45 Prepare the motherboard for installation onto the MB Holder. CPU and CPU heat sink Installation recommended at this stage Prepare the power supply for installation Page 45 Siberian Cyber, Inc. TKONS iCTABLE Manual...
  • Page 46 TKONS ASSEMBLY STEP BY STEP GUIDE Page 46 Siberian Cyber, Inc. TKONS iCTABLE Manual...
  • Page 47 Install the video card(GPU) holder. (Using your personal M3 screws from your GPU) Install the video card within the video card holder, adjusting for precision Install the TKONS side holders, with SSD pockets installed Page 47 Siberian Cyber, Inc. TKONS iCTABLE Manual...
  • Page 48 Run wires from the PSU to CPU, GPU, SSD and other compo- nents as needed Using the cable ties, carefully and securely tie the wires running through the center cable mounts and TKONS side holder bars. Page 48 Siberian Cyber, Inc. TKONS iCTABLE Manual...
  • Page 49 PSU Complete the TKONS by securing the TKONS Window Panel with M3-8 screws and flange nuts. Test the panel switch Connect to the monitor, mouse and keyboard and test the sys- tem. Page 49 Siberian Cyber, Inc. TKONS iCTABLE Manual...
  • Page 50 DOORS DOORS ASSEMBLY STEP BY STEP GUIDE M3 8 Socket Head Cap Screw Page 50 Siberian Cyber, Inc. Frame iCTABLE Manual...
  • Page 51 DOORS ASSEMBLY STEP BY STEP GUIDE DOORS Back Door Panel Left Right Mount M3x5 Low Head Screw (Laptop Screw) Page 51 Siberian Cyber, Inc. Frame iCTABLE Manual...
  • Page 52 DOORS ASSEMBLY STEP BY STEP GUIDE DOORS M3x6 Flat Head Screw Page 52 Siberian Cyber, Inc. Frame iCTABLE Manual...
  • Page 53 DOORS ASSEMBLY STEP BY STEP GUIDE DOORS Hexagon Hole For Phone Holder Cable Management Page 53 Siberian Cyber, Inc. Frame iCTABLE Manual...

  • Page 54: Inside View

    DOORS ASSEMBLY STEP BY STEP GUIDE DOORS INSIDE VIEW PANEL MOUNT USB 2.0/3.0 FEMALE- MALE EXTENSION CABLE Page 54 Siberian Cyber, Inc. Frame iCTABLE Manual...
  • Page 55 DOORS ASSEMBLY STEP BY STEP GUIDE DOORS M3x6 Flat Head Screw M3x8 Socket Head Cap Screw M3x6 Flat Head Screw Page 55 Siberian Cyber, Inc. Frame iCTABLE Manual...
  • Page 56 CABLES CABLE MANAGEMENT GUIDE Page 56 Siberian Cyber, Inc. Cables&Wires iCTABLE Manual...
  • Page 57 CABLE MANAGEMENT GUIDE LED CONNECTIONS LED Strip LED Power Supply Controller Page 57 Siberian Cyber, Inc. Cables&Wires iCTABLE Manual...
  • Page 58 PRO Profiles G -Profile (1350) - PRO H-Profile (1350) - PRO RIGHT SIDE - PRO LEFT SIDE - PRO Page 58 Siberian Cyber, Inc. Frame Box Part 1 iCTABLE Manual...
  • Page 59 PRO Frame Boxes H -Profile (1350) - PRO Page 59 Siberian Cyber, Inc. Frame Box Part 1 iCTABLE Manual...
  • Page 60 Frame Boxes Fasteners Direction H -Profile (1350) - PRO M8x35-55 Socket Head Cap Screw Page 60 Siberian Cyber, Inc. Frame Box Part 1 iCTABLE Manual...
  • Page 61 Page 61 Siberian Cyber, Inc. Frame Box Part 1 iCTABLE Manual...
