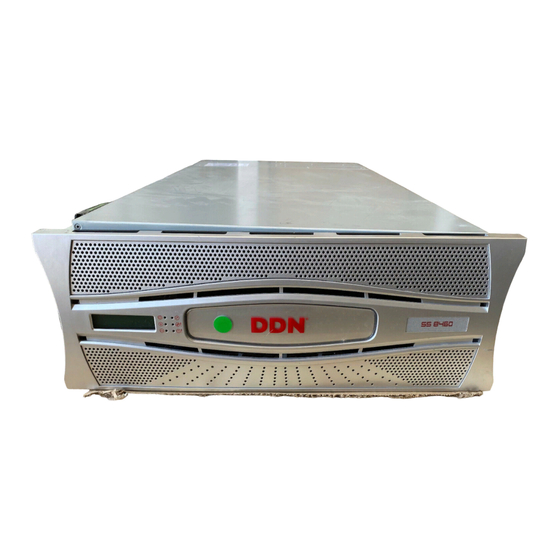

DDN StorageScaler8460
IBM Field Replacement Instructions.

Replacement Overview

Here is an overview of all the steps for installing a SS8460 system.
2. Preparation
3. Power down of the system.
4. Disconnect the SS8460 from the Storage Controllers or Expansion Enclosures.
5. Removal of Suspect SS8460 Chassis from Current Configuration.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the StorageScaler8460 and is the answer not in the manual?

Questions and answers

Summary of Contents for DDN Storage StorageScaler8460

  • Page 1 DDN StorageScaler8460 IBM Field Replacement Instructions. Replacement Overview Here is an overview of all the steps for installing a SS8460 system. 1. Safety 2. Preparation 3. Power down of the system. 4. Disconnect the SS8460 from the Storage Controllers or Expansion Enclosures.

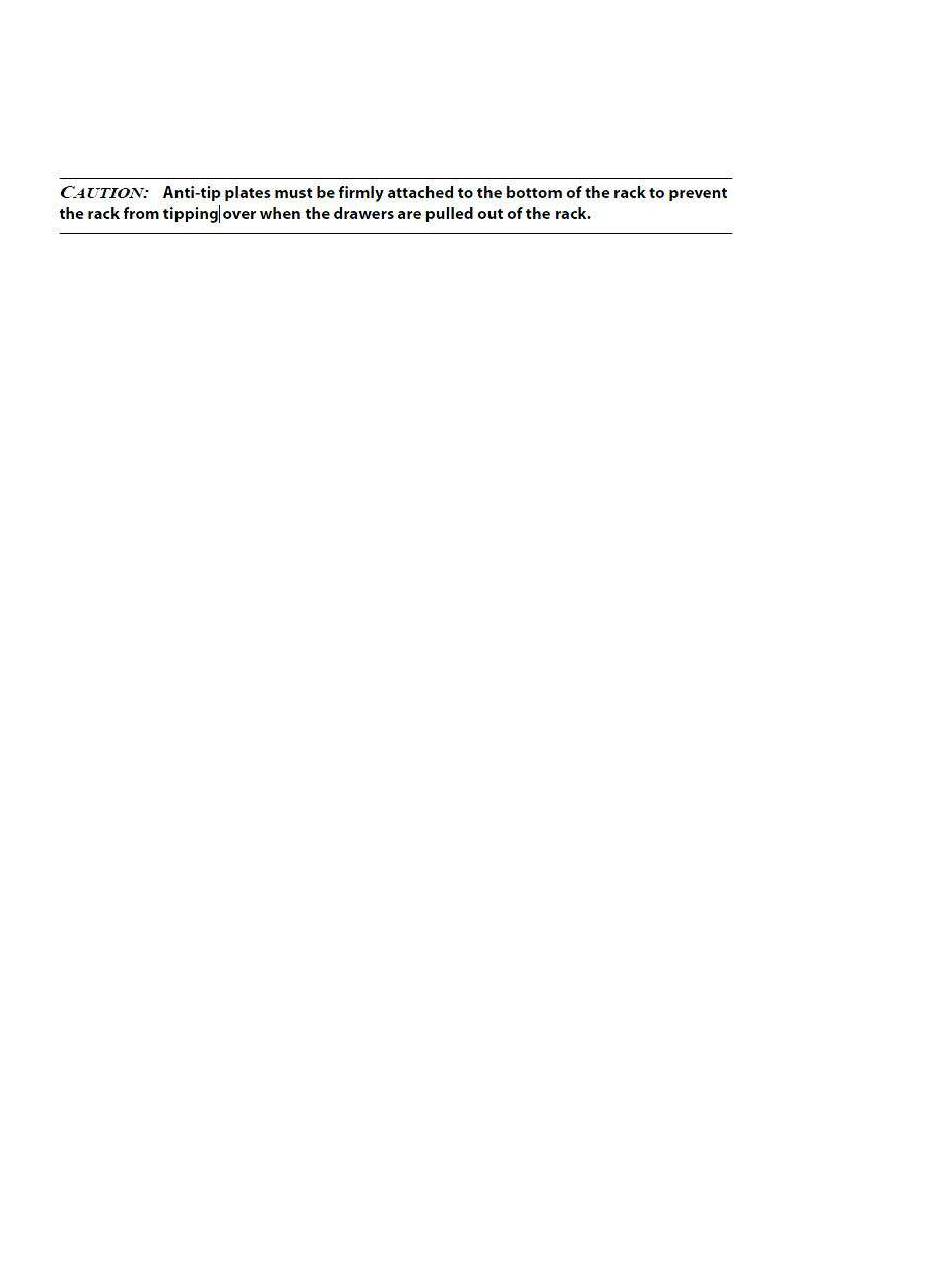

  • Page 6 StorageScaler 8460 Replacement Instructions Removal Preparation 1. Anti tip plate should have been installed at the time of rack instillation. If it is not present, it must be installed prior to sliding any equipment forward out of the rack. See figure 1 anti tip plate image. Ensure leveling pads are fully engaged to the floor to prevent rack from moving during service activity.
