Sauter Components TFL 611 Series Quick Start Manual

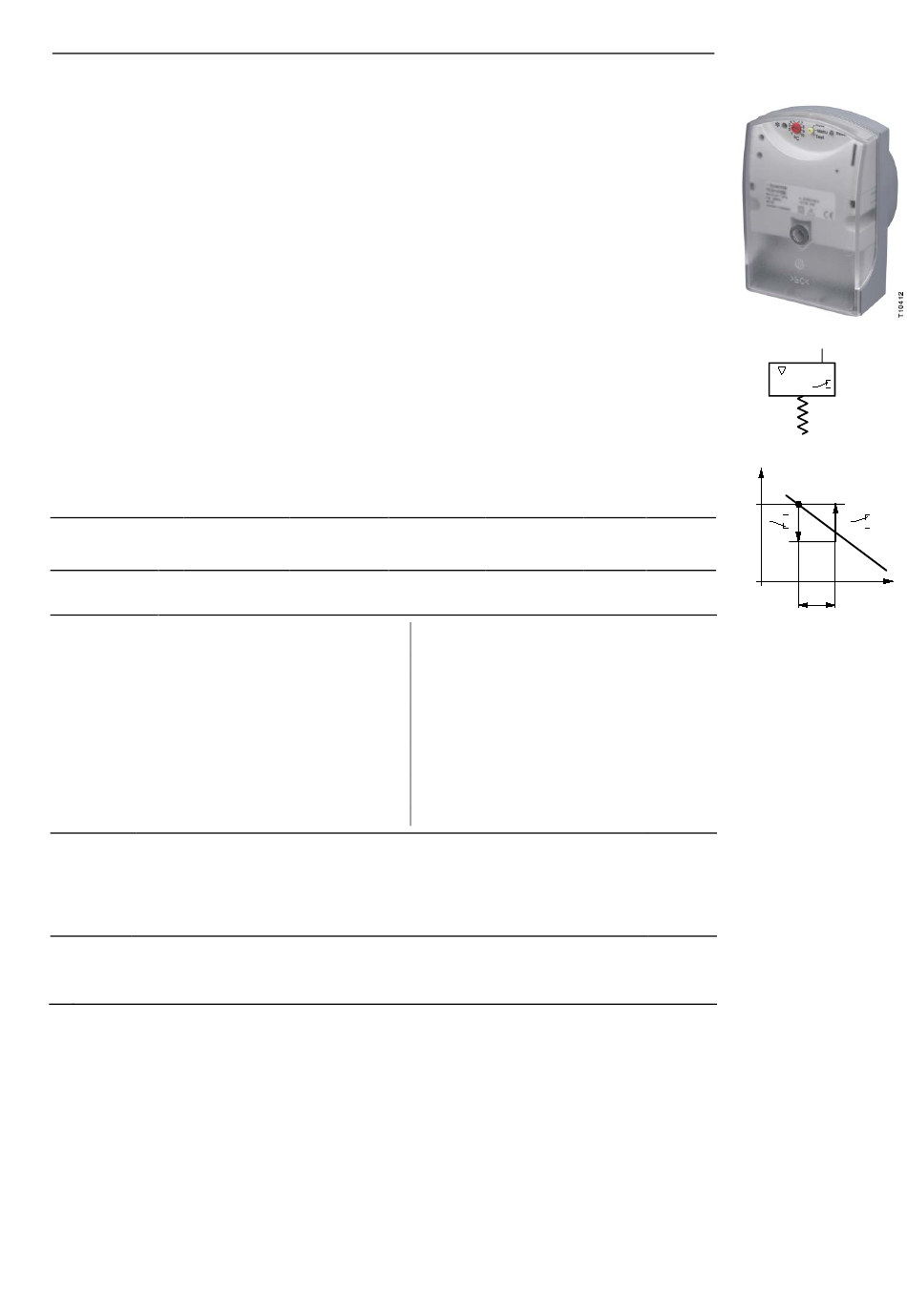

TFL 611: Continuous frost monitor with capillary sensor
How energy efficiency is improved
Demand-led, large-scale monitoring of installation parts with fully active sensor.
Areas of application
Temperature monitoring in air/water heat exchangers and air ducting with constant frost-protection
control, frost-protection switch and temperature transmission. For applications on the air side of instal-
lations.
Features
•
Measuring range: 0 to 15 °C
•
Frost point can be adjusted
•
Contact rating: 5 mA, 5 V to 6 A, 250 V
•
Start-up function
•
LED display indicating risk of frost
•
Selectable block on switching on again
•
< 40 s time constant with moving air
•
2 or 6 m copper capillary tube
Technical description
•
Two-part plastic housing
•
Ambient temperature: –15 to +60 °C
•
Controlled housing heating to safeguard measured variable
•
IP 42
•
Active from 25 cm capillary length in switching temperature
Type Capillary tube
TFL 611 F200 1) 2 m
TFL 611 F600 1) 6 m
Power supply
Power consumption
Measuring range of sensor
Control signal output
Max. length of cable at 1,5 mm
Control signal input
Contact rating
2)
maximum
minimum
Time constant
in still air
in moving air
Accessories
0292146 001* Set for duct fitting consisting of: 5 capillary-tube holders, 1 depth adjustable flange
0303167 000* 5 capillary-tube holders
0374534 001* Depth adjustable flange
*)
Dimension drawing or wiring diagram are available under the same number
1)
The accessory 0292146 001 for duct fitting must be ordered separately.
2)
If under inductive load, take RC circuit into account.
3)
The monitor always reacts to the coldest place (minimum length is 250 mm).
4)
The head of the instrument is frost protected for ambient temperatures up to max. -15 °C by a heating system.
Operation
Using a vapour-filled capillary tube and diaphragm system, the frost monitor measures the lowest
temperature that occurs anywhere along at least 250 mm of the capillary tube.
If the monitor is correctly positioned at the air outlet of the heating coil, it measures the lowest temper-
ature even if there are strata of differing air temperatures. In so doing, the steam pressure causes a
movement of the diaphragm capsule in the capillary tube. By means of an inductive measuring sys-
tem, this movement is converted into an electric signal and is amplified electronically; it then creates a
0...10 V d.c. measuring signal.
Setting Switching
range X
S
°C
1...10
1...10
24 V~, ± 20%
6 VA
0...15 °C / 0...10 V=
0...10 V=, max. ± 1 mA
2
300 m
0...10 V=, max. ± 0,1 mA
6(4) A, 250 V~
5 mA, 5 V~/=
90 s
40 s
Permissible
diff. X sensor temp.
Sd
K °C
2 –15...110
2 –15...110
3)
Active capillary length
Factory setting
Temp. at head of instrument
Degree of protection
Protection class
Wiring diagram
Dimension drawing
Fitting instructions
Sauter Components
Y
10V
Weight
kg
0.34
0V
0.41
min. 250 mm
5 °C
4) –15...60 °C
IP 42 (EN 60529)
II (IEC 60730)
A10390
M10422
MV 505954
22.040/1
T
Y10162
3 3
1 1
2 2
X
s
T
X
Sd
B10592
7122040003 06
