Motion Healthcare eFlexx User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

P R O D U C T C O D E :
U s e r M a n u a l
E F 0 0 1

Advertisement

Table of Contents
loading

Summary of Contents for Motion Healthcare eFlexx

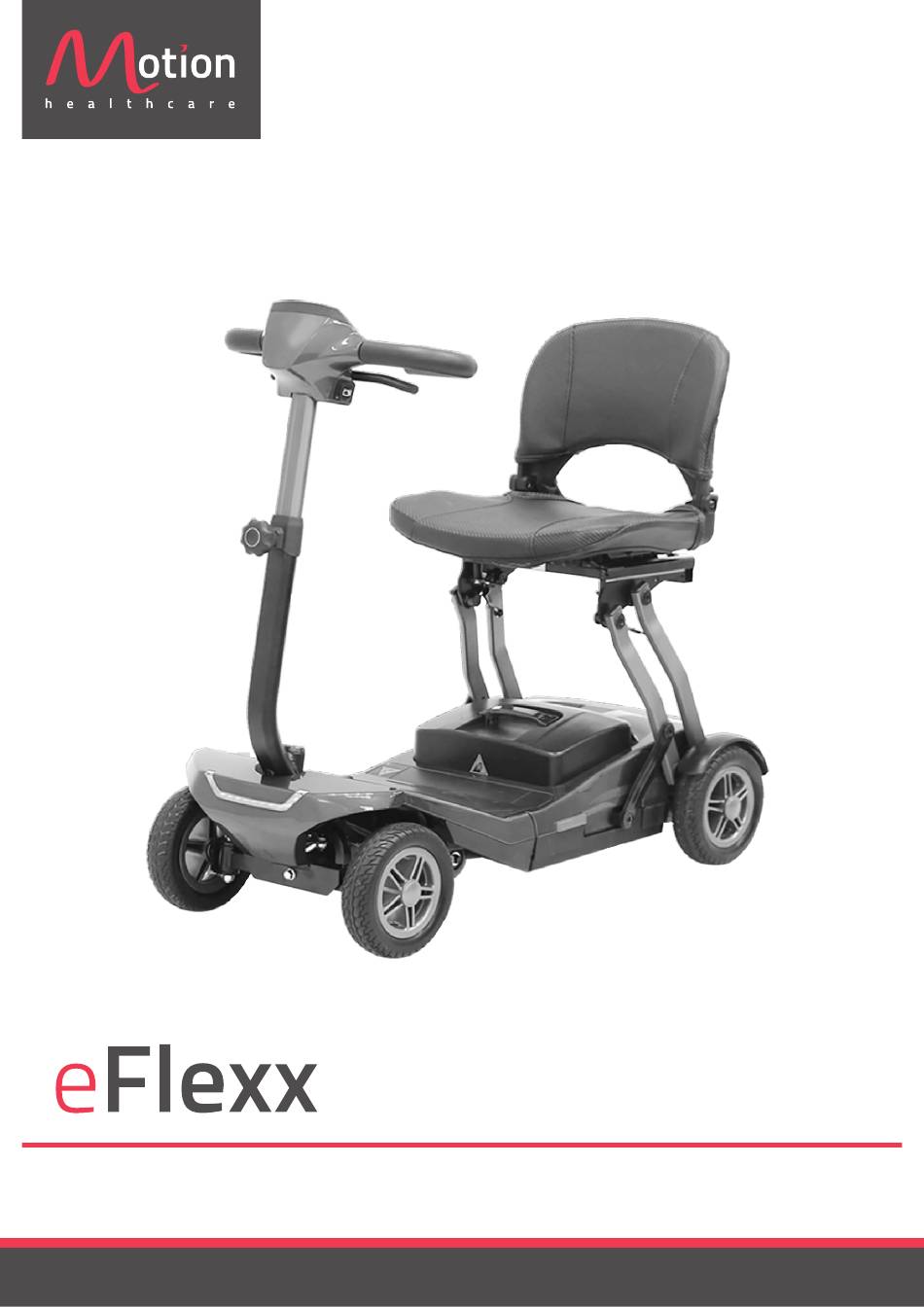

  • Page 1 P R O D U C T C O D E : U s e r M a n u a l E F 0 0 1...

  • Page 2: Table Of Contents

    CONTENTS 1. INTRODUCTION 2. IMPORTANT PRECAUTIONS 2.1 BEFORE DRIVING SCOOTER 2.2 CAUTIONS WHEN DRIVING 2.3 CAUTIONS WHEN FOLDING/UNFOLDING SCOOTER 2.4 CAUTIONS WHEN DRIVING ON INCLINE7 2.5 CAUTIONS WHEN CLIMBING 2.6 ELECTROMAGNETIC INTERFERENCE AND WARNINGS 2.7 SAFETY WARNING AND INSTRUCTION LABELS 3.

  • Page 3: Introduction

    1. INTRODUCTION Thank you and congratulations on purchasing your new Motion Healthcare eFlexx mobility scooter. It is designed to provide the transportation ability indoors and outdoors for person whose ability to walk is impaired, but who are still in terms of their eyesight and physically and mentally able to operate an electric scooter.

  • Page 4: Important Precautions

    2. IMPORTANT PRECAUTIONS 2.1 BEFORE DRIVING SCOOTER • Before take the first trip with mobility scooter, you should familiarize yourself well with the operation of mobility scooter and with the operation elements. Please take your time to read this introduction booklet. •...
  • Page 5 2. IMPORTANT PRECAUTIONS • Mobility device may only be used on the traffic routes for which it is approved in accordance with the relevant national legislation. • Always be aware of pedestrians and situations which might require extra care when using your scooter on public walk ways and footpaths.

  • Page 6: Cautions When Driving

    2. IMPORTANT PRECAUTIONS • Practice operating your scooter in the presence of an attendant. Remember that only with practice will you become a competent driver. • Practice these basic functions until you feel that you have control of your scooter. Accessories Contents for Your Scooter : •...

  • Page 7: Cautions When Folding/Unfolding Scooter

    2. IMPORTANT PRECAUTIONS • Reduce speed when descending to prevent any danger. Increase speed when ascending (see section 4-1) • Do not turn off the power while driving. • Do not operate on staircases or escalators. • Do not attempt to climb curbs greater than limitation show on Technical Specification.

  • Page 8: Cautions When Driving On Incline7

    2. IMPORTANT PRECAUTIONS • When the folding or unfolding is processing, do not sit or interrupt the process or it may cause damage or danger to the scooter and yourself. • Please double check and make sure the procedure of folding/unfolding is completed before you get on the scooter.

  • Page 9: Cautions When Climbing

    2. IMPORTANT PRECAUTIONS • The weight capacity limit at different ramp degree (please refer to above picture). • Your scooter’s ability to travel up inclines is affected by your weight, your scooter’s speed, your angle of approach to the incline, and your scooter setup. •...

  • Page 10: Electromagnetic Interference And Warnings

    2. IMPORTANT PRECAUTIONS • It is very important that you read this information regarding the possible effects of Electromagnetic Interference on your mobility scooter. 2.6 ELECTROMAGNETIC INTERFERENCE AND WARNINGS Mobility scooters may be susceptible to electromagnetic interference (EMI), which is interfering electromagnetic energy (EM) emitted from sources such a radio stations, TV stations, amateur radio (HAM) transmitters, two-way radios, and mobile phones.
  • Page 11 2. IMPORTANT PRECAUTIONS • Other types of hand-held devices, such as cordless phones, laptop computers, AM/FM radios, TV sets, CD players, and cassette players, and small appliances, such as electric shavers and hair dryers, so far as we know, are not likely to cause EMI problems to your mobility scooter. MOBILITY SCOOTER ELECTROMAGNETIC INTERFERENCE: Because EM energy rapidly becomes more intense as one move closer to the transmitting antenna (source), the EM fields from hand-held radio wave sources (transceivers) are of special...

  • Page 12: Safety Warning And Instruction Labels

    2. IMPORTANT PRECAUTIONS 2.7 SAFETY WARNING AND INSTRUCTION LABELS Warning Sticker 1. Please read the instruction booklet carefully before using your scooter. 2. Do not drive the scooter on slippery surfaces or on slopes over 6~10 degrees limit. 3. Do not drive on highway, crowded roads, or unfamiliar areas. 1.Please read the instruction Booklet carefully before using your scoot er 4.

  • Page 13: Identification Of Parts

    3. IDENTIFICATION OF PARTS Figure 4 Item Item Steering Seat Tiller Height Adjustment Seat Backrest Head Light Seat Knob Front Wheels Battery Box Footplate Cover Battery Box Handle Seat Springs Charging Port (battery box) Supporting Wheels Circuit Breaker Folding / unfolding light indicator / Rear Wheels buttons Charging Port (upper)

  • Page 14: Introduction & Operation Of Scooter

    4. INTRODUCTION & OPERATION OF SCOOTER 4.1 IDENTIFICATION & OPERATION OF CONTROL PANEL Figure 5 - eFlexx Control Panel Item Function Speed Deceleration Press to decrease speed Power Switch Press to turn on / off the power Speed Acceleration Press to increase speed...
  • Page 15 4. INTRODUCTION & OPERATION OF SCOOTER POWER SWITCH: • Press the button to turn on/off the power • Power standby (locked) - Red light • Power on (unlocked) - Green light • Power off - Light off Figure 6 Auto-power off : Power will automatically be off in 30 seconds if no activity is detected during power standby (locked, red light) period to prevent tap error.
  • Page 16 4. INTRODUCTION & OPERATION OF SCOOTER RF SENSOR UNLOCK YOUR SCOOTER: • Press the power switch, the power (red light) will be on and standby for you to unlock. • To unlock, place the RF sensor tag to the panel (spot near power switch for best reading result) ( Figure 8) •...

  • Page 17: Operation Of Main Switch

    4. INTRODUCTION & OPERATION OF SCOOTER SPEED ADJUSTMENT: • Press acceleration [ ] / deceleration [ ] button to increase / decrease speed. • There are 3 different speeds of adjustment fastest 3 > 2 > 1 slowest. (Figure 11) Figure 11 •...

  • Page 18: Operation Of Throttle

    4. INTRODUCTION & OPERATION OF SCOOTER MAIN SWITCH (KEY VERSION): • Turn the key clockwise to turn on, counterclockwise to turn off (Figure 15) SLEEP MODE: • Scooter will go into sleep mode with Figure 15 one long beep warning sound if no throttle activity is detected for programmable time period.

  • Page 19: Operation Of Free-Wheeling

    4. INTRODUCTION & OPERATION OF SCOOTER 4.4 OPERATION OF FREE-WHEELING (N-D LEVER) FREE-WHEELING (N-D LEVER): • When lever is in Drive (D) position, the scooter can be driven. Normal position is in D (Figure 17) • When lever is Neutral (N) position, the scooter can be moved manually without Figure 17 Figure 18...
  • Page 20 4. INTRODUCTION & OPERATION OF SCOOTER Seat Dismantle (Figure 21.22) 1. Loosen the screws (L) by hex wrench (Fig.21) 2. Remove the springs (K) connected on the seat slide bracket. 3. Pull down and hold the seat springs (I) and push the seat by thumbs towards the back of scooter to release the seat from latch (J).

  • Page 21: Folding / Unfolding Your Scooter

    5. FOLDING / UNFOLDING YOUR SCOOTER Folding / unfolding your scooter only when the scooter is under below circumstances: • When the scooter is placed on a flat ground and in lay down position. • When the scooter is power off and on standby for folding / unfolding, the folding / unfolding light indicator (M) on scooter will be orange.
  • Page 22 5. FOLDING / UNFOLDING YOUR SCOOTER How to wake up the scooter: • Scooter will go into sleep if no throttle activity is detected for programmable time period. (Default programmable time is 3 mins.) • Please wake up the scooter before folding / unfolding. There are 3 ways to get the scooter back on standby for folding/unfolding: 1.
  • Page 23 5. FOLDING / UNFOLDING YOUR SCOOTER How to unfold the scooter (Figure 26): 1. Place the scooter to a flat ground and lay down the scooter 2. Make sure the scooter is power off, however is awake for unfolding (the light indicator M will be orange).

  • Page 24: Battery Gauge & Charging The Batteries

    6. BATTERY GAUGE & CHARGING THE BATTERIES 6.1 DISASSEMBLING BATTERY BOX • Each battery box contains one lithium battery or (2) lead-acid batteries (optional). • To remove the battery box from scooter, grab the battery box handle, and pull it upwards as Figure.27 shown.
  • Page 25 6. BATTERY GAUGE & CHARGING THE BATTERIES • Recommended range of storage : Temperature : 20-30oc, Humidity : 25% ~ 85%, out of this range might affect the performance of the charger and battery. • Rough handling operations, throwing, rolling, crushing, shaking, overly strong impact and extrusion to batteries should be avoided, to prevent battery casing broken or internal structure damage.

  • Page 26: Battery Gauge

    6. BATTERY GAUGE & CHARGING THE BATTERIES • Do not cover charger by any objects. Use the charger in a well-ventilated area. Do not smoke as explosive gases may be generated while charging the batteries • Keep the charger stored in a well-ventilated area, do not drop the charger. •...

  • Page 27: Operating The Charger

    6. BATTERY GAUGE & CHARGING THE BATTERIES 6.4 OPERATING THE CHARGER: Batteries must be charged before using the scooter for the first time and should be recharged after each day use. Your scooter may come with standard lithium 24V/2A charger, or optional bigger 24V/4A charger if you upgrade the lithium battery to 17.4Ah .
  • Page 28 6. BATTERY GAUGE & CHARGING THE BATTERIES • The battery charger is equipped with cooling fan. If the fan does not appear to be working correctly, please turn off the charger immediately as it may be overheated. Please contact your authorized scooter dealer. •...
  • Page 29 6. BATTERY GAUGE & CHARGING THE BATTERIES Figure 32 • Battery Box Charge Port (Figure 32) 1. Remove the battery box from the scooter and place it on a flat ground. 2. Open the charge port cap and connect the charger output cable into the charge port 3.

  • Page 30: Care And Maintenance

    7. CARE AND MAINTENANCE 7.1 INSPECTION CHECKS Daily Check : Please always check your scooter before you start your every journey. What to do if the Check point Inspection inspection is failed N-D leaver Check for correct function. Contact your dealer. Horn Check for correct function.

  • Page 31: Cleaning And Maintenance

    7. CARE AND MAINTENANCE What to do if the Check point Inspection inspection is failed Check for correct function, Motor Contact your dealer. no noisy sound. Check if the charger is Battery Charger functioning correctly and the Contact your dealer. batteries are charged.
  • Page 32 7. CARE AND MAINTENANCE Seat Upholster: Only use damp cloth and a mild soap to wipe the seat. Do not use abrasive cleaners as this will damage the seat. Do not sit until the seat dries out. Frame / Shroud: Only use damp cloth to wipe.

  • Page 33: Trouble Shooting

    8. TROUBLE SHOOTING Touch Screen version: Key Switch Version: Figure 33 Figure 34 Normal : Solid light Normal : Solid light Abnormal : flashing light Abnormal : flashing light Self-Diagnostic Warning Light Flash Description Initial check points The batteries are running low. Battery Low •...
  • Page 34 8. TROUBLE SHOOTING Folding / Unfolding Errors: Here are some suggestions about solving problems you may have when folding / unfolding your scooter. The scooter will stop the folding / unfolding actions if errors are detected. Please refer to below table and correct the problems. Figure 35 Figure 36 Flash...

  • Page 35: Other Information

    9. OTHER INFORMATION 9.1 Options We offer below options to add functionality for your scooter, please contact the authorized dealer for more information. • We reserve the rights to modify or change the accessories. • Please read through the cautions for battery and charger (section 6) if optional lead acid battery is purchased.

  • Page 36: Technical Specifications

    10. TECHNICAL SPECIFICATIONS Folded : 775 mm | 30.5” OVERALL LENGTH Unfolded : 953 mm | 37.5” Folded : 494 mm | 19.4” OVERALL WIDTH Unfolded : 500 mm | 19.7” Folded : 510 mm | 20.1” OVERALL HEIGHT Unfolded : 960 mm | 37.8” FRONT WHEELS 200 mm | 8”...

  • Page 37: Warranty

    11. WARRANTY Motion Healthcare warrants its Mobility Scooter product to be free from defects in materials and workmanship for a period of time from date of shipment, subject to certain limitations and exclusions as defined below. Please read carefully the following terms and conditions to qualify for future repair service or replacement.
  • Page 38 • This warranty is for the replacement or repair, at the sole option of Motion Healthcare, for defective parts only. Motion Healthcare will cover the shipping charge, to our preference of freight, for only the replacement of part or repair of any such product and not other shipping charges that arise thereafter.
  • Page 39 NOTES...
