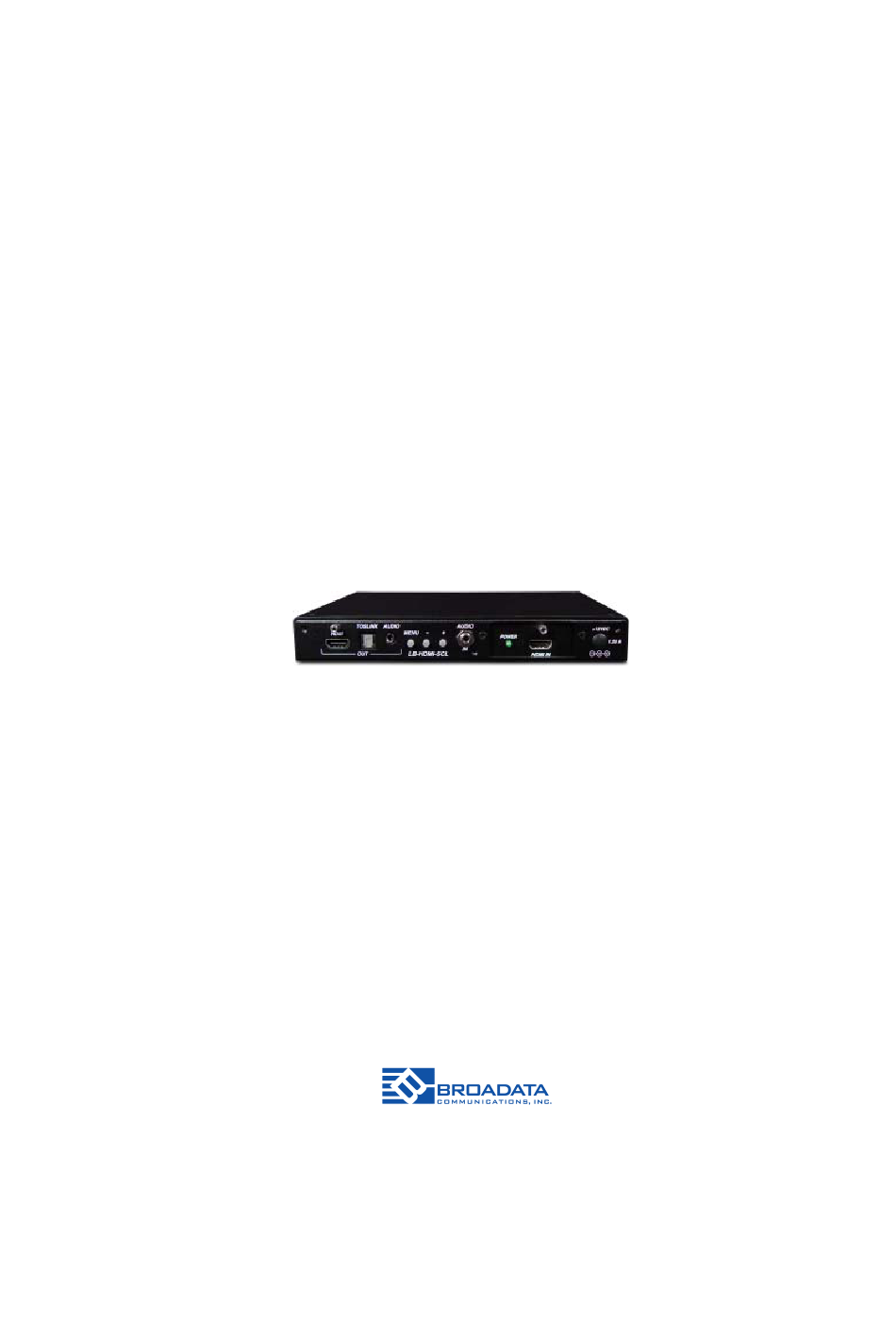

- Page 1 HDMI S CALER YSTEM BCI reserves the right to make changes to the products described herein without prior notice or consent. No liability is assumed as a result of their use or application. All rights reserved. ©2013 Broadata Communications, Inc.
- Page 2 This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc. Use of surge protection systems is highly recommended in order to protect and extend the life of your equipment. Broadata Technical Support, Sales@Broadatacom.com...
-
Page 3: Table Of Contents
5.2 TROUBLESHOOTING ..........13 6.0 SPECIFICATIONS ............14 7.0 SERVICE PROCEDURE ..........15 7.1 REPLACEMENT POLICY ..........15 7.2 RETURN AND REPAIR SERVICE ......... 15 8.0 LIMITED WARRANTY ............ 16 9.0 APPENDIX B: SUPPORTED INPUT RESOLUTIONS 17 Broadata Technical Support, (800) 214-0222... -
Page 4: Product Description
PC: VGA, SVGA, XGA, SXGA, UXGA, WXGA, WSXGA, WUXGA HDTV: 480i, 576i, 480p, 576p, 720p, 1080i, and 1080p • Supports digital and analog audio input and output. Package Contents 1 LB-H/DH-SCL Scaler 1 Power Adaptor, 12VDC 1 User Manual Broadata Technical Support, Sales@Broadatacom.com... - Page 5 LB-H/DH-SCL User’s Manual Link Bridge HDMI Scaler System Figure 1-1(a) LB-H/DH-SCL unit with optional single fiber input receiver. Figure 1-1(b) LB-H/DH-SCL unit with optional HDBaseT input receiver. Broadata Technical Support, (800) 214-0222...
-
Page 6: Operation Control And Functions
7. HDMI INPUT: Connect the HDMI input port to the HDMI output port of your sourceequipment such as DVD player or Set-Top- Box. 8. Optional Power Supply: Plug the 12VDC power supply into the unit and connect the adaptor to AC wall outlet. Broadata Technical Support, Sales@Broadatacom.com... -
Page 7: Rear Panel
DC 12V: Plug the power adaptor included in the package and connect it to the AC wall outlet for power supply. 3.0 ON SCREEN DISPLAY (OSD) MENU 3.1 Main Menu Selection Contrast: 0~100 of Contrast Level Brightness: 0~100 of Brightness Level Broadata Technical Support, (800) 214-0222... -
Page 8: Finetune
Hue: 0~100 of Hue Level Saturation: 0~100 of Saturation Level Sharpness: 0~100 of SharpnessLevel 3.3 Color: Red, Green, Blue Red: 0~100 of Red Color Level Green: 0~100 of Green Color Level Blue: 0~100 of Blue Color Level Broadata Technical Support, Sales@Broadatacom.com... -
Page 9: Main Menu Selection
Full, Overscan, Underscan, Letterbox, Panscan, Aspect Ratio OUTPUT: Native, VGA, SVGA, XGA, SXGA, UXGA, 480i, 480p, 720p@60Hz, 1080p@50Hz, WXGA, WSXGA, WUXGA 3.5 Audio: Source, Delay Sound Source: HDMI, Optical, L/R Delay: Off, 40mn, 110ms, 150ms Sound: On, Mute Broadata Technical Support, (800) 214-0222... -
Page 10: Osd
V-Position: 0~100 of OSD Vertical Position Timer: 0~100 of OSD Screen Time Background: 0~100 of OSD Transparency Level 3.7 Factory Reset: Yes 3.8 Information: Source, Input, Output, Version Source: Input Interface Input: Input Resolution Output: Output Resolution Version: Firmware Version Broadata Technical Support, Sales@Broadatacom.com... -
Page 11: Reset Functionality
NATIVE. This feature is also useful when the output is scaled to a resolution not supported by the connected TV/monitor so no picture is shown, because the NATIVE resolution can guarantee the proper (might not be the best) output. Broadata Technical Support, (800) 214-0222... -
Page 12: Maintenance And Troubleshooting
2. If the POWER indicator is ON, but the units are not working, check for the following: a. Make sure the appropriate (Multimode) fibers are being used. b. Fiber and fiber connectors are not broken. Broadata Technical Support, Sales@Broadatacom.com... -
Page 13: Specifications
Black Operating Temperature ~ 50 Relative Humidity 0 ~ 95% RH (non-condensing) Power Supply 110 – 240v AC 50/60 Hz, 12v @ 1.5 A DC Power Supply V / A DC (US/EU standards, CE/FCC/UL certified) Broadata Technical Support, (800) 214-0222... -
Page 14: Service Procedure
U.S. Please call Customer Service at 800-214-0222 for information. 7.2 Return/Repair Service The Link Bridge LB-H/DH-SCL System contains no user serviceable components. If you have a problem with your unit, please contact the Customer Service Department. To facilitate our return/repair processing please contact Broadata Communications, Inc. -
Page 15: Limited Warranty
HDMI Scaler System 8.0 LIMITED WARRANTY Broadata Communications, Inc. (BCI) warrants, for a period of one year from date of shipment, each product sold shall be free from defects in material and workmanship. BCI will correct, either by repair, or at BCI’s... -
Page 16: Appendix B: Supported Input Resolutions
INPUT RESOLUTIONS VGA@(60/72/75/85Hz), SVGA@(56/60/72/75/85Hz), XGA@(60/ 70/75/85Hz), SXGA@(60/75/85Hz), UXGA@60Hz, WXGA@60Hz, WSXGA@60Hz, WUXGA@60Hz 480i, 480p, 576i, 576p, 720p@(50/60Hz), 1080i@(25/30Hz), 1080p@(50/60Hz) OUTPUT RESOLUTIONS VGA@(60/72/75/85Hz), SVGA@(56/60/72/75/85Hz), XGA@(60/ 70/75/85Hz), SXGA@(60/75/85Hz), UXGA@60Hz, WXGA@60Hz, WSXGA@60Hz, WUXGA@60Hz 480i, 480p, 576i, 576p, 720p@(50/60Hz), 1080i@(25/30Hz), 1080p@(50/60Hz) Broadata Technical Support, Sales@Broadatacom.com... - Page 17 LB-H/DH-SCL User’s Manual Link Bridge HDMI Scaler System Broadata Technical Support, (800) 214-0222...
- Page 18 LB-H/DH-SCL User’s Manual Link Bridge HDMI Scaler System Broadata Technical Support, Sales@Broadatacom.com...
- Page 19 LB-H/DH-SCL User’s Manual Link Bridge HDMI Scaler System Broadata Technical Support, (800) 214-0222...
- Page 20 LB-H/DH-SCL User’s Manual Link Bridge HDMI Scaler System Broadata Technical Support, Sales@Broadatacom.com...
- Page 21 Broadata Communications, Inc. 2545 West 237th Street, Suite K Torrance, CA 90505 1-800-214-0222 (310) 530-1416 (310) 530-5958 (Facsimile) e-mail: CustomerService@Broadatacom.com Website: www.broadatacom.com 60000-LB-H/DH-SCL...
