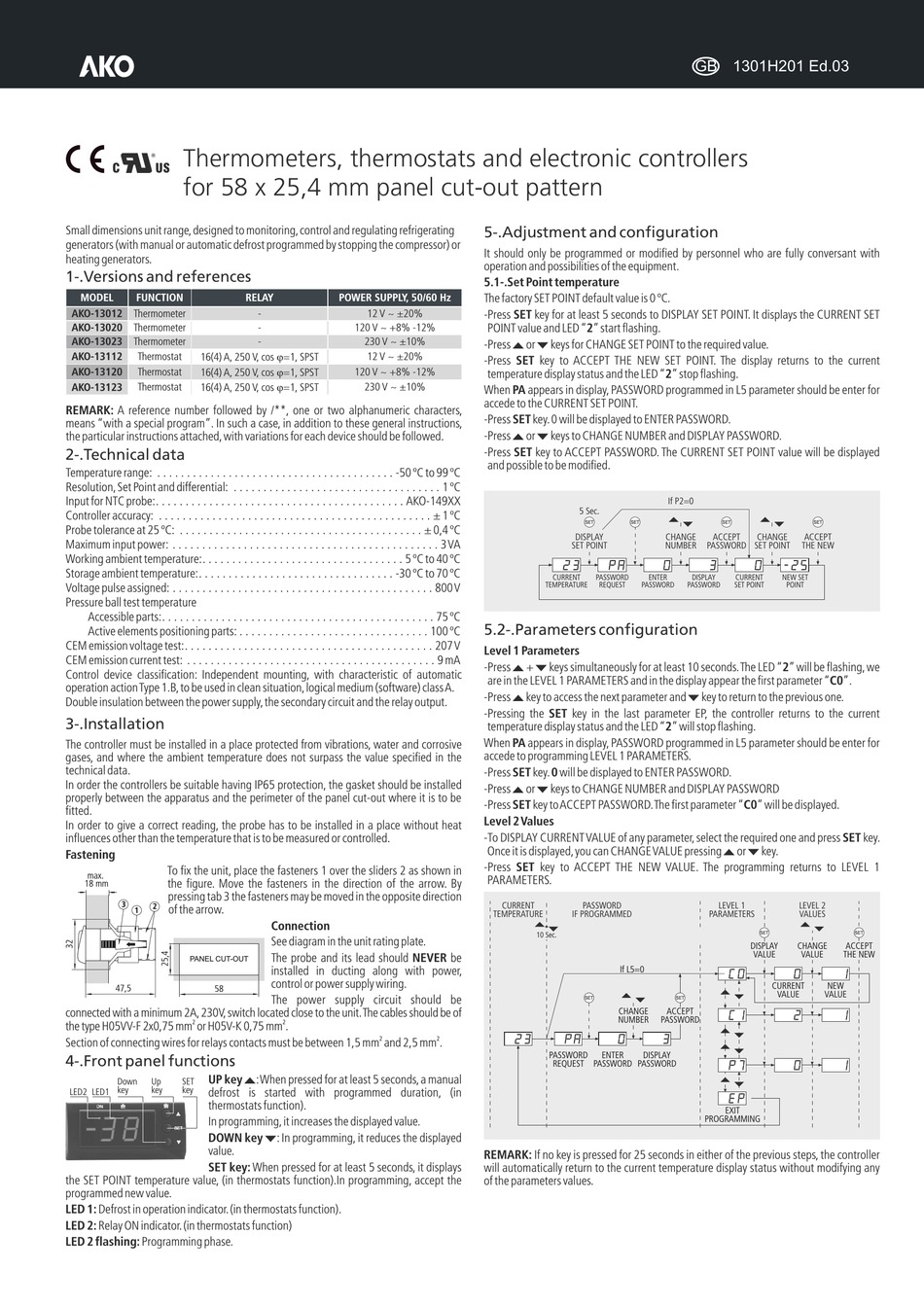

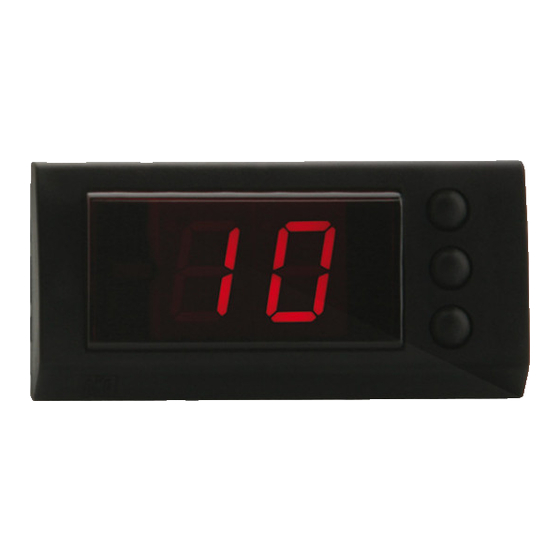

AKO 13012 Instructions

Thermometers, thermostats and electronic controllers
C US
for 58 x 25,4 mm panel cut-out pattern
Small dimensions unit range, designed to monitoring, control and regulating refrigerating
generators (with manual or automatic defrost programmed by stopping the compressor) or
heating generators.

1-.Versions and references

MODEL FUNCTION
AKO-13012 Thermometer
AKO-13020 Thermometer
AKO-13023 Thermometer
AKO-13112 Thermostat 16(4) A, 250 V, cos j=1, SPST
Thermostat
AKO-13120 16(4) A, 250 V, cos j=1, SPST
AKO-13123 Thermostat
16(4) A, 250 V, cos j=1, SPST
REMARK: A reference number followed by /**, one or two alphanumeric characters,
means "with a special program". In such a case, in addition to these general instructions,
the particular instructions attached, with variations for each device should be followed.

2-.Technical data

Temperature range: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -50 ºC to 99 ºC
Resolution, Set Point and differential: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 ºC
Input for NTC probe:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . AKO-149XX
Controller accuracy: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ± 1 ºC
Probe tolerance at 25 ºC: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ± 0,4 ºC
Maximum input power: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 VA
Working ambient temperature:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 ºC to 40 ºC
Storage ambient temperature:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -30 ºC to 70 ºC
Voltage pulse assigned: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 800 V
Pressure ball test temperature
Accessible parts:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75 ºC
Active elements positioning parts: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100 ºC
CEM emission voltage test:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207 V
CEM emission current test: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 mA
Control device classification: Independent mounting, with characteristic of automatic
operation action Type 1.B, to be used in clean situation, logical medium (software) class A.
Double insulation between the power supply, the secondary circuit and the relay output.

3-.Installation

The controller must be installed in a place protected from vibrations, water and corrosive
gases, and where the ambient temperature does not surpass the value specified in the
technical data.
In order the controllers be suitable having IP65 protection, the gasket should be installed
properly between the apparatus and the perimeter of the panel cut-out where it is to be
fitted.
In order to give a correct reading, the probe has to be installed in a place without heat
influences other than the temperature that is to be measured or controlled.
Fastening
To fix the unit, place the fasteners 1 over the sliders 2 as shown in
max.
the figure. Move the fasteners in the direction of the arrow. By
18 mm
pressing tab 3 the fasteners may be moved in the opposite direction
3
2
of the arrow.
1
PANEL CUT-OUT
47,5
58
connected with a minimum 2A, 230V, switch located close to the unit. The cables should be of
2
the type H05VV-F 2x0,75 mm or H05V-K 0,75 mm .
Section of connecting wires for relays contacts must be between 1,5 mm and 2,5 mm .

4-.Front panel functions

UP key N: When pressed for at least 5 seconds, a manual
Down Up SET
key key key
defrost is started with programmed duration, (in
LED2 LED1
thermostats function).
In programming, it increases the displayed value.
DOWN key Q: In programming, it reduces the displayed
value.
SET key: When pressed for at least 5 seconds, it displays
the SET POINT temperature value, (in thermostats function).In programming, accept the
programmed new value.
LED 1: Defrost in operation indicator. (in thermostats function).
LED 2: Relay ON indicator. (in thermostats function)
LED 2 flashing: Programming phase.
RELAY POWER SUPPLY, 50/60 Hz
- 12 V ~ ±20%
- 120 V ~ +8% -12%
- 230 V ~ ±10%
12 V ~ ±20%
120 V ~ +8% -12%
230 V ~ ±10%
Connection
See diagram in the unit rating plate.
The probe and its lead should NEVER be
installed in ducting along with power,
control or power supply wiring.
The power supply circuit should be
2
2

5-.Adjustment and configuration

It should only be programmed or modified by personnel who are fully conversant with
operation and possibilities of the equipment.

5.1-.Set Point temperature

The factory SET POINT default value is 0 ºC.
-Press SET key for at least 5 seconds to DISPLAY SET POINT. It displays the CURRENT SET
POINT value and LED "2" start flashing.
-Press N or Q keys for CHANGE SET POINT to the required value.
-Press SET key to ACCEPT THE NEW SET POINT. The display returns to the current
temperature display status and the LED "2" stop flashing.
When PA appears in display, PASSWORD programmed in L5 parameter should be enter for
accede to the CURRENT SET POINT.
-Press SET key. 0 will be displayed to ENTER PASSWORD.
-Press N or Q keys to CHANGE NUMBER and DISPLAY PASSWORD.
-Press SET key to ACCEPT PASSWORD. The CURRENT SET POINT value will be displayed
and possible to be modified.
5 Sec.
DISPLAY
SET POINT
CURRENT PASSWORD
TEMPERATURE REQUEST

5.2-.Parameters configuration

Level 1 Parameters
-Press N + Q keys simultaneously for at least 10 seconds. The LED "2" will be flashing, we
are in the LEVEL 1 PARAMETERS and in the display appear the first parameter "C0".
-Press N key to access the next parameter and Q key to return to the previous one.
-Pressing the SET key in the last parameter EP, the controller returns to the current
temperature display status and the LED "2" will stop flashing.
When PA appears in display, PASSWORD programmed in L5 parameter should be enter for
accede to programming LEVEL 1 PARAMETERS.
-Press SET key. 0 will be displayed to ENTER PASSWORD.
-Press N or Q keys to CHANGE NUMBER and DISPLAY PASSWORD
-Press SET key to ACCEPT PASSWORD. The first parameter "C0" will be displayed.
Level 2 Values
-To DISPLAY CURRENT VALUE of any parameter, select the required one and press SET key.
Once it is displayed, you can CHANGE VALUE pressing N or Q key.
-Press SET key to ACCEPT THE NEW VALUE. The programming returns to LEVEL 1
PARAMETERS.
CURRENT PASSWORD
TEMPERATURE IF PROGRAMMED
10 Sec.
2
PASSWORD ENTER
REQUEST PASSWORD
REMARK: If no key is pressed for 25 seconds in either of the previous steps, the controller
will automatically return to the current temperature display status without modifying any
of the parameters values.
GB 1301H201 Ed.03
If P2=0
CHANGE ACCEPT CHANGE
NUMBER PASSWORD SET POINT
ENTER DISPLAY CURRENT NEW SET
PASSWORD PASSWORD SET POINT POINT
LEVEL 1
PARAMETERS
DISPLAY
VALUE
If L5=0
CURRENT
VALUE
CHANGE ACCEPT
NUMBER PASSWORD
DISPLAY
PASSWORD
EXIT
PROGRAMMING
ACCEPT
THE NEW
LEVEL 2
VALUES
CHANGE ACCEPT
VALUE THE NEW
NEW
VALUE
