QUARTZ

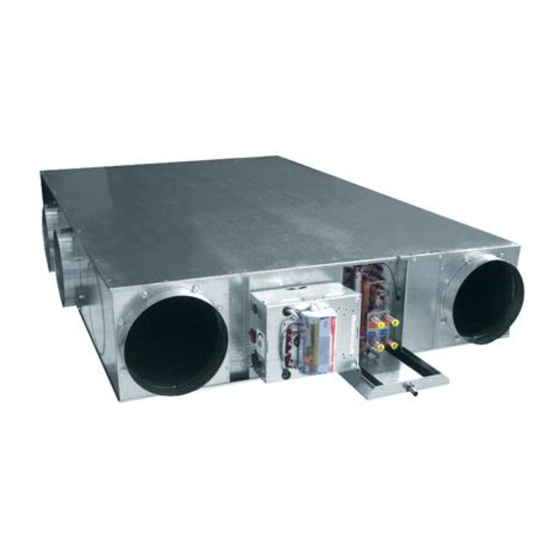

Amber Fan Coils
Horizontal Waterside Control Fan Coil Units
Designed for Ceiling or Void Mounting
INSTALLATION, OPERATION
&
MAINTENANCE INSTRUCTIONS
TEV Ltd.,
Armytage Road, Brighouse,
West Yorkshire.
United Kingdom, HD6 1QF, UK.
Tel: (01484) 405630
Fax: (01484) 405620
E-mail: sales@quartz.co.uk
48008002-06
Advertisement
Table of Contents
Summary of Contents for Quartz Amber Series
- Page 1 Amber Fan Coils Horizontal Waterside Control Fan Coil Units Designed for Ceiling or Void Mounting INSTALLATION, OPERATION & MAINTENANCE INSTRUCTIONS TEV Ltd., Armytage Road, Brighouse, West Yorkshire. United Kingdom, HD6 1QF, UK. Tel: (01484) 405630 Fax: (01484) 405620 E-mail: sales@quartz.co.uk 48008002-06...
- Page 2 HEALTH AND SAFETY Information for the Installer and Service Engineer The company takes every reasonable care to ensure these products are designed and constructed to meet general safety requirements, when properly used and installed to manufacturers instructions. Steel Parts Every reasonable care has been taken to remove sharp edges on steel components but it is recommended to use protective gloves when handling the units.
-
Page 3: Table Of Contents
CONTENTS: INTRODUCTION Introduction to the product. PRODUCT IDENTIFICATION Product Identification DELIVERY AND INSTALLATION Receipt of Equipment. Off Loading EXTENDED STORAGE Maintenance Internal Surfaces External Surfaces Static Indentation Filters INSTALLATION Dimensional details Pre Unit Installation Fitting unit Fitting float switch Connection of ductwork COMMISIONING Airside Measuring and Balancing Electric Air Heaters... - Page 4 INTRODUCTION Quartz range of fan coil units are a purpose built range of cooling and heating units that are factory wired and tested and suitable for ceiling or void mounted. All casings are manufactured from heavy gauge self finished galvanised steel.
-
Page 5: Receipt Of Equipment
DELIVERY AND INSTALLATION Receipt of Equipment. The purchaser is responsible for off loading the units. No responsibility can be accepted for damage sustained during unloading from the delivery vehicle Upon receipt of equipment a visual inspection should be made of the fan coil units and any damage noted on the delivery form. The driver delivering the equipment should endorse particulars of any damage or short delivery. - Page 6 INSTALLATION UNIT DIMENSIONS STANDARD UNIT AND LOCO2 Fig 2. Weight Unit Model Dim 'A' Dim 'B' Spigot Options (approx Kg) AMB 1 1-2-3-4 AMB 2 1-2-3-4 AMB 3 1230 1195 1-2-3-4-5 AMB 4 1230 1195 1-2-3-4-5 AMB 5 1430 1395 1-2-3-4-5 AMB 6 1430...
-
Page 7: Pre Unit Installation
Pre Unit Installation: Ensure when positioning the units that suitable access is available for removing air filter and other routine maintenance including the removal of coils and fans. Identify the correct units Before removing any packaging check the identity of the fan coil against identity labels on the unit. Fitting Units Prepare drop rods ready to accept the fan coil units M6,M8 or M10 Fit washers and nuts onto drop rods before lifting the unit... - Page 8 11. Once the unit is fitted in position remove the float valve assembly from the drain tray unscrew the self tapping screw in the drain tray and use it to secure the float switch bracket in position on the end of the drain tray. To ease fitting the float switch can be slid out of the plastic fixing bracket fit as shown in Fig.
-
Page 9: Connection Of Ductwork
18. Connect pipe work to the unit refer to fig. 9 for connection detail. 19. Once the units are fitted in position prior to commissioning they must still be protected from damage. CONNECTION OF DUCTWORK TO QUARTZ DUCTED FANCOILS Note: The provided ducts are there as a means of connecting the ductwork to the fan coil. -
Page 10: Airside Measuring And Balancing
COMMISSIONING Once units are fully installed they must be commissioned to ensure they have been correctly fitted in accordance with manufacturer’s instructions. Isolate mains supply before Check that the unit is fitted correctly and all supporting drop rods are secure and lock nuts have been tightened. Ensure that all the unit sections are thoroughly clean and free from any installation debris. -
Page 11: Electric Air Heaters
SERVICE AND MAINENANCE GENERAL This section of the manual deals with the requirements for service and maintenance of Quartz fan coil units and must be read before any maintenance is attempted. WARNING: It is essential that before any work is carried out the unit is isolated externally from the electrical supply. -
Page 12: Fans
If fitted Electric Heating Element M6 Bolts Wiring Loom Fig. 10 View from underside of unit larger units fitted with multiple fans. Remove fans from unit through access opening, taking care not to damage impellers. Before replacing the access panel check that all the insulation is still firmly fixed in position and all seals are intact replace or re fix if damaged or loose. -
Page 13: Coils
COILS The coil shall be inspected every three months to ascertain if any solids or foreign matter have accumulated between the fins and that the coil connections are free from leaks. Should any matter be found, the coils shall be cleaned by using a soft brush and a mild solution of detergent. -
Page 14: Routine Maintenance Schedule
EXTERNAL SURFACES The unit casings and access panels should be checked for any signs of corrosion. Any rust found should be cleaned and the area treated to prevent any further rusting. ROUTINE MAINTENANCE SCHEDULE Item Variable Yearly Page Monthly ● Motors ●...
