Shenzhen Shunxun Electronics SX-SP18 Operating Instructions

Hide thumbs
1
2
3
4
5

Advertisement

Table of Contents

HDMI
Splitter
HDMI
HDMI Splitter
HDMI
Splitter
Splitter
Model
Model
No.:SX-SP18
No.:SX-SP18
Model
Model No.:SX-SP18
No.:SX-SP18
Operating
Instructions
Operating
Operating Instructions
Operating
Instructions
Instructions
Dear
Dear
Dear
Dear Customer
Customer
Customer
Customer
Thank you for purchasing this product. For optimum performance and safety, please read these
instructions carefully before connecting, operating or adjusting this product. Please keep this
manual for future reference.
FEATURES
FEATURES
FEATURES
FEATURES
�
1 HDMI input.
�
1 HDMI output, 7 UTP method HDMI outputs
�
IR call back function to control the source from TV side
�
Mounting ears
�
HDMI 1.3b
� � � �
DIP switch setting to control EDID.
�
Support 3D video format
NOTICE
NOTICE
NOTICE
NOTICE
Our company reserve the right to make changes in the hardware, packaging and any
accompanying documentation without prior written notice.
1 1 1 1
Operating Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SX-SP18 and is the answer not in the manual?

Questions and answers

Related Manuals for Shenzhen Shunxun Electronics SX-SP18

Summary of Contents for Shenzhen Shunxun Electronics SX-SP18

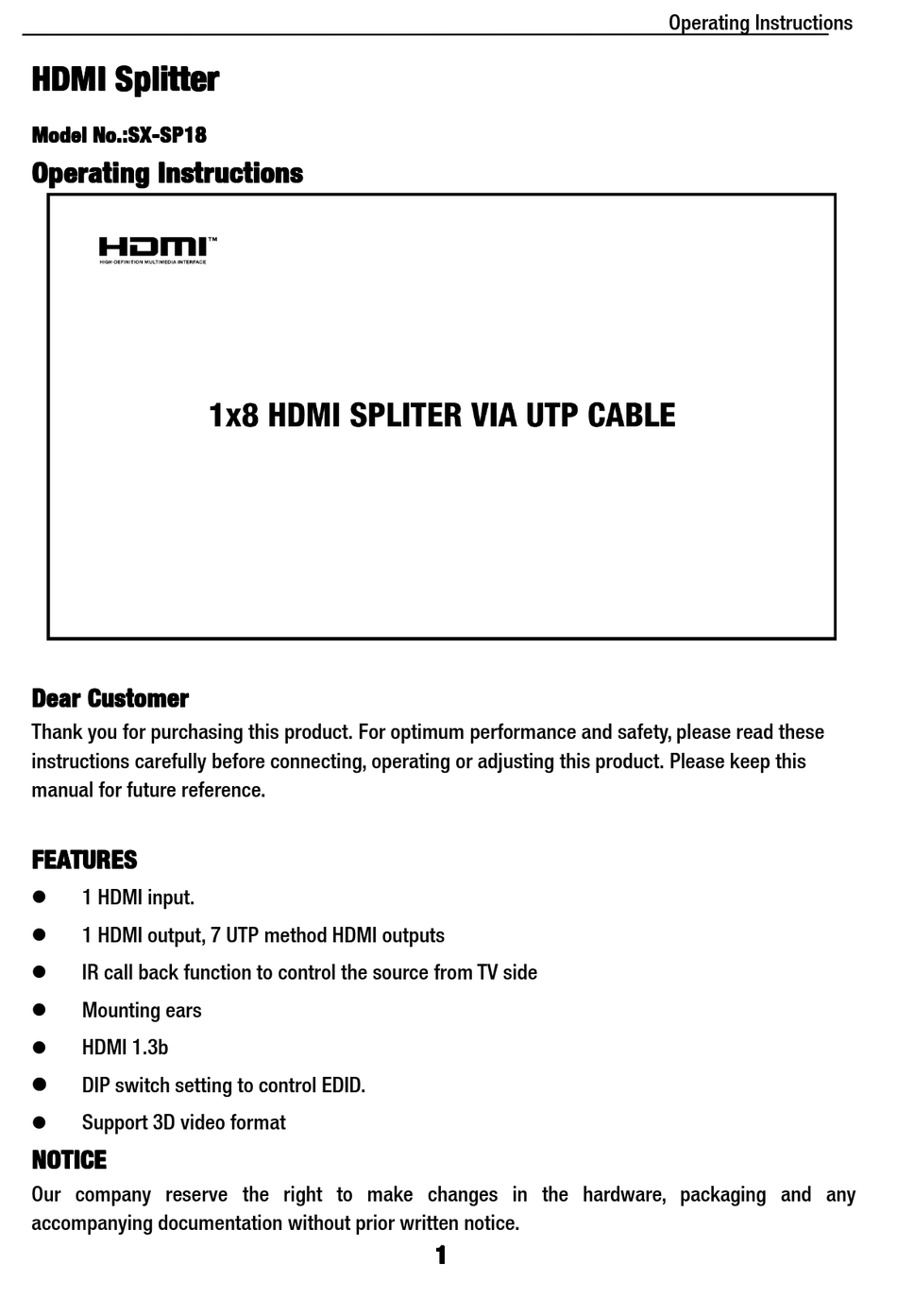

  • Page 1 Operating Instructions HDMI Splitter HDMI HDMI HDMI Splitter Splitter Splitter Model Model No.:SX-SP18 No.:SX-SP18 Model Model No.:SX-SP18 No.:SX-SP18 Operating Instructions Operating Operating Operating Instructions Instructions Instructions Dear Dear Dear Dear Customer Customer Customer Customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product.
  • Page 2 Operating Instructions TABLE TABLE OF OF OF CONTENTS CONTENTS CONTENTS TABLE TABLE OF CONTENTS Specifications Package Contents Panel Descriptions Connecting and Operating Maintenance Typical Application Product Service Warranty SPECIFICATIONS SPECIFICATIONS SPECIFICATIONS SPECIFICATIONS Operating Temperature Range ……………………………..-5 to 35℃ (-41 to 95℉) Operating Humidity Range……….…......5% to 90% RH (No Condensation) Video Amplifier Bandwith.................140MHz Input Video Signal………………………………….……....…0.5-1.0 Volts P-P...
  • Page 3 Operating Instructions PANEL PANEL DESCRIPTIONS DESCRIPTIONS PANEL PANEL DESCRIPTIONS DESCRIPTIONS Front Panel ① ② Rear Panel ③ ④ ⑤ ⑥ ⑦ ⑥ ⑧ ①Indicators of HDMI output:when a HDMI equipment i connected the corresponding LED lit ② Power button:when power on,the power status LED lit ③Power input port ④EDID settingUTP out ports ⑤HDMI output port...
  • Page 4 Operating Instructions 4) Connect the IR RX receiving cable into STP/UTP receiver IR RX and connect The IR TX cable into HDMI splitter IR emitter. 5) Insert the DC side of 12v power supply into HDMI splitter and then connect the AC side of the power supply into the wall outlet.
  • Page 5 Application Application MAINTENANCE MAINTENANCE MAINTENANCE MAINTENANCE Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner of benzine to clean this unit. Shenzhen Shunxun Electronics Co., Ltd Tel: 86-755-27153022 27152661 Fax: 86-755-27152283 Web:www.foxun.com 5 5 5 5...
