- Page 1 CDM8240 Technical Manual Version：V1.3 Release：2009-6-24...
-
Page 2: Table Of Contents
4. Overview ........................1 4.1 Presentation......................1 4.2 Dimensions (mm) ....................4 5. Functionalities......................7 6. Features ........................7 7. Technical Specifications .................... 8 7.1 Electrical specifications ................... 8 7.2 Performance specifications ..................9 CDM8240 Technical Manual Page i of i... -
Page 3: General Description

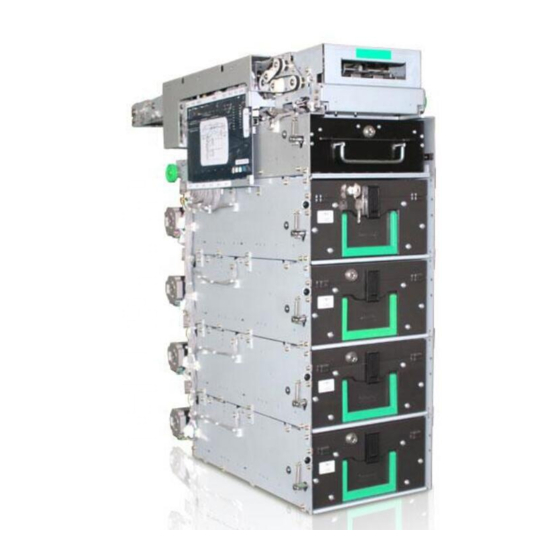

1. General Description CDM8240 dispenser is an advanced cash dispensing module, experiencing years of research and development by GRGBanking, has possessed completely independent intellectual property and reached international advanced level. It consists of cassette and frame, reject tray, note feeder, high-precise detection unit, note stacker unit, note transport and note presenter. - Page 4 CDM8240 Rear service, standard throat Single Note Diverter Note Presenter Bundle Note Diverter Note Transport Note Stacker Note Feeder Reject Vault Cassette Frame Note Cassette CDM8240 Technical Manual Page 2 of 9...
- Page 5 CDM8240 Front service, standard throat Single Note Diverter Note Transport Bundle Note Diverter Note Stacker Note Presenter Note Feeder Reject Vault Note Cassette Cassette Frame CDM8240 Technical Manual Page 3 of 9...
-
Page 6: Dimensions (Mm)
4.2 Dimensions (mm) CDM8240 Front service, standard throat dimensions Depth: 672 244.2 202.8 Above is the two cassettes height, with the increase of every cassette, the height shall be added by 142.5mm. CDM8240 Technical Manual Page 4 of 9... - Page 7 CDM8240 Rear service, standard throat dimensions Depth: 672 244.2 202.8 Above is the two cassettes height, with the increase of every cassette, the height shall be added by 142.5mm. CDM8240 Technical Manual Page 5 of 9...
- Page 8 CDM8240 Rear service, long throat dimensions Depth: 868 202.8 244.2 Above is the two cassettes height, with the increase of every cassette, the height shall be added by 142.5mm. CDM8240 Technical Manual Page 6 of 9...
-
Page 9: Functionalities
Log record and inquiry function, transaction log recorded for at least three months. Offline self-diagnostic function, convenient to debug. Onsite replacement of wearing part, easy to maintain. Modular design, easy to disassemble and assemble. CDM8240 Technical Manual Page 7 of 9... -
Page 10: Technical Specifications
11kg.) Weight CDM8240 long throat: 44 Kg (two cassettes weight, with the increase of every cassette, the weight shall be added by 11kg.) CDM8240 standard throat: 284.6 (W) x 672 (D) x502 (H) mm... -
Page 11: Performance Specifications
Media ranges Thickness 0.06mm ~0.18 mm Dispensing system Friction Dispensing mode Bundle Dispensing speed 7 notes/second Maximum notes per transaction 60 notes Low level detection 50~250 notes (adjustable) Reject mode Single/Bundle Maintenance Front/Rear CDM8240 Technical Manual Page 9 of 9...
