User Guide
M/GE-T-xxx-01
Mini Media Converter
Auto-Negotiation
•
Auto-MDI/MDIX
•
Automatic Link Restoration
•
Interoperable with other 1000Base-T/SX/LX NICs or switch ports
•
Status LEDs for easy monitoring
•
Supports SFP modules
•
•
Supports Jumbo Frames up to 13312bytes
65% smaller than standard media converter
•
Extend Network Distance
•
Low-Latency Design
•
Fiber Link Pass Through
•
Contents
Introduction ............................................................................................................................................................................ 1
Ordering Information .............................................................................................................................................................. 2
Optional Accessories (sold separately) ................................................................................................................................... 2
Installation .............................................................................................................................................................................. 3
Observe ESD Precautions.................................................................................................................................................... 3
Copper and Fiber Ports ....................................................................................................................................................... 3
Connect the Fiber Cable ..................................................................................................................................................... 3
Connect the Twisted-pair Copper Cable ............................................................................................................................. 4
Power up the Media Converter .......................................................................................................................................... 4
Power Adapter .................................................................................................................................................................... 5
Operation ................................................................................................................................................................................ 5
Status LEDs.......................................................................................................................................................................... 5
Features .............................................................................................................................................................................. 6
Cable Specifications ............................................................................................................................................................ 6
Technical Specifications .......................................................................................................................................................... 8
Troubleshooting ...................................................................................................................................................................... 9
Contact Us ............................................................................................................................................................................... 9
Compliance Information ....................................................................................................................................................... 10
Declaration of Conformity ................................................................................................................................................ 10
CE Mark ............................................................................................................................................................................. 10
Record of Revisions ............................................................................................................................................................... 11

Introduction

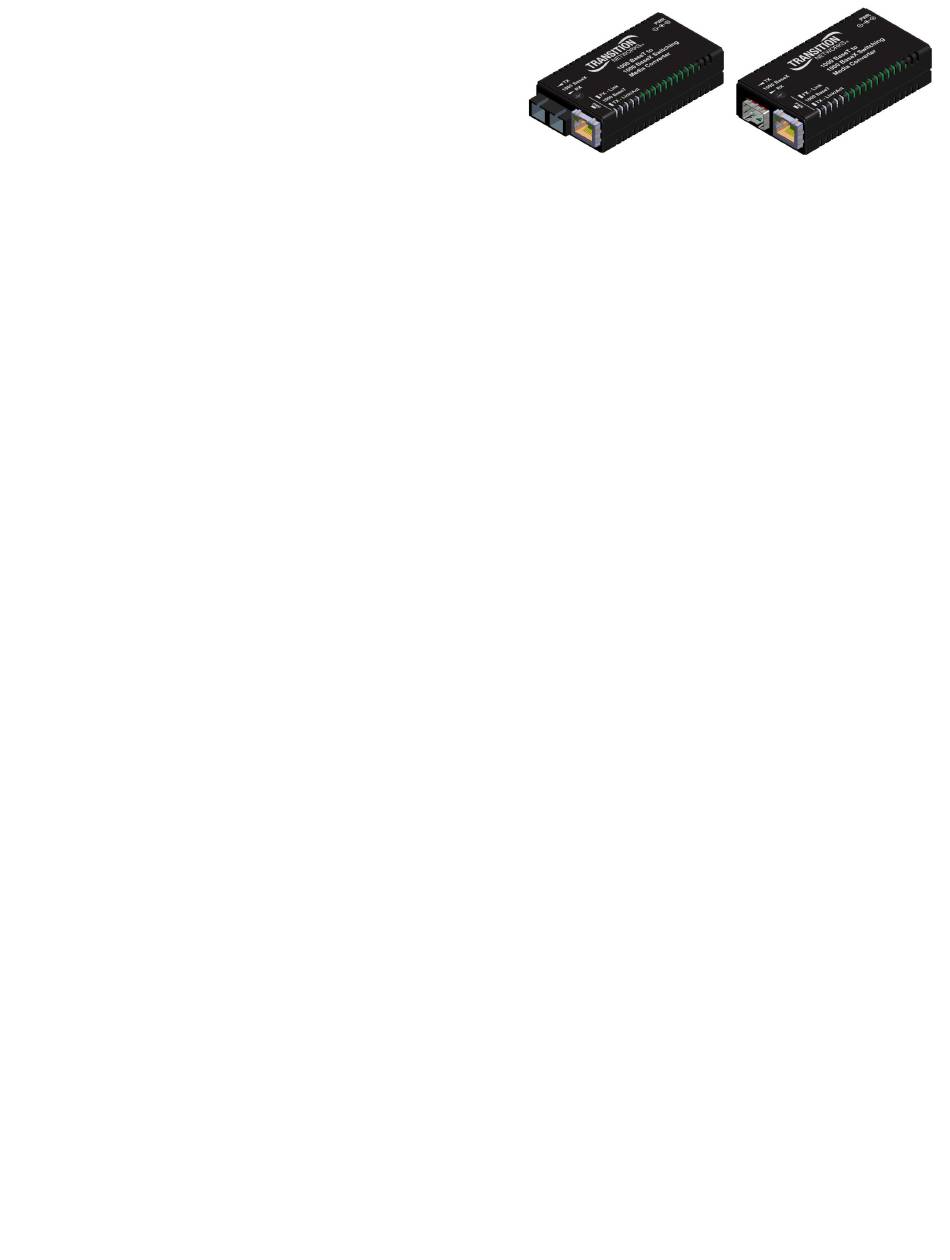

Transition Networks M/GE-T Series is a Gigabit Ethernet stand-alone Mini media converter that provides cost effective
media conversion between 1000Base-T ports and 1000Base-SX/LX ports. With its fixed configuration, deployments are
just plug-and-play, and its small size makes it ideal for locations where space is limited. Operating at Layer 1, the physical
layer, data is passed through the converter at line speed, making it ideal for applications where low latency is essential.
33516 Rev. B
https://www.transition.com
Page 1 of 11
