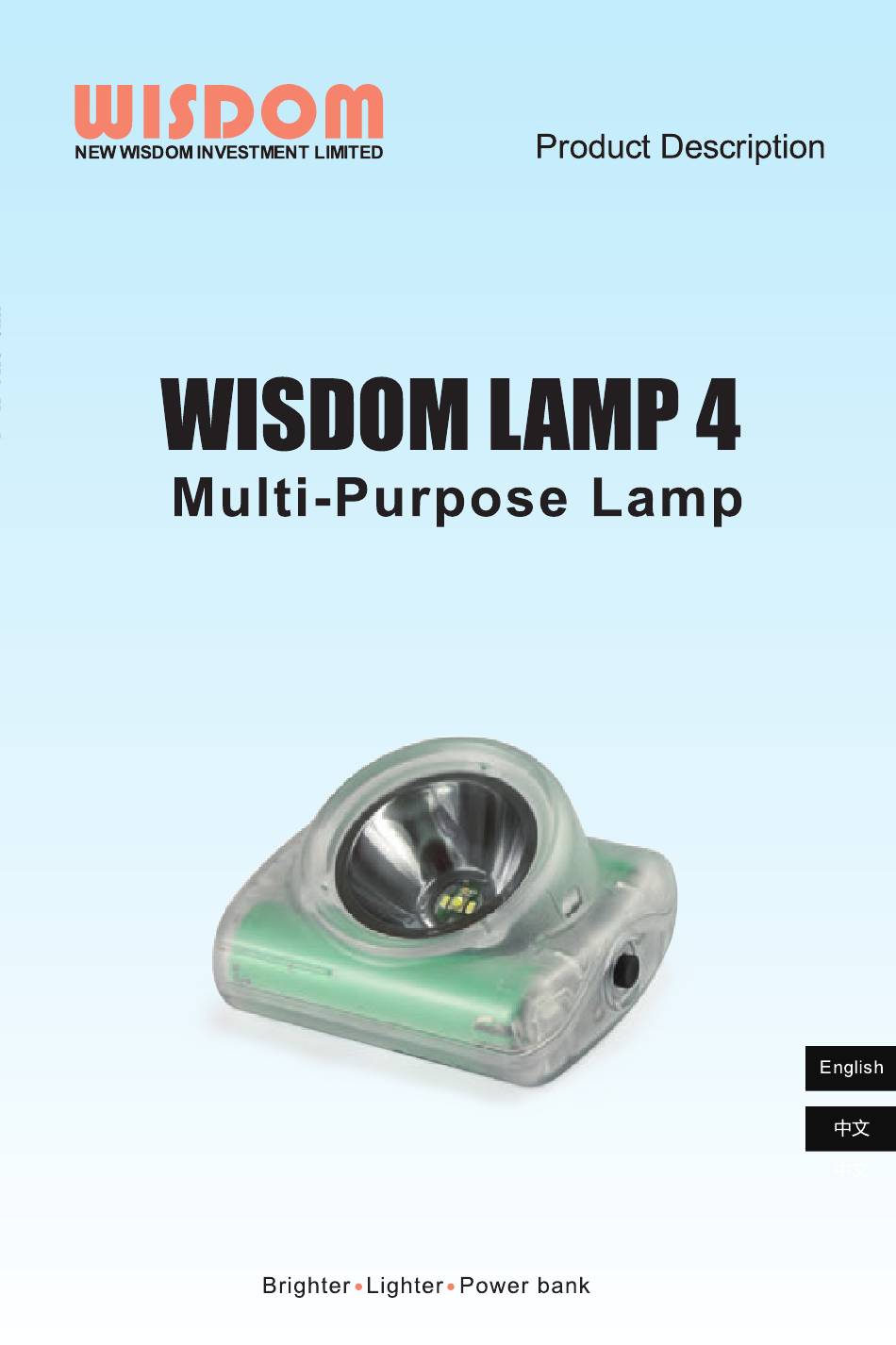

Wisdom  LAMP 4 Series Product Description

Wisdom LAMP 4 Series Product Description

Multi-purpose lamp
Table of Contents

Advertisement

Advertisement

Chapters

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WISDOM LAMP 4 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Wisdom WISDOM LAMP 4 Series

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1 FEATURES OF WISDOM LAMP 4 ..............1 2 TECHNICAL SPECIFICATION OF WISDOM LAMP 4 ........3 3 PARTS OF WISDOM LAMP 4 ..............5 4 USER GUIDE OF WISDOM LAMP 4 ............6 5 TROUBLE AND TROUBLESHOOTING ........... 15 6 NOTES ....................... 15 7 SAFETY WARNINGS ................
  • Page 4: Features Of Wisdom Lamp 4

    1.4 SOS function WISDOM LAMP 4 can flash as SOS signal, when it enters the mode of SOS, which makes it possible that the users in danger can be rescued effectively. It will enter SOS mode if you press...
  • Page 5 1.5 Multiple lenses, suitable for different scenes Multi-purpose WISDOM LAMP 4 adds optical lens 1, lens 2, lens 4 and lens 6 and so on to meet variety lighting way, to realize the diversified functions use. 1.6 Convenient charging way with USB...
  • Page 6: Technical Specification Of Wisdom Lamp 4

    1.12 Explosion-proof and impact-resistance The housing of WISDOM LAPM 4 is made of bulletproof PC. The optimized mold design not only strengthens the hardness of the housing but also lessens the internal stress, which makes WISDOM LAPM 4 stronger in impact resistance and more durable in life span.
  • Page 7 2.2 Technical Specification of WISDOM LAMP 4 Features Specification WISDOM LAMP Model WISDOM LAMP 4A WISDOM LAMP 4B WISDOM LAMP 4C Rated capacity 6.2Ah 4.4Ah 3.1Ah 2.2Ah Rated voltage 3.7V Main light LED Working 3.0V Voltage Low light working time...
  • Page 8: Parts Of Wisdom Lamp 4

    PARTS OF WISDOM LAMP 4 Standard accessories Multi-purpose lamp Magnetic USB wire Magnetic data wire Optional accessories accessories Optical lens1 Optical lens2 Vehicle charger adaptor Power adaptor (Transparent) (Transparent) Head strap Optical lens3 Optical lens4 Belt (Transparent) (Colorful) Optical lens6...
  • Page 9: User Guide Of Wisdom Lamp 4

    User Guide of WISDOM LAMP 4 4.1 Two charging ways 4.1.1 USB Charging Way Connect the “5V, 2A” power supply with magnetic USB wire to”AC, 100-240V” outlet. The charger indicator turns green,as follows: Connect the magnetic charging terminal with the USB charging points and make them contact tightly.
  • Page 10 4.1.2 Traditional Charging Way Connect the single charger to the power supply or switch on the charger rack, the indicator light of the charger turns green. Connect the lamp with the charger. The charging indicator of cap lamp turns red. The lamp can work normally after taking the lamp away from the charger when it is in charging or finishing charging.
  • Page 11 4.2 Charging Indication WISDOM LAMP 4 has an indicator for the charging situation. When the indicator turns red, which means it’s charging; when the indicator turns green, which means it is fully charged. During the progress of charging, the soft lighting of the main and auxiliary light source can indicate the charging situation.
  • Page 12 4.3 Switch 4.3.1 General lighting mode Pressing the switch button once when the light is off, it will be into low light mode; pressing second, it will be into middle light mode; pressing third, it will be into high light mode. The details are as follows: 4.3.2 Customized locking mode Pressing the button double shortly ( within 3s ) when the light is on, it will lock the current...
  • Page 13 4.3.3 Charging bank mode Pressing the button double shortly (within 3s ) when the light is off, it will be into charging bank mode. At this time, you can charge for your mobile phone or other equipment. Meanwhile, you can also turn it on for lighting when it is charging for the mobile phone. The details are as follows: 4.3.4 SOS mode Pressing the button for 3s when the light is off, it will be into SOS mode by the regular flashing with 3 times short and long flashing .The details are as follows.
  • Page 14 4.4 Two-stage low battery alarms and alarm cancel About 1 hour before the battery power is out, the main LED light of WISDOM LAMP flashes softly (one time flashing for every 5 seconds) to remind the user that the power is nearly used up and needs to be recharged.
  • Page 15 Put the optical lens 2 into the slot of cap lamp, which can change the original strong light into narrower range of soft light. So WISDOM LAMP with optical lens 2 is a kind of ideal lighting equipment for night reading.
  • Page 16 4.6 Fix the lamp You can not only fix WISDOM LAMP 3 on the cap but also on the wall with a nail.. Hold the lamp by the belt You can use the belt to hold WISDOM LAMP for more convenient usage. There are one way as following:...
  • Page 17 Step three: fastening coil which bypassed the bicycle handle at one end buckles bicycle’s other end, the mounting bracket is completed. Step four: plastic cap clip WISDOM LAMP 4 card into a bicycle bracket. Step five: the installation is completed.
  • Page 18: Trouble And Troubleshooting

    8 Package The WISDOM LAMP 4 is packed by blister package which is 175 x 105 x 70 mm.  The outer box is packed by carton package which is 38 x 22.5x 44 mm containing 24 pieces of ...
  • Page 19 WISDOM www.wisdom.hk Telephone: +86-755-83911841 Mailbox: info@wisdom.hk Address: 4-306, Xianglixincuen, Hongli West Road, Shenzhen, China Zip code: 518034...
  • Page 20 目录 1 WISDOM LAMP 4 多用途灯特性 ..............1 2 WISDOM LAMP 4 多用途灯技术参数 ............3 3 WISDOM LAMP 4 多用途灯结构组件 ............5 4 WISDOM LAMP 4 多用途灯使用说明 ............6 5 故障与检修 ....................16 6 注意事项 ..................... 16 7 安全警示 ..................... 16 8 包装规格...
  • Page 22: Wisdom Lamp 4 多用途灯特性

    线,转接头的配合使用可以给 iPhone,iPad,Android 手机等设备充电,实现了灯与移动电源功 能的完美统一。作为移动电源给手机充电时,输出电压为 5.2V,给手机充电;手机断开空载 8S 超时,移动电源能够自行断开,实现智能保护作用。在休眠状态下双击开关按钮即可进入移动电源 模式,接上磁力充电线即可给手机充电,与此同时还可亮灯使用,实现充电、亮灯两不误。 档位锁定 WISDOM LAMP 4 为满足个人喜好亮度而定制出档位锁定功能,可在主光源的不同亮度间进行选 择和锁定。在亮灯状态下,双击开关按钮即可锁定当前亮度,再次开启可直接进入锁定亮度下的工 作模式,使之更为贴合用户需求。 SOS 功能 WISDOM LAMP 4 在 SOS 功能模式下,主光源会以 SOS 的信号时序进行闪灯,实现求救功能, 使处于危险状况下的用户得到救援的可能。在待机休眠状态,长按开关 3 秒即可进入 SOS 模式, 短按开关即可退出。 多种光学镜片,适用不同的场景 WISDOM LAMP 4 多用途灯根据生活中的实际用途增加了光学镜片 1,光学镜片 2,光学镜片 4, 光学镜片 6 等以满足生活中多种照明方式,实现功能多样化使用。...
  • Page 23 支持磁力 USB 充电方式 WISDOM LAMP4 多用途灯设计、制造出磁力 USB 充电线,使用通用型 USB 充电电源就能给多 用途灯充电, 也可选用兼容配套的专用充电器或充电架充电, 是多用途灯充电易用性的一个革命性 突破。 重量超轻 WISDOM LAMP 4 多用途灯采用超轻量级的设计, 4C 和 4D 仅为 128g,远远轻于一般的头灯。 电池电量指示 WISDOM LAMP 4 多用途灯在待机休眠状态下长按 1.5 秒可进入电池电量指示状态,通过主光源 和副光源发出的弱光可以直观的识别电池剩余电量: >30%,>60%,>90%。指示 3 秒后,自动回 到待机休眠状态;按键短按也可退出电量指示状态。 两阶段低电量告警和告警取消 在主光源点亮的状态,电池电量耗尽前约 1 小时和仅足以维持照明 10 分钟左右的时候,其主光源...
  • Page 24: Wisdom Lamp 4 多用途灯技术参数

    1.13 超强防水功能 WISDOM LAMP 4 多用途灯采用了专业防水设计,通过了 50 米水深的 IP68 测试。 各个部件都采用 了不生锈材料,如帽钩采用了塑胶材料,USB 充电接触点采用了不锈铁和镀金的黄铜材料,以保 证多用途灯卓越的防水能力使其能够在苛刻的环境下不生锈且长时间稳定工作。 1.14 对环境无害 WISDOM LAMP 4 多用途灯的设计完全遵守《危害性物质限制指令》(RoHS)。 危害性物质限制 指令的执行贯穿于整个生产流程,从原材料的挑选到制造工艺的设计都严格遵照该指令。 2 WISDOM LAMP 4 多用途灯技术参数 2.1 WISDOM LAMP 4 作为移动电源使用时,其参数如下: 特性 技术规格 型号 WISDOM LAMP 4A WISDOM LAMP 4B...
  • Page 25 2.2 WISDOM LAMP 4 灯的技术参数如下: 特性 技术规格 型号 WISDOM LAMP WISDOM LAMP WISDOM LAMP WISDOM LAMP 4A 额定容量 6.2Ah 4.4Ah 3.1Ah 2.2Ah 额定电压 3.7V LED 主光源工作电压 3.0V 低亮模式 放电时间 中亮模式 高亮模式 低亮模式 65mA 50mA 50mA 40mA LED 主 光 源...
  • Page 26: Wisdom Lamp 4 多用途灯结构组件

    3 WISDOM LAMP 4 多用途灯结构组件 标配 磁力 USB 充电 磁力数据线 灯 线 选配 光学镜片 1 光学镜片 2 车充适配器 (透明) (透明) 电源适配器 光学镜片 3 (透明) 光学镜片 4 挂绳 (彩色) 头绳 光学镜片 6 光学镜片 5 (透明) 磁力贴 (透明) 自行车支架...
  • Page 27: Wisdom Lamp 4 多用途灯使用说明

    4 WISDOM LAMP 4 多用途灯使用说明 两种充电方式充电 USB 充电方式 4.1.1 将“5V 2A”电源适配器接上磁力 USB 充电线并插入“AC,100-240V”的插座,充电器的指示灯 为绿色。 (如下图) 将磁力充电头端子接于多用途灯的 USB 充电点,确保磁力头的触点和 USB 充电点位紧密接触。 当多用途灯充电指示灯为红色时代表正在充电, 变成绿色时表示电池已经完全充满。 此时可取下磁 力 USB 充电线正常使用多用途灯。 充电指示灯...
  • Page 28 4.1.2 传统充电方式 将便携式充电器接上电源,便携式充电器的绿色指示灯会点亮。 将多用途灯按图示的方向插入充电器中,多用途灯里的充电指示灯会变红。 在多用途灯充电过程中,或多用途灯电池充满后,把多用途灯从充电器中拔出,即可正常使用多用 途灯。...
  • Page 29 充电指示功能 WISDOM LAMP 4 多用途灯有专门的充电状态指示灯。充电指示灯为红色时表示正在充电;充电 指示灯为绿色时表示电池已经充满。在充电的过程中,主光源和两个副光源会发出弱光,作为充电 进程指示。 待多用途灯电池完全充满后,充电指示灯会由红色变为绿色,主、副光源都熄灭。 在多用途灯充电的过程中各指示灯的指示方式如下: 注意:多用途灯的充电进程指示只是一个大概的指示,仅供参考。...
  • Page 30 开、关灯 4.3.1 普通照明模式 在熄灭的状态下,按下开关即可打开低亮度灯光模式,再次按下开关即可进入中亮度灯光模式,在 中亮度模式下按下开关进入高亮度灯光模式,具体图示如下: 4.3.2 个性化(锁定)模式 在亮灯状态下,短按两次(0.3s 内)开关即可锁定当前亮度模式,短按两次可解锁,具体图示如 下:...
  • Page 31 4.3.3 移动电源模式 在熄灭状态下,短按两次(0.3s 内)开关即可进入移动电源模式,此时可以给手机等设备充电, 同时还可兼用中光照明功能,具体图示如下: 4.3.4 SOS 模式 在熄灭状态下,长按开关 3 秒,即可进入 SOS 模式,通过灯光三短三长的频闪实现 SOS 功能, 具体图示如下: 4.3.5 电量指示模式 在熄灭状态下,长按开关 1.5 秒,即可进入电量指示状态,通过主光源和副光源发出的弱光可以直 观的判断电池电量的多少,具体图示如下: 电量显示 3 秒钟后,多用途灯恢复到熄灭状态。 注意:WISDOM LAMP 4 多用途灯的电量指示只是一个大概的指示,仅供参考。...
  • Page 32 两阶段低电量告警和告警取消 在主光源点亮的状态,电池电量耗尽前约 1 小时,主光源会有规律明暗交替闪烁(每 5 秒闪烁一 次) ,用于提示电池电量快耗尽了,需要重新充电。如果不希望灯光不停闪烁而影响照明,可以按 下开关按钮 2 秒以上,主光源会在闪烁两次后停止告警提示,并进入正常照明状态。 在电池电量仅足以维持照明 10 分钟左右的时候, 主光源会有规律明暗交替快闪 (每 2 秒闪烁一次) 告警,提示电池电量马上就要耗尽了,需要马上充电或切换到低亮模式。 4.5 WISDOM LAMP 4 光学镜片配件 WISDOM LAMP4 提供多种光学镜片配件,可变换照射模式,增强了多用途灯的实用性. 镜头装拆示意图: 图一(安装动作) 图二(拆卸动作)...
  • Page 33 4.5.1 光学镜片 1 把光学镜片 1 卡于多用途灯的镜片卡槽处,即可以将原来的多用途灯的强光变成大范围的柔光,是 出外露营的不错的照明灯具。 未使用光学镜片 使用光学镜片 1 4.5.2 光学镜片 2 把光学镜片 2 卡于多用途灯的镜片卡槽处,即可以将原来的多用途灯的强光变成小范围的柔光, 是夜晚看书写字理想的台灯。 未使用光学镜片 使用光学镜片 2 4.5.3 光学镜片 3\5\6 光学镜片 3\5\6 是专门为自行车设计的一款照明配件,将其卡在多用途灯的镜片卡槽处,可以将点 光源的强光拓展到宽阔的可视范围,非常适合骑自行车夜间照明。 未使用光学镜片 使用光学镜片 3...
  • Page 34 光学镜片 5 (透明) 未使用光学镜片 使用光学镜片 5 光学镜片 6 (透明) 未使用光学镜片 使用光学镜片 6 4.5.4 光学镜片 4 将光学镜片 4 装在多用途灯上时,可使原白光变成多种颜色的光,非常适合夜间警示、求救及娱 乐等。. 固定在墙上使用 WISDOM LAMP 4 无绳多用途灯利用帽钩的 独特设计,还可以利用钉子挂在墙上使用。 挂绳方式 WISDOM LAMP 4 无绳多用途灯可以选配挂绳, 作为便携式照明使用。 多用途灯挂绳的方式如下:...
  • Page 35 WISDOM LAMP 4 自行车支架配件 WISDOM LAMP 4 多用途灯可选配自行车支架,转为自行车一族设计,它能让多用途灯紧密固 定于自行车把上,让 WISDOM LAMP 4 能够作为自行车灯来使用,增加四代灯的多方式固定使用 的功能。其安装示意图如下: 步骤一:准备好自行车支架与配套的紧固线圈。 步骤二:将紧固线圈一端扣于自行车支架上,另一端用手捏住并绕在自行车把手上。 步骤三:将绕过自行车把手一端的紧固线圈扣住自行车支架的另一头,安装支架完成。 步骤四:将 WISDOM LAMP 4 的塑胶帽钩卡入自行车支架中。...
  • Page 36 步骤五:安装完成。...
  • Page 37: 故障与检修

    为了确保 USB 的充电功能正常, 请及时清洁 USB 充电点限位槽里的污洉。  为了确保移动电源功能正常使用,请妥善保管好磁力充电线和转接头,并注意清洁。  7 安全警示 多用途灯在工作时不能直接对人眼睛照射,否则强光会损伤人的视力。  严禁随意拆卸多用途灯的零部件,严禁在危险场所使用缺少零件的多用途灯,否则会影响安全性  及可靠性。 严禁摔打多用途灯。  严禁将多用途灯靠近或投入火源中。  报废多用途灯应集中处理,不得随意丢弃。  8 包装规格 多用途灯配件采用 WISDOM LAMP 4 彩盒包装,彩盒尺寸为:175 x 105 x 70 毫米。  每 24 个无绳灯采用纸箱包装,纸箱外形尺寸为:38 x 22.5x 44 厘米。 ...
  • Page 38 WISDOM www.wisdom.hk 28990261 电话:0755- 邮箱: info@wisdom.hk 工厂地址:深圳市龙岗区龙城街道嶂背路 9 号 1、4 楼 邮编:518172...
