- Page 1 INSTALLATION AND OPERATION INSTRUCTIONS...
-
Page 2: Parts Breakdown

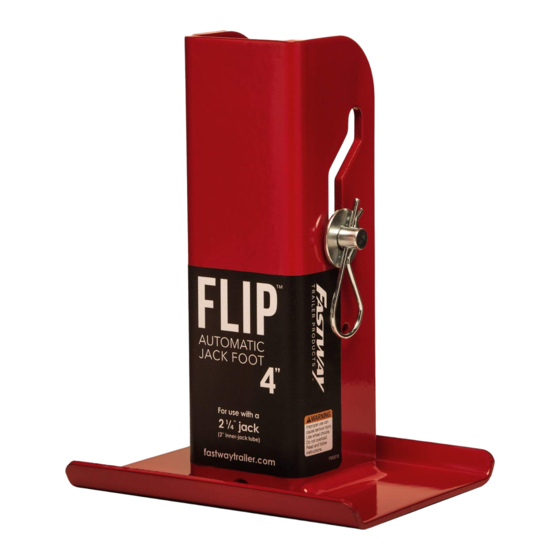

4” FLIP automatic jack foot 88-01-6600 6” FLIP automatic jack foot 88-02-5125 3/8” x 2-3/4" clevis pin zinc Maximum lift capacity: 4,000 lb with both sides of trailer chocked and parked on a grade less than 5% or 3˚. Fastway FLIP - Faster, Easier.™... - Page 3 WARNING • Read entire instruction manual before using this product. Failure to do so can result in serious injury or property damage. • Never exceed maximum 4,000 lb. lift capacity. • Do not use the FLIP foot to support a trailer parked on grades steeper than 5% (~3°).
-
Page 4: Installation Instructions
INSTALLATION INSTRUCTIONS STEP 1 Park the trailer on a flat level surface, such as a driveway or parking lot. Chock both sides of the trailer, and set the tow vehicle parking brake. Keep the trailer coupled to the tow vehicle, or place jack stands under the trailer tongue to support the trailer without using the tongue jack. - Page 5 Slide the spacer ring up onto the jack tube, followed by the stop washer. The rings should slide freely up and down the tube. If the tube is bent or damaged so as to not allow this, cut the damaged end off of the jack, and follow STEP 3 to drill a new mounting hole in the jack, or replace the jack.
- Page 6 Retract the tongue jack far enough that you can fit a wood block and Fastway FLIP jack foot under the inner jack tube. Place the wood block on the ground, and place the jack foot on top, face down with the base plate toward the back of the trailer.
- Page 7 Retract the jack to a comfortable drilling height, and remove the FLIP jack foot and the wood block. Use a 3/8” drill bit to enlarge each pilot hole. Once the tube wall has been penetrated, ream out the hole slightly to de-burr it and open it up.
- Page 8 INSTRUCTIONS FOR USE Do not use the FLIP foot to support a trailer parked on grades steeper than 5% (~3°). Both driver and passenger sides of the trailer must be securely chocked when using the FLIP jack foot. Do not support trailer with jack foot resting on sloped ground or debris .
- Page 9 the hitch. Make sure to not exceed the 4,000 lb maximum lift capacity. Once the spring arms are disengaged, lower the trailer and tow vehicle back to a point where the tow vehicle is supporting the trailer’s tongue weight. Uncouple the coupler, and extend the jack to raise the coupler off the ball.
- Page 10 With jack fully retracted Correct Incorrect Retract the jack completely until the FLIP rotates up and out of the way for towing. If the jack does not retract far enough to accomplish this, you may take up the difference by adding an additional stop washer(s) between the top of the FLIP foot and the spacer ring.
- Page 11 Limited one year warranty Progress Mfg. Inc. warrants, to the original purchaser, this product against defects in materials and workmanship for a period of one year from date of purchase. This warranty does not cover damage due to normal wear and tear, misuse, neglect, abuse, or product finish.
- Page 12 Other Great Fastway Products! The Fastway Zip breakaway ™ cable’s coiled design keeps your cable from dragging! ONESTEP ™ STABILIZING WHEEL CHOCK The safest, most secure way to chock your trailer Fastway Trailer Products 353 South 1100 West, Provo, UT 84601 877-523-9103 fastwaytrailer.com...
